5 essentials for parapet wall design in brick work: Pro-grade guidance, code-backed details, and friendly tips for better brick parapets

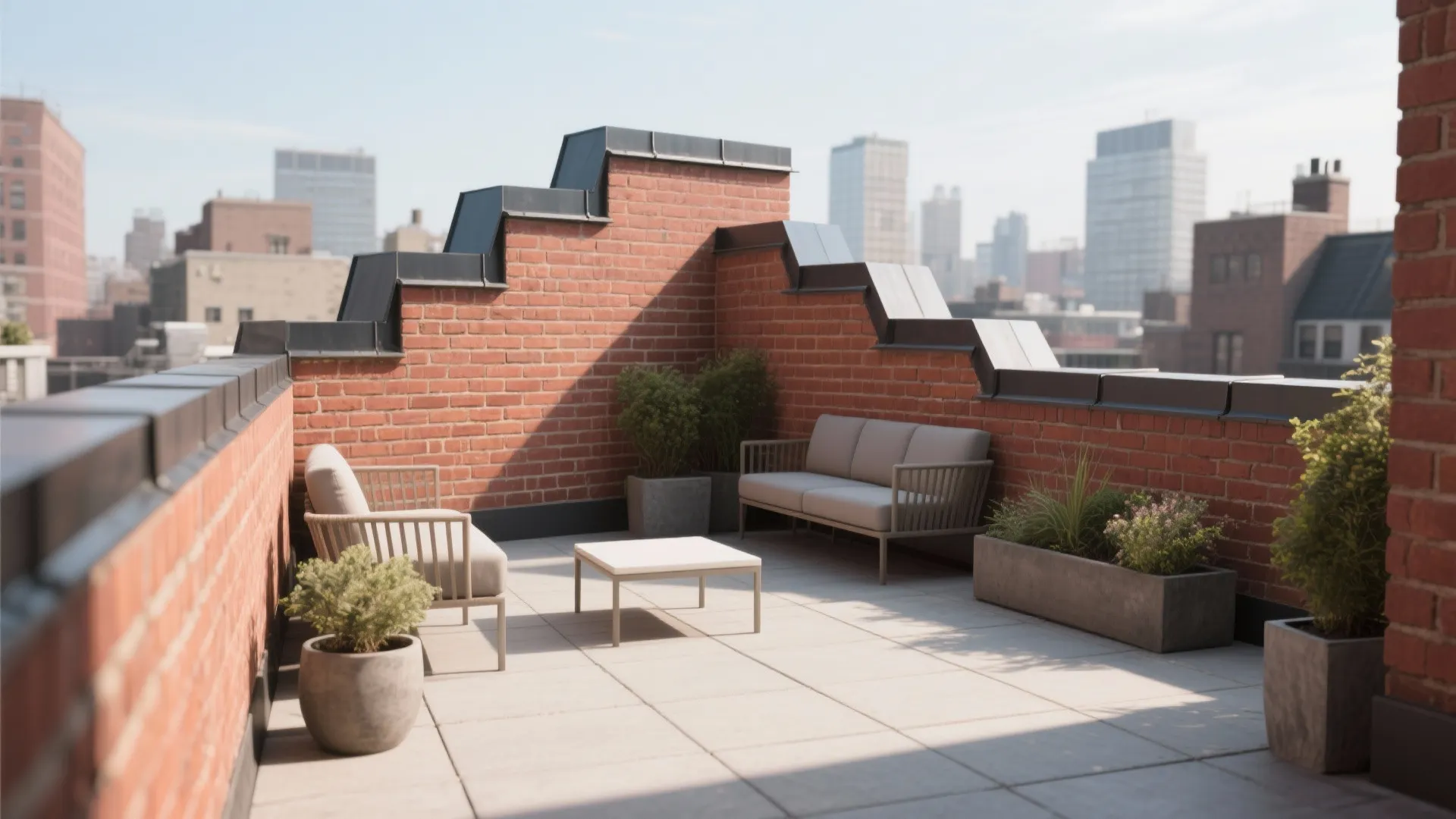

When clients ask me about parapet wall design in brick work, I think about how quickly trends have shifted toward expressive, durable roof edges—subtle profiles, smarter drainage, and honest brick textures. On tight urban rooftops, a stepped brick parapet profile can frame small terraces beautifully while still meeting performance demands. Small spaces spark big creativity, and the parapet is often where that creativity meets the elements head-on.

Across dozens of renovations, I’ve learned that a brick parapet can be both a safety barrier and a character line—if we detail it like a miniature façade. In this guide, I’ll share 5 design inspirations for parapet wall design in brick work, blending my field-tested experience with expert data so you can build something handsome and resilient.

We’ll cover weatherproofing, coping profiles, reinforcement, patterned bonds, and drainage—because even the smallest rooftop corner deserves thoughtful craft. I’ll keep it practical with pros and cons, budgets, and real sources, so you can make decisions with confidence.

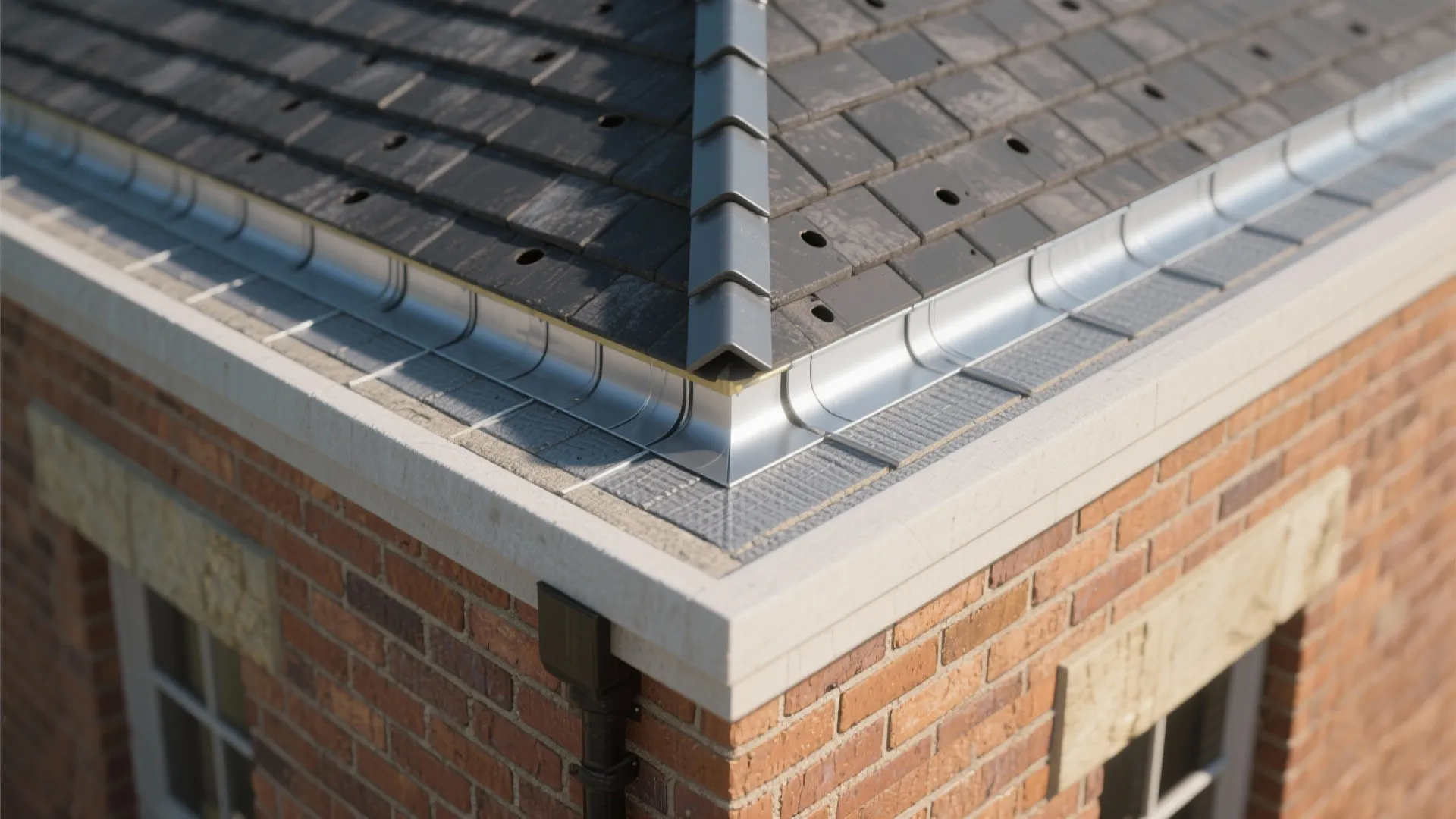

Weatherproof-first detailing

My Take: On a windy coastal project, I once rebuilt a failing parapet where water had tunneled under the coping and stained the living room ceiling. Ever since, I’ve treated damp-proof courses, flashings, and drip edges as non-negotiable layers. A brick parapet isn’t a garden wall—it’s a roof edge battling rain, wind, and temperature swings.

Pros: Specifying a robust damp-proof course and continuous flashing at the parapet-to-roof interface keeps water out and reduces efflorescence on face brick. Long-tail essentials like “parapet wall damp-proof course detail” and “brick parapet flashing best practices” translate directly to fewer callbacks. Brick Industry Association guidance (Technical Notes 7 on Water Penetration Resistance) supports proper flashing and weep detailing as a primary defense.

Cons: More layers mean more coordination and cost, especially if you choose higher-grade membranes or metal flashings. If the drip edge is too subtle, you’ll get annoying streaks down the wall—pretty in photos, not so pretty in person. And yes, flashing that’s over-visible can upset purists; I’ve mediated more than one debate between aesthetics and performance.

Tips / Case / Cost: I aim for a minimum 2-degree slope on copings, generous drip edges, and a continuous DPC set just above the roof finish. If budget allows, a stainless steel or high-quality aluminum flashing is worth it. Typical material cost for premium flashings and membranes might add 10–20% to parapet finish budgets, but that’s cheap insurance against leaks.

save pin

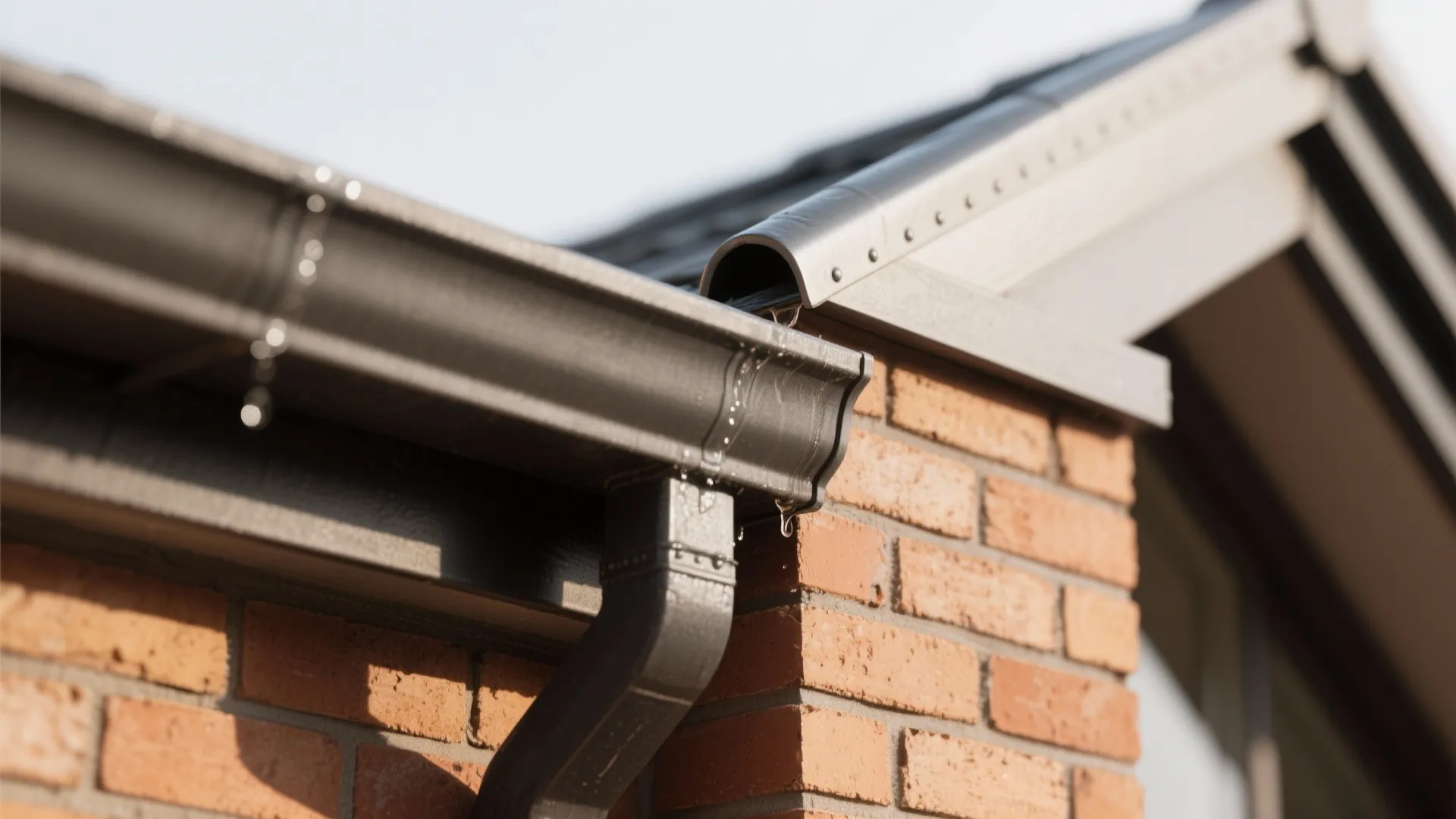

Coping choices and drip edges

My Take: Coping is your parapet’s hat—choose it well. I love the honesty of brick soldier-course copings in heritage settings, but I’ll often specify a saddle-shaped precast or metal coping with a neat drip for heavy weather. The trick is balancing visual rhythm with maintenance realities.

Pros: Defined drip edges keep façades cleaner and reduce long-term staining, which means less scrubbing and fewer complaints. Long-tail keywords like “parapet wall coping detail with drip edge” and “brick coping profiles for rain” point to practical refinements that also look elegant. IBC 2021 Section 1403.2 (Weather protection) reinforces the idea that the building envelope—including parapet details—must shed water effectively.

Cons: Brick copings without a proper slope can pool water, and tight mortar joints can open under freeze–thaw. Precast caps look crisp but introduce joint lines and require a good sealant routine. Metal copings are durable but can read “too modern” on historic façades, so context matters.

Tips / Case / Cost: For busy climates, I’ll specify a 1:12 slope on copings and double-check that the drip edge projects at least 13–20 mm beyond the face brick. A soldier-course brick coping is cost-effective and handsome but needs rigorous pointing; precast or metal caps raise material costs by 15–30% while lowering maintenance. For heritage sites, I blend two courses—one structural, one decorative—to get the look and the performance.

In practice, the right profile can lift a minimalist rooftop into something special—an arched brick coping adds character without shouting, and it sheds water gracefully when detailed with a hidden drip.

save pin

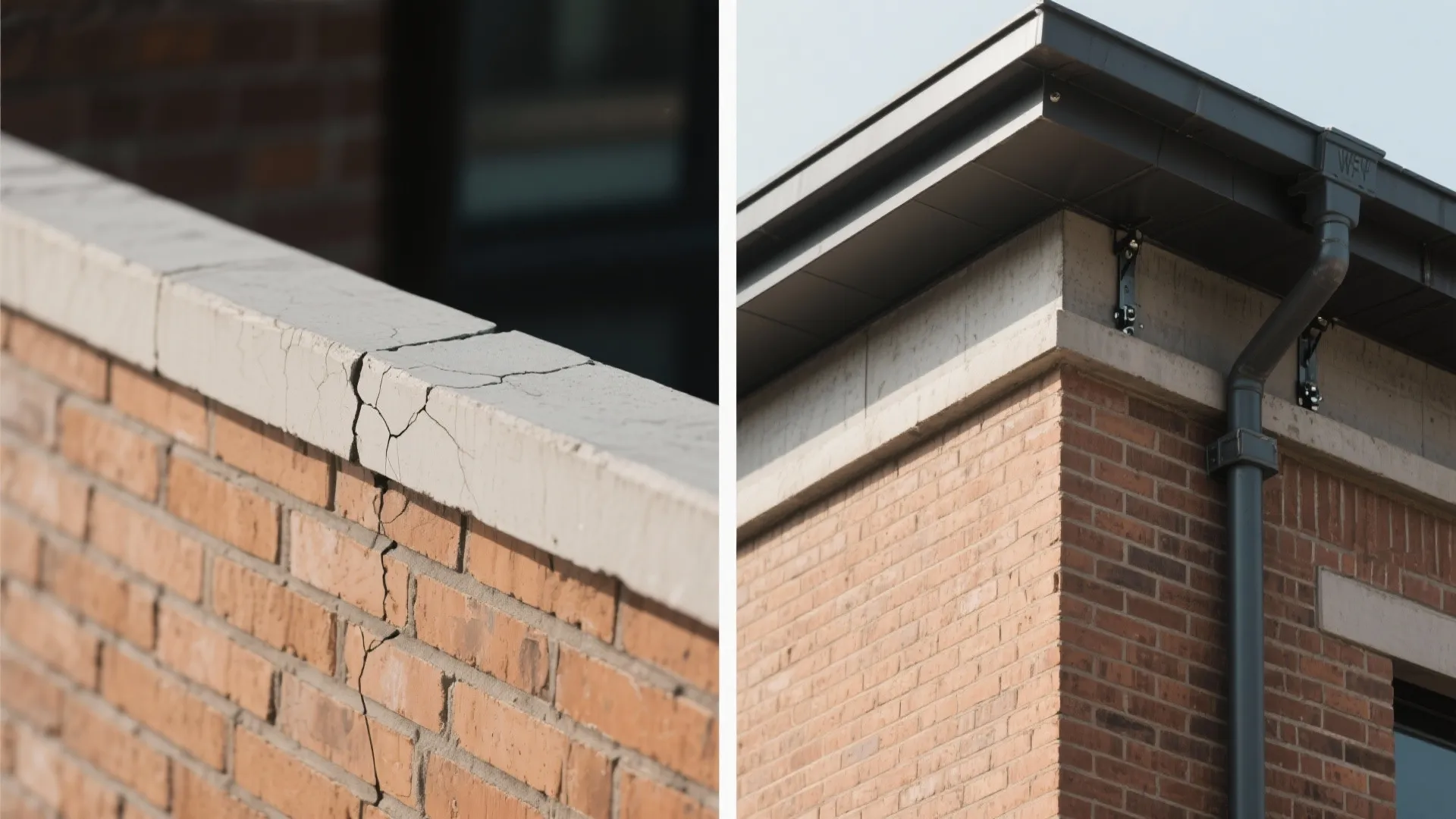

Reinforcement and height ratios

My Take: I once inherited a parapet that wobbled like a bookshelf on a trampoline—the height-to-thickness ratio was way off for local wind loads. Since then, I’ve treated bond beams, reinforcement, and anchorage to the roof structure as a quiet form of architecture: invisible, but everything stands because of it.

Pros: Getting “brick parapet reinforcement detail” right stabilizes the wall against wind uplift and seismic twitch. Following “parapet wall height regulation” guidelines reduces risk—TMS 402/602 (Building Code Requirements and Specification for Masonry Structures) provides clear direction on reinforcement, anchorage, and allowable slenderness limits. In short, code-backed details equal fewer surprises in winter storms.

Cons: Engineering adds fees and time, and sometimes you’ll hear, “But it looked fine before.” Retrofitting reinforcement in existing parapets can be messy and disruptive. Integrated bond beams can complicate aesthetic ambitions if your finish thickness is tight.

Tips / Case / Cost: I target conservative height-to-thickness ratios and integrate a reinforced concrete bond beam near the top, tied back to roof framing. Allow for movement joints per structural engineer’s advice—overlooking them is a classic failure. Expect engineering consults and reinforcement to add 5–12% to total parapet costs, depending on complexity.

save pin

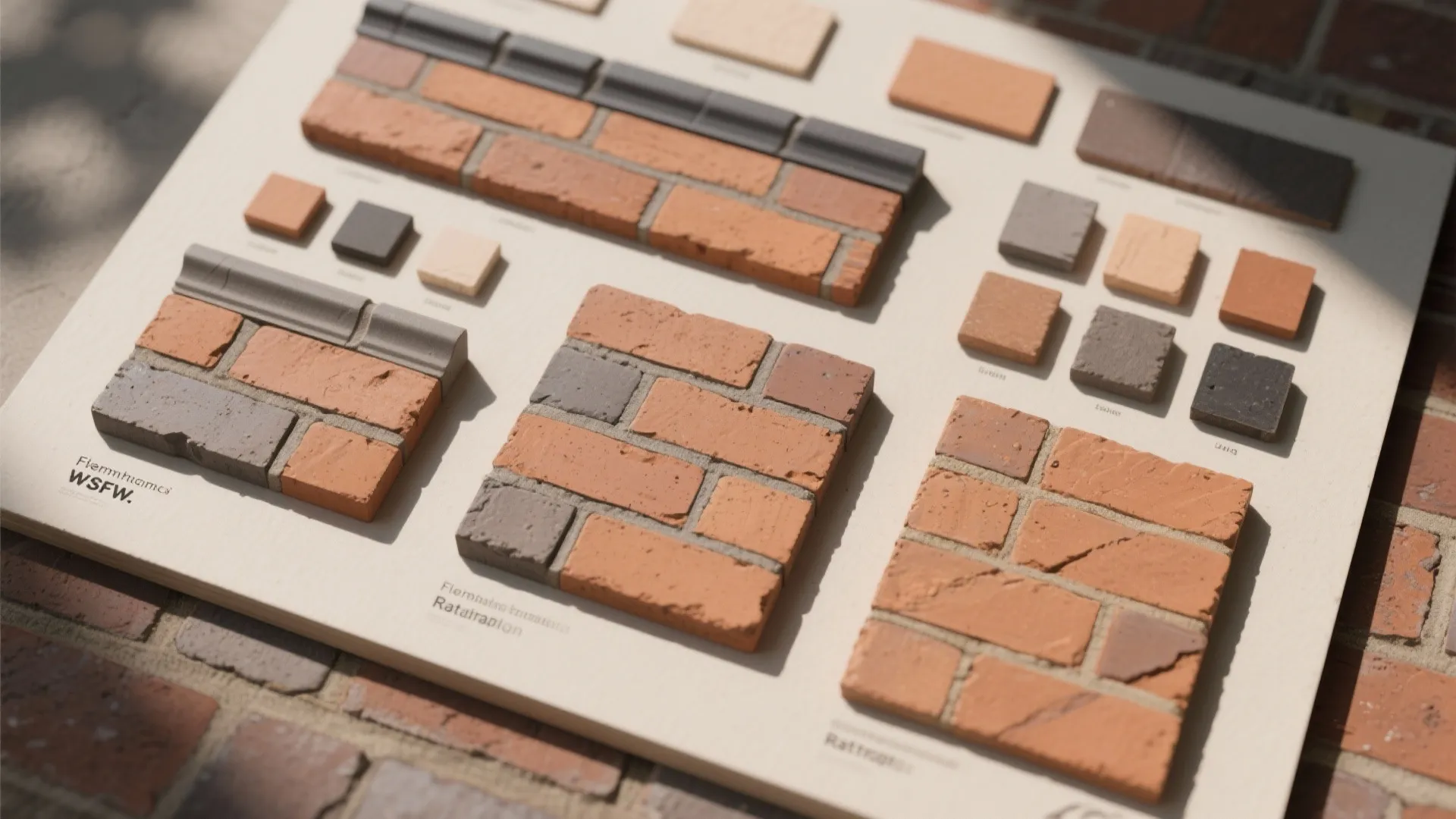

Expressive bonds and patterns that perform

My Take: Brick is a language, and the parapet is where you can speak softly or sing. Flemish bond feels refined; English bond is stout; and rat-trap bond brings airy economy with a handsome shadowline. I’ve used patterned pilasters to anchor corners so the rhythm doesn’t compromise structure.

Pros: Long-tail design moves like “Flemish bond brick parapet pattern” and “rat-trap bond parapet wall detail” give you texture and thermal advantages. Rat-trap bond, with its vertical cavities, can reduce material while boosting insulation modestly. Done well, expressive bonds announce craftsmanship without adding bulk.

Cons: Patterned work demands skilled bricklayers; otherwise, misaligned arrises and uneven profiles turn elegance into chaos. Complex bonds can create weak points if not coordinated with reinforcement and DPC locations. And let’s be honest: not every contractor is thrilled by a mock-up day, though it’s often the best money you’ll spend.

Tips / Case / Cost: I schedule a small on-site sample for bond and coping articulation—it sets quality expectations and lets everyone agree on color, joint, and rhythm. Complex bonds can add 8–15% to labor cost; the payoff is visual depth that survives close inspection. Pilasters at intervals offer both expression and stiffness.

When materials are tight or sustainability is in focus, a considered rat-trap bond reduces material and adds a subtle play of light—just don’t forget to integrate it with your DPC and reinforcement plan.

save pin

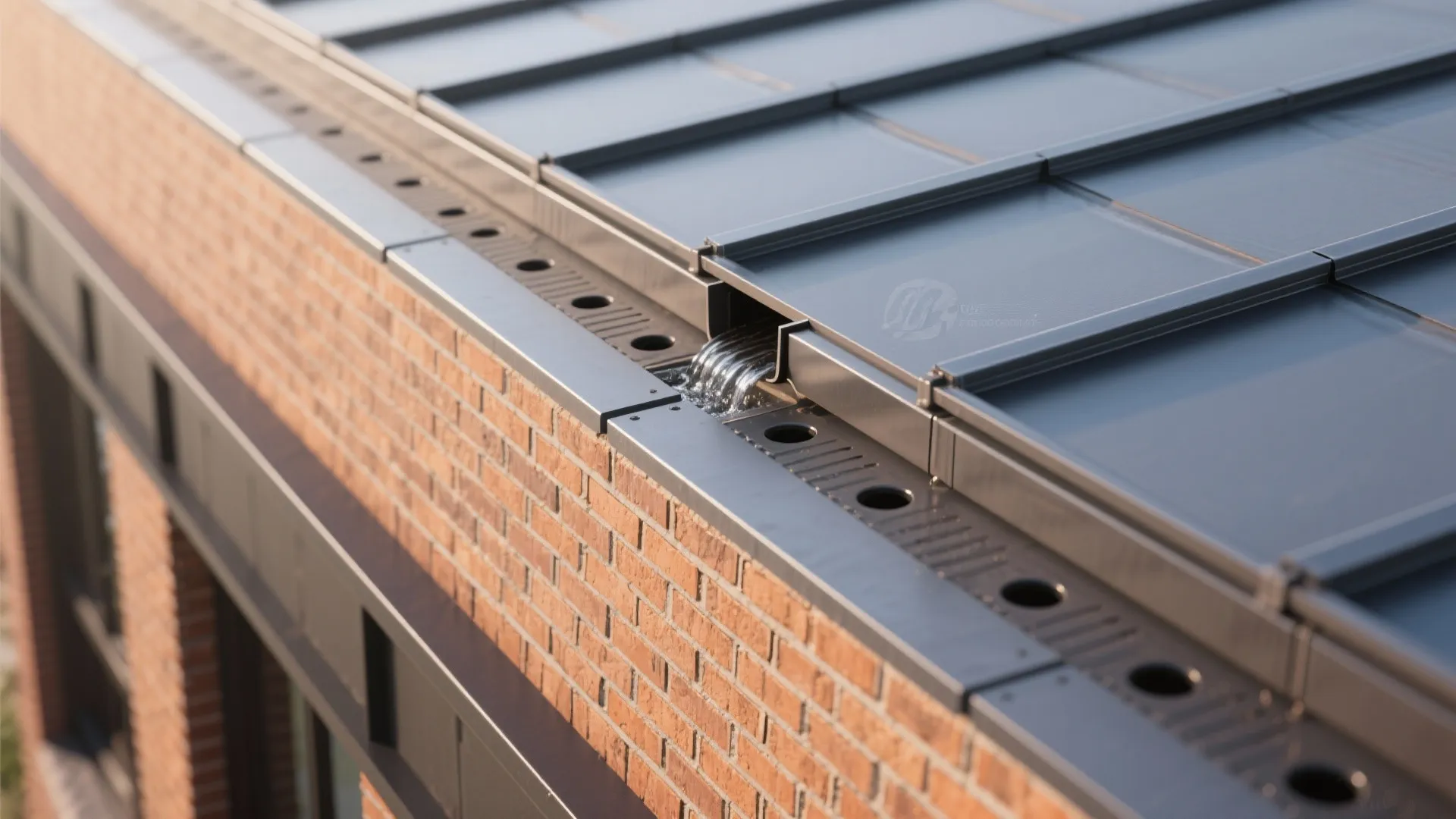

Drainage, joints, and maintenance that keep stains away

My Take: The least glamorous details were my biggest teacher. On one job, blocked weep holes turned a crisp parapet into a watercolor of stains. Since then, I’ve treated weeps, scuppers, and expansion joints as a trio—each one keeps the others honest.

Pros: “Parapet wall weep hole detail” and properly sized scuppers whisk water away before it migrates into joints or onto the face brick. Expansion joints (and careful sealants) help accommodate movement so your coping and flashing don’t crack. BS 8215 on damp-proof courses supports the principle that controlled moisture paths prevent damage and discoloration.

Cons: Weep holes can become insect hotels if you don’t specify covers; scuppers need occasional clearing; and sealant maintenance is real. Overzealous cleaning can abrade the face brick or smear efflorescence, so gentle methods are best. I’ve seen well-intended power washing turn small stains into big ones.

Tips / Case / Cost: I favor weeps every 450–600 mm depending on local rainfall, with insect-resistant covers. Scupper sizing should match your roof’s calculated flow; don’t eyeball it. Maintenance plans are cheap—annual checks cost little and save you from expensive rework.

save pin

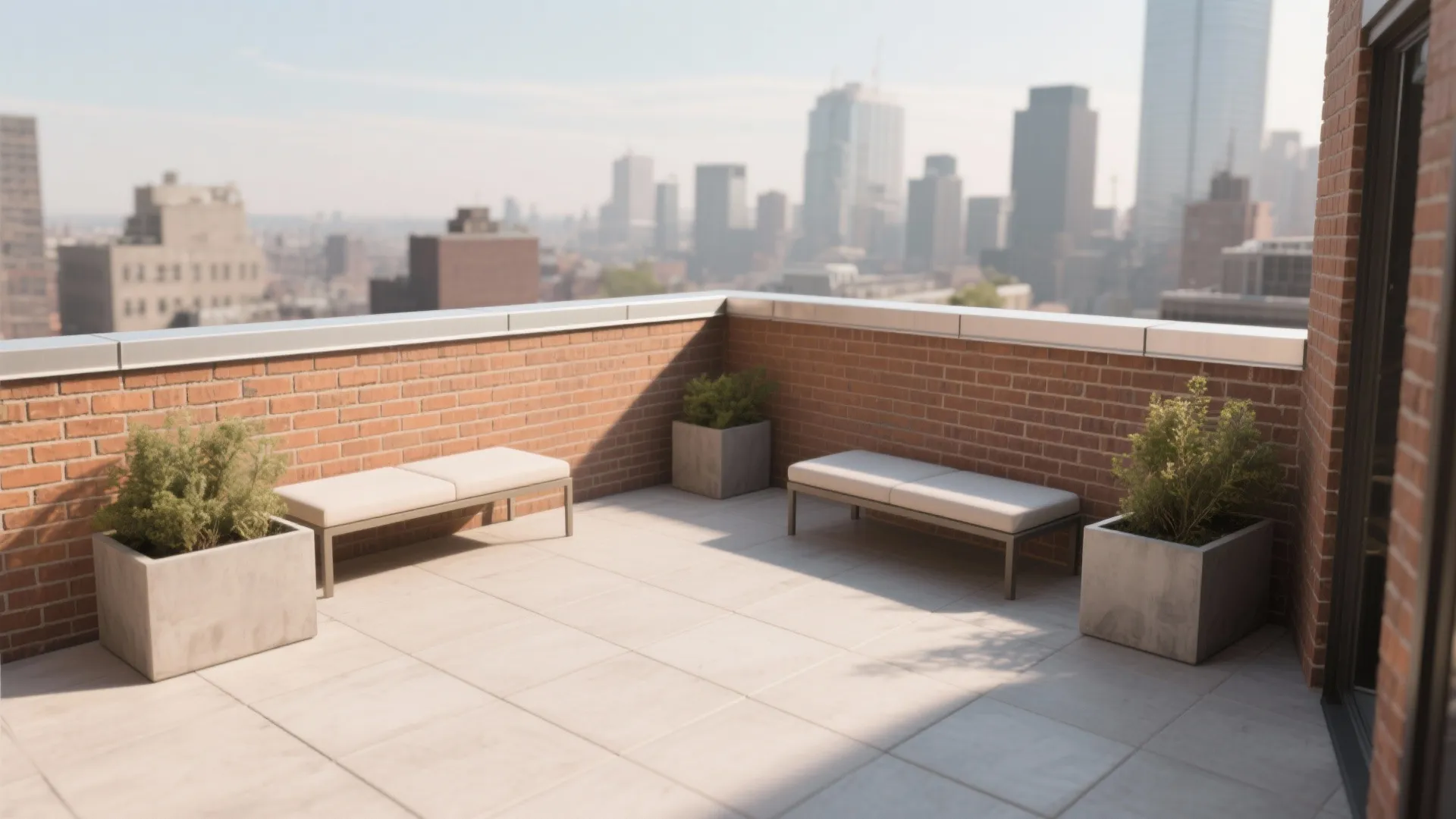

Summary

Parapet wall design in brick work is a chance to think smarter, not bigger, and small spaces spark big creativity when details do the heavy lifting. If you prioritize weatherproofing, choose coping that sheds water, respect structural ratios, use bonds that perform, and plan for drainage, you’ll have a parapet that looks beautiful and behaves like a pro. Brick Industry Association notes and TMS 402/602 reinforce what our gut already knows: better details equal better buildings.

Which of these five ideas would you try first on your next parapet—coping profiles, expressive bonds, or the unsung heroes of drainage?

save pin

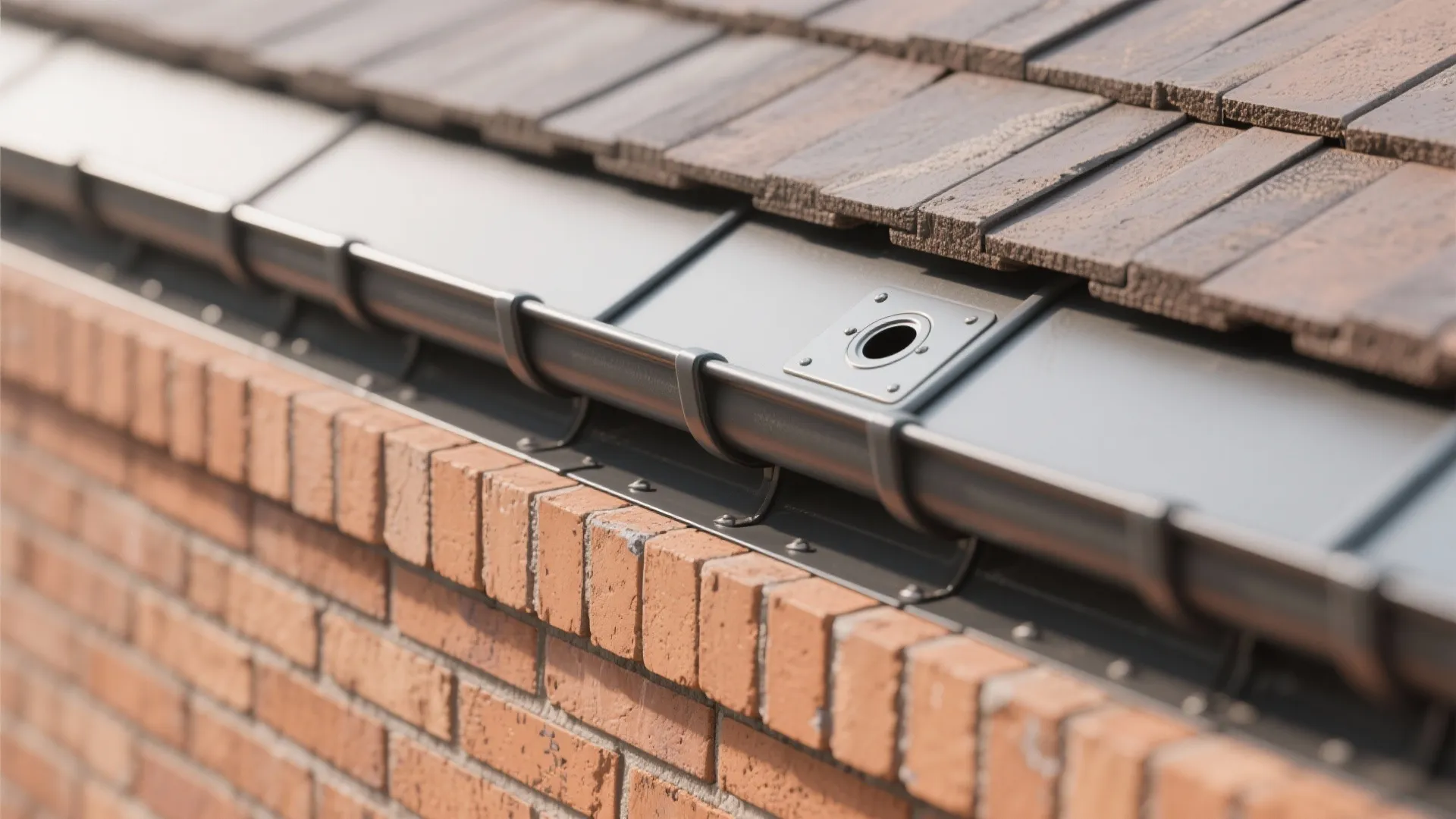

FAQ

1) What is the best height for parapet wall design in brick work?

Local codes and wind exposure matter, but many designers coordinate height-to-thickness ratios per TMS 402/602 guidelines. Your structural engineer will tune the numbers for site loads and roof framing.

2) How do I stop water staining on brick parapets?

Use a sloped coping with a defined drip edge, continuous flashing, and weep holes. Regular maintenance—clearing scuppers and checking sealants—prevents the slow creep of stains.

3) Do I need reinforcement for a brick parapet?

Often yes, especially on taller or exposed parapets. A bond beam near the top tied to roof framing improves performance; this aligns with TMS 402/602 recommendations on masonry stability.

4) Which coping is best: brick, precast, or metal?

Brick copings suit heritage looks but need careful pointing and slope. Precast and metal cap with crisp drips and lower maintenance—choose based on climate, style, and your maintenance plan.

5) What about damp-proof courses in parapet wall design in brick work?

A DPC above roof level plus continuous flashing is foundational. BIA Technical Notes (e.g., TN 7 on water penetration resistance) support correct placement and weep detailing to keep interiors dry.

6) Can patterned bonds like Flemish or rat-trap work on parapets?

Yes, if they’re coordinated with reinforcement and DPC lines. Rat-trap bond can reduce material while adding depth; Flemish bond reads refined—mock-ups help calibrate craftsmanship.

7) How often should I maintain a brick parapet?

Annually check weeps, scuppers, sealants, and flashing. After severe weather, do a quick inspection to catch small issues before they become leaks.

8) Are there specific code references for parapet weather protection?

IBC 2021 Section 1403.2 covers weather protection; TMS 402/602 guides masonry design; BS 8215 addresses damp-proof courses. Aligning with these keeps your parapet compliant and resilient.
