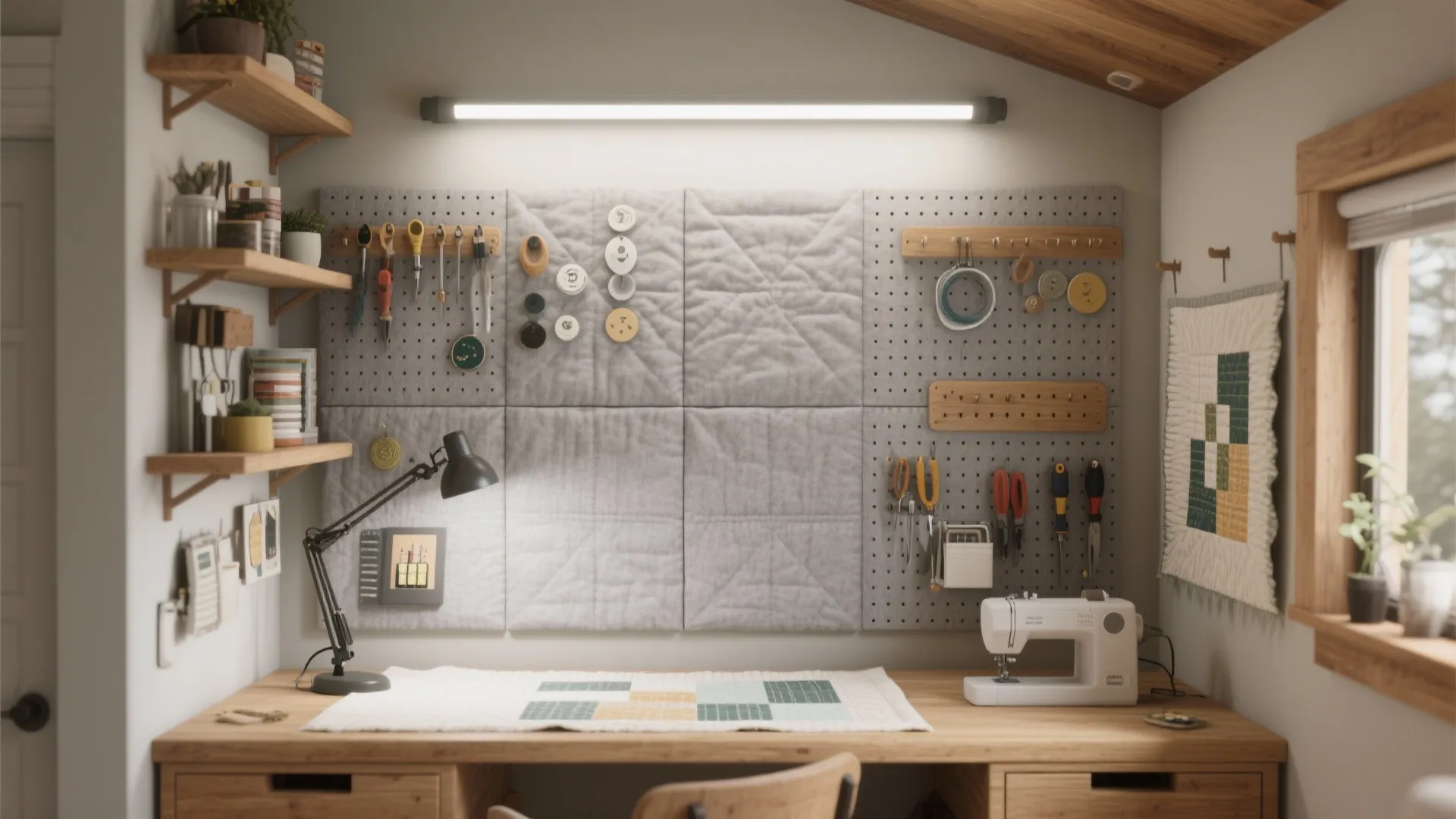

5 Quilting Design Wall Ideas for Small Spaces: From modular panels to magnetic surfaces, here are five pro-tested ways to build a quilting design wall that fits tiny rooms and big ambitions.

I’ve watched quilting explode alongside the broader maker movement and the micro‑home trend, and it makes perfect sense: small rooms push us to be inventive. A smart quilting design wall is where that creativity becomes visible, block by block. Over the past decade I’ve helped clients carve out vertical work zones in tight studios, and I often prototype options—like a magnetic felt surface—before we commit. Today I’m sharing five ideas that blend my hands-on experience with expert data so you can build a design wall that earns its spot in any small space.

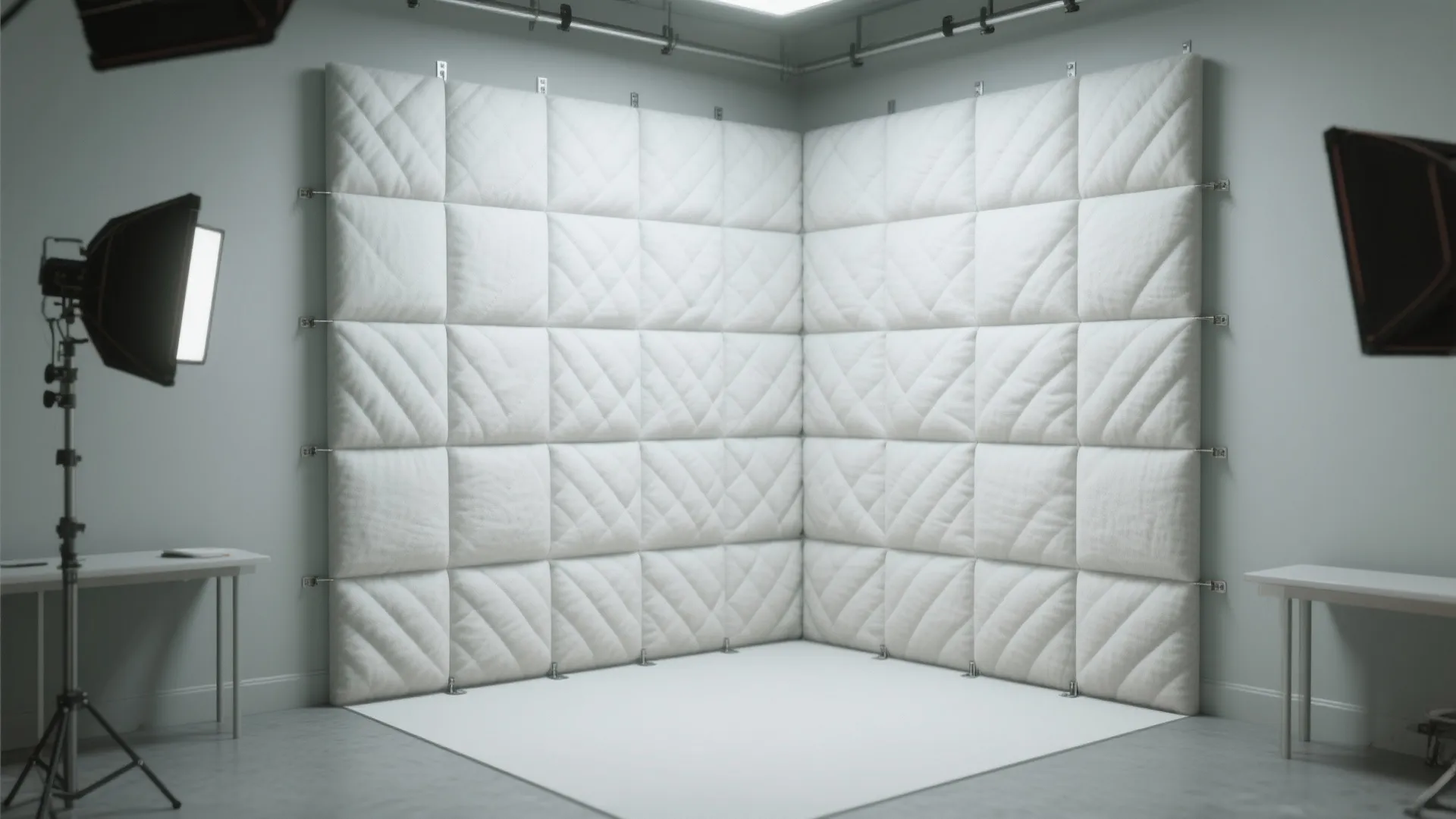

Modular Felt‑and‑Foam Panels

My Take: In a 6 m² studio, I built a quilting design wall from 2 ft x 2 ft rigid foam squares wrapped in off‑white flannel. We tiled them like oversized acoustic panels, so the wall could grow with the quilter’s ambition—without swallowing the room.

Pros: This build is light, forgiving, and inherently modular—perfect for a portable quilting design wall that can move or expand. The foam holds pins well, and the flannel grabs fabric without punctures, which is great for preserving delicate blocks. If you’re renting, mounting with removable strips keeps the wall damage‑free while delivering a clean, continuous surface.

Cons: Edges can bow if you skimp on foam thickness, and cheap flannel pills faster, leaving fuzz on dark fabrics. In very humid rooms, adhesive strips may creep over time, so revisit the corners every few months. Also, if your iron hugs the wall, heat can warp thinner foam—give it breathing room.

Tips / Cost: Wrap panels tightly and tape flannel on the back before adhesive goes on, so fabric stays drum‑taut. Budget roughly $80–$150 for a 6 ft x 6 ft wall (foam, flannel, adhesive), depending on fabric quality. If you’re mixing colors, stick to a neutral surface (light gray reads truer than pure white) to keep auditions honest.

save pin

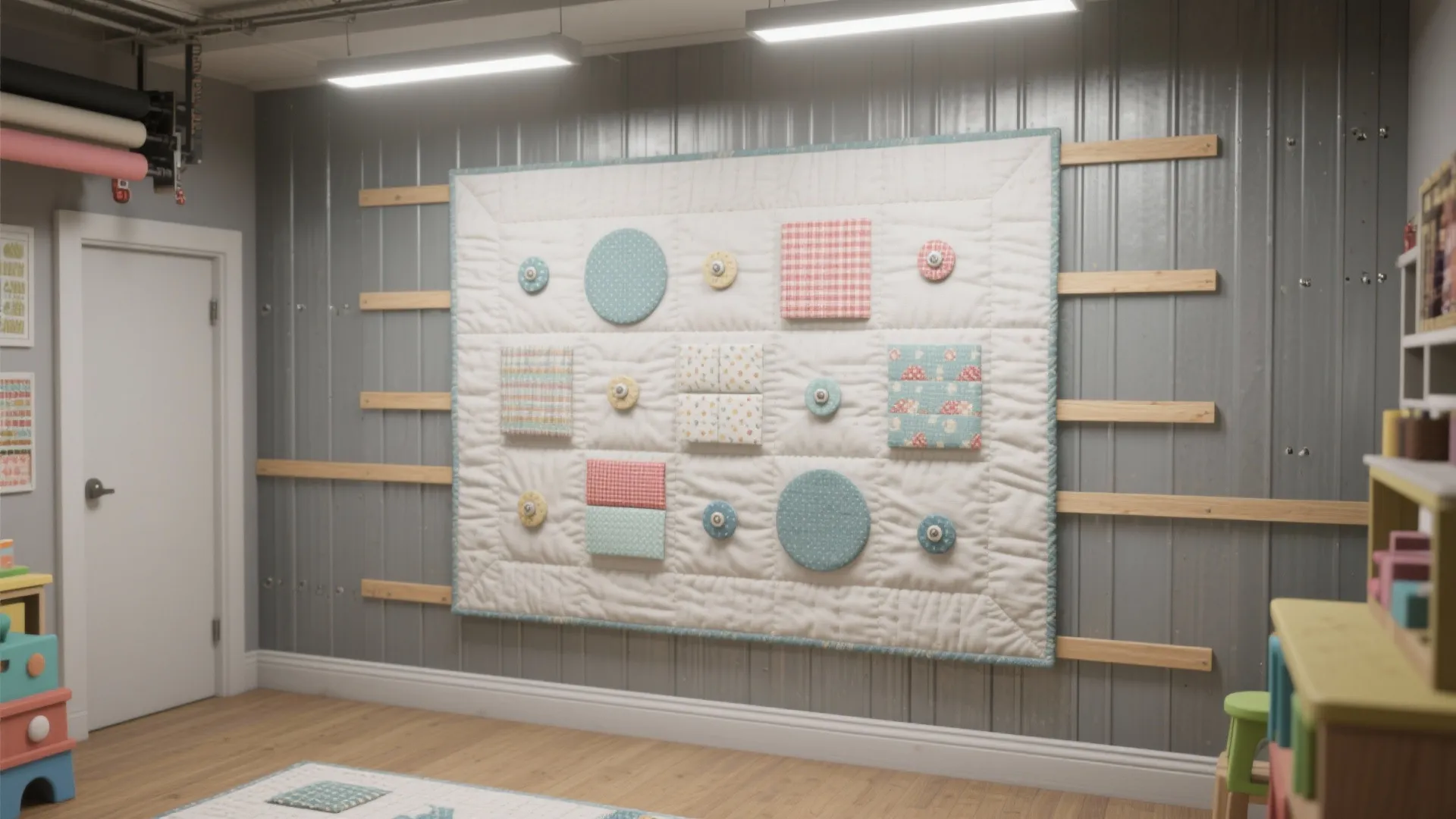

Magnetic Backing for Clean, Pin‑Free Layouts

My Take: For a client with energetic toddlers, pins were a no‑go. We installed a thin galvanized steel sheet over studs, then covered it with washable flannel. Powerful disc magnets hold blocks without a single pinhole—tidy and surprisingly strong.

Pros: A magnetic design wall for quilts creates a clean surface that won’t bruise fabric or fingers, and it’s fast to reconfigure mid‑project. Magnets stay put as you step back, squint, and swap—exactly the rhythm you want in iterative layout work. It’s also renter‑friendly if you fasten the sheet to a sacrificial plywood backer first and French‑cleat the assembly.

Cons: Steel adds weight and cost; not every wall can carry the load without finding studs or adding blocking. Strong magnets can be hazardous to small children if swallowed, so choose larger, encased versions and store extras in a lidded tin. The flannel wrap slightly reduces magnetic grip—plan on slightly stronger magnets than you think you need.

Tips / Cost: Use 26–24 gauge steel to balance stiffness and weight; pre‑paint the steel matte white before fabric so you can wipe it down if you ever remove the flannel. Expect $180–$400 for a mid‑size wall depending on steel costs and magnet quality. For crisp edges, cap the panel with thin wood battens painted to match trim.

save pin

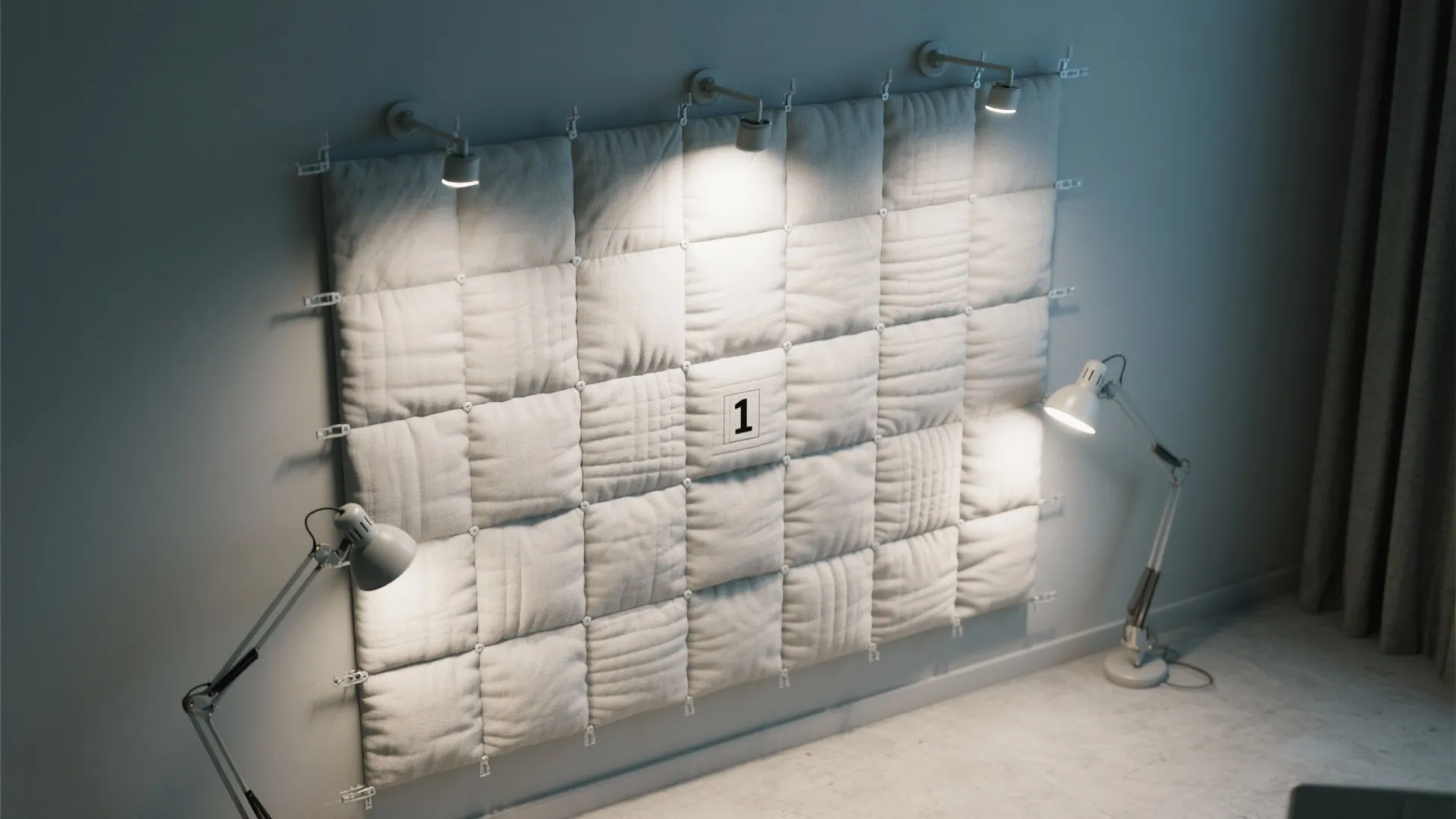

Grids, Sightlines, and Task Lighting

My Take: My favorite alignment trick is applying 1 in clear grid tape directly onto the flannel—nearly invisible from a distance but a lifesaver up close. Pair that with neutral, high‑CRI LEDs (I like 4000K) aimed at the wall, and colors behave the way they should while you shuffle blocks.

Pros: A light grid under your blocks reduces ruler time and keeps sashing straight, especially on a large quilt layout board. With LED task lighting targeting 300–500 lux at the wall, you’ll see seam values and subtleties in low‑contrast prints; the Illuminating Engineering Society (IES) recommends this range for detailed visual tasks (IES Lighting Handbook). High CRI (90+) lamps help a quilting design wall render color accurately, minimizing surprises at daylight.

Cons: Too much light can create glare on glossy fabrics and wash out mid‑tones—more isn’t always better. Warm 2700K bulbs shift whites creamy and can trick you into choosing the wrong neutral. Grids can tempt you to over‑police every millimeter; let the quilt breathe when the design calls for it.

Tips / Budget: Aim lights from 30–45 degrees to avoid your own shadow, and soft‑edge the beam with a diffused lens. If you test palettes digitally first, you can visualize color shifts in 3D before buying fabric—handy when small rooms can’t host big stashes. For color‑critical projects, simulate D50/D65 conditions using high‑CRI LEDs and compare under daylight to follow textile color‑evaluation best practices (AATCC EP9).

save pin

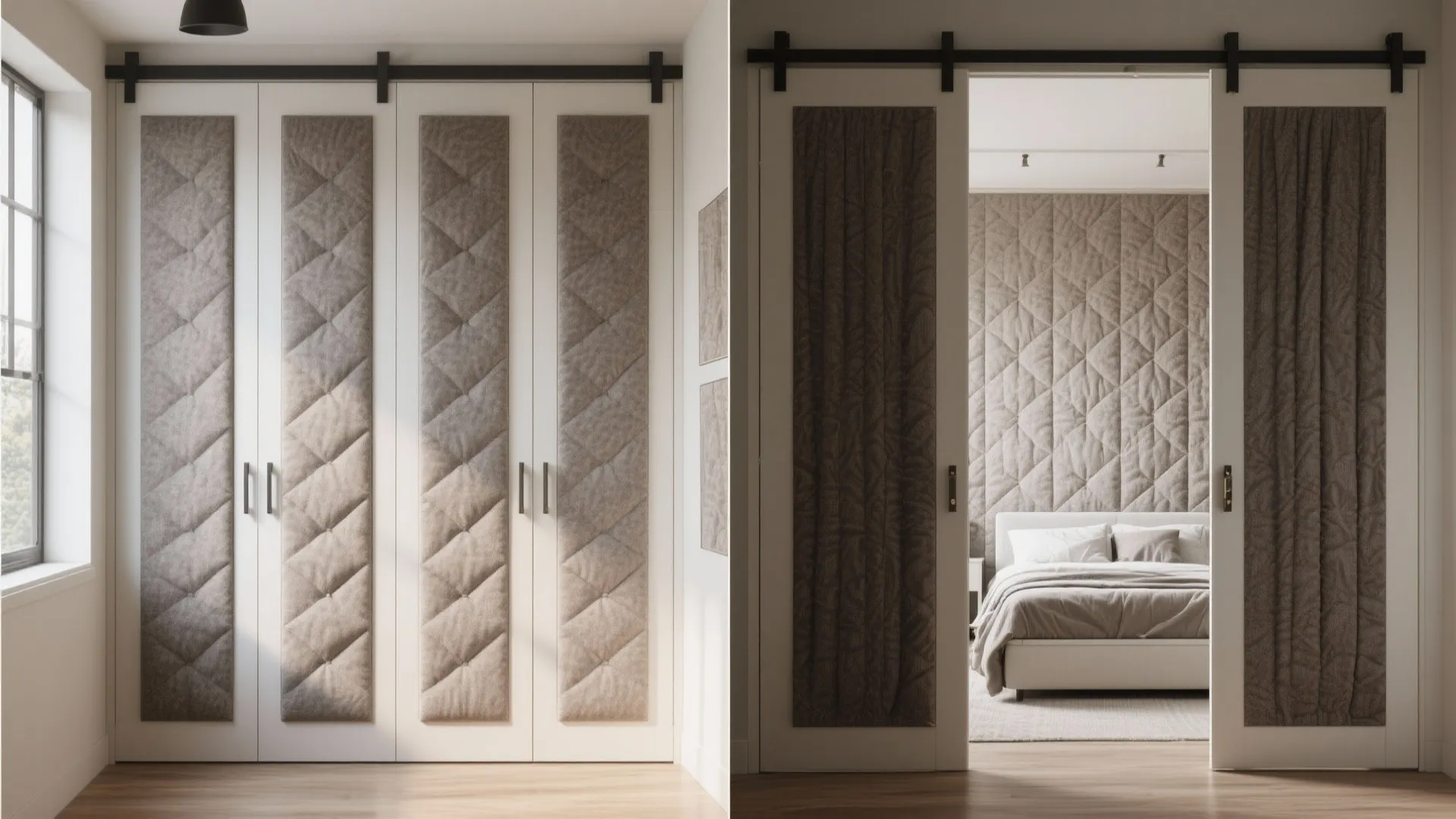

Foldable, Sliding, and Pocket Solutions

My Take: In a micro‑loft with a Murphy bed, we skinned bifold closet doors with foam‑backed flannel. When open, the room transformed into a dedicated quilting zone; when closed, it looked like a tidy wardrobe—no visual noise.

Pros: Folding quilting design wall panels are ideal for small apartments where every square foot multitasks. Sliding or pocket configurations hide works‑in‑progress, reducing visual clutter and protecting blocks from curious pets. Hardware costs are predictable, and the install is reversible when you move.

Cons: Door leaves introduce seams; if your layout spans the fold, you’ll need a fixed segment or temporary bridging strip. Sliding tracks can collect lint and thread—budget time for maintenance. Pocket walls add depth to a room; double‑check your circulation paths so you’re not bumping into the track.

Tips / Cost: For bifolds, choose solid‑core panels if you’ll pin heavily; hollow‑core doors flex. Use low‑profile recessed pulls so fabrics don’t snag. Expect $150–$500 for hardware and skins, depending on size and finish. If you rent, consider a freestanding hinged screen on castors—no screws, no drama.

save pin

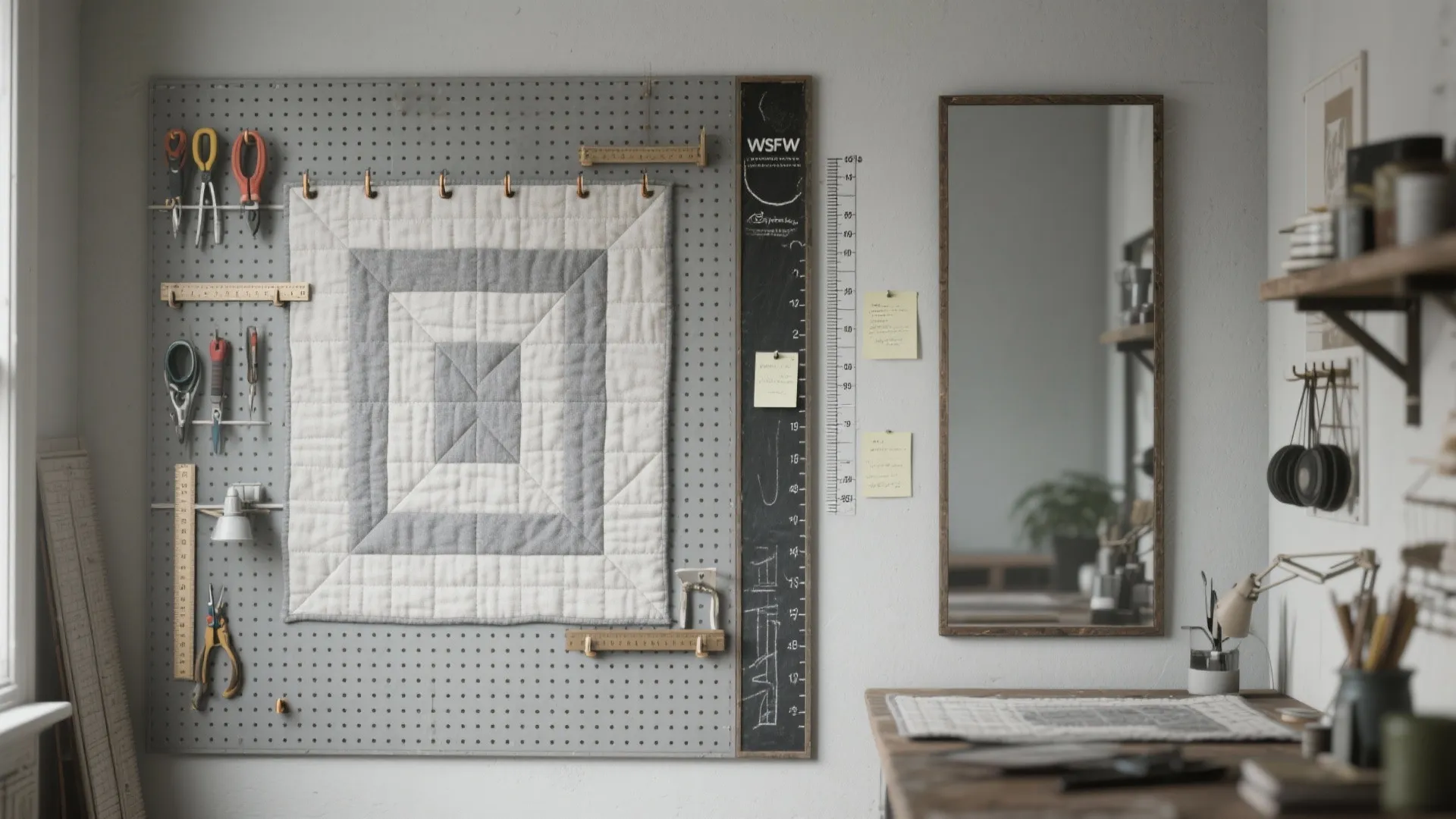

Dual‑Purpose Surfaces: Chalk, Mirror, and Pegboard

My Take: In my own studio, I combined a flannel field with a vertical strip of chalkboard paint at the edge for notes and cutting lists. A narrow mirror opposite helps me check scale from across the room—amazing how often a quilt clicks when you see it at a glance, head‑to‑toe.

Pros: Multi‑function zones pack more capability into less wall area—perfect for a small studio quilting design wall where square footage is gold. Pegboard edges hold rulers, binding clips, and thread spools, keeping tools in the visual periphery without invading the layout. A chalk strip doubles as a quick storyboard for colorways and binding auditions.

Cons: Mirrors can distract if they reflect busy shelves; keep them narrow or curtain them when not needed. Chalk dust is real—use dustless chalk and a weekly wipe‑down. Pegboard holes may telegraph through thin flannel unless you add a smooth underlayment.

Tips / Budget: Keep your layout centerline around shoulder height to reduce neck strain during long sessions; step stools beat overreaching. If you love tidy symmetry, a full-height pegboard grid framing the flannel field creates a tool halo without crowding your blocks. Budget $120–$300 depending on pegboard material (wood vs. metal), accessories, and trim.

save pin

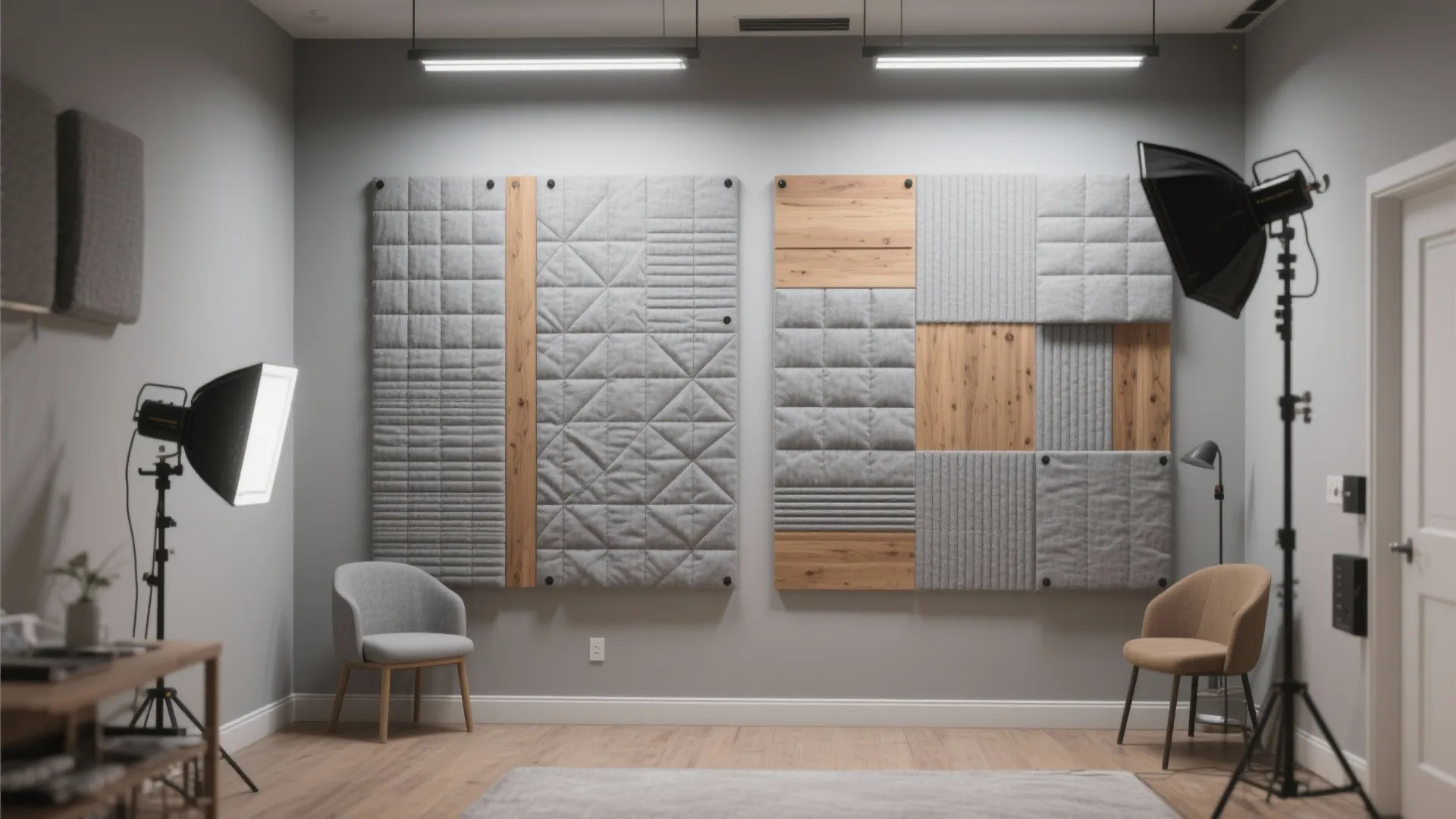

Summary

A great quilting design wall doesn’t require a big room—just smarter choices. Modular panels let you scale up, magnetic backers keep things pin‑free, precise lighting makes color decisions honest, and foldable or dual‑purpose build‑outs squeeze function from every inch. As the IES reminds us, lighting quality can make or break visual tasks, and in small studios, that’s your secret weapon. Which of these five ideas are you most excited to try first?

save pin

FAQ

1) What’s the best size for a quilting design wall in a small room?

Start with what your space can comfortably view from 6–8 feet away; a 4 ft x 6 ft panel often fits small studios. You can add modular tiles later to reach bed‑size layouts without committing on day one.

2) What fabric works best for a quilting design wall?

Unbrushed flannel or felt with a slight nap is ideal; off‑white or light gray helps true colors show. Avoid high‑static synthetics if you work with light batiks that like to slide.

3) How bright should my quilting design wall lighting be?

Aim for 300–500 lux at the wall with 90+ CRI LEDs around 3500–4000K for neutral rendering. The Illuminating Engineering Society (IES) supports this range for detailed visual tasks, helping your quilting design wall reveal subtle value shifts.

4) Can I build a portable quilting design wall I can store?

Yes—hinged foam panels wrapped in flannel fold like a screen and stash under a bed. Lightweight insulation boards with binder clips also make a quick, lean‑against‑the‑wall option.

5) Is a magnetic design wall for quilts safe around kids?

Use larger, encased magnets and store spares securely; avoid tiny loose magnets. Cover steel with flannel to soften edges and always mount into studs or a cleated backer for stability.

6) Will a dark wall color affect my fabric choices?

Yes—backgrounds influence perception. A neutral light gray quilting design wall is a safe bet because it doesn’t push colors warm or cool and keeps whites honest.

7) What’s a budget for a basic DIY quilt design wall?

Expect $80–$150 for a 6 ft x 6 ft foam‑and‑flannel build with removable strips. Magnetic builds run higher—often $200–$400 depending on steel and magnet quality.

8) How high should I mount the layout area?

Keep the centerline near your shoulder height so you can place and adjust without overreaching. If multiple people use it, aim for a shared average and add a step stool for taller quilts.
