[Section: Meta 信息] Meta Title and Description are included in the meta field. [Section: 引言] As a designer who often marries landscape and small-space planning, I’ve learned that retaining wall design is where structure meets style—and where small spaces spark big creativity. Whether you’re taming a slope or carving out an outdoor kitchen nook, a well-planned retaining wall can reshape how you live outside. In this guide, I’ll share 5 retaining wall design examples I’ve built or specified, blending personal experience with expert-backed data. By the way, one of my favorite small-yard transformations started with a compact terraced patio; the client wanted a minimal, flexible entertaining zone. We used a staggered modular wall to define levels and discreet drainage to keep everything dry—more on that below, and why it matters in long-term maintenance. For broader spatial planning, I often preview layouts with "L 型布局释放更多台面空间" to test traffic flow in tight footprints—this thinking translates surprisingly well to terraces too. For big-picture iterations, I like to visualize gradients and seating clearances with "Minimalist kitchen storage design" logic applied outdoors. [Section: 灵感列表]

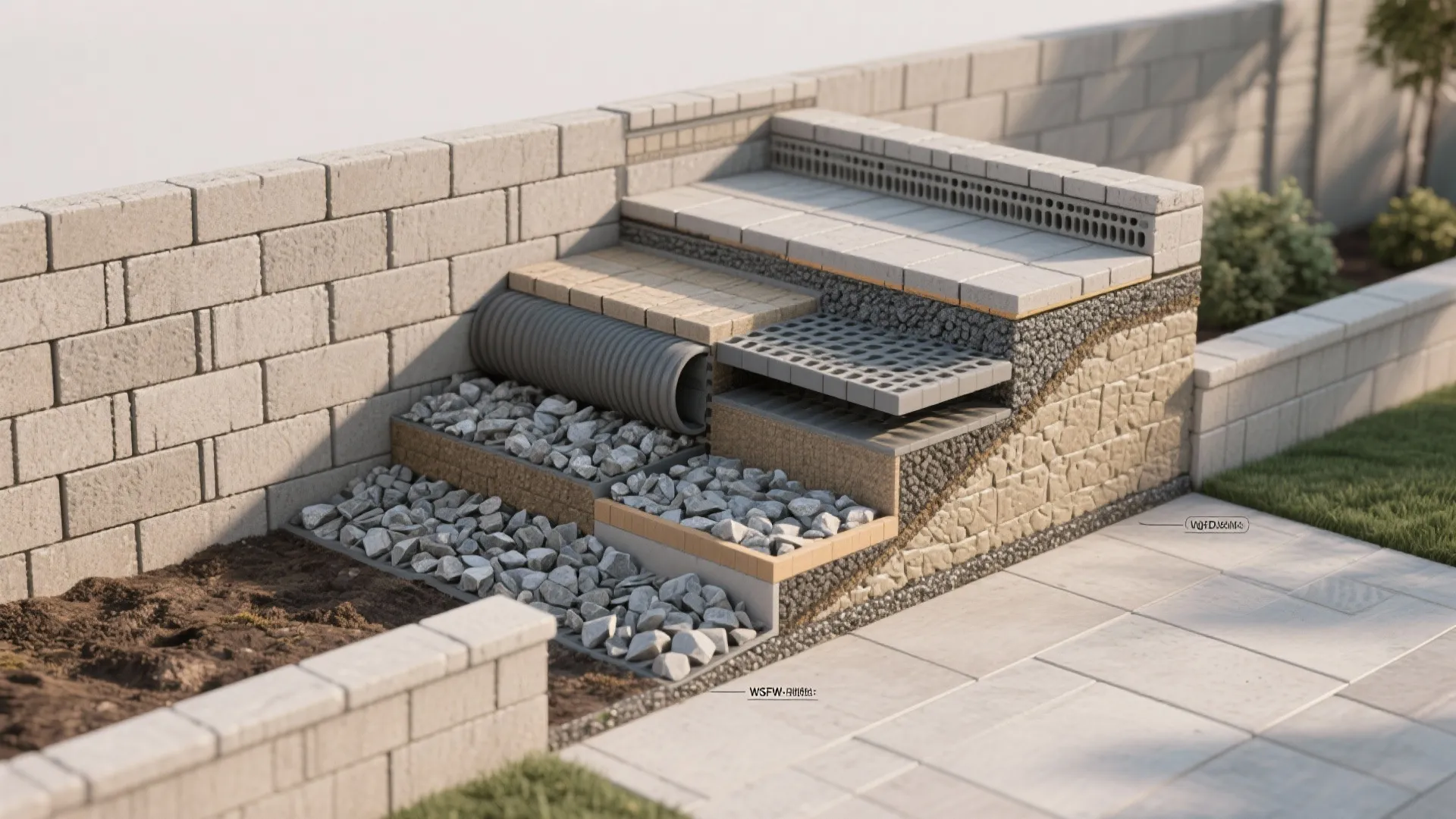

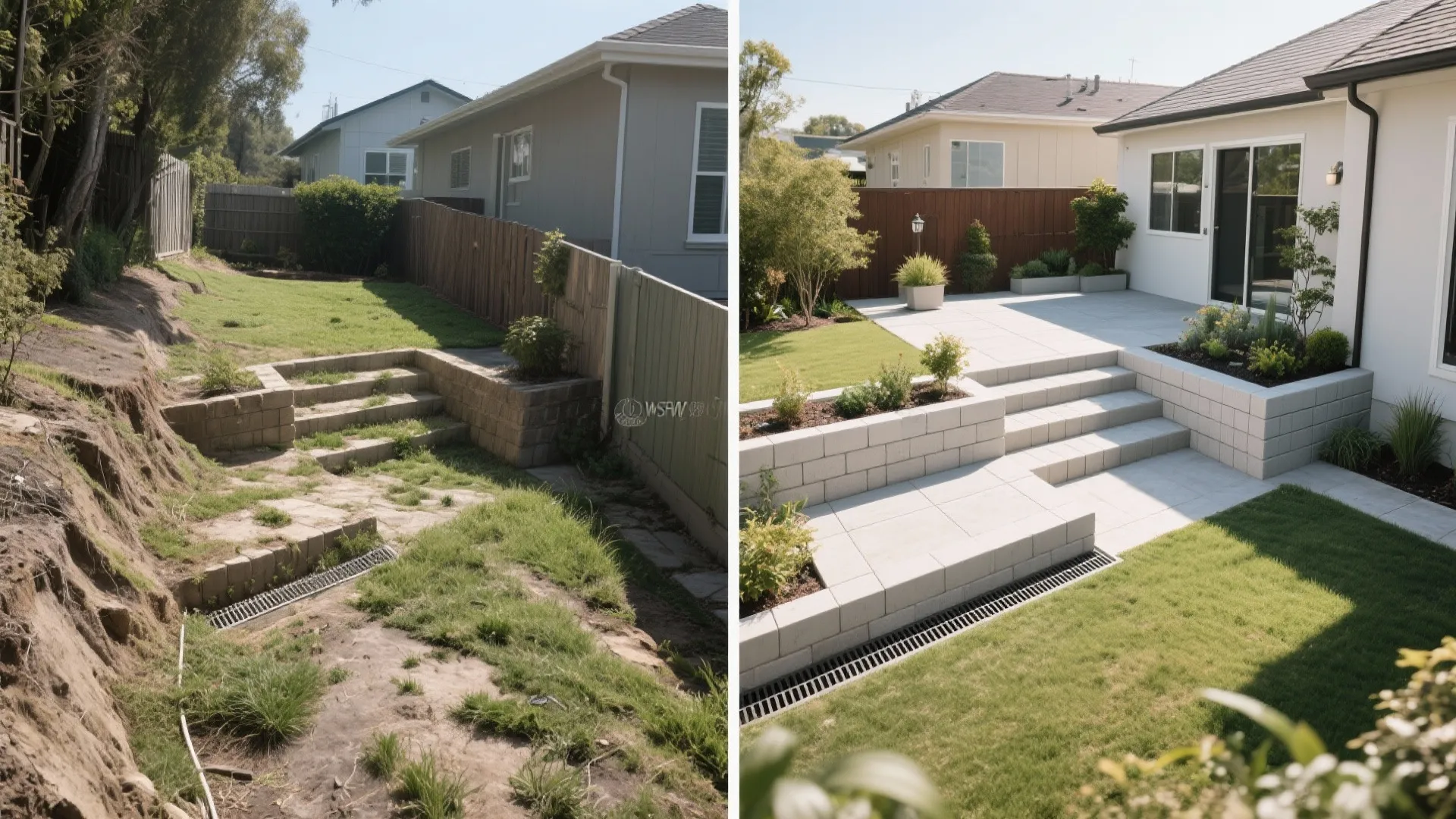

Segmented Modular Block Wall with Hidden Drainage

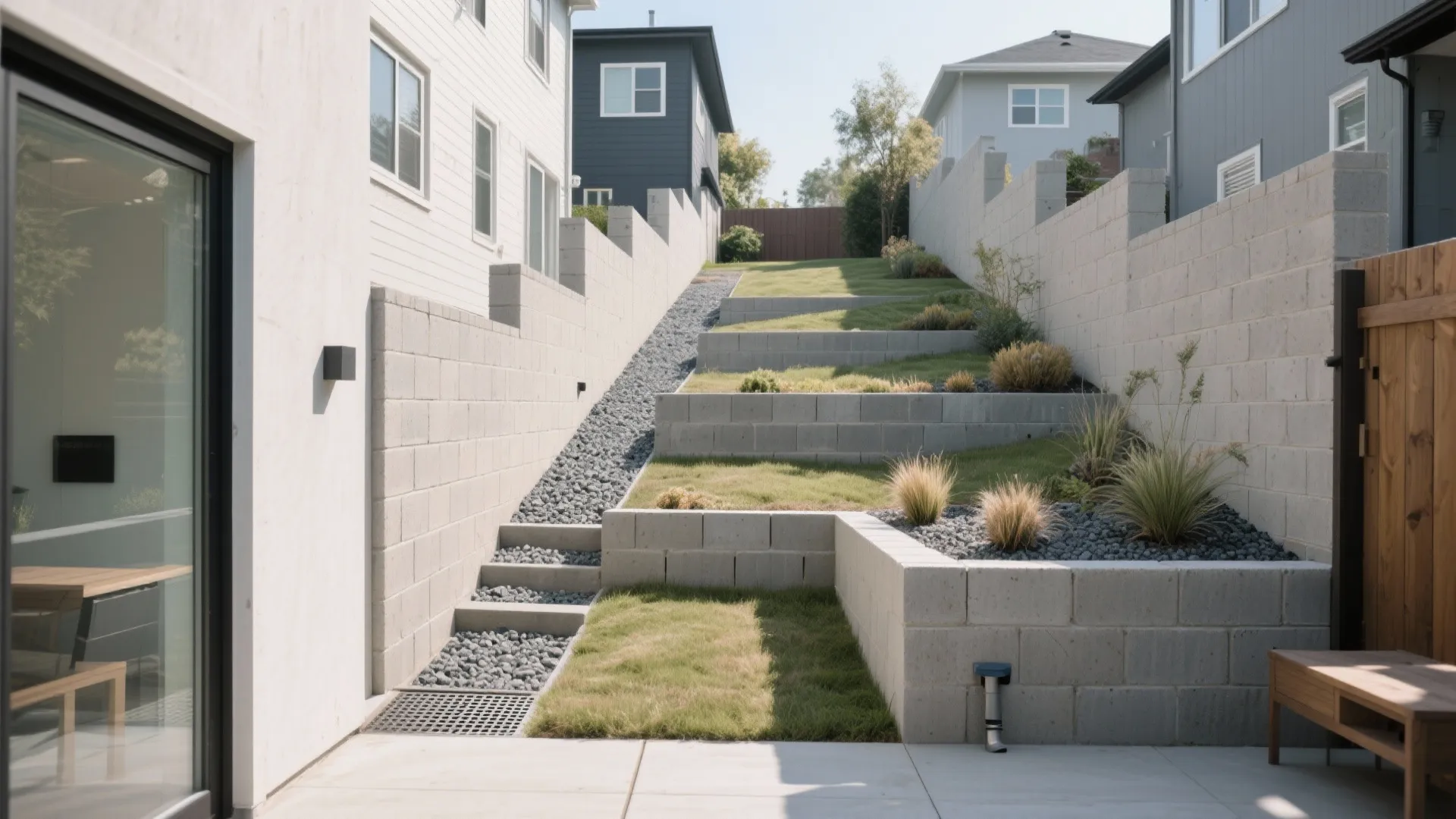

My Take I used this setup on a narrow 1:3 slope behind a townhouse. The client wanted a crisp modern look without custom masonry cost. We segmented modules to follow the grade, and tucked a perforated drain and free-draining backfill behind the wall to manage hydrostatic pressure. Pros - Modular block systems are engineered with interlocking lips—great for DIY-friendly retaining wall design and predictable performance. - Integrated drainage (perforated pipe, gravel, filter fabric) reduces freeze–thaw stress and wall bulging—classic long-tail must-have for long-term wall stability. - According to NCMA (National Concrete Masonry Association) TEK resources, properly compacted granular backfill and step-back geometry substantially increase wall capacity in gravity systems. Cons - Transporting pallets of block into tight yards can be a workout (and a delivery puzzle). I’ve done wheelbarrow marathons; bring ramps and patience. - Corners and curves require more cuts and extra caps—budget for blades and time. Tips / Case / Cost - Budget: $30–$55 per sq ft installed (varies by region and height). DIY can save labor but don’t skimp on base prep. - Design note: Terraces beat a single tall wall for both code and comfort; multiple 2–3 ft tiers are safer and more human-scale. - Planning reference: I often mock up grade transitions using a simple spatial planner to check seat-wall heights relative to patios; it’s the same logic I’d use for "Minimalist kitchen storage design" flow. First internal link (around 20%) - For complex slopes, I pre-plan sightlines and walking loops using "L shaped layout gives more counter space" thinking and a digital planner; see "L shaped layout gives more counter space" style planning applied to terraces here: https://www.coohom.com/case/room-planner

save pin

save pin

save pin

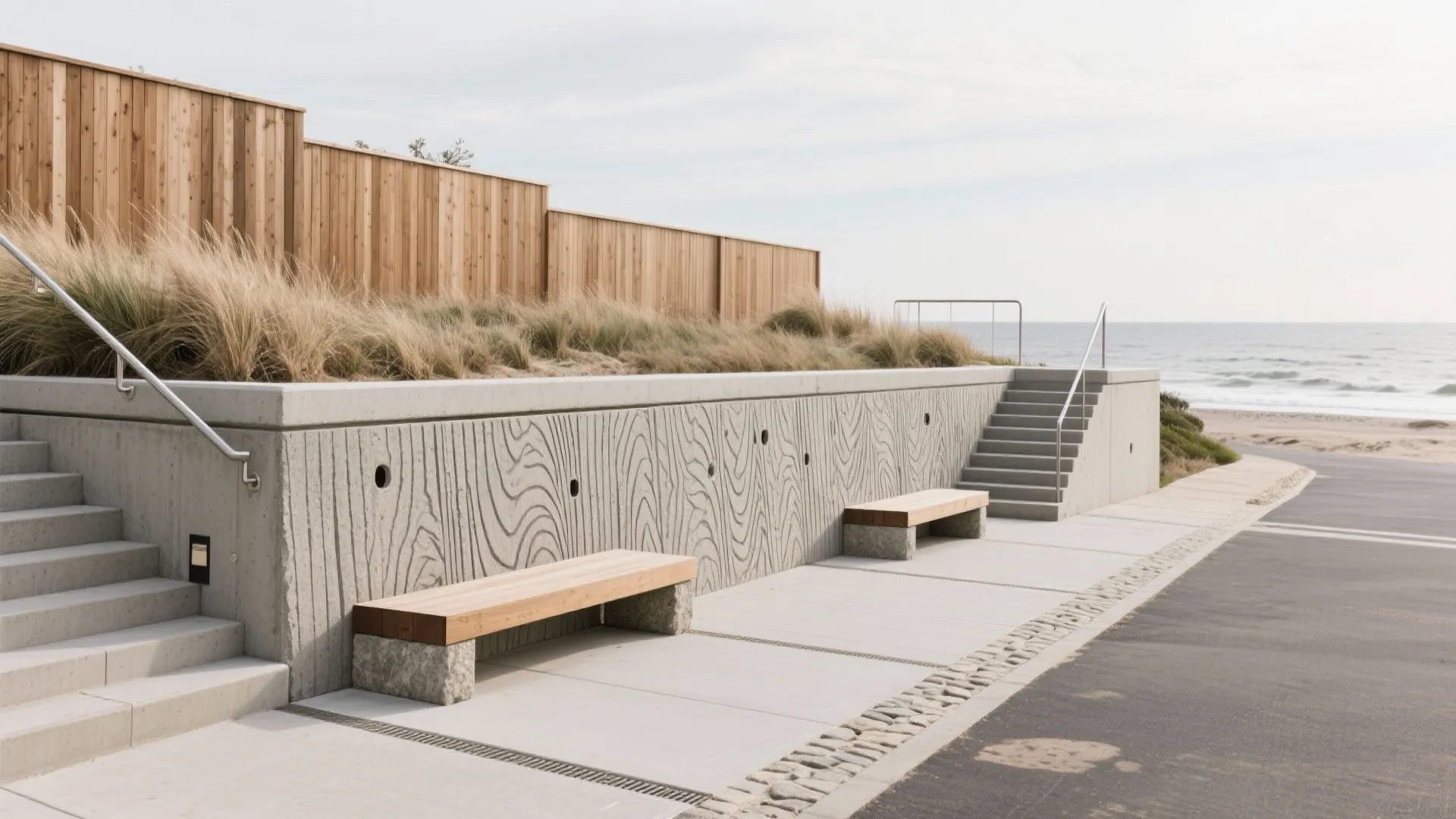

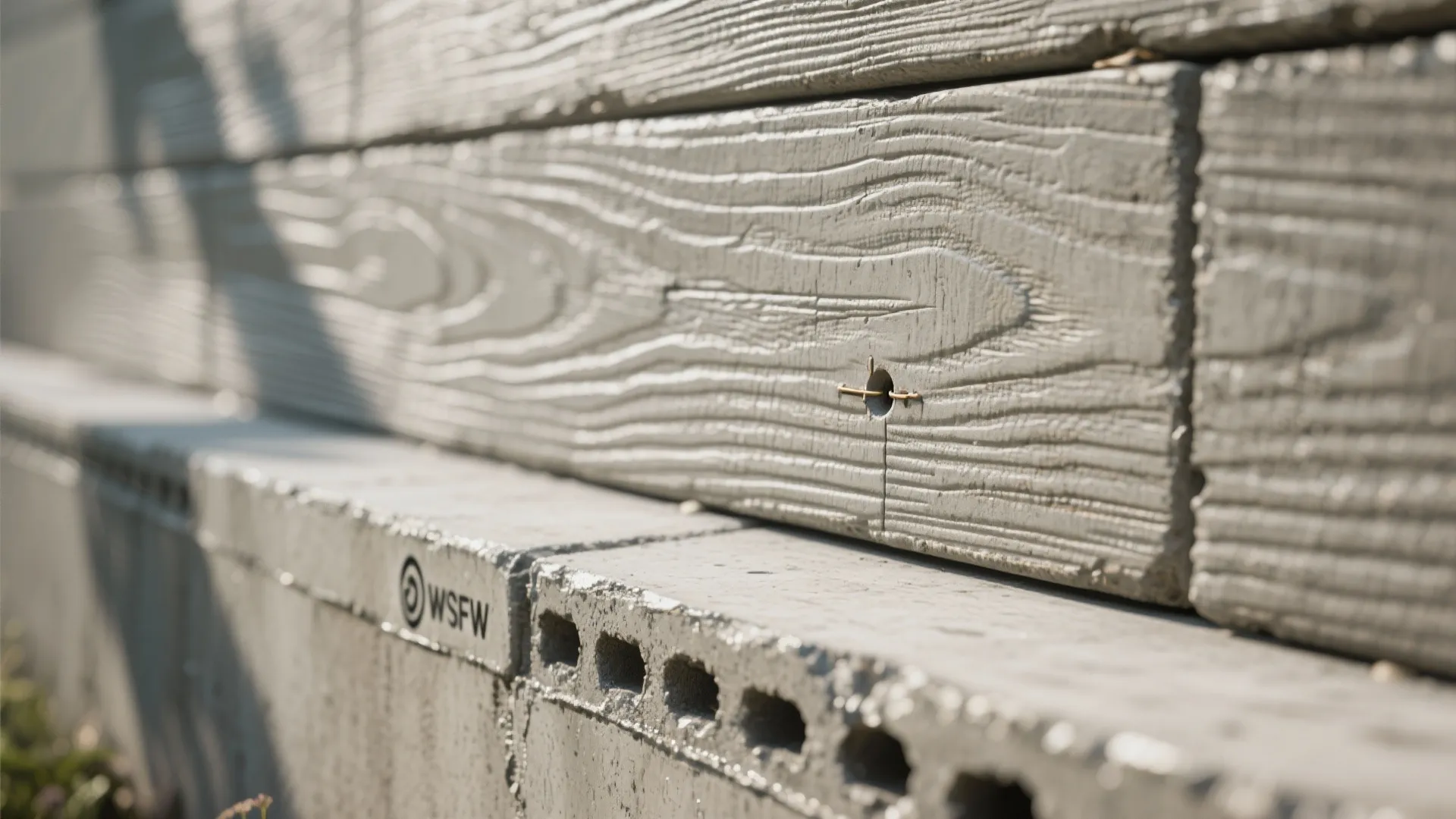

Cast-In-Place Concrete Wall with Board-Form Finish

My Take On a coastal project, wind and salt called for toughness. We specified a reinforced concrete wall with board-form texture for warmth. The texture echoed the cedar fence and made the solid mass feel handcrafted, not bunker-like. Pros - Reinforced concrete handles surcharge loads and narrow footprints—ideal for driveway-edge retaining wall design where space is tight. - Board-form patterns deliver architectural character without fragile veneers; perfect long-tail win for low-maintenance, modern landscape design. - ACI 318 design guidance and local geotechnical data help size steel and footing; when soils were expansive, we added deeper key and subdrain per the geotech report. Cons - Formwork and rebar labor can push costs high; you’ll also need clean access for pumping. - Repairs are visible; color matching patchwork on board-form is an art. Tips / Case / Cost - Budget: $80–$160 per sq ft depending on height, rebar density, access. - Install control joints and weep holes; use penetrating sealer in freeze–thaw climates. - If you plan adjacent stairs or benches, align joint spacing to your step rhythm for cohesive lines.

save pin

save pin

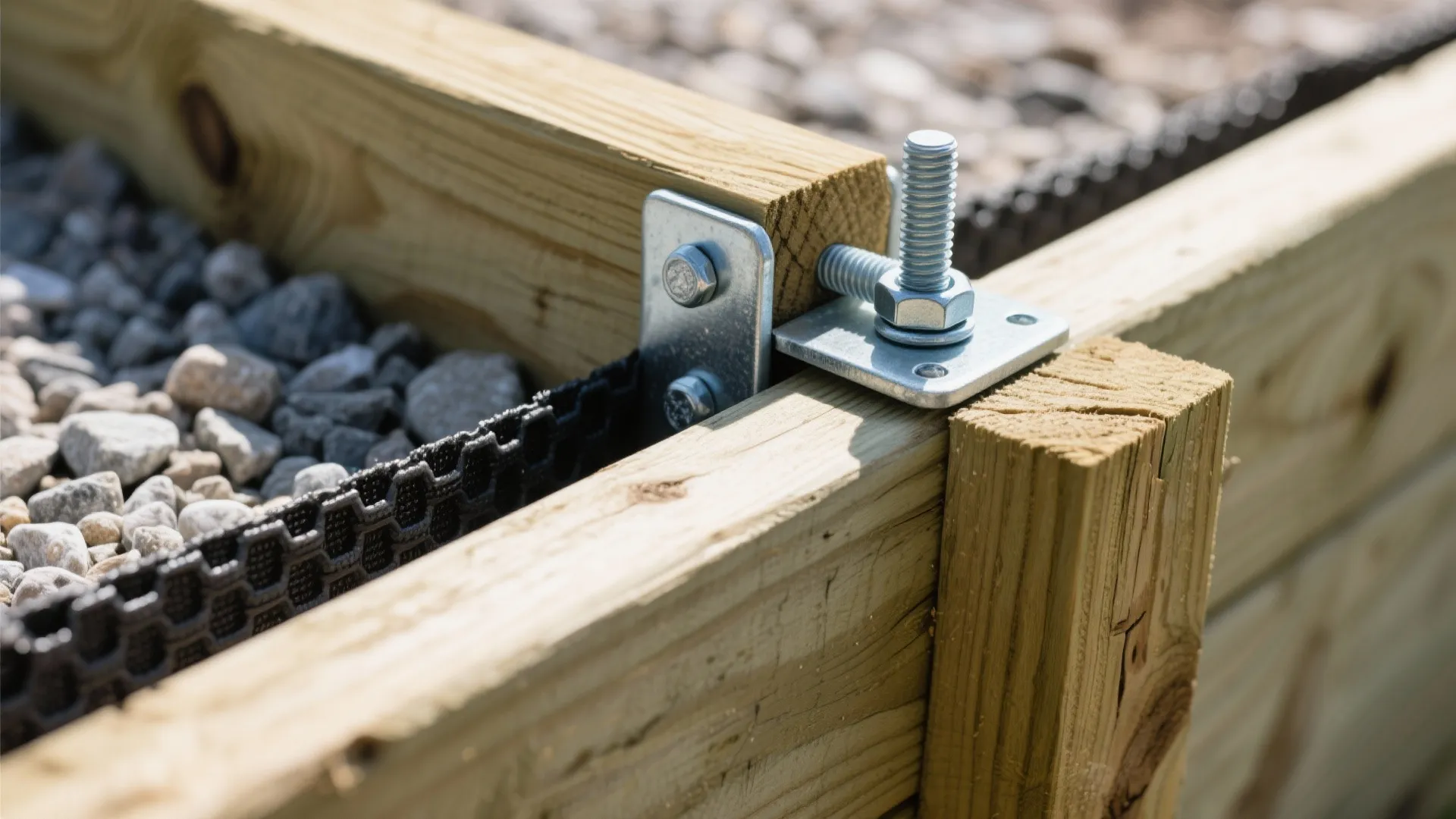

Timber Retaining Wall with Steel Deadmen

My Take For a cabin garden, we used pressure-treated 6x6 posts and rails, pinned with rebar, and tied back with galvanized deadmen. It aged into the landscape beautifully and kept the budget friendly for a long hillside run. Pros - Warm, organic look that suits rustic or Scandinavian outdoor rooms—great for small-yard terraces where retaining wall design also doubles as seating. - Deadmen/anchors boost stability on walls over 3–4 ft; long-tail detail: staggered tie-backs every 6–8 ft adds longevity. - The USDA Forest Products Lab provides service-life data for treated lumber; with proper drainage and ground contact rating, you can expect durable performance. Cons - Wood moves; expect seasonal checks and some bowing if drainage is poor. I embrace the patina, but it’s not for perfectionists. - Termites and rot are climate-dependent risks; use proper treatment category and barrier details. Tips / Case / Cost - Budget: $25–$45 per sq ft installed; use hot-dip galvanized hardware only. - Isolate soil from wood with drainage mat and fabric; never trap water. - For curves, short segments step smoothly and feel more natural on trails. Second internal link (around 50%) - When terraces form outdoor rooms, I prototype traffic and furniture clearances with "transparent glass backsplash effect" thinking—sightlines matter as much outdoors. For layout testing, see "Glass backsplash makes kitchen more open" spatial clarity applied to yards: https://www.coohom.com/case/3d-floor-planner

save pin

save pin

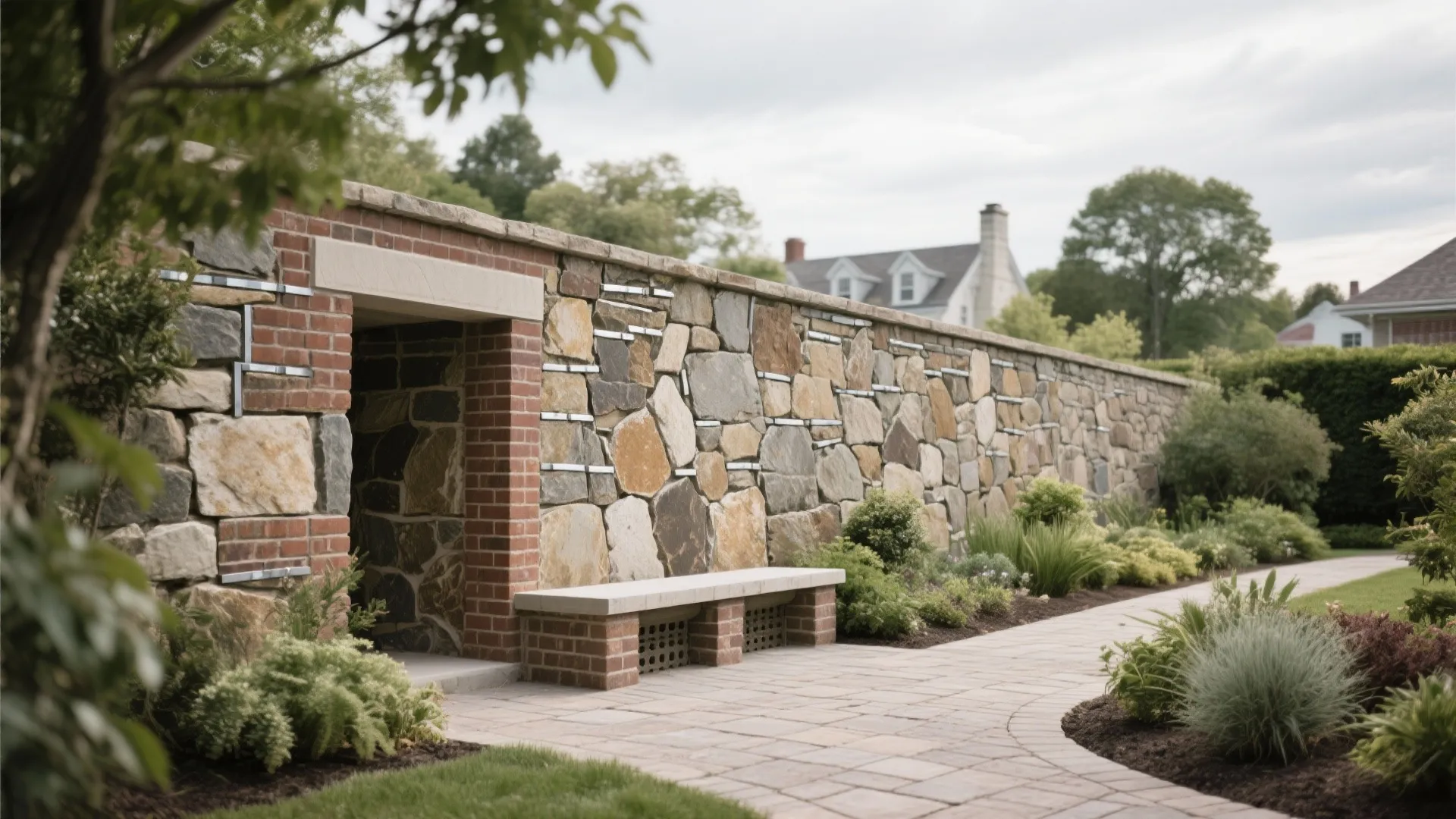

Stone Veneer on CMU Backup for Heritage Look

My Take In a historic district, we blended a structural CMU wall with a locally quarried stone veneer. The inspector loved that it read traditional while meeting modern code. It’s heavier on detail, lighter on structural risk than dry-stack alone. Pros - CMU backup provides predictable strength; stone veneer gives timeless character—ideal long-tail combo for retaining wall design in heritage contexts. - With a high-quality weep and cavity drain, moisture exits cleanly, keeping efflorescence in check. - The International Building Code plus NCMA SRW guidelines are helpful cross-references; we tied veneer with stainless anchors at specified spacing. Cons - Skilled masonry costs add up, and stone selection can blow the budget if you chase rare colors. - Delivery logistics: pallets, staging, and cutting produce dust—warn neighbors and plan containment. Tips / Case / Cost - Budget: $70–$140 per sq ft depending on stone and coursing complexity. - Pre-blend multiple pallets for color consistency; mock up a 4x4 ft sample before approval. - Cap with a thermally finished stone for a comfortable seat edge.

save pin

save pin

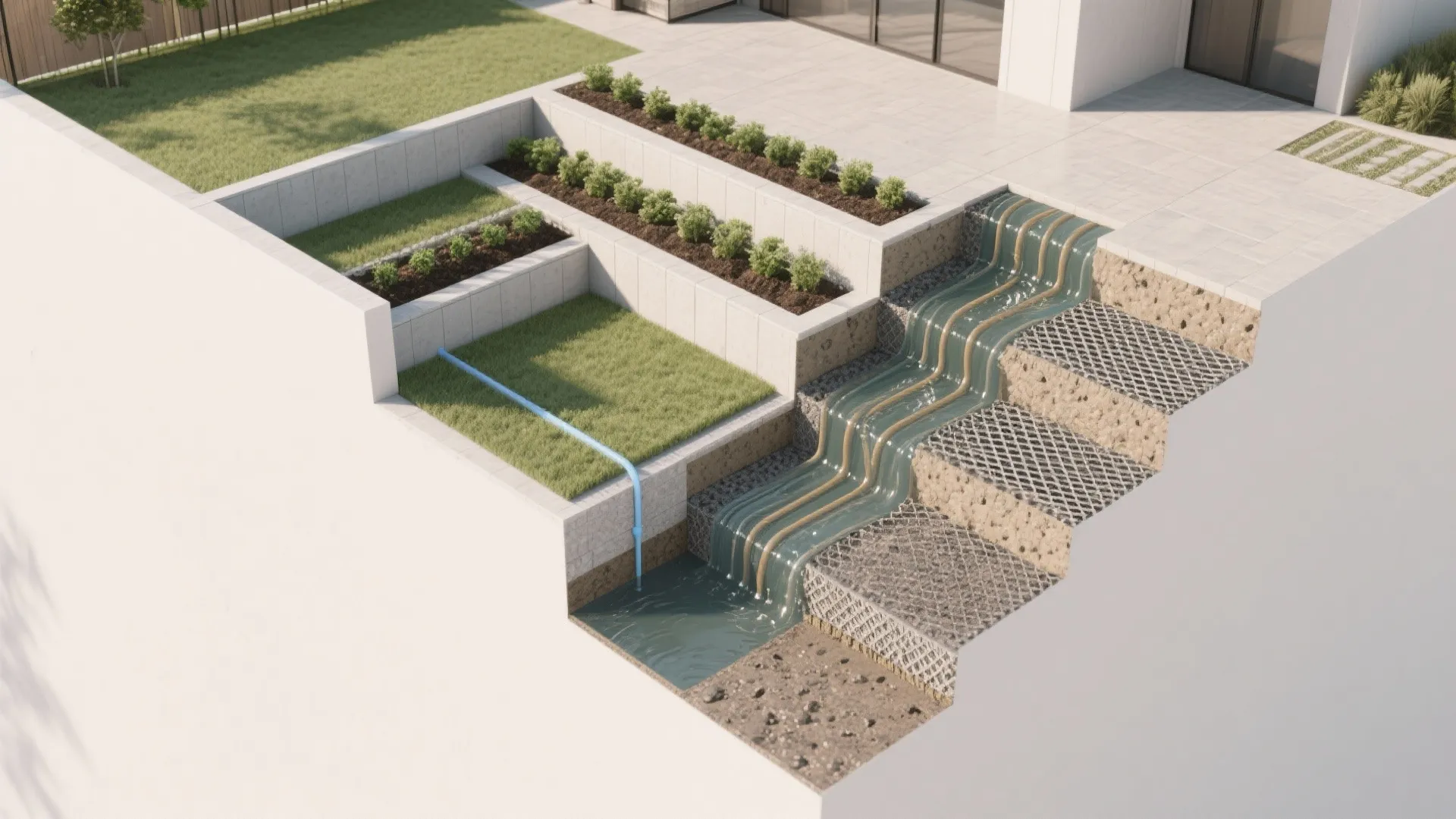

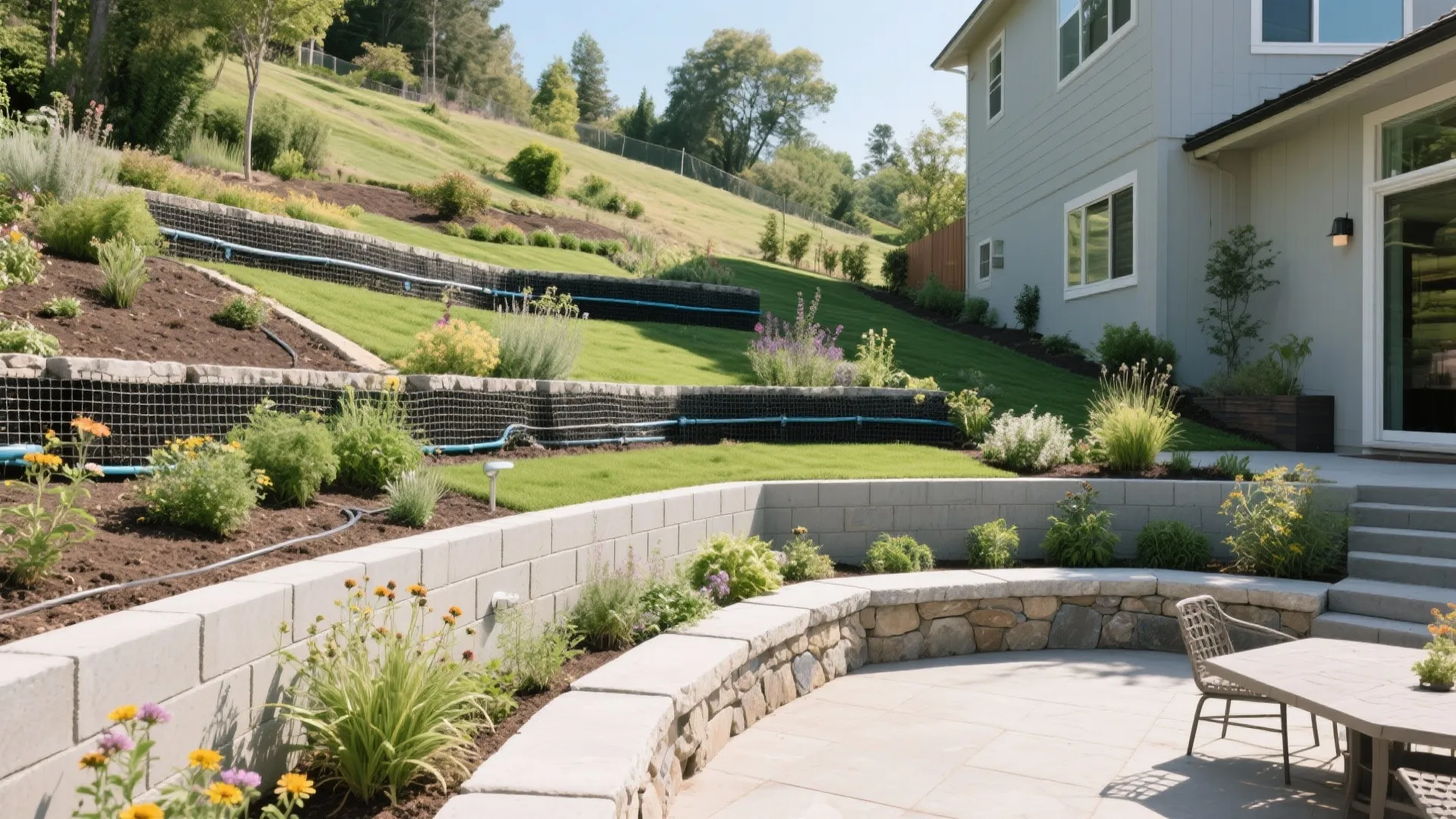

Green Terraced Wall with Planter Bands

My Take For a family with kids, we carved a hillside into low terraces with integrated planters. The walls became seat edges and herb gardens, softening the hardscape and improving stormwater capture. Pros - Plantable bands alleviate heat and glare, support pollinators, and visually break height—smart long-tail approach to human-scale retaining wall design. - Strategic soil mix and geogrid reinforcement let you keep walls low while extending stability across terraces. - EPA green infrastructure guidance supports using vegetated terraces to manage runoff and reduce erosion on small residential sites. Cons - Irrigation and weeps must be coordinated; overwatering can load the wall. I once turned an herb band into a marsh—lesson learned. - Seasonal maintenance is real; deadheading and mulch refreshes keep it tidy. Tips / Case / Cost - Budget: $45–$95 per sq ft including irrigation sleeves and planting. - Use lightweight soil blends behind planter facades; avoid fine silts. - Choose deep-rooted, non-invasive perennials; keep woody roots away from joints. Third internal link (around 80%) - For multi-level concepts, I like to simulate viewpoints and sunlight across seasons—similar to how I test finishes in renderings. Explore "warmth from wood elements" mood mapping in 3D here: https://www.coohom.com/case/ai-home-design [Section: 总结] A smart retaining wall design isn’t a constraint—it’s an invitation to think layered, structural, and beautiful. Small sites amplify creativity because every inch and every drain detail earns its keep. As NCMA and ACI emphasize, good soils data and drainage trump brute force every time. Which of these five examples are you most excited to try on your slope or side yard? [Section: FAQ 常见问题] 1) What is the core principle of retaining wall design? Properly managing lateral earth pressure and water is key. That means adequate base preparation, drainage, and reinforcement (geogrid or steel) based on soil data and wall height. 2) How tall can a DIY retaining wall be? Local codes vary, but many areas cap un-engineered walls around 3–4 ft. Anything taller typically requires permits and an engineer. Always check your municipality. 3) Do I need drainage behind every wall? Yes. A perforated pipe, clean gravel, and filter fabric are essential to relieve hydrostatic pressure. NCMA TEK guides explicitly stress drainage for long-term performance. 4) What’s the difference between gravity, geogrid, and cantilever walls? Gravity walls rely on mass; geogrid-reinforced walls extend a soil–reinforcement zone; cantilever walls are reinforced concrete with a footing and stem. Your choice depends on height, surcharge, and soils. 5) How do I estimate cost for retaining wall design? Costs range widely: timber ($25–$45/sf), modular block ($30–$55/sf), CMU/stone veneer ($70–$140/sf), concrete ($80–$160/sf), and green terraces ($45–$95/sf). Access, height, and curves add cost. 6) What permits or codes apply? Most jurisdictions require permits above a certain height or when supporting loads like driveways. Reference IBC/IRC and local amendments, and consult a structural engineer for tall walls. 7) Can retaining walls double as seating? Yes. Cap widths of 12–16 inches at 18–20 inches high are comfortable for casual seating. I often align cap joints with patio modules for a cleaner look. 8) How do I plan multi-terrace circulation? Sketch walking loops, set 3–4 ft clear paths, and align steps with natural desire lines. For pre-visualization, a spatial mockup helps; you can explore "L shaped layout gives more counter space" logic in outdoor planning here: https://www.coohom.com/case/kitchen-layout-planner
