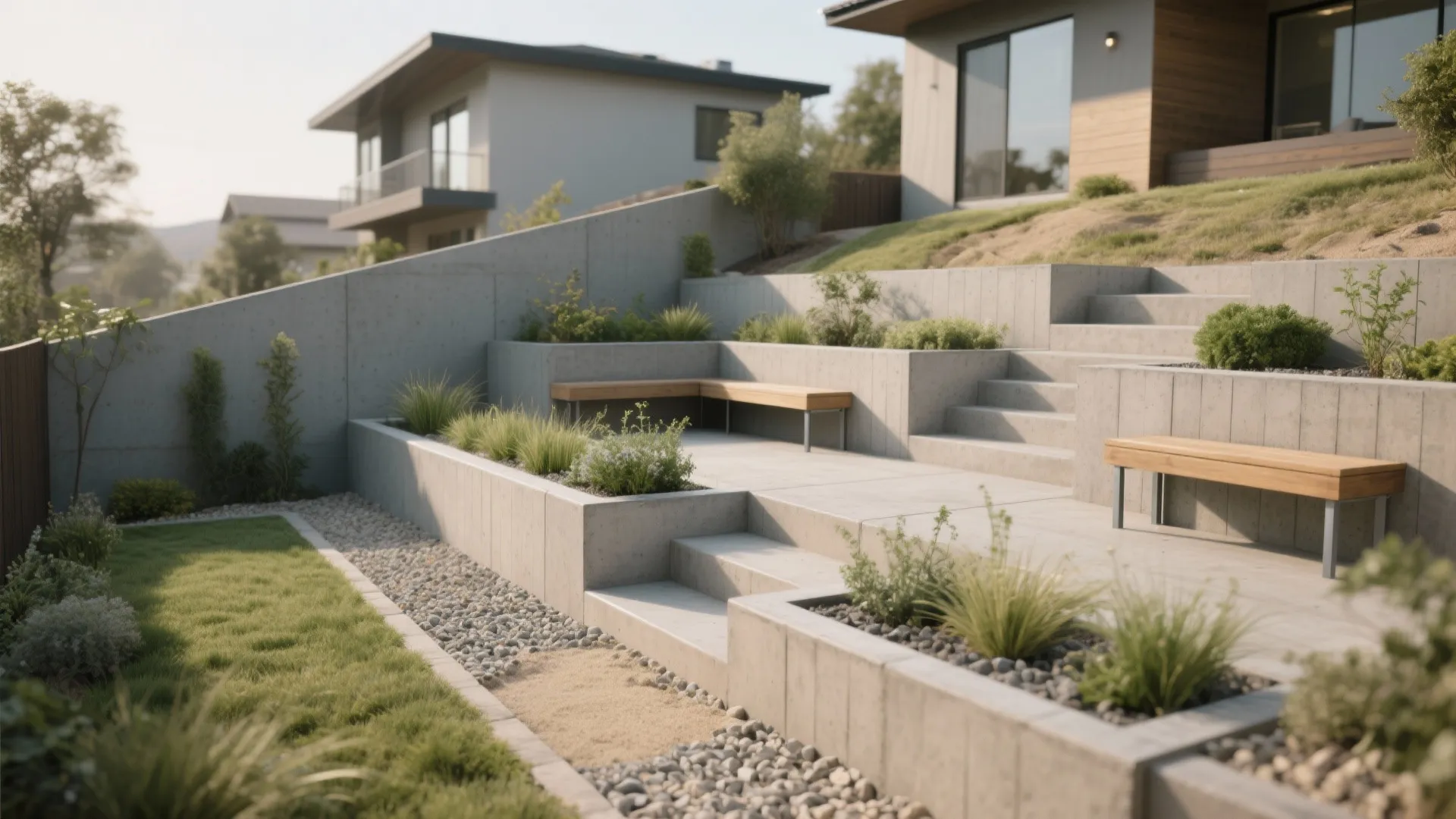

Concrete Retaining Wall Design: 5 Smart Ideas: Small yards, big personality—my go-to ways to make concrete retaining walls safer, slimmer, and a lot better looking.

Years ago, a client begged me to fit a pizza oven onto a slope that could barely hold a lawn chair. I almost said yes before remembering the first rule of gravity: it always wins. Before anyone swung a pickaxe, I sketched a scaled mockup of the yard to test sightlines, step heights, and how a concrete retaining wall might behave when the hill gets soaked.

That little panic taught me a ton about concrete retaining wall design. Small spaces really do spark big creativity, especially outdoors where inches matter. So, let me share five ideas I lean on in real projects when a wall has to be strong, slim, and pleasant to live with.

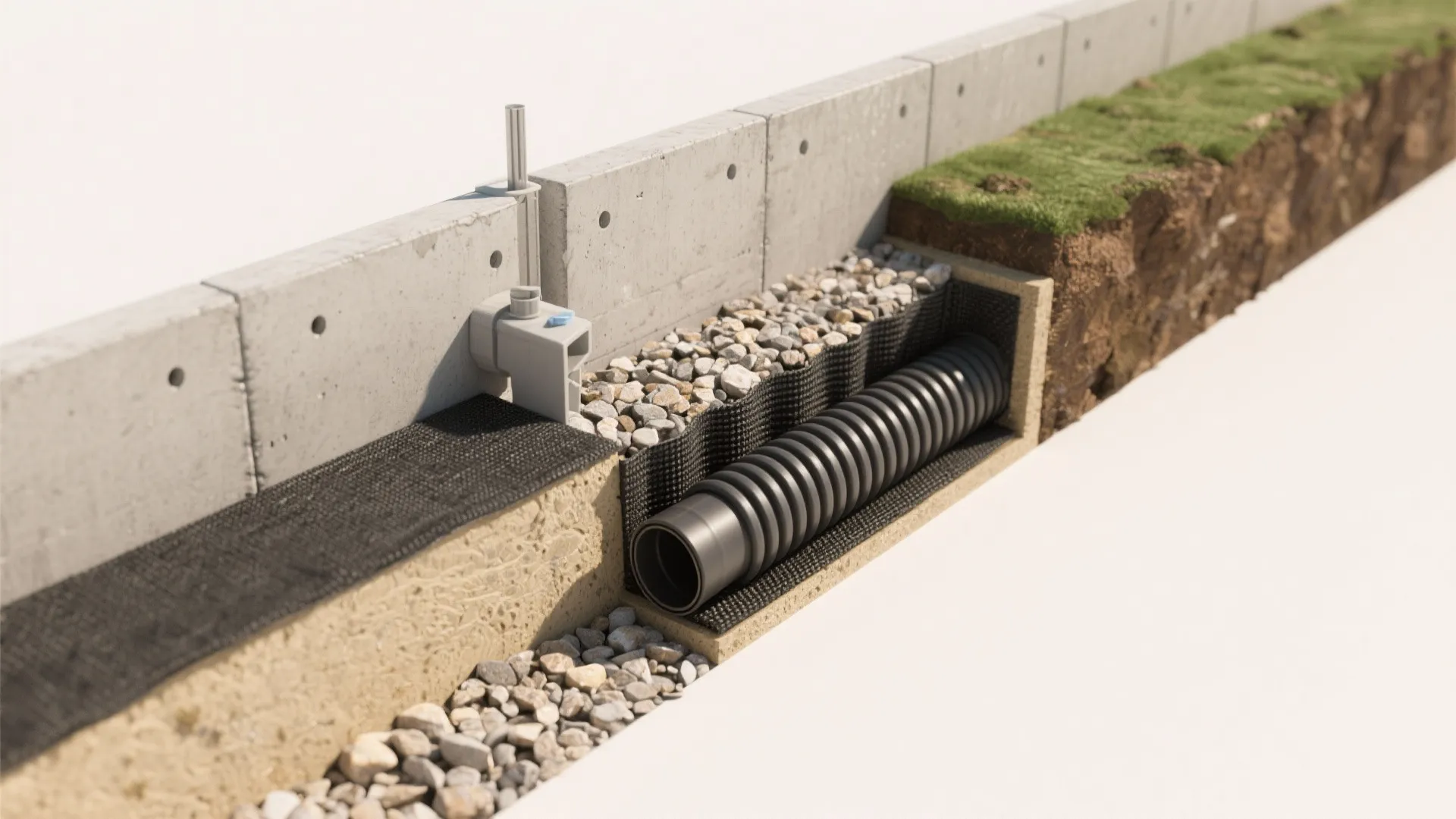

Idea 1: Make drainage the unseen hero

Concrete is tough, but soaked soil can shove it around like a shopping cart. I always plan a compacted gravel base, a perforated drain at the toe, filter fabric, and weep paths so water escapes without building pressure.

The upside is longevity and fewer cracks; the tiny challenge is accepting that drainage adds a line to the budget. Trust me, it saves you from the dreaded bulge two winters later.

save pin

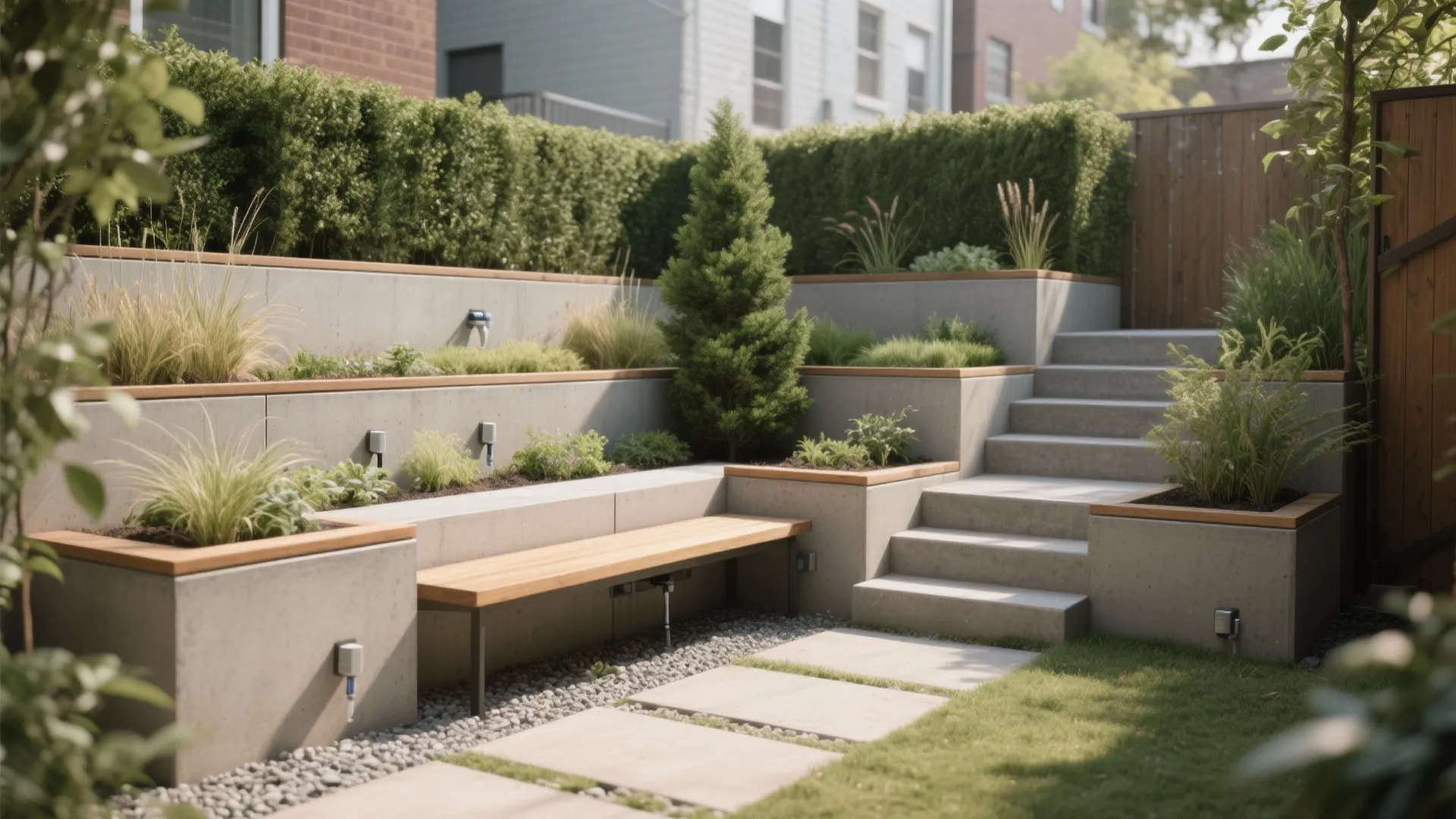

Idea 2: Turn tiers into seating and planters

Instead of one tall wall, terraced low walls feel friendlier and safer. I love capping a 17–19 inch tier as a seat and stepping planters back to soften the view with herbs or dwarf grasses.

You’ll gain usable space and a garden you can actually reach; just watch local guardrail rules when any drop exceeds code thresholds. Irrigation lines hidden in the wall make maintenance painless.

save pin

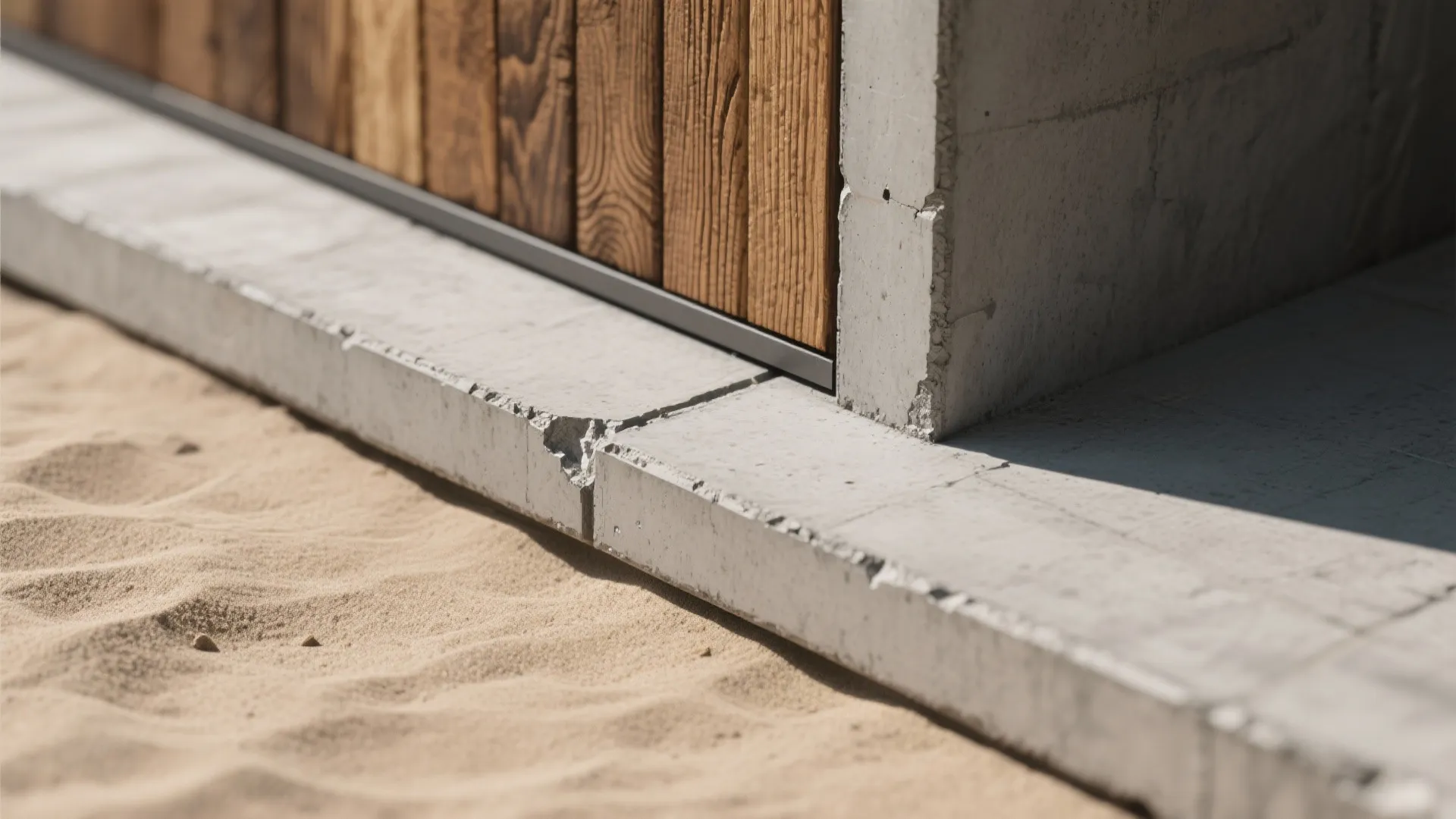

Idea 3: Texture, color, and formwork tricks

Board-formed concrete adds warmth, while a subtle integral color (think warm gray or sand) prevents the “parking garage” vibe. I often cut crisp reveals and use chamfers on edges so chips look intentional, not tragic.

Before we pour, I show clients a 3D render of the terrace to preview shadows and texture at different times of day. Gorgeous surfaces demand a skilled crew and patient curing, but they’re worth it when the wall becomes part of the architecture.

save pin

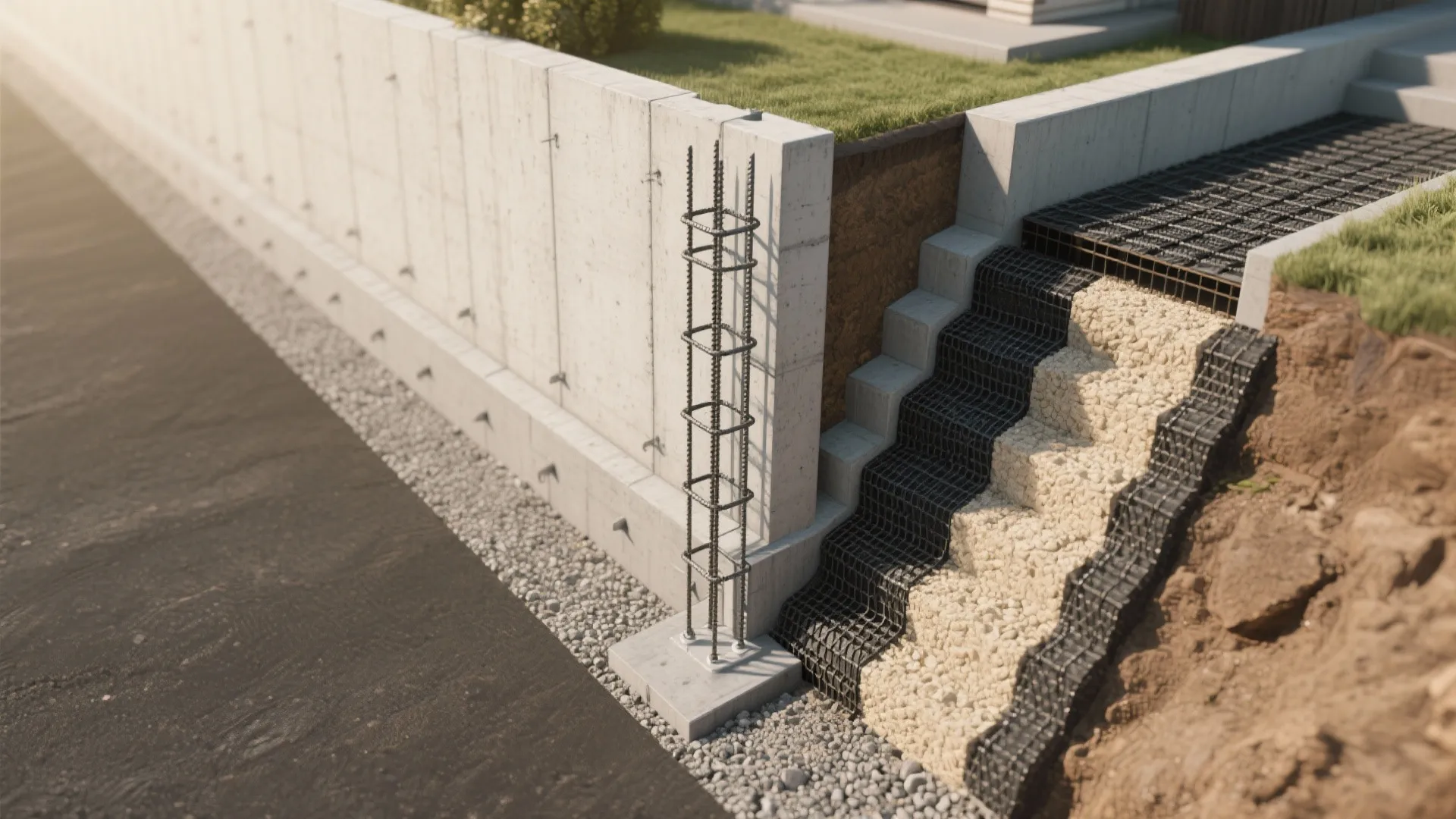

Idea 4: Go slim with smart reinforcement

In tight yards, I favor a properly reinforced, slender profile over a chunky mass. Reinforcement, a well-sized footing, and geogrid where needed help the wall act as a system, not a lonely slab resisting the world.

When the site is tricky, I quickly compare options using AI-generated layout options to balance structure, steps, and planting. You’ll still want an engineer for anything substantial, but this gets the design close before you spend on calculations.

save pin

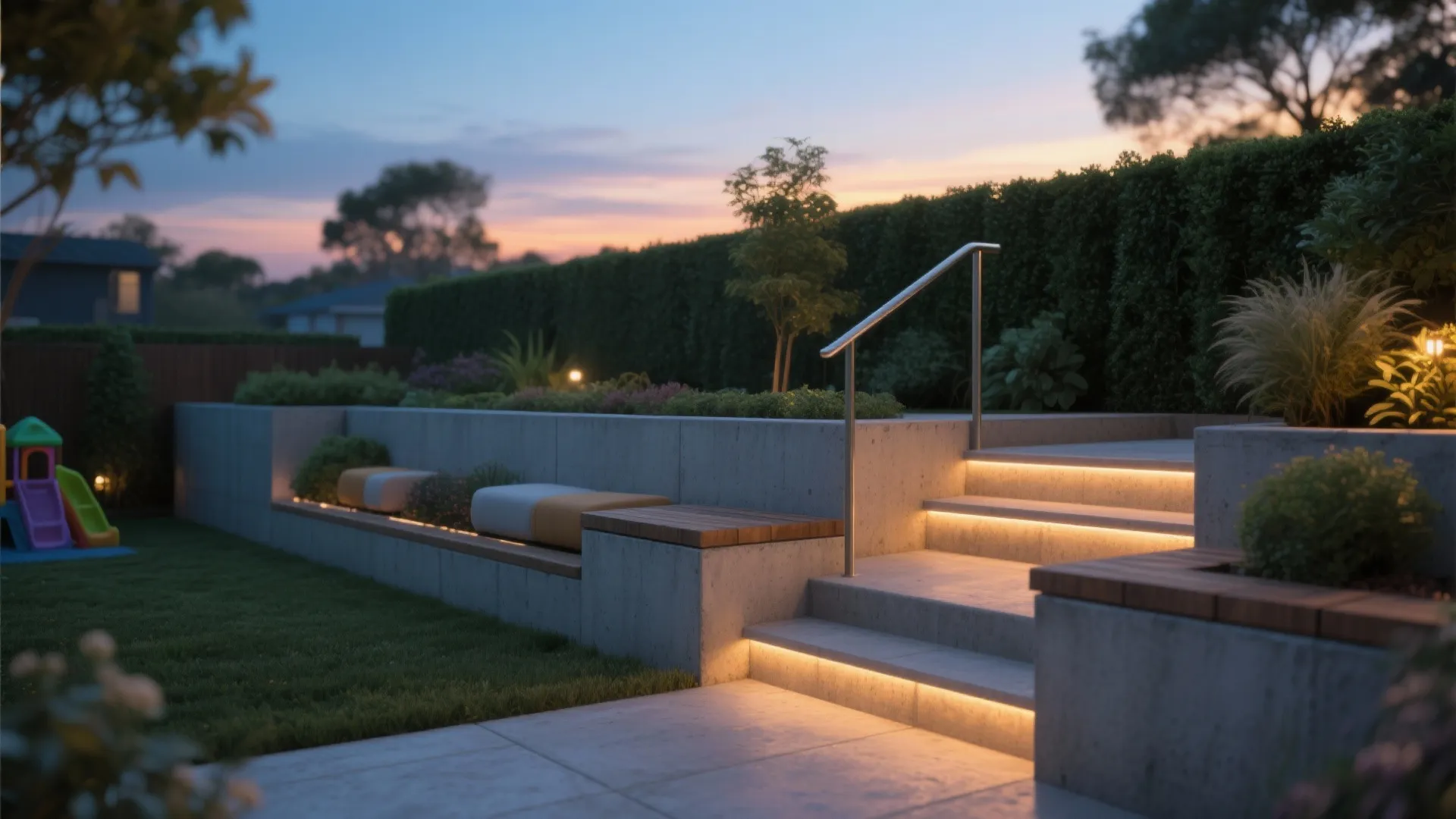

Idea 5: Light it, edge it, and think safety first

Low-voltage LEDs tucked under caps or risers make night use safer and the concrete glow softly. I specify a gentle bullnose or eased edge and a non-slip finish if the wall doubles as seating.

Keep tall walls away from play zones unless you add rails or hedges. A couple of carefully placed vines or espalier wires can mellow the concrete without hiding its good bones.

save pin

FAQ

1) What height is best for a small-yard concrete retaining wall?

Lower, terraced walls usually feel safer and create usable steps or seating. If you need a taller wall, plan for handrails or a planted buffer and check local code thresholds.

2) Do I need permits or an engineer?

Many jurisdictions require permits and engineering for walls above a certain height or when supporting structures. Even for low walls, a quick consult can prevent costly mistakes.

3) How do I design drainage behind a retaining wall?

Use a compacted granular backfill, a perforated drain at the base, filter fabric, and weep paths to relieve pressure. The FHWA’s “Retaining Walls and Reinforced Soil Slopes” (NHI‑10‑024) outlines best practices and is a solid reference.

4) What about footing size and reinforcement?

Footing dimensions and rebar spacing depend on soil, height, and loads, so don’t guess. ACI 318 (Building Code Requirements for Structural Concrete) provides the engineering framework professionals use.

5) Poured-in-place vs concrete blocks—what should I choose?

Poured-in-place offers a slimmer profile and custom textures; blocks are faster and often cheaper with manufacturer guidelines. In small spaces where inches count, poured walls can feel more refined.

6) How much will a concrete retaining wall cost?

Costs vary by height, access, drainage, finish, and engineering. For small projects, expect a wide range; texture and lighting add beauty but increase the budget.

7) How do I prevent cracking?

Plan control joints, proper reinforcement, good drainage, and careful curing. A breathable sealer helps, but structure and water management matter most.

8) What finishing options are durable outdoors?

Board-formed textures, integral color, and light sandblasting age gracefully. Choose a UV-stable, breathable sealer and avoid glossy films that can get slippery.
