I’ve spent over a decade shaping compact venues and pop-up stages, and stage lighting truss design is where small spaces truly spark big creativity. Trends I’m seeing now: lighter aluminum systems, modular grids, and pre-rigged LED bars that cut setup time without sacrificing drama. In this guide, I’ll share 5 design inspirations, blending my hands-on experience with expert data to help you shape a safe, flexible, and photogenic rig—even in tight rooms.

[Section: 灵感列表]

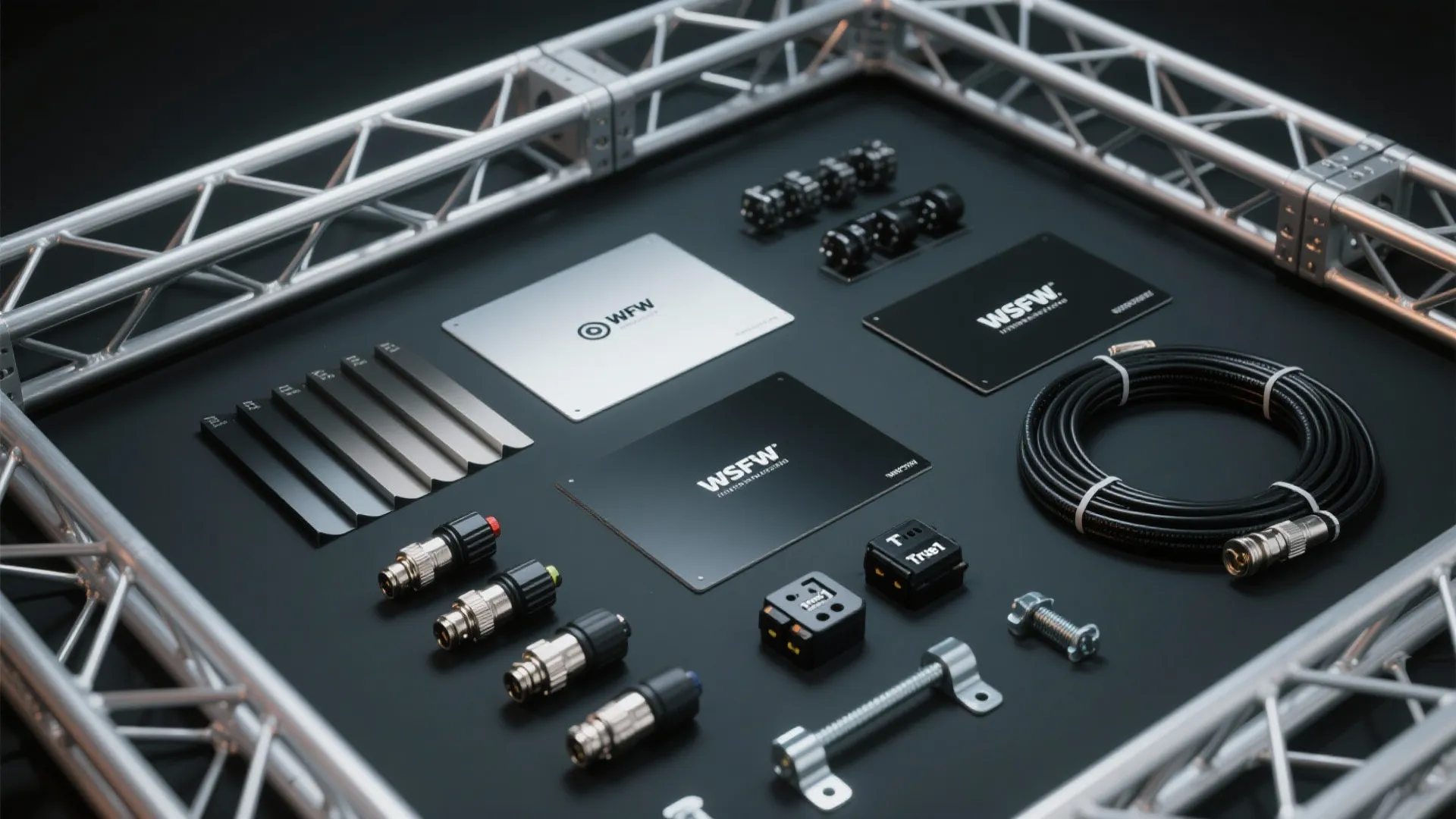

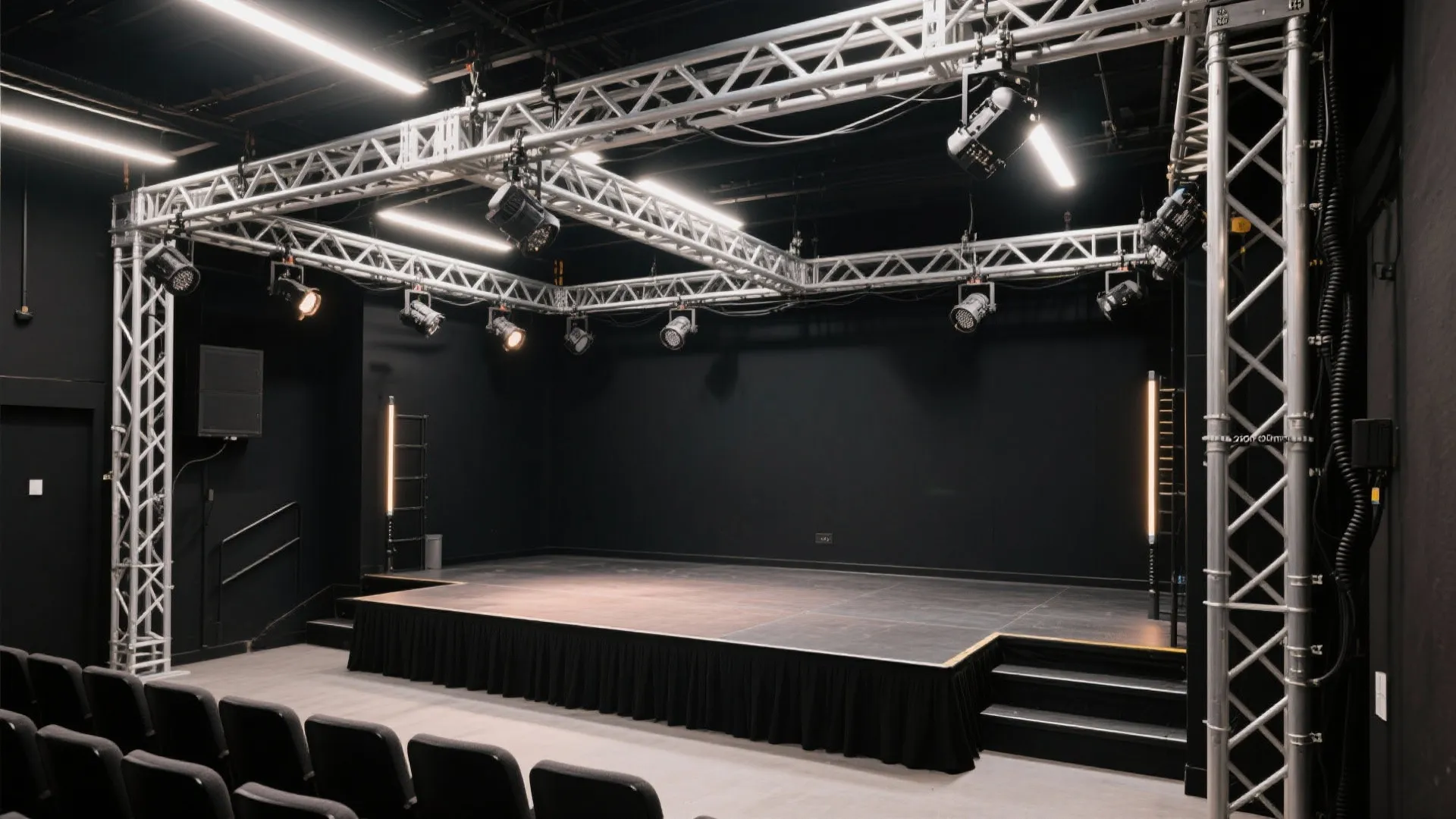

Lightweight Box Truss for Small Venues

My Take

I love a compact 290–300 mm aluminum box truss for small stages—stiff enough for movers but nimble for fast changeovers. In a 9 m black box theater I run, we swapped old steel for a lightweight grid and shaved 40% off our load-in time.

Pros

The weight-to-strength ratio is excellent, and a modular box form makes cable routing tidy for “stage lighting truss design” with professional results. Aluminum reduces transport costs and supports long-tail needs like “small venue truss layout” and “portable truss rigging.” According to ESTA/ANSI E1.2 guidelines for aluminum truss connections, standardized fittings improve consistency and safety.

Cons

Lighter doesn’t mean limitless—point loads for heavy fixtures can still exceed safe limits if you don’t run the math. Box truss can look bulky in extremely intimate cafes, and you might prefer slim ladder pieces to reduce visual weight.

Tips / Cost

Run basic load calculations per span; get manufacturer load tables and apply a safety factor. For tight ceiling heights, I sometimes cantilever short outriggers instead of lowering the whole grid. If you’re curious how a compact grid flows in plan, here’s how I visualize an L-shaped lighting bar arrangement in rehearsal rooms.

save pin

save pin

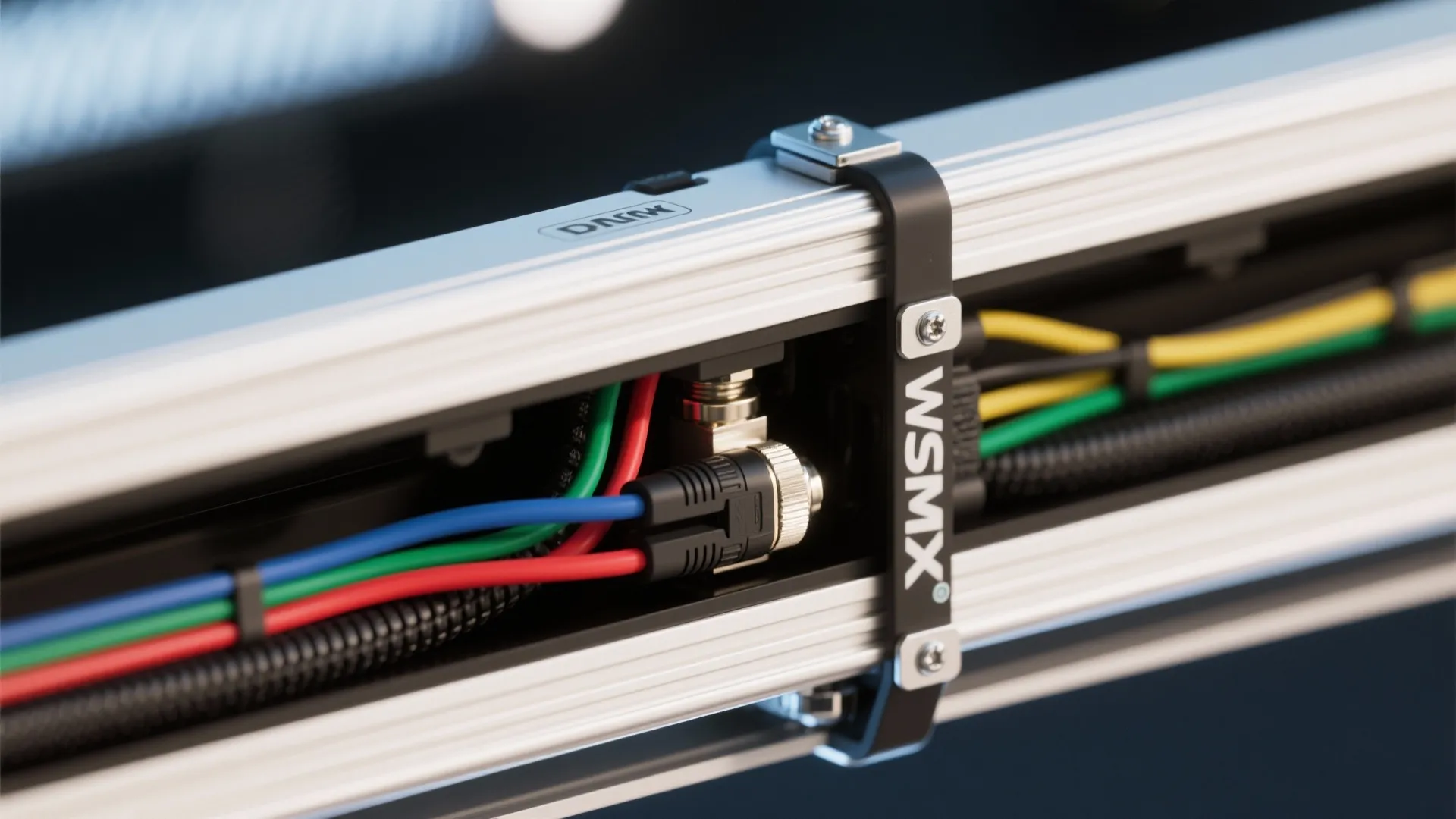

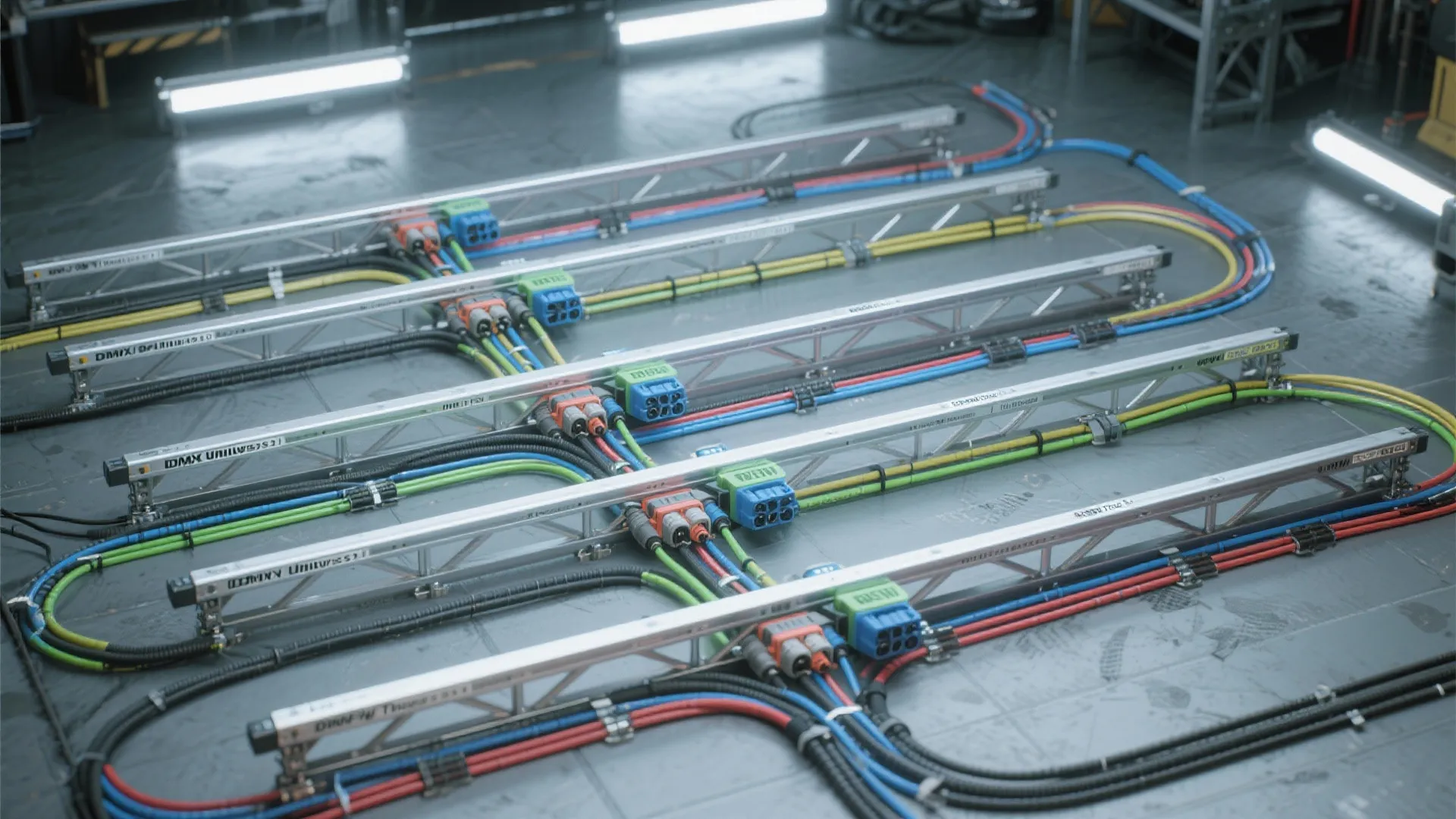

Pre‑Rigged Bars and Cable Management Channels

My Take

When a client books back-to-back acts, pre-rig bars with integrated power/data save the day. I label universes, leave safety bonds in place, and color-code DMX to avoid patch chaos.

Pros

Pre-rig reduces setup time by up to 30–50% in my shows—less labor, fewer ladder trips, more consistency. It’s especially strong for long-tail needs like “quick-change stage setups” and “DMX cable management for truss.” Neat cable channels also improve airflow around LED drivers, helping longevity.

Cons

Upfront cost is higher, and you’ll need a maintenance routine to keep connectors clean and strain reliefs intact. Touring with pre-rig can be awkward if truck pack space is tight.

Tips / Case

Standardize connectors (True1 or powerCON), keep spare whips, and document pinouts. I build a laminated rig sheet with breaker maps and DMX universe charts—saved us twice during festival storms.

save pin

save pin

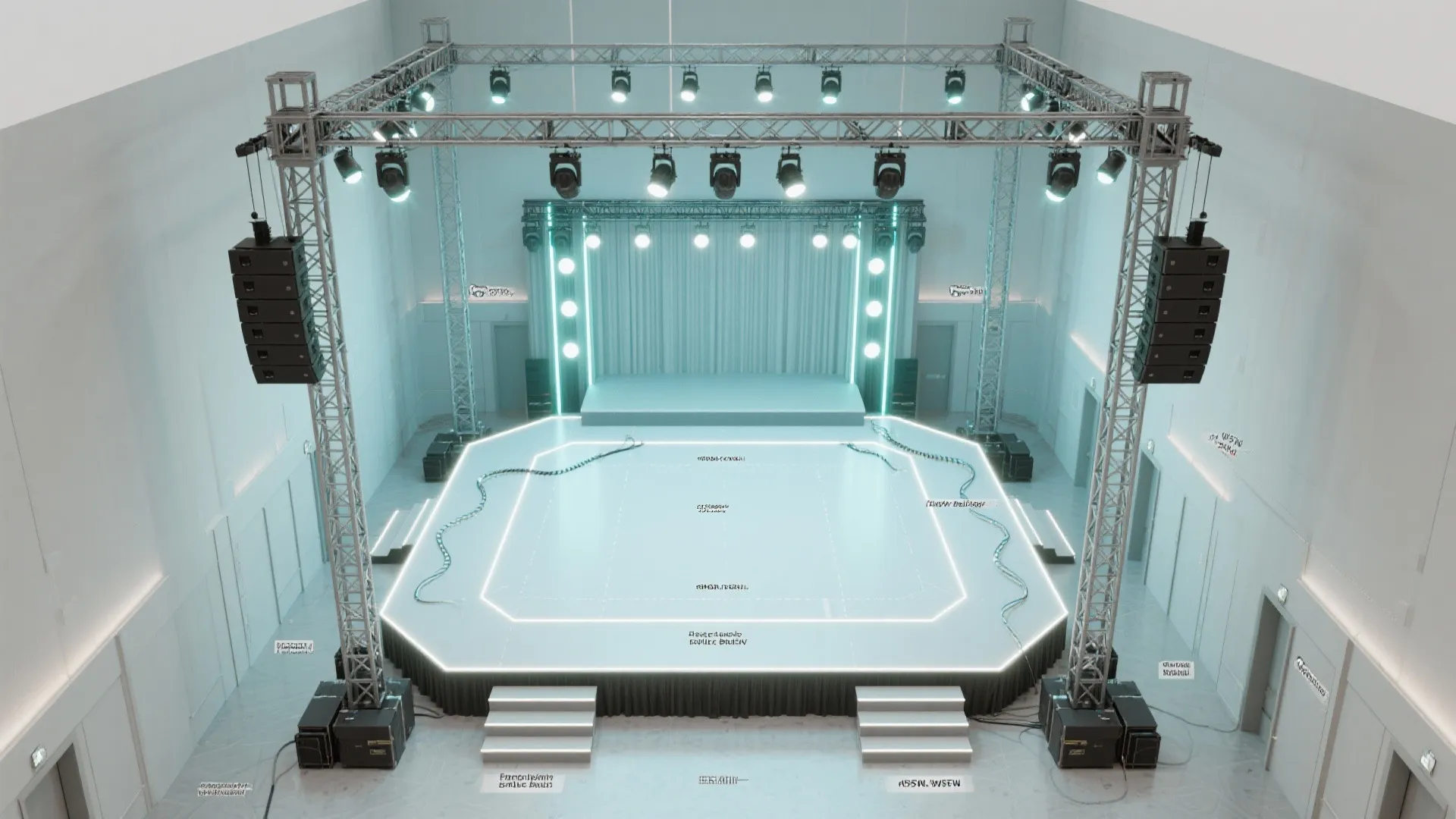

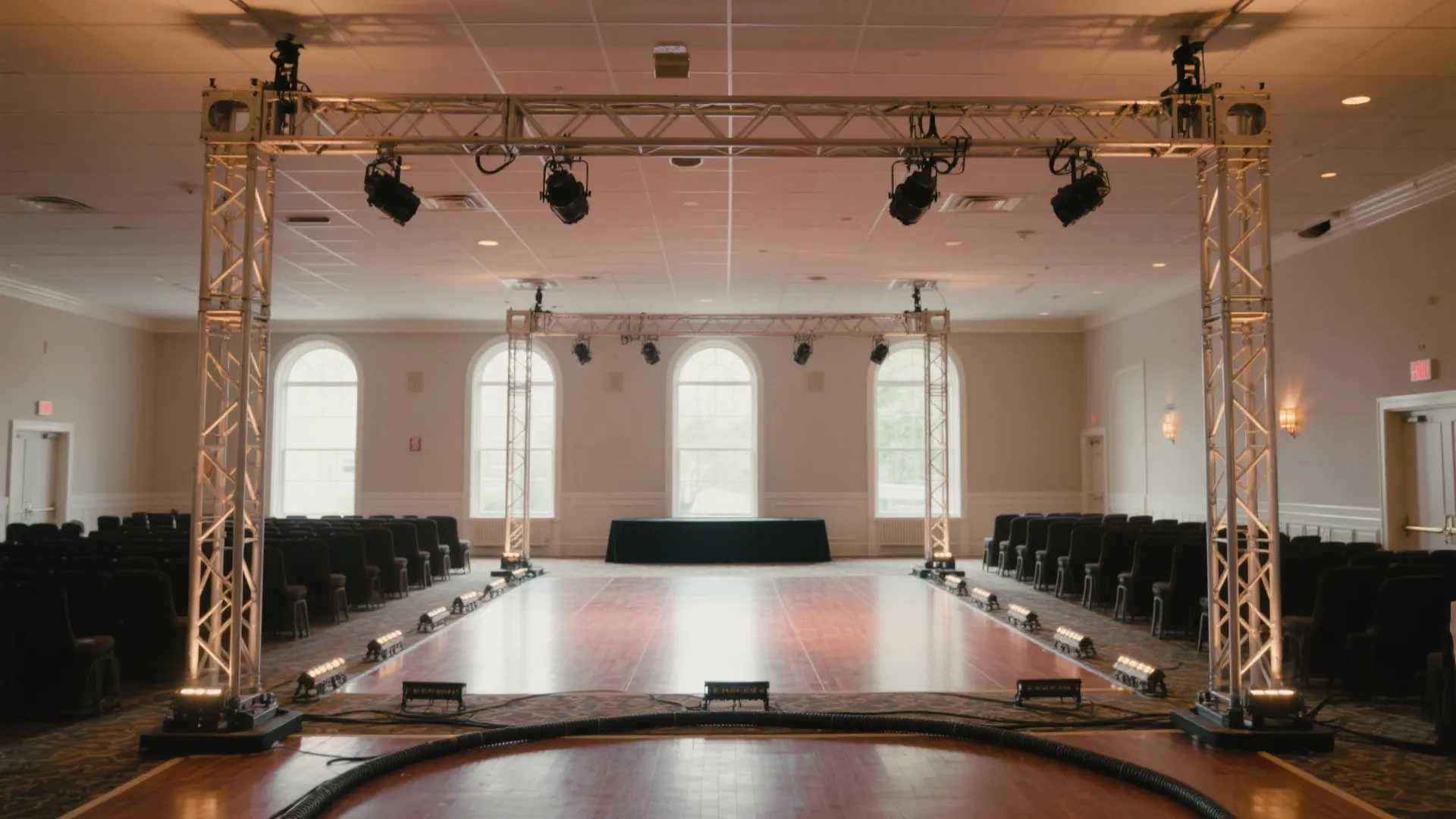

Hybrid Ground‑Support + Ceiling Points for Low Headroom

My Take

In low ceilings, I mix short ground-support towers with a slim flown spine. It keeps fixtures off the sightlines while freeing the center for projection. This hybrid method is my go-to for hotel ballrooms.

Pros

Distributing loads between floor towers and limited rigging points unlocks options for “low ceiling truss design” and “ballroom lighting grids.” It also reduces local overloading on weak beams. OSHA’s event safety principles emphasize spreading loads and controlling overhead risks; ESTA E1.21 (temporary structures) complements this thinking for outdoor/temporary builds.

Cons

Floor towers invite cable trip hazards and need ballast—plan your pedestrian flow. You’ll also coordinate more with venue ops for anchor permissions.

Tips / Cost

I use slim ladder truss as the flown spine to keep visual bulk down, then hang movers where the audience sightline allows. At design halfway, I often map a compact stage-and-truss footprint to check aisle widths and emergency egress in 3D.

save pin

save pin

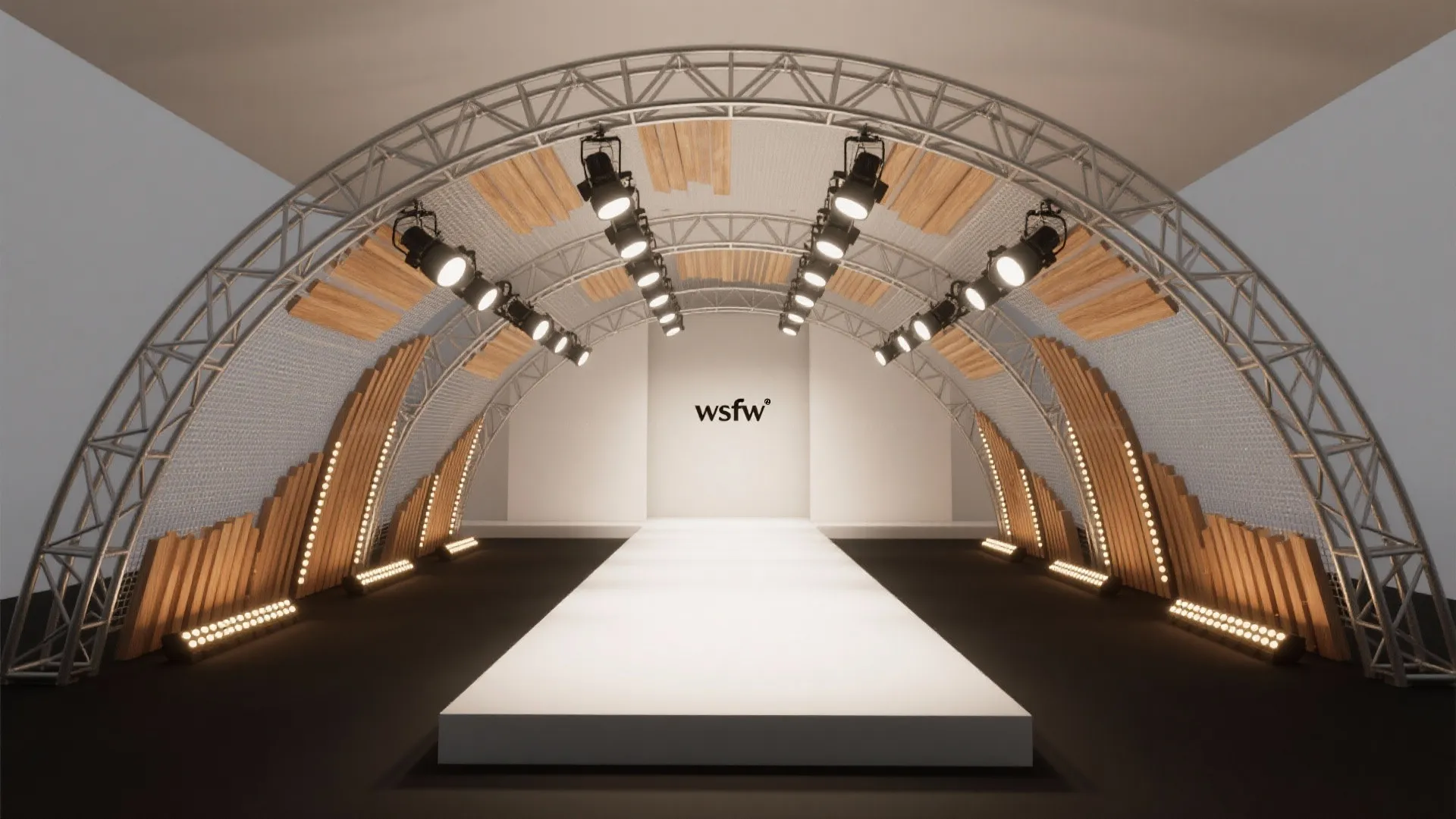

Curved Truss Arcs and Scenic Integration

My Take

A gentle arc or semi-circle truss turns a basic stage into a signature silhouette. In a fashion show gig, a 10 m arc framed the runway and gave a gorgeous key-to-fill angle spread with minimal fixture count.

Pros

Curves expand throw angles, supporting long-tail goals like “immersive truss design for audience wrap” and “runway lighting geometry.” You can lift the perceived height of a space by visually echoing proscenium lines.

Cons

Curved sections are pricier and trickier to store, and you’ll need precise splice and bridle work to avoid twist. Spare parts availability can be limited on tour.

Tips / Case

Blend scenic elements—wood fins, mesh, or scrim—onto the arc to soften the tech look. Use lightweight diffusion for backlight bloom without hot spots; pixel bars on the inner radius add dynamic looks with fewer fixtures.

save pin

save pin

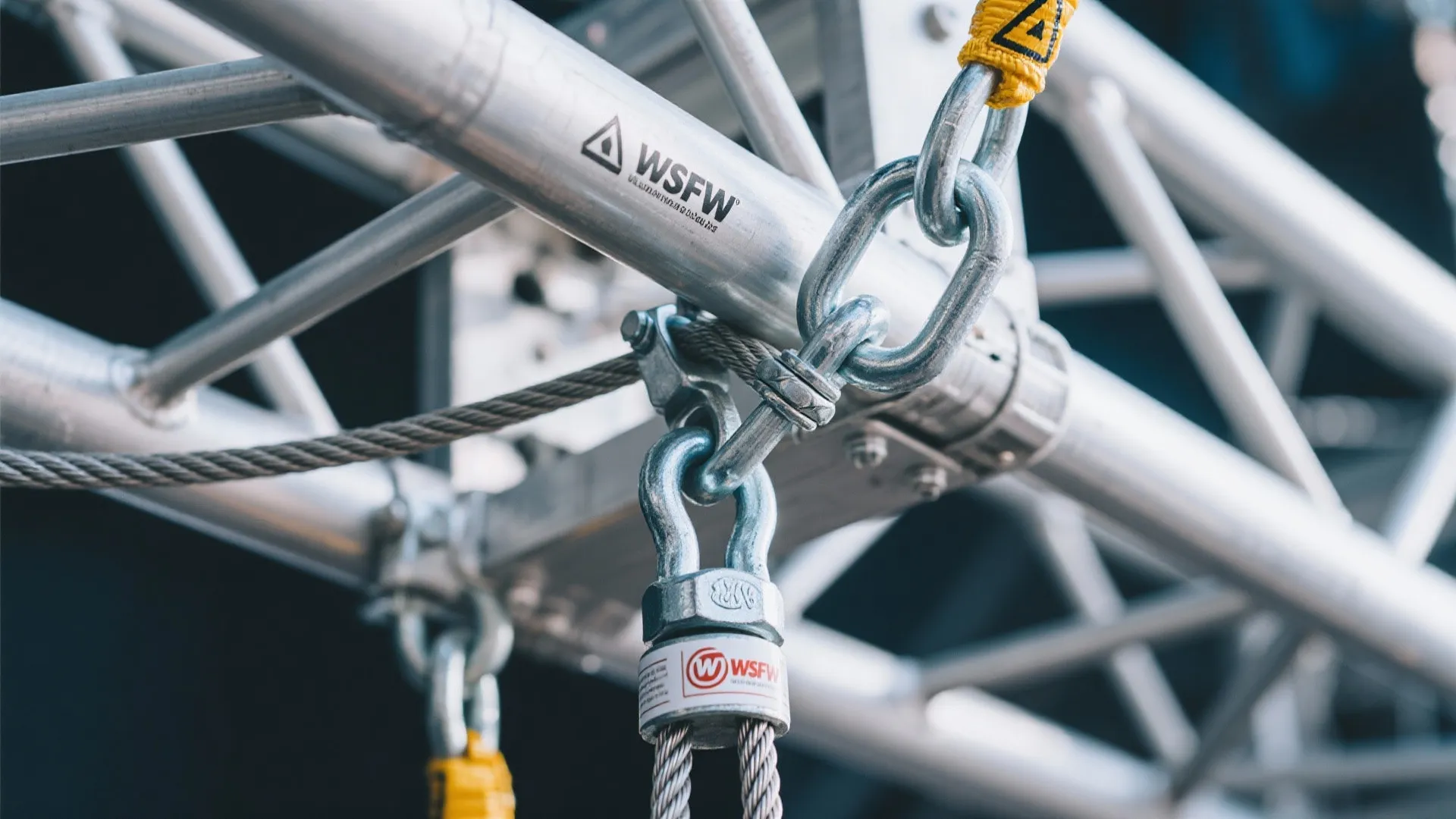

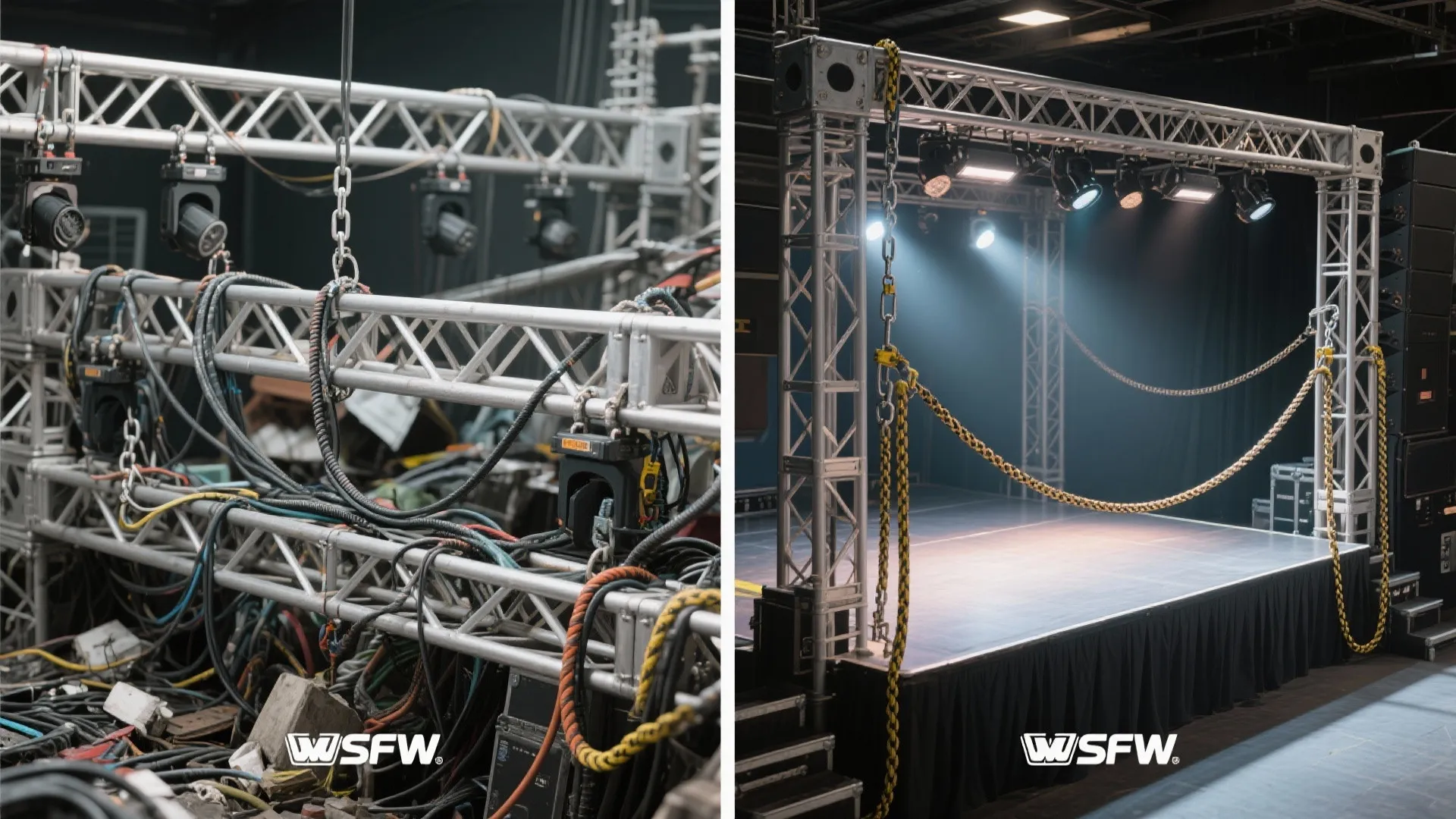

Safety‑First Load Calculations and Redundancy

My Take

Nothing derails creativity faster than unsafe loads. I always start with load tables, then validate with a rigger, even for “simple” café rigs. Redundancy buys peace of mind and keeps the show on.

Pros

Proper calculations prevent overstress and sway for “stage lighting truss design” under dynamic loads (moving heads, cable motion). Redundant safety bonds, secondary suspensions, and rated hardware align with ANSI E1.6‑1 to E1.6‑3 (suspended rigging) from ESTA/PLASA, which are widely recognized references.

Cons

Engineering time feels slow, especially on tight budgets. But every time I’ve skipped a check, I’ve paid for it in re-rig time—or stress during soundcheck.

Tips / Cost

Get manufacturer PDFs for your specific truss series; know UDL vs point load limits per span. When planning production turnarounds, I mock a scan-based layout validation to catch conflicts between lighting, scenic, and HVAC before load-in.

[Section: 总结]

Small stages don’t limit you—stage lighting truss design simply demands smarter structure and cleaner cable logic. Follow the load tables, distribute weight, and embrace modular pieces; you’ll get faster builds and better looks. As ESTA/PLASA standards underline, safe rigging is what frees creativity. Which of these five ideas are you most excited to try on your next show?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best truss size for small venues?

For most small venues, 290–300 mm box truss balances stiffness and weight. Always confirm with the manufacturer’s load tables and your exact span and point loads.

2) How do I ensure safety in stage lighting truss design?

Use rated hardware, follow manufacturer load tables, and apply redundancy (secondary suspensions, safety bonds). Reference ESTA/PLASA ANSI E1.6 series for suspended rigging practices.

3) Can I tour with pre‑rigged bars?

Yes, but plan truck pack space, connector protection, and maintenance. Pre-rig saves time on repetitive setups; label DMX universes and standardize connectors for reliability.

4) What are common mistakes with low ceilings?

Overcrowding fixtures and underestimating heat and sightlines. Use slim ladder truss or a hybrid floor + ceiling approach to distribute loads without killing headroom.

5) How do I calculate point loads on a span?

Start with the truss manufacturer’s point load charts for your span length. If loads move (e.g., moving heads), account for dynamic factors and consult a qualified rigger.

6) Do curved truss sections require special hardware?

Typically yes—matched spigots, plates, and sometimes custom braces. Ensure proper bridle angles to avoid torsion and follow the supplier’s specific instructions.

7) Is aluminum truss durable enough for outdoor use?

Aluminum truss is standard outdoors, but protect connectors and consider wind loading per local codes. For temporary outdoor structures, see ESTA E1.21 guidance.

8) What software helps plan stage lighting truss design?

Any 2D/3D planner that supports accurate scaling and equipment libraries will help you visualize spans, loads, and sightlines. I often block out a quick 3D plan to catch conflicts early.
