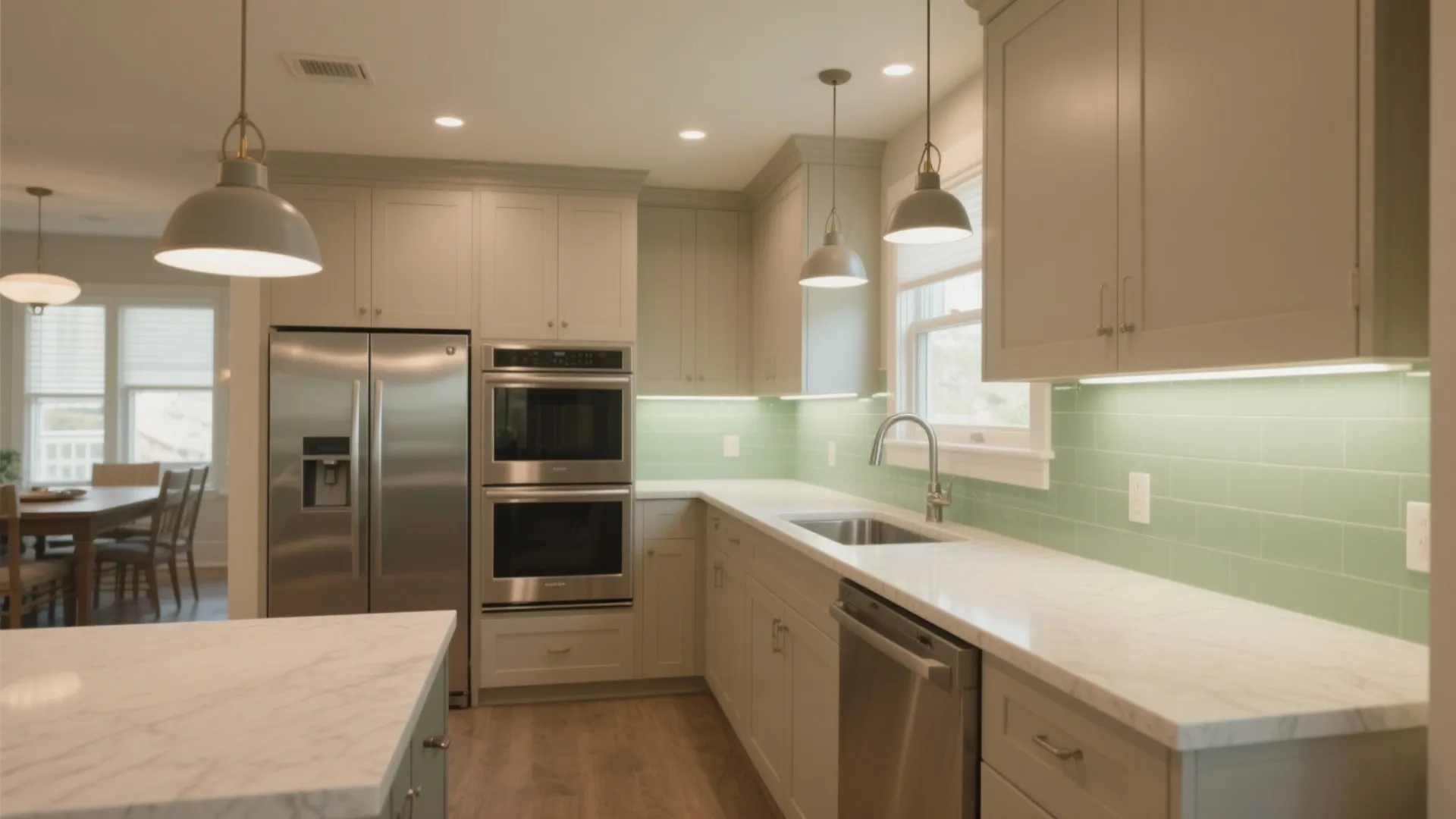

10 x 12 L Shaped Kitchen Layout Ideas: Creative Designs for Efficient Cooking Spaces

I’ve designed dozens of 10×12 kitchens over the last decade, and the L-shaped footprint consistently delivers the best balance of flow, storage, and sightlines in a tight envelope. A well-planned L keeps the working triangle efficient while opening the room to adjacent dining or living spaces.

Data supports the efficiency gains: Steelcase research has shown that clear zones and reduced crossover paths improve task throughput across work environments, a principle that translates neatly to kitchens where defined prep-cook-clean lanes reduce steps and errors. WELL v2 also emphasizes accessible clearances and user comfort, advocating minimum 40–48 inches between primary work edges to minimize collision and strain. In a 10×12, that spacing is achievable with the L taking one long wall and one short return.

Lighting quality is equally critical. The Illuminating Engineering Society recommends roughly 300–500 lux for general kitchen tasks, with 500–750 lux on counters for prep-intensive zones. Pair that with 2700–3500K warm-neutral LED under-cabinet strips to balance color rendering and comfort while backing down glare. In compact L-shaped rooms, layered light prevents shadowing in the corner and keeps the task plane bright without washing the whole space.

Idea 1: Classic Work Triangle with Corner Sink

I often place the sink at the inside corner, the cooktop on the long leg, and the refrigerator on the short leg. The diagonal movement trims steps while freeing the long counter run for uninterrupted prep. Keep 18–24 inches of landing on each side of the cooktop, and at least 15 inches flanking the corner sink for dish staging. If you’re mapping options, a room layout tool can help visualize circulation and clearance before committing.

Idea 2: Prep-Forward Long Run with Island Cart

In a 10×12, a fixed island can choke pathways. A mobile butcher-block cart provides 4–6 square feet of extra prep surface and parking for mixing bowls, then tucks away. I spec lockable casters and a solid wood top for knife-friendly resilience. Leave a minimum 42 inches between the L and cart when in use for a safe passage.

Idea 3: Tall Pantry Bank on the Short Leg

Concentrate vertical storage at the end of the short leg: one 24-inch pantry cabinet plus a 24-inch integrated fridge creates a clean storage spine. Use pull-out pantries with full-extension, soft-close hardware for ergonomic reach—no crouching into deep shelves. This setup reduces visual clutter along the longer wall, keeping the room feeling wider.

Idea 4: Windowed Sink Wall with Corner Appliance Garage

Place the sink on the long leg under a window for daylight and sightlines. At the corner, an appliance garage with lift-up door corrals toasters and blenders while preserving continuous counter flow. Plan dedicated 20-amp outlets and task lighting inside the garage. Keep upper cabinets 15 inches above the counter to maintain comfortable reach per common ergonomic guidance.

Idea 5: Two-Zone Layout for Couples Who Cook

I split the L into parallel micro-zones: left side for prep (sink, cutting board, compost), right side for cooking (cooktop, spices, utensils). Duplicate smallwares to avoid crossing paths. A 10×12 can support this if you maintain 48-inch aisle space and separate trash/recycling near the sink to minimize back-and-forth.

Idea 6: Breakfast Nook on the Return

Reserve the short leg for a 12–15 inch deep counter overhang with stools, turning the L into a casual breakfast bar. Keep BS clearance (bar seating) at 24 inches width per stool and 12 inches knee space; stagger lighting with two small pendants at 2700–3000K to build warmth without glare. This adds social functionality without compromising the cooking line.

Idea 7: Minimalist L with Integrated Rails

Eliminate uppers on one wall and rely on a stainless rail system for frequently used tools. It lightens the visual mass and maximizes lateral counter—great for small apartments. Combine with a matte, low-VOC paint and slab doors for clean lines. Use a high-CRI LED under-shelf light to keep color accuracy when prepping produce.

Idea 8: Corner Induction with Downdraft

When ventilation is challenging, a downdraft induction cooktop in the corner keeps sightlines open and eliminates a bulky hood. Ensure clearances to side walls per manufacturer spec; maintain 30 inches minimum to non-combustible surfaces and protect adjacent panels with heat-resistant laminate or compact phenolic.

Idea 9: Galley Extension Through a Pass-Through

Convert the short leg into a pass-through to the dining area with a serving ledge and cabinet base below. This creates a visual galley extension, increases natural light, and makes plating more efficient. Keep the opening height at roughly 42 inches for a comfortable handoff line and integrate dimmable LED strips to highlight the aperture at night.

Idea 10: Appliance Cluster with Dedicated Landing Zones

Group microwave and wall oven on the short leg with 15 inches landing counter immediately adjacent. Place the refrigerator opposite on the long leg with 24 inches landing space to prevent bottlenecks at the corner. A slim pull-out between oven and fridge can house trays and cutting boards for quick access.

Lighting Strategy for Compact L-Kitchens

I use three layers: dimmable ambient (recessed or low-glare surface fixtures delivering 300–400 lux), under-cabinet task lighting at 500–750 lux for prep, and focal pendants over the bar at 2700–3000K. Matte finishes on counters and backsplashes help control specular glare; choose diffusers with a unified glare rating appropriate for residential tasks.

Ergonomics and Human Factors

Handle heights matter. For most adults, counter height at 36 inches suits general tasks; taller users benefit from 37–38 inches on the primary prep zone. Keep the dishwasher within one step of the sink, and place everyday dishes in the first upper shelf (48–54 inches from floor) to reduce shoulder strain. Round front edges on counters softens contact during long prep sessions.

Color Psychology and Material Selection

Color influences appetite and perceived space. Soft neutrals with warm undertones (think light taupe or greige) visually expand the 10×12 footprint, while muted greens can reduce stress and support focus—a link echoed in color psychology references. Pair light, low-sheen quartz with a textured tile backsplash to add depth without overpowering the small perimeter. For sustainability, specify FSC-certified wood boxes, water-based finishes, and LED fixtures with replaceable drivers.

Acoustic Comfort and Appliances

Small kitchens amplify appliance noise. Favor induction cooktops and brushless-motor hoods with low sone ratings. Add soft-close hardware, cork or rubber underlay beneath flooring, and silicone feet under small appliances to damp micro-vibrations. Acoustic treatment is subtle yet noticeable, especially in open-plan homes.

Planning and Visualization

Before committing to cabinetry, simulate multiple L-shaped permutations and test traffic routes, landing zones, and stool clearances with an interior layout planner. Iterating on paper is helpful; visually prototyping eliminates surprises when the corner becomes critical.

FAQ

Q1: What’s the ideal working triangle in a 10×12 L-shaped kitchen?

A: Aim for 12–26 feet total between sink, cooktop, and refrigerator, with no single leg under 4 feet or over 9 feet. Keep paths clear and avoid placing the triangle through seating.

Q2: How much clearance is comfortable between the L and opposite wall?

A: 42 inches supports two users; 48 inches feels generous and aligns with comfort guidance referenced in WELL v2 for movement and accessibility.

Q3: How bright should task lighting be on counters?

A: Target 500–750 lux with high-CRI LEDs. Use continuous under-cabinet strips to avoid scalloping and shadows in the corner.

Q4: Where should the dishwasher go in an L shape?

A: Immediately adjacent to the sink on the same leg with at least 21–24 inches of landing counter on the opposite side for dish staging.

Q5: Is an island possible in a 10×12?

A: Fixed islands often constrict movement; a mobile cart or narrow peninsula (12–15 inches deep) can add function without choking the aisle.

Q6: How do I avoid corner dead zones?

A: Use blind-corner pull-outs or a diagonal corner cabinet. An appliance garage at the corner maintains continuous counter while hiding clutter.

Q7: What finishes help small kitchens feel larger?

A: Light neutrals, low-sheen quartz, slim-profile hardware, and open shelving on one wall reduce visual mass. Balanced light at 300–400 lux ambient avoids dark pockets.

Q8: What’s the best cooktop option for compact L kitchens?

A: Induction saves clearance, minimizes heat spill, and pairs with downdraft or slim hoods to preserve sightlines—especially near a pass-through.

Q9: How can I plan storage for heavy items?

A: Keep pots and appliances in base drawers near the cooktop; reserve the short leg for a tall pantry with full-extension slides to avoid deep bending.

Q10: Any acoustics tips for open-plan kitchens?

A: Choose low-sone ventilation, soft-close hardware, and add absorptive elements like cork underlayment and area rugs nearby to reduce reverberation.
