2-Bedroom Shared Bathroom Layouts — 5 Smart Ideas: Space-saving and stylish shared bathroom layouts for two-bedroom homes, with practical tips from a senior interior designer

Once I tried fitting a bathtub into a tiny hall closet because a client insisted they "needed to soak after work" — lesson learned: creative layouts are great, but plumbing rules are firmer than wishful thinking. That little disaster pushed me to become obsessive about efficient shared-bathroom planning. Small spaces can spark big ideas, and in this piece I’ll share 5 realistic layouts for a 2-bedroom home that balance privacy, flow, and budget.

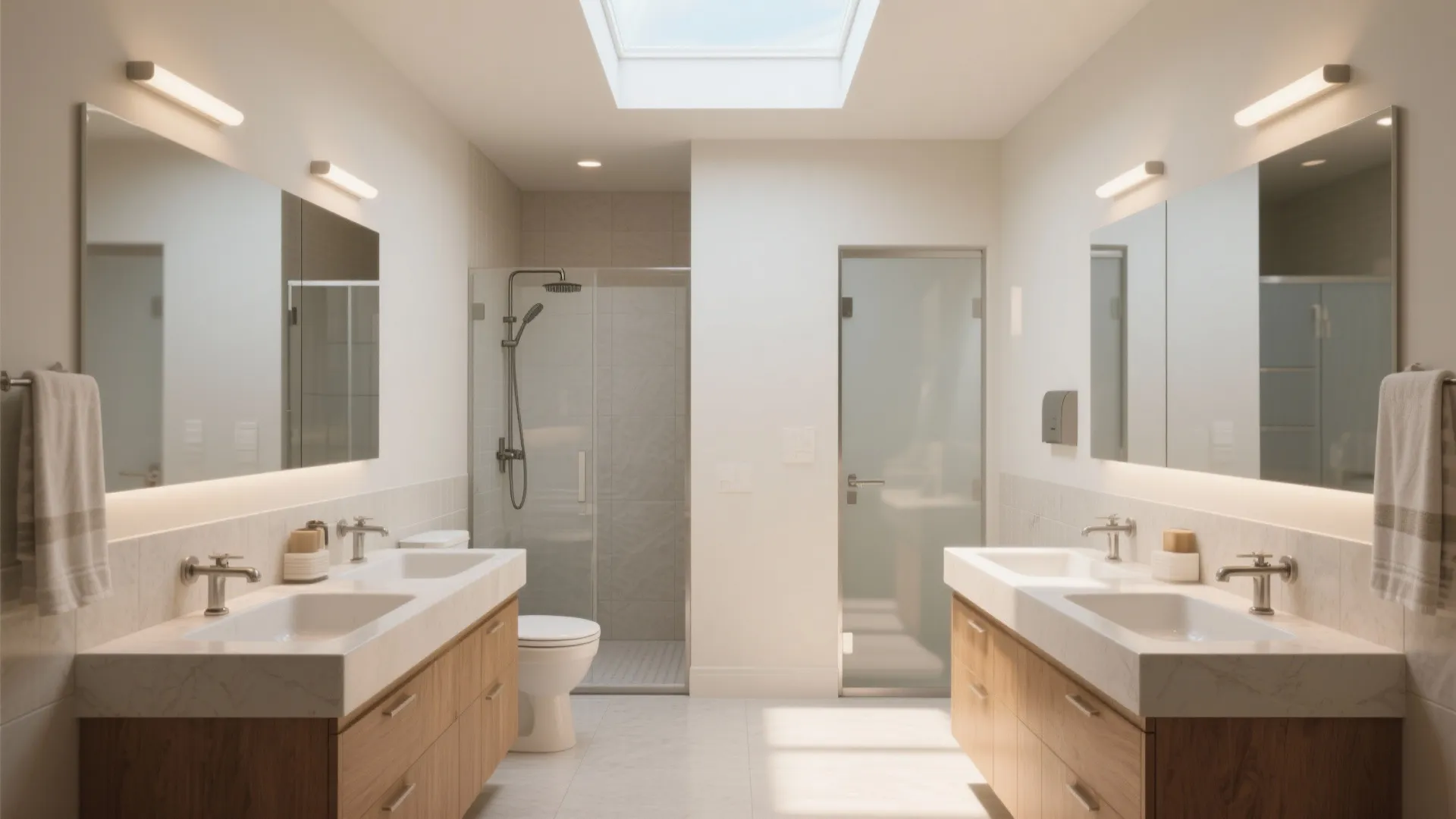

Layout 1: Jack-and-Jill with Dual Sinks

I recommend a Jack-and-Jill when two bedrooms are adjacent — it’s the ultimate compromise between shared space and private access. Putting double sinks on one wall speeds morning routines and reduces conflicts, while a separate shower and toilet cubicle keeps things usable when someone’s brushing teeth. Downsides? You’ll need a slightly larger footprint and careful ventilation planning to avoid steam seeping into both bedrooms.

save pin

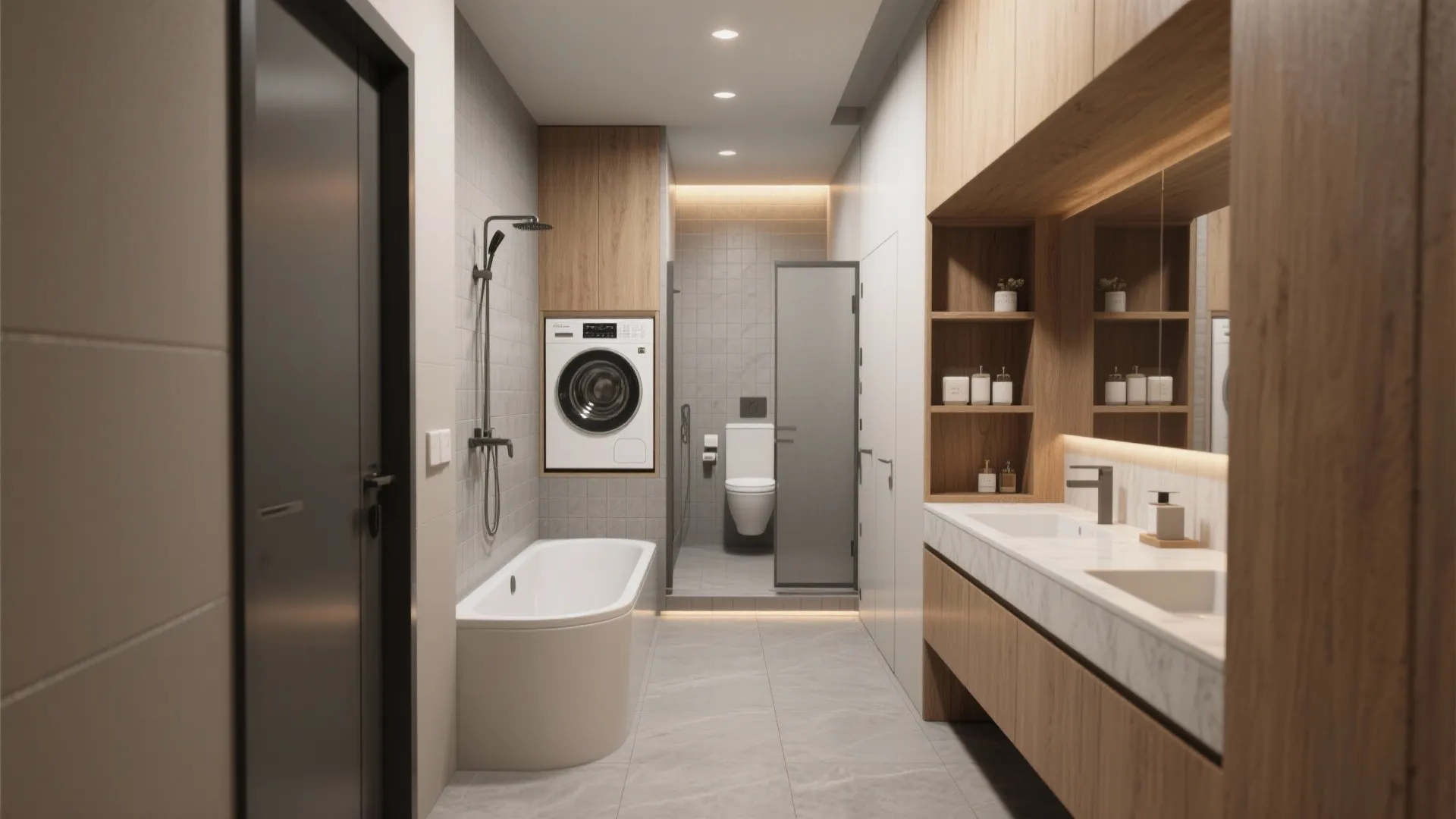

Layout 2: Corridor Bath with Zoned Storage

When the bathroom sits off a short hallway, create distinct zones: a vanity/dressing area near the door, a wet zone with shower/tub deeper inside, and a toilet tucked behind a partition. This layout makes the room feel bigger and lets two people use different zones simultaneously. The trade-off is you may sacrifice a closet or hallway space, but adding built-in shelves above the washer or recessed niches recovers useful storage.

save pin

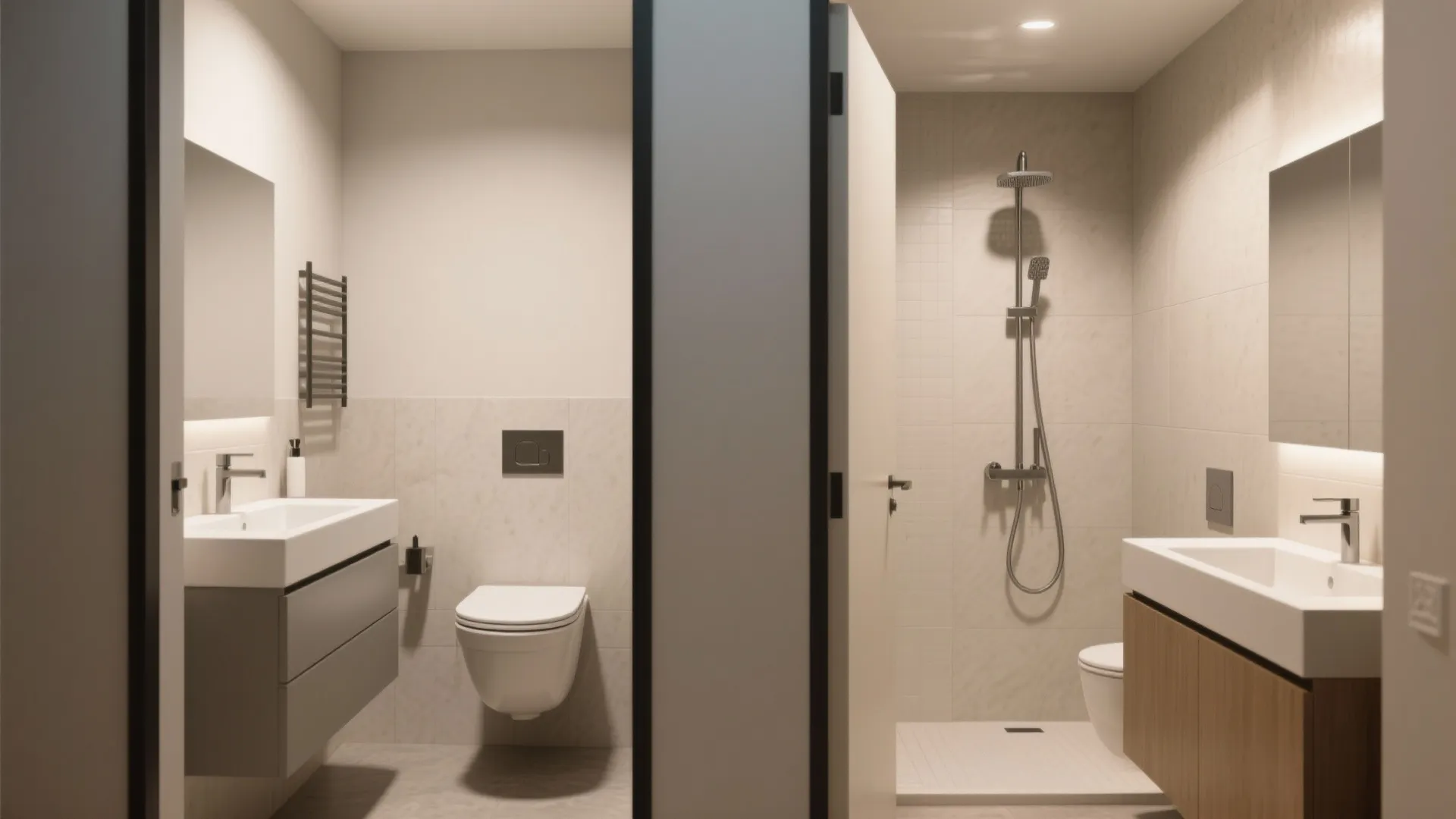

Layout 3: En-suite + Guest Bathroom Split

If the budget and floorplan allow, give the master an en-suite and keep a small guest bathroom for the second bedroom and visitors. I’ve used this in several remodels: it increases privacy and resale appeal. The small shared bathroom can be streamlined — compact fixtures, wall-hung toilet, corner shower — but expect slightly higher renovation cost due to additional plumbing.

save pin

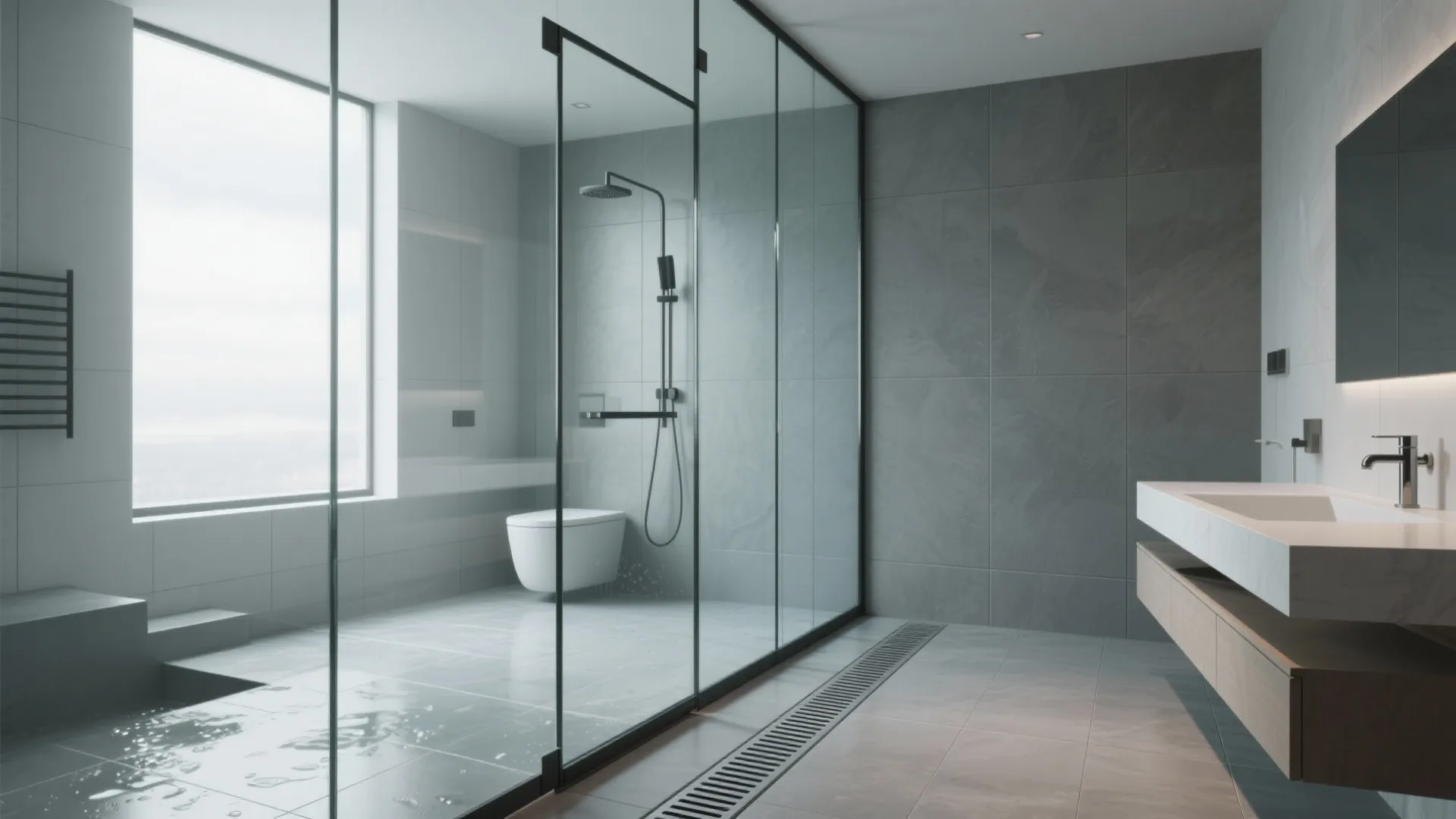

Layout 4: Wet-Room Style Shared Bath

For very small footprints, a wet-room approach eliminates visual clutter: glass partition, continuous floor tile, and a drain that handles the shower. It’s modern and easy to clean, and works well when you want an open, airy feel. Challenges include waterproofing costs and ensuring the whole room can handle moisture — but it’s brilliant where space is at a premium.

save pin

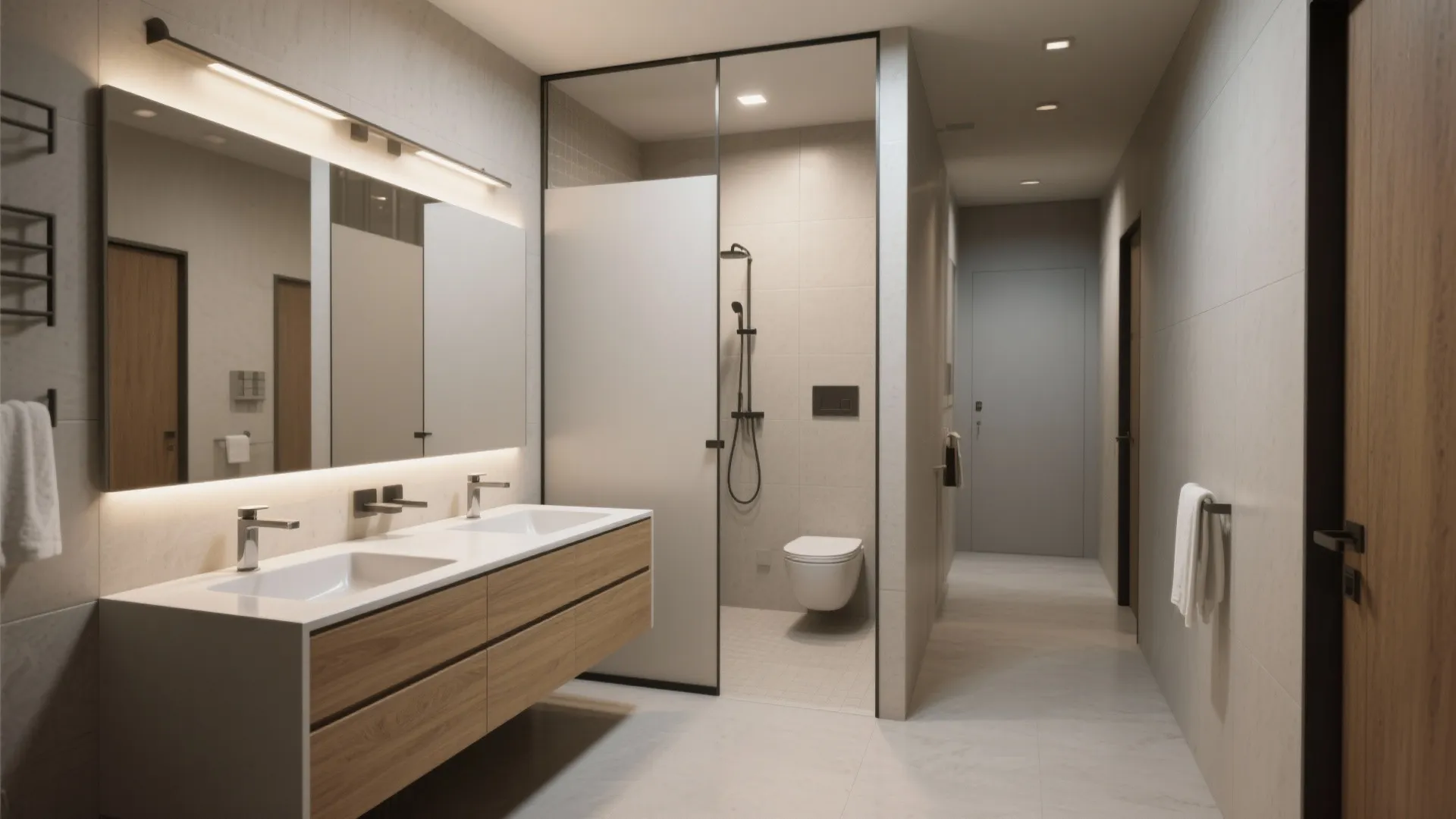

Layout 5: Split Vanity Outside the Wet Area

Another trick I love is moving the vanity outside the wet area — think a dressing nook in the corridor or shared closet wall — while keeping the shower and toilet in a compact wet cubicle. This doubles sink-accessibility without enlarging the shower footprint. The downside is you’ll need good lighting and a reliable exhaust system for the vanity zone.

For visualizing any of these plans quickly, I often sketch them in a room planner and then try detailed measurements in a floor planner tool — it saves costly mistakes on-site and helps clients understand flow. If you want, I can show examples from a 3D floor planner to help pick the best option for your layout.

save pin

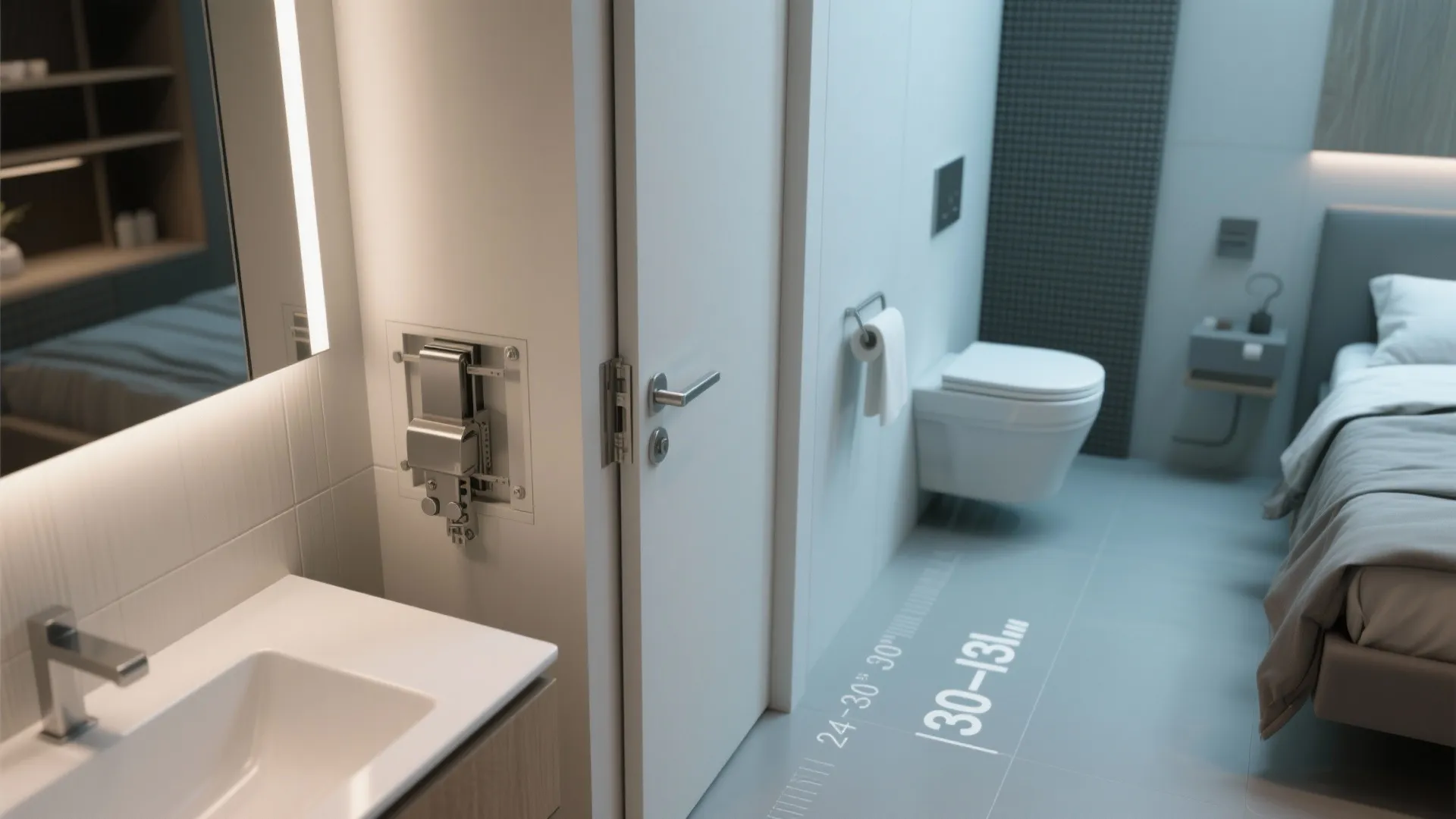

Tips 1:

Little practical notes: choose pocket doors to save swing space, prefer 24"–30" clear walkway widths for comfort, and consider noise-reducing partitions between bedrooms and shared baths. Budget-wise, moving plumbing lines increases cost significantly, so try to re-use existing stacks where possible.

save pin

FAQ

Q1: What is the best layout for privacy in a 2-bedroom shared bathroom? A1: A Jack-and-Jill with separate toilet cubicle and dual sinks offers the best balance between shared access and individual privacy.

Q2: How much space do I need for a comfortable shared bathroom? A2: Aim for at least 35–45 sq ft for a functional shared bathroom; compact designs can go smaller but require clever fixtures and storage.

Q3: Are pocket doors a good idea for shared bathrooms? A3: Yes — pocket doors save swing space and improve circulation, though they offer slightly less sound insulation than hinged doors.

Q4: How expensive is it to split an existing bathroom into two? A4: Costs vary, but moving plumbing and adding walls typically increases budget significantly; reusing existing plumbing lines reduces cost.

Q5: Can a wet-room be used as a shared bathroom? A5: Absolutely — wet-rooms are low-maintenance and open, but require expert waterproofing and good ventilation systems.

Q6: What fixtures are best for small shared bathrooms? A6: Wall-hung toilets, corner showers, and slimline vanities maximize usable floor area while keeping the room airy.

Q7: Where can I find authoritative guidance on bathroom ventilation and waterproofing? A7: Refer to the International Residential Code (IRC) for ventilation requirements and the National Association of Home Builders for waterproofing best practices (IRC and NAHB publications provide precise standards).

Q8: Can I visualize these layouts before renovating? A8: Yes — I recommend using a free floor plan creator or room planner to test dimensions and circulation before committing to construction.
