3 Bedroom Townhouse Floor Plans: 5 Smart Ideas: Practical space-saving and style-forward layouts for 3 bedroom townhouses — from my 10+ years designing compact homes

I once designed a townhouse where the client insisted every room face south — even the bathroom. That little demand almost turned into a drainage fiasco, but it taught me a powerful lesson: constraints (and quirky clients) spark creativity. Small footprints can feel limiting, yet a smart 3 bedroom townhouse plan can deliver comfort, storage, and sunlight in delightful ways.

In this article I’ll share five practical floor plan inspirations I’ve used in real projects, explain why they work, and point out the trade-offs so you can choose what fits your lifestyle. Small spaces can truly inspire big ideas.

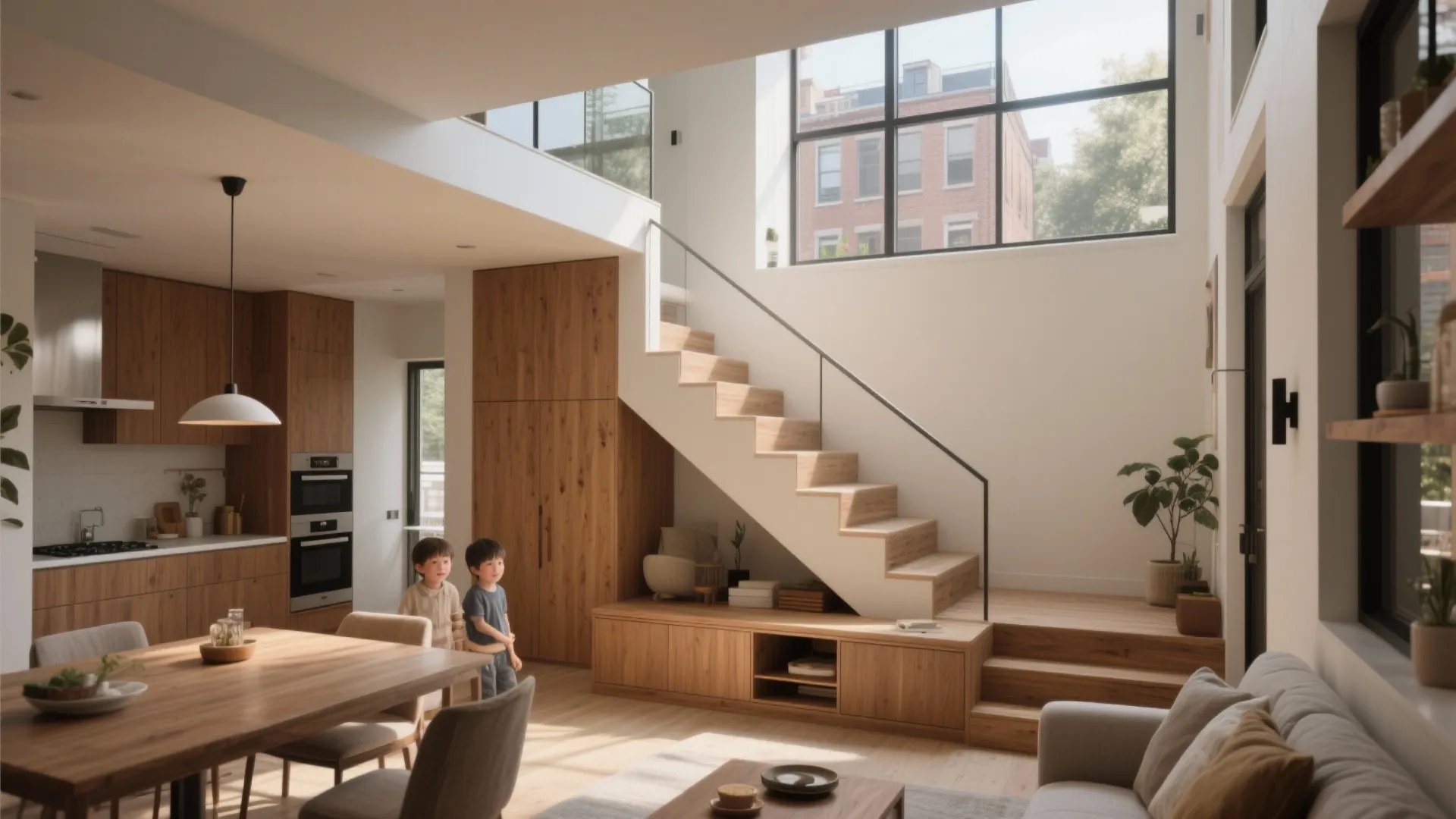

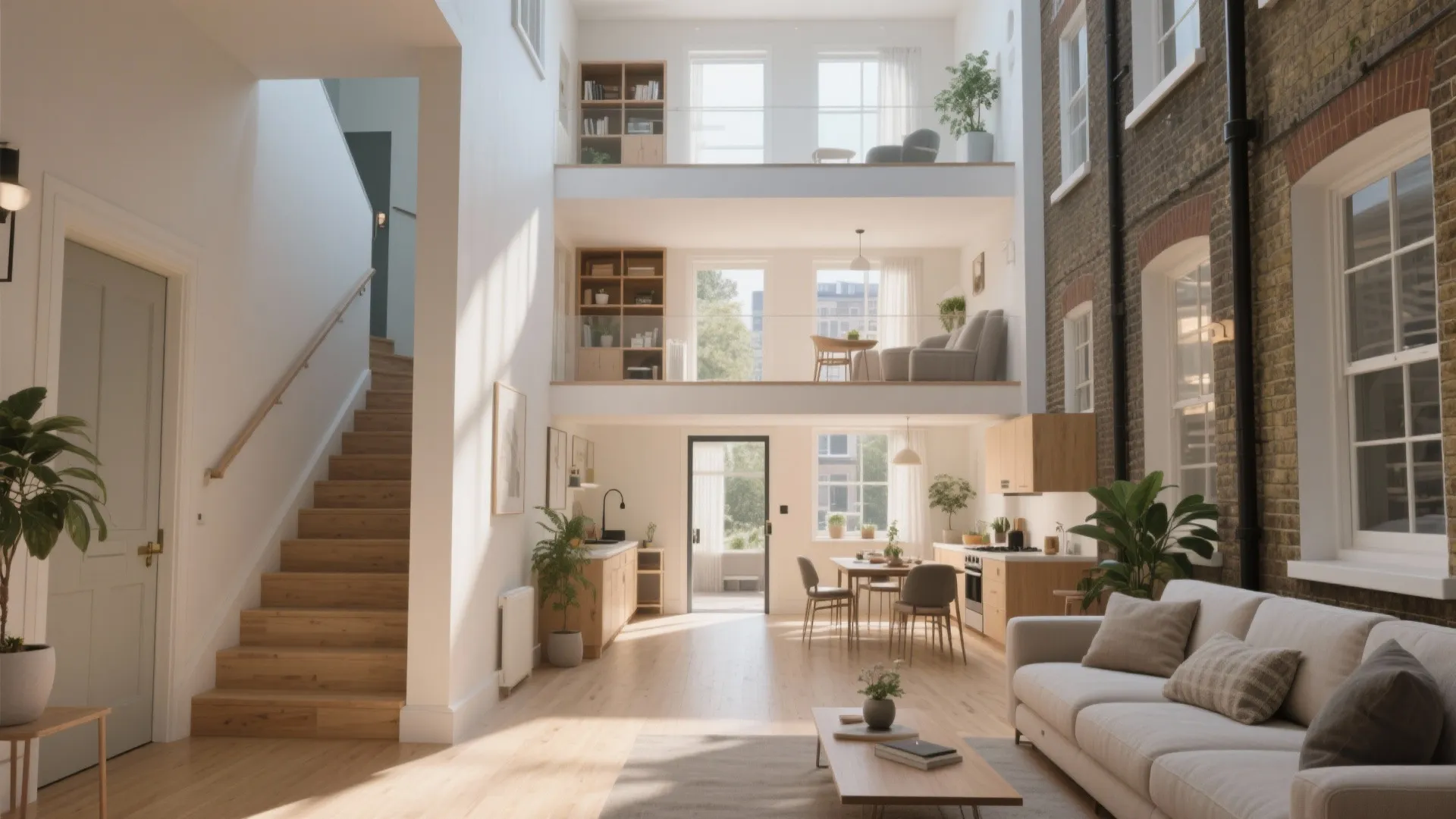

1. Split-Level Living: Separate Zones, Big Feel

One of my favorite moves for narrow townhouses is a split-level arrangement where the main living, kitchen, and dining sit on slightly staggered levels. It creates visual separation without adding walls, so the space feels open yet organized. The upside is great daylight distribution and clear social vs private zoning; the challenge is the short sets of steps, which require careful planning for families with small kids or mobility issues.

Tip: use built-in storage under the risers to reclaim otherwise wasted space.

save pin

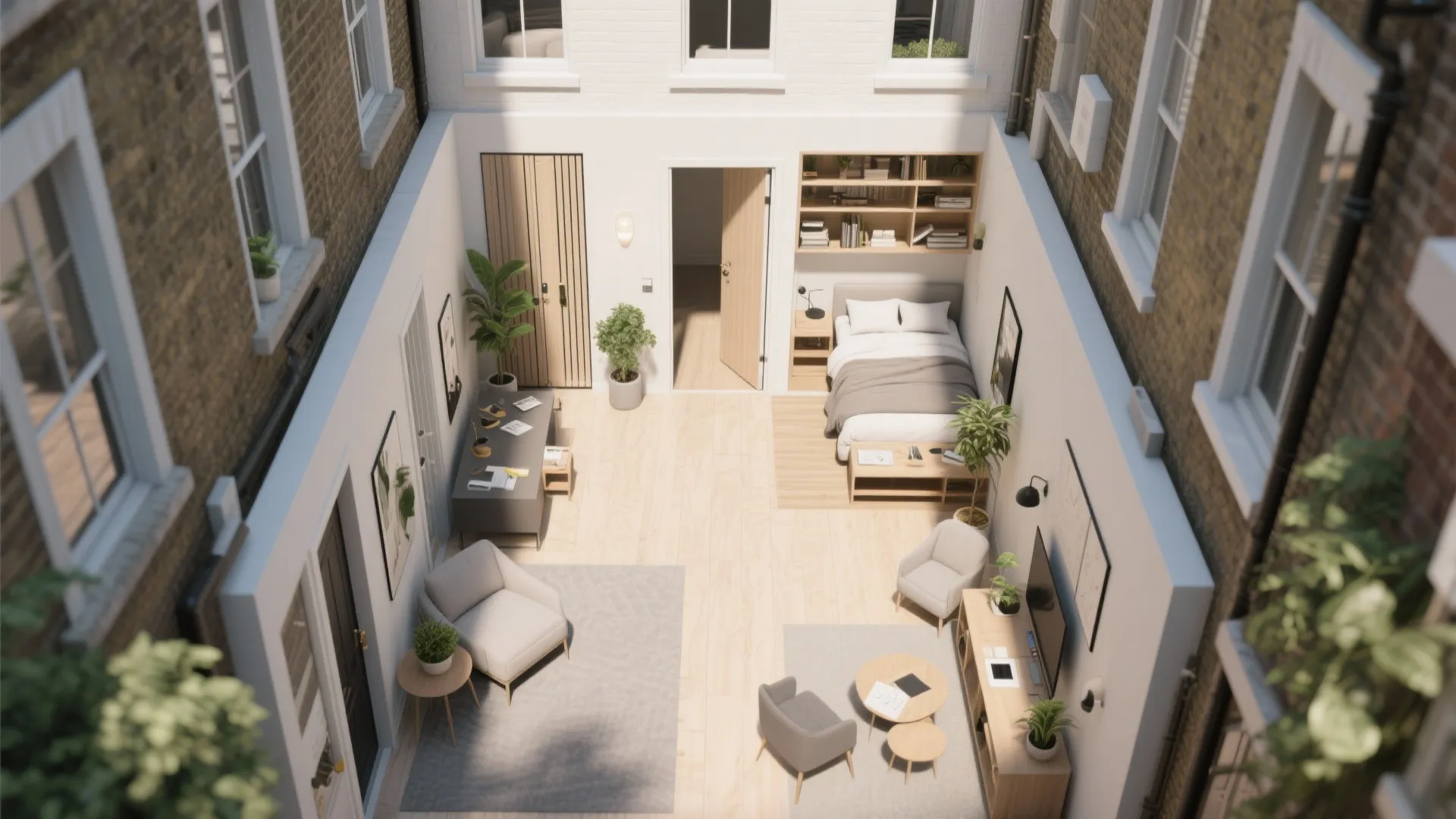

2. Open Plan with Pocket Bedrooms: Flexible Day-to-Night

I often recommend an open-plan ground floor that can convert into private sleeping nooks using sliding doors or pocket partitions. This works especially well when you want a flexible guest or home office bedroom without sacrificing the openness of the living area. Advantage: flexibility and a modern feel. Drawback: less permanent sound privacy, so consider acoustic panels or heavier pocket doors.

In one renovation I replaced a cumbersome hallway with a multi-use alcove that became a temporary bedroom and later a study — my clients loved the adaptability.

save pin

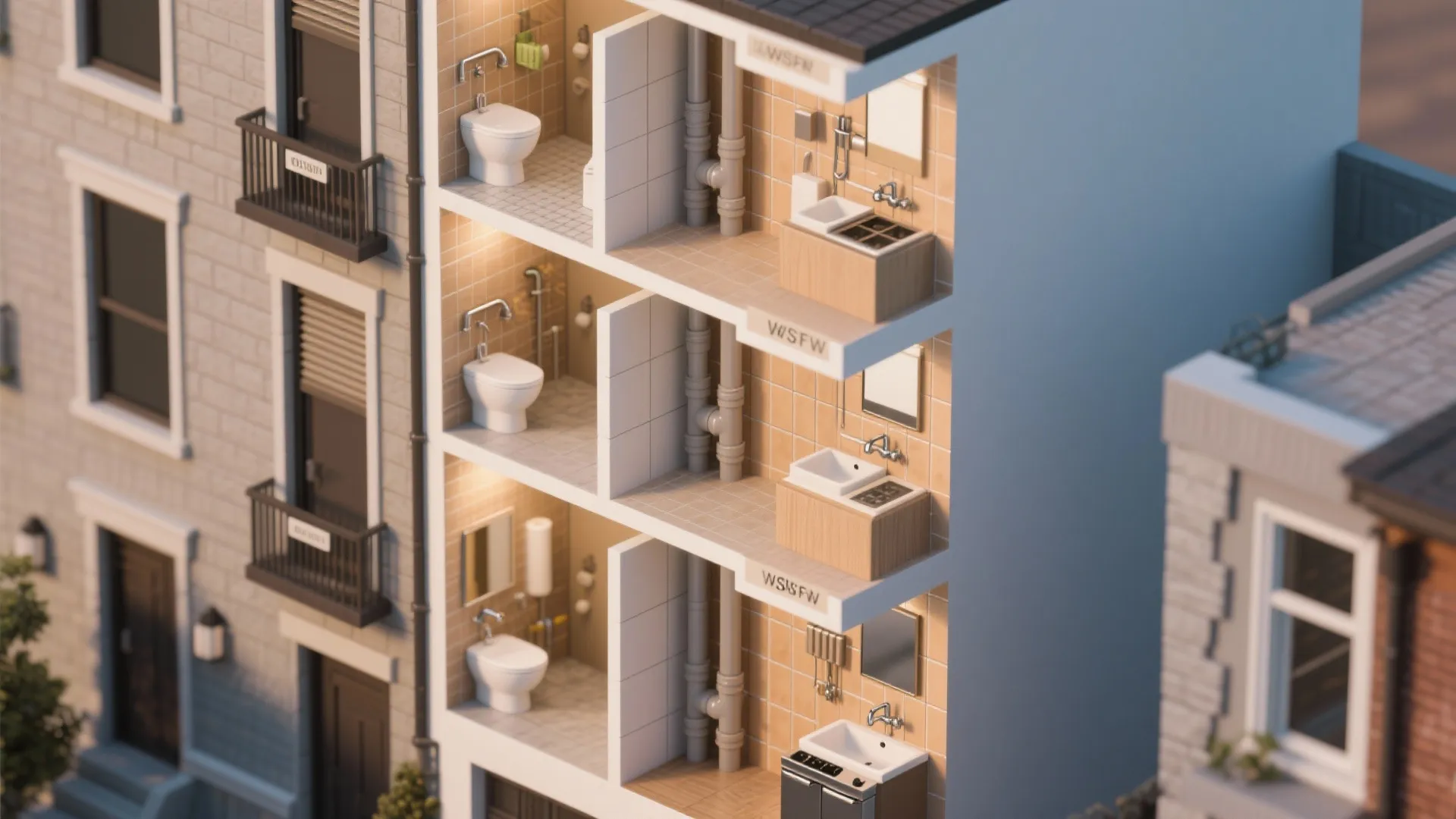

3. Stacked Wet Zones: Efficient Plumbing, Lower Costs

Stacking bathrooms and the kitchen vertically reduces plumbing runs and cut construction costs. I used this trick on a tight budget townhouse and the savings allowed for upgraded finishes elsewhere. Pro: cost efficiency and easier maintenance. Con: planning must be precise since relocating wet zones later gets expensive.

If you value long-term efficiency, plan your mechanical stack early in the design phase to avoid surprises.

save pin

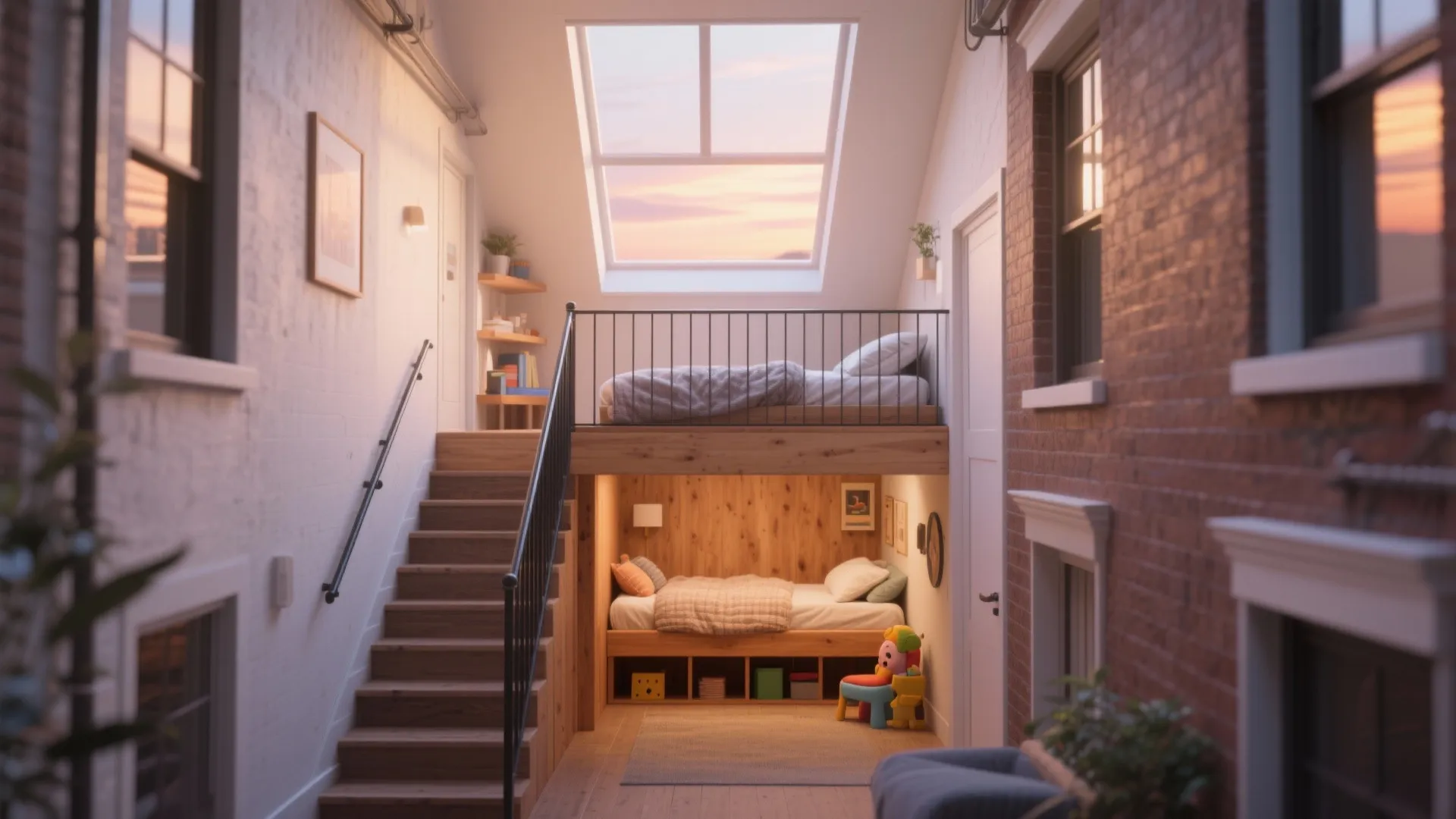

4. Lofted Third Bedroom: Light, Air, and Character

When ceiling heights allow, lofting the third bedroom creates an airy sleeping platform while keeping the main footprint open. I pulled this off in an old townhouse where a mezzanine bed made the space feel twice as large. Benefit: unique character and preserved floor area. Challenge: limited headroom and privacy—best for kids or occasional use.

Design note: guardrails, appropriate stairs, and egress considerations are non-negotiable for safety.

save pin

5. Courtyard Cut-Out: Private Outdoor Core

Introducing a small internal courtyard or light well in the center of a compact townhouse dramatically improves daylight and ventilation for interior rooms. I did this once to rescue a windowless middle bedroom — overnight it became bright and pleasant. The gain is natural light and a calm outdoor retreat; the trade-off is a slight loss of floor area and the need for weatherproofing choices.

Plants, a simple deck, and a folding window can transform this tiny outdoor core into a standout feature.

If you want to quickly sketch ideas for these layouts, try using a room planning tool to visualize different arrangements.

save pin

Tips 1:

Budget pointers: prioritize structural and plumbing decisions early, then layer finishes. I usually save a small contingency for unexpected site discoveries — trust me, it pays off.

Practical trick: show clients multiple furniture layouts in 3D so they understand how tiny changes affect circulation and storage.

For layout inspiration and quick prototyping, I’ve found that a 3D floor planner helps communicate ideas to clients clearly.

save pin

FAQ

Q1: What is the best layout for a narrow 3 bedroom townhouse? A1: A split-level or stacked plan often works best, creating separation without long corridors. Consider circulation and natural light to avoid a dungeon-like middle area.

Q2: How can I add storage without losing bedrooms? A2: Use under-stair drawers, built-in wardrobes, and storage over beds. Lofting or mezzanines can also free up floor-level storage opportunities.

Q3: Are lofted bedrooms safe and legal? A3: They can be, but you must meet local egress, headroom, and guardrail codes. Always check municipal building regulations before construction.

Q4: How do stacked wet zones save money? A4: Putting bathrooms and kitchens on top of each other minimizes long runs of plumbing and reduces labor and material costs. It’s a standard cost-saving strategy in multi-story homes.

Q5: Can an internal courtyard work in small townhouses? A5: Yes — even a small light well brings daylight and ventilation, dramatically improving interior comfort. Waterproofing and drainage need good detailing to prevent issues.

Q6: What’s a common mistake in townhouse planning? A6: Over-prioritizing large rooms at the expense of circulation and storage. I’ve learned to trade a bit of room area for smart circulation and built-ins.

Q7: Where can I find authoritative design standards for bedroom sizes and egress? A7: Refer to your local building code; for a widely used reference, consult the International Residential Code (IRC) which details minimum bedroom sizes and egress requirements (see ICC/IRC publications for specifics).

Q8: How do I test multiple layouts quickly? A8: Start with simple floor plan sketches, then move to a 3D floor planner to visualize furniture, light, and flow in realistic scale.
