5 Bathroom Layouts for 5x7 Room: Small 5x7 bathroom ideas that actually work — space-saving plans from a pro

Once I tried to fit a full tub, a washer, and a vanity into a 5 x 7 bathroom because a client insisted “we’ll only bathe the cat in the tub.” It was a hilarious planning nightmare that taught me one thing: small spaces force better decisions. I sketched, measured, and then used a tool to test layouts in 3D before I committed—saved us both a lot of headache.

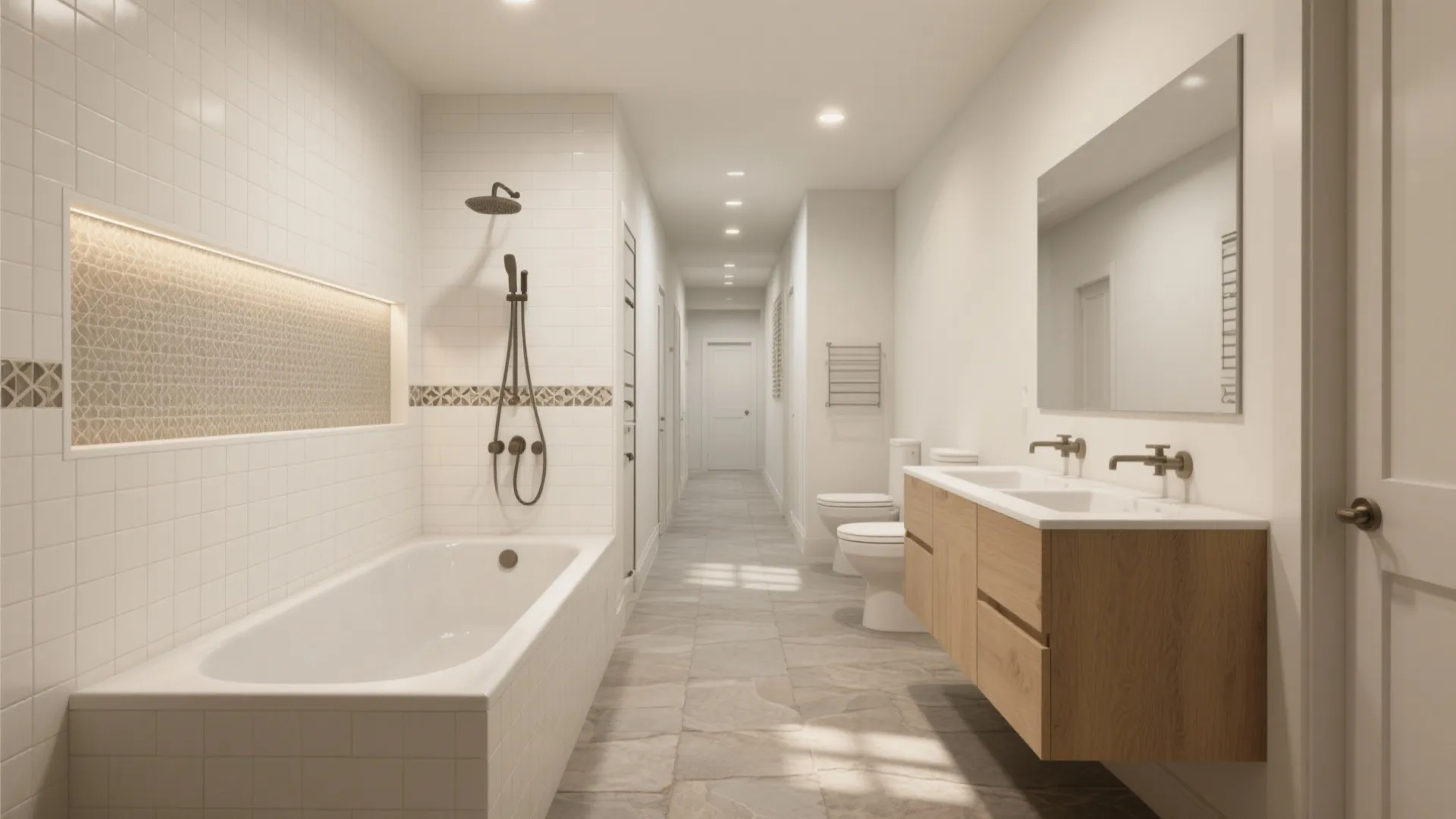

Linear layout: sink, toilet, tub in a row

This is my go-to when the 5x7 is a long rectangle. Place the tub or shower along one long wall, then the toilet and a narrow vanity opposite or in sequence. The advantage is straightforward plumbing runs and a clean sightline; the downside is it can feel corridor-like unless you break it up with tile or a niche.

save pin

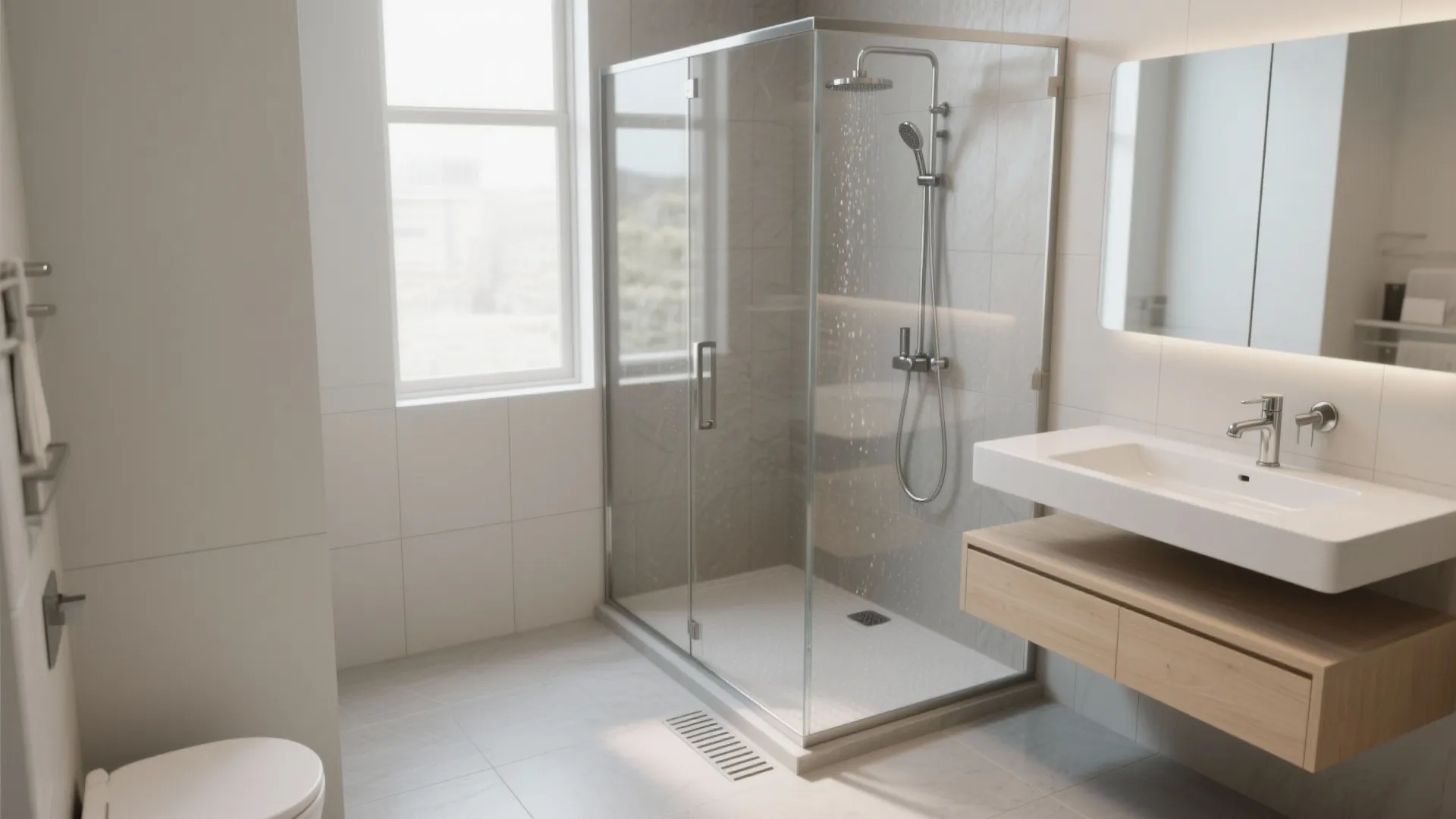

Corner wet-room with floating vanity

I used this in a recent reno: a corner walk-in shower with a glass panel keeps the room airy, while a floating vanity creates visual floor space. It’s great for openness and cleaning, but waterproofing and a slight slope in the floor add cost—budget for proper drainage and a quality membrane.

save pin

Walk-in shower + stacked storage wall

Swap a tub for a walk-in shower to reclaim space for vertical storage. I like tall recessed cabinets above the toilet for linens and cleaners. This layout maximizes storage without crowding the floor, though you’ll need careful planning to keep doors and drawers from clashing.

save pin

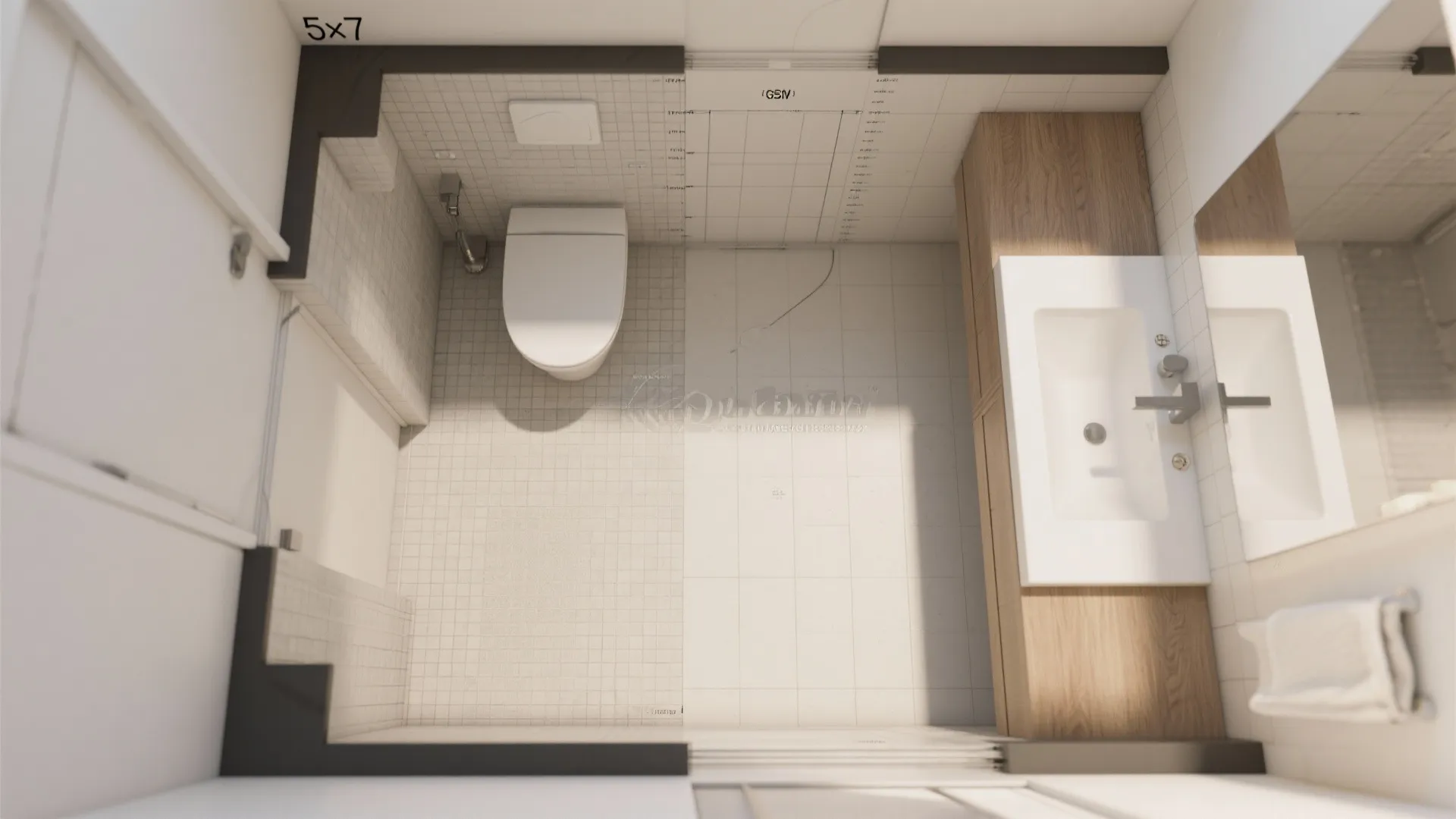

Offset fixtures for better flow

Shifting the toilet slightly off-center and using a slimline vanity can create a more comfortable circulation path in a 5x7. I often prototype a couple of arrangements using pre-set bathroom templates to see what feels roomy in practice. It’s low-cost to test, but you’ll want precise measurements—millimeters matter.

save pin

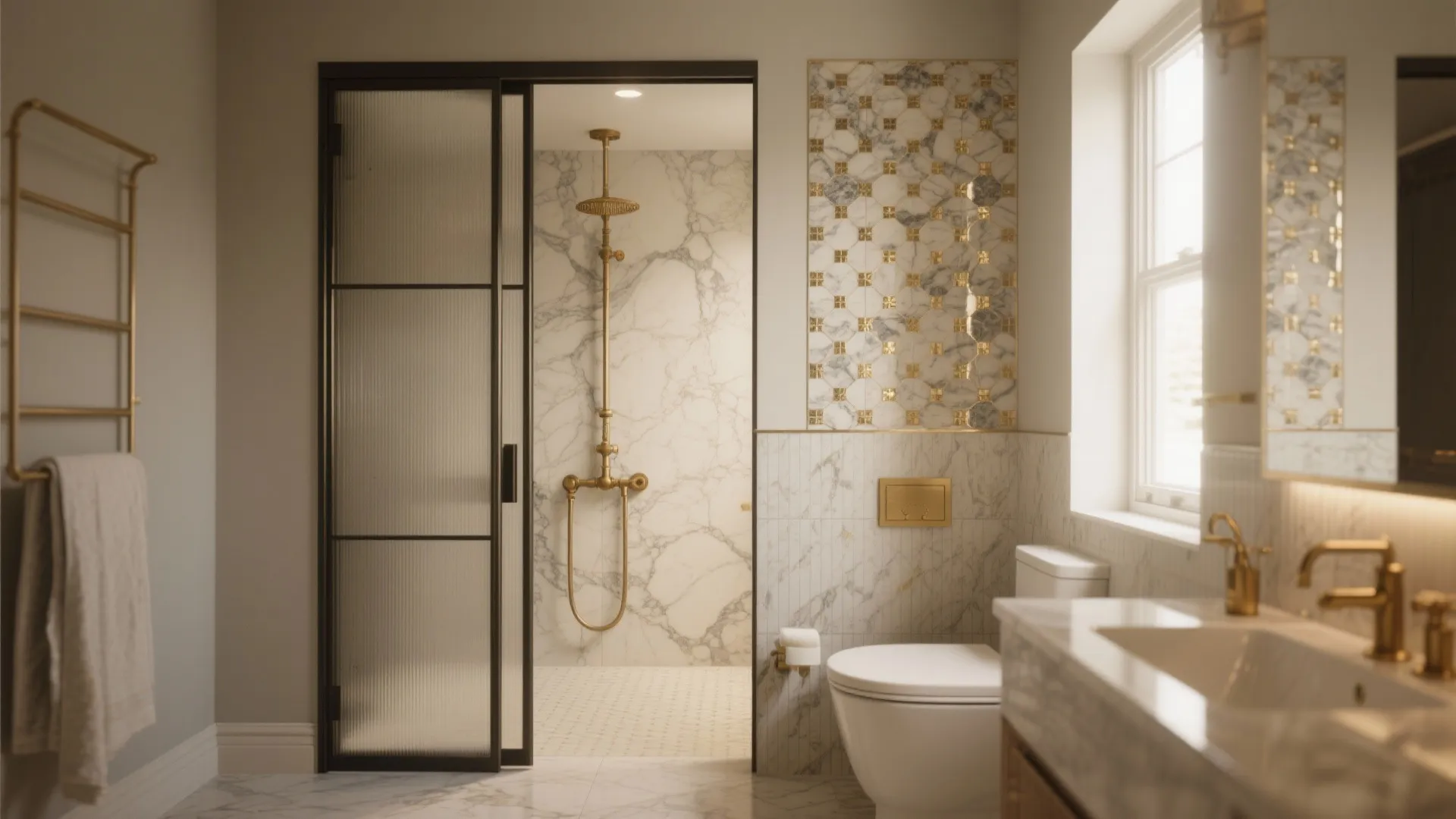

Wet wall with pocket door and luxe details

One of my favorite tricks is to push plumbing onto a single wet wall and free up the rest for storage or a stylish tile feature. Pair that with a pocket door to save swing space, and you get a luxurious feel in a tiny footprint. The trade-off: moving plumbing can spike the budget, but the payoff is a functional, high-end small bathroom.

save pin

FAQ

Q1: What’s the minimum clearances for a 5x7 bathroom?

Most codes expect at least 21 inches in front of fixtures and 15 inches from the centerline of a toilet to a side wall. For detailed local requirements, check your municipal code or NKBA guidelines.

Q2: Can I fit a bathtub in a 5x7?

Yes—an alcove tub (typically 60" long) fits the long side of a 5x7 if the layout permits, but you’ll sacrifice storage or counter space. Consider a short soaker tub or a deep shower if space is tight.

Q3: Is a pocket door worth it?

Absolutely—pocket doors reclaim swing space and make circulation easier in a 5x7. Installation costs are a bit higher, and you lose some wall space for mounting items, so weigh priorities.

Q4: Should I choose a shower or tub?

If you want maximum usable floor and storage, choose a shower. If resale value or bathing preference matters, a tub may be required. Think about your lifestyle first—do you actually take baths?

Q5: What flooring slope is needed for a wet-room?

A slope of about 1/4 inch per foot toward the drain is typical to avoid water pooling. Proper waterproofing and a licensed installer are essential for longevity.

Q6: Any rules of thumb for vanities in a 5x7?

Go shallow and wide if you can—18" deep vanities free up walking space. Floating vanities visually expand the floor but require secure wall framing for mounting.

Q7: Where can I find reliable layout templates?

I often recommend vendors and design libraries that offer editable templates; experimenting with tools that provide realistic layouts helps you avoid mistakes early on.

Q8: What do professionals recommend for small-bathroom standards?

The National Kitchen & Bath Association (NKBA) provides clear planning guidelines for clearances and ergonomic spacing—see NKBA’s planning guidelines at https://www.nkba.org for authoritative standards.

If you want, I can sketch two quick 5x7 options for your space and show how a few small choices change flow and cost—I love these little puzzles. Also, if you’re curious about mood and finishes, I sometimes mock up AI-powered mood boards to speed decisions.
