5 Recessed Lighting Layout Ideas for Living Rooms: Practical recessed lighting layouts to make small and large living rooms shine — from my 10+ years designing real homes

I once put the entire recessed lighting plan on the wrong circuit for a client's open-plan living room — lights worked, but my poor client couldn’t use the dimmer without tripping the fan. That low-level panic taught me to always map zones and anticipate real-life use. Small spaces often force smarter choices, and recessed lighting is one of those details that can make a room feel larger, cozier, or more functional depending on the layout.

In this article I’ll share 5 recessed lighting layout ideas I actually use on projects, explain why they work, and point out the little trade-offs to expect. These ideas are great whether you’re renovating or just updating fixtures, and I’ll include quick tips on spacing, beam angles, and dimming so your living room looks intentional — not like a disco.

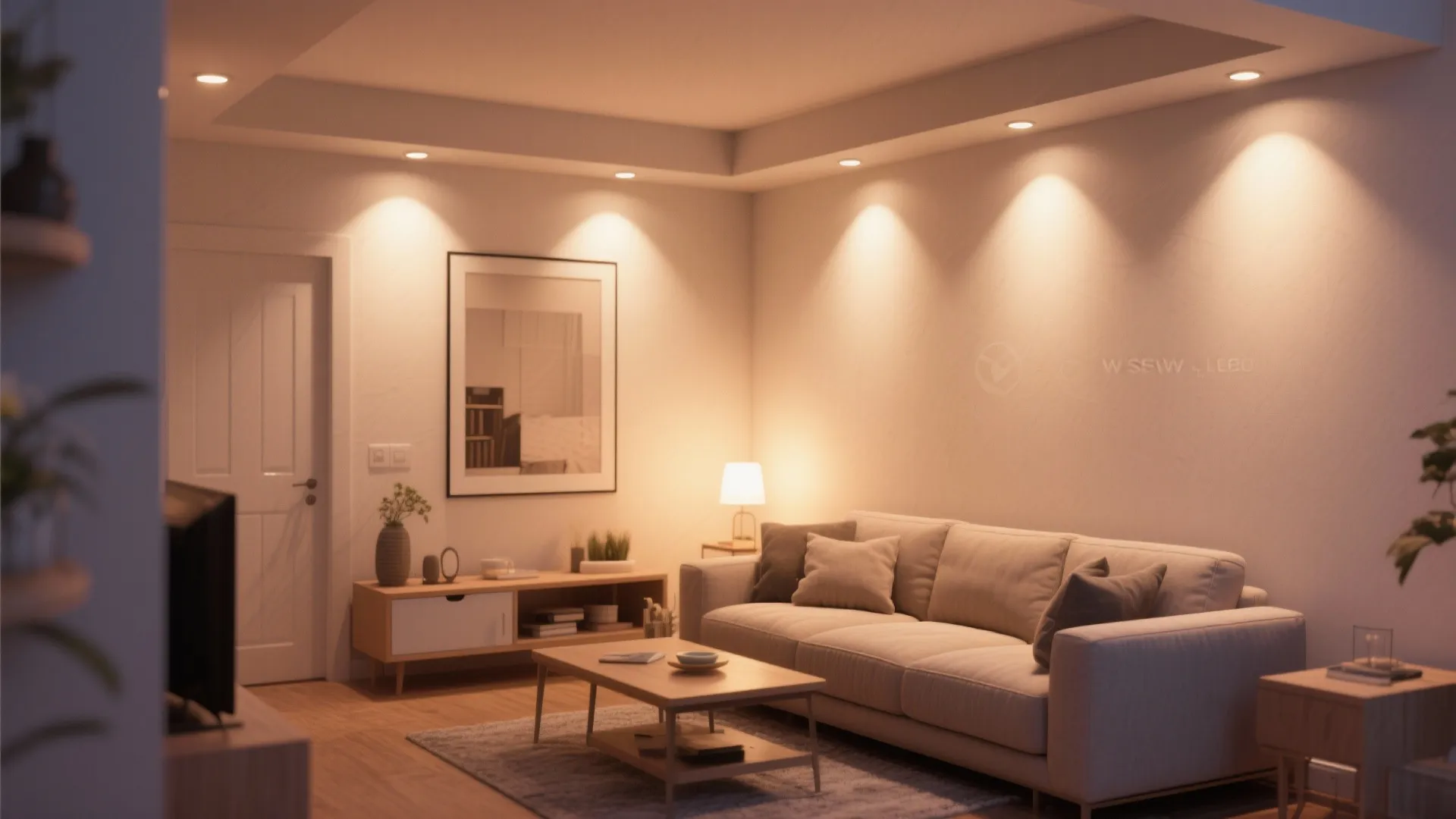

1. Perimeter Wash for a Cozy Glow

I love using recessed cans around the room’s perimeter aimed slightly toward the walls to create a soft wash that visually expands the space. It’s great for small living rooms because bouncing light off walls increases perceived volume and reduces harsh shadows. The downside is you’ll need more fixtures than a single central light, but you can use lower-wattage LEDs to keep energy use modest.

save pin

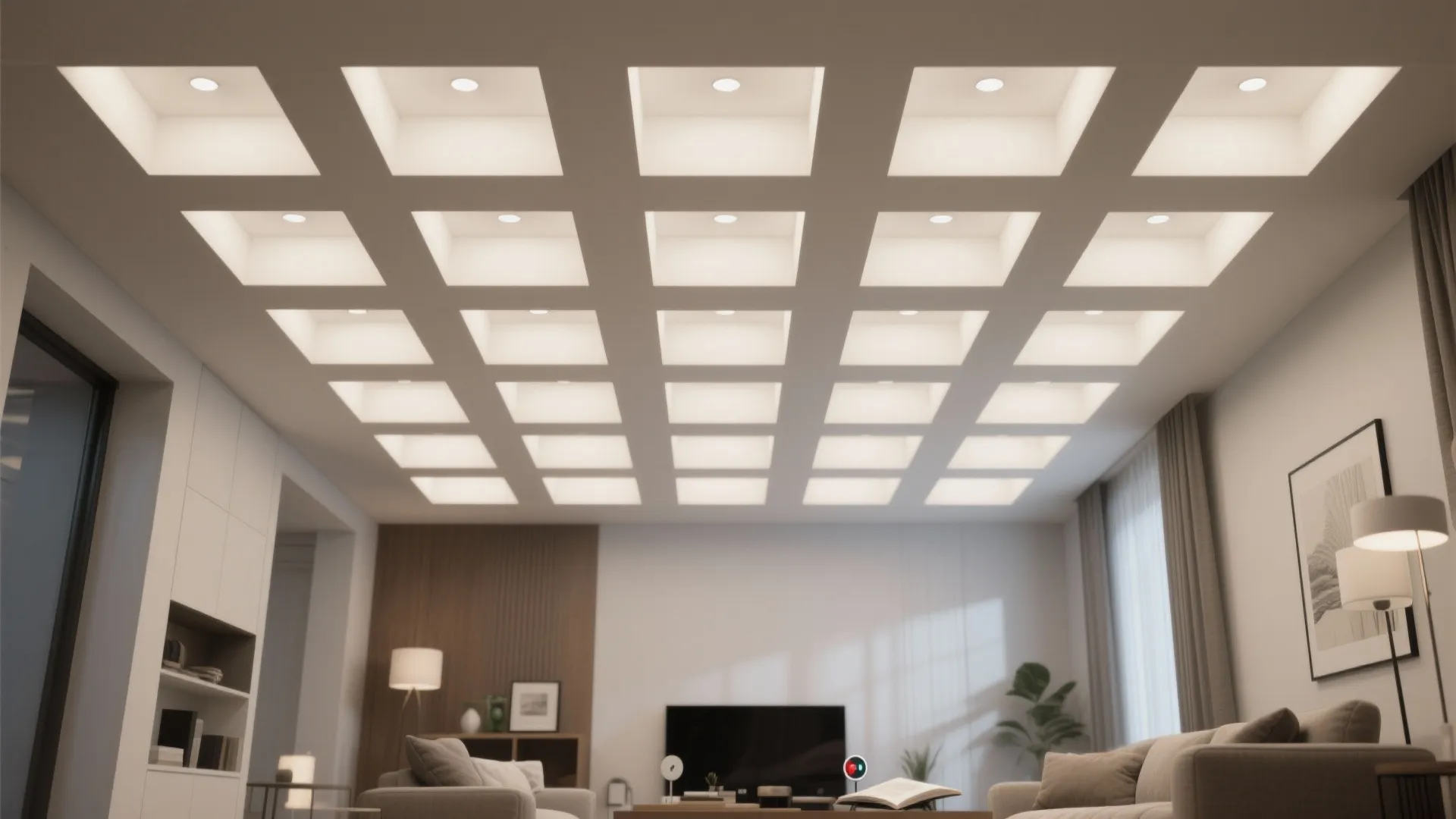

2. Grid Layout for Even Ambient Light

A simple grid — evenly spaced fixtures across the ceiling — gives perfectly uniform ambient illumination, ideal for modern minimalist spaces where even light matters for video calls and reading. It’s straightforward to design: measure ceiling width and divide by desired spacing to get rows. One small challenge is wiring complexity in older homes, but planning zones with dimmers makes the grid versatile.

save pin

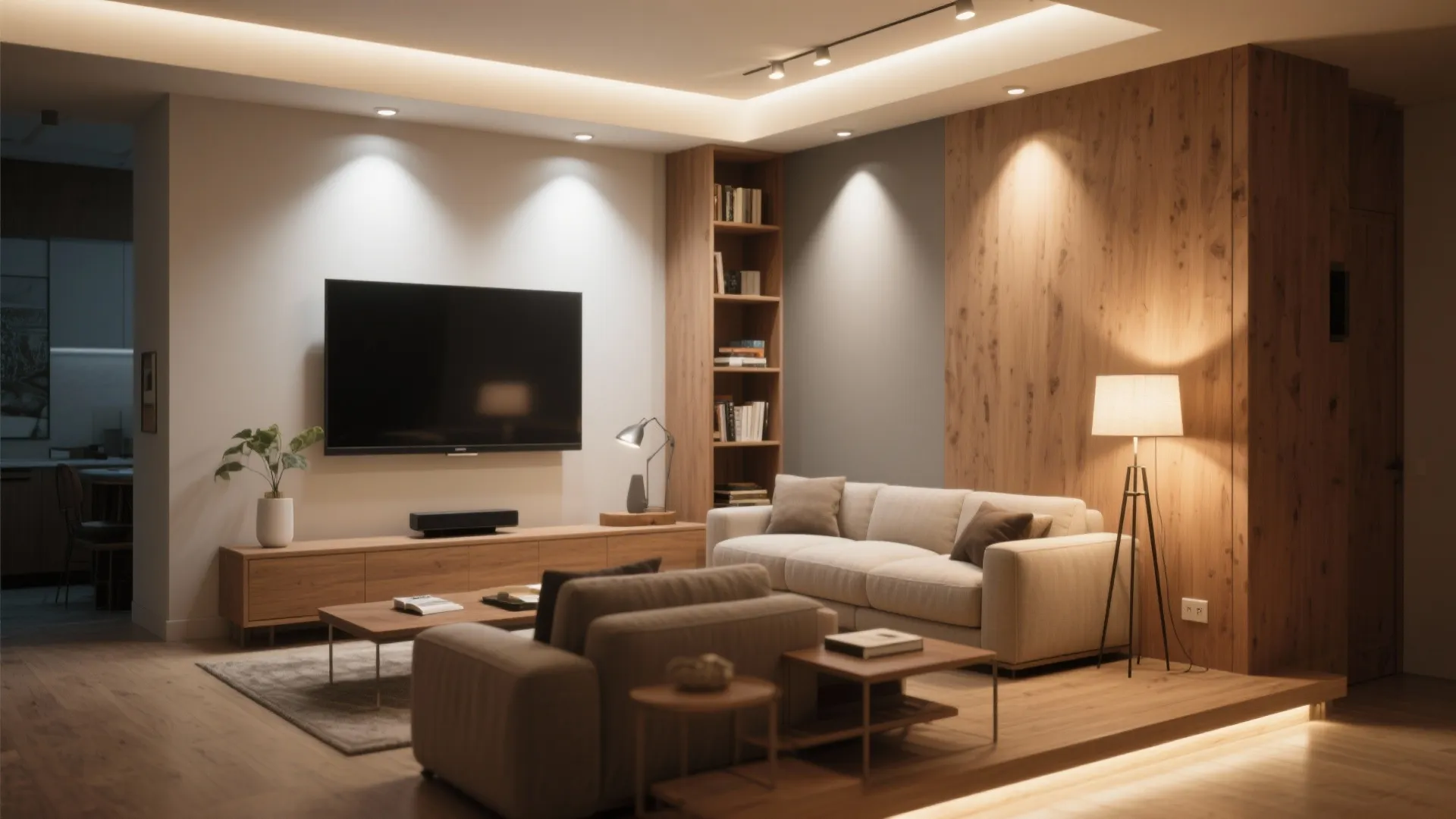

3. Task-Focused Zones Around Seating

Design lighting zones keyed to function: brighter recessed lights over seating and reading nooks, softer over circulation paths. I often pair this with a local floor lamp or wall sconce for layered light. This approach uses fewer fixtures overall and feels intentional, though it requires careful placement so you don’t get glare on TV screens.

save pin

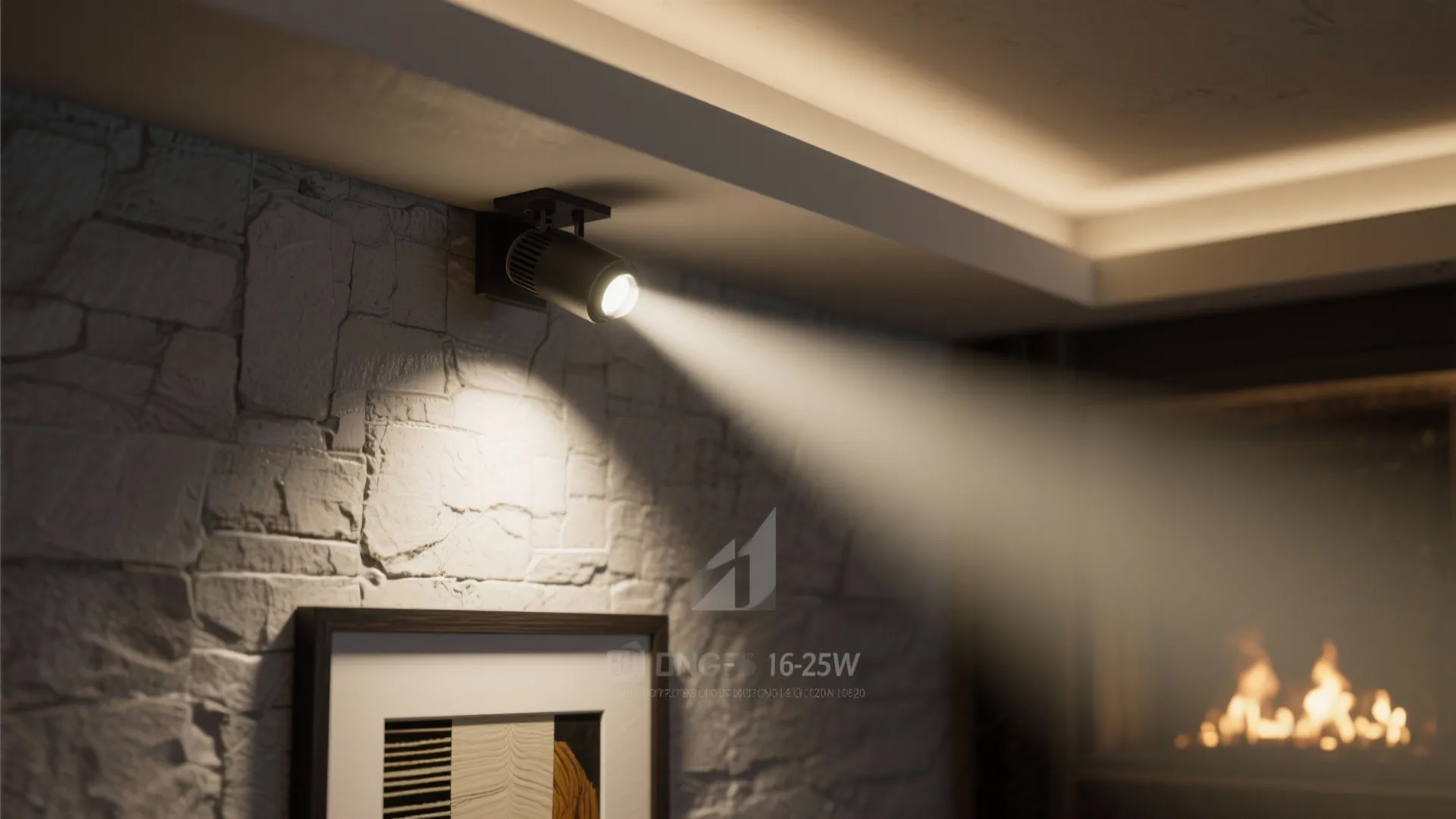

4. Accent Lighting for Art and Architectural Features

Use adjustable recessed trims to highlight artwork, shelves, or a fireplace wall. A narrow beam (15–25°) creates drama and depth, making focal points pop without over-lighting the whole room. The trade-off is you’ll need directional trims and possibly more precise electrician work, but the visual payoff is huge for a relatively small investment.

save pin

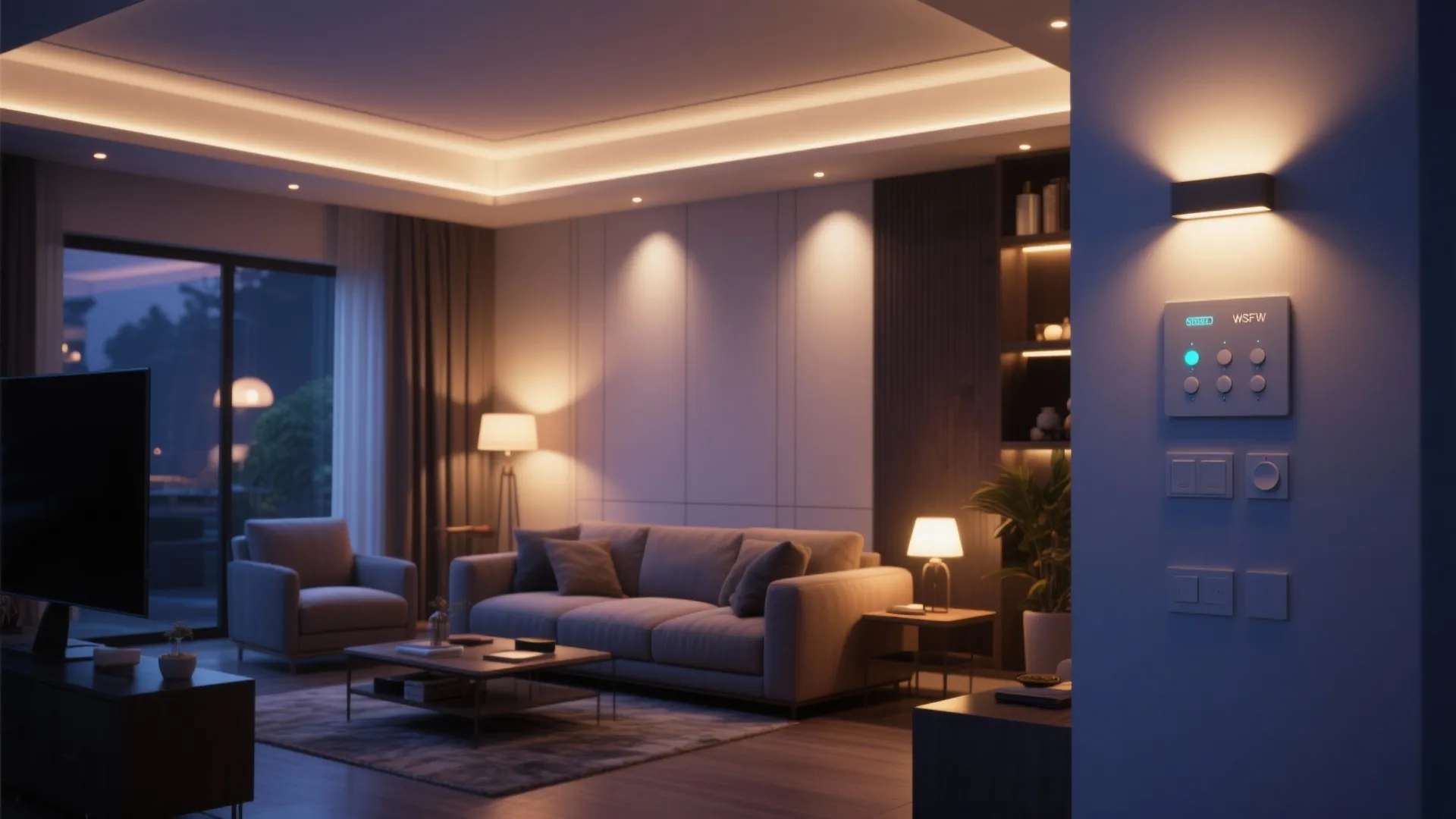

5. Combination Strategy with Dimmers and Smart Controls

My favorite clients are the ones who appreciate a layered plan: a perimeter wash, a few task cans, and accent trims plus dimmers or smart controls. This gives maximum flexibility — movie mode, reading mode, entertaining mode — all with the same fixtures. The only real con is upfront cost for dimmers or smart switches, but the quality-of-life improvement makes it worth it.

When I’m sketching layouts I often use a 4–6 foot spacing guideline for standard ceilings and tighten spacing for lower ceilings. Pair warm color temperature (2700–3000K) with CRI 90+ for natural skin tones and fabric colors. If you want to visualize multiple layout options before committing, try building a quick plan in a free tool that helps me test placement and spacing easily.

save pin

Tips 1:

Quick practical tips: position cans at least 2–3 feet from walls for general wash, aim accent trims at a 30° angle to minimize glare, and always put living room lighting on at least two circuits so you can mix zones. For new installs, coordinate with HVAC and sprinkler runs early — I learned that lesson the hard way.

save pin

FAQ

Q: What spacing should I use for recessed lighting in a living room? A: A common rule is ceiling height divided by two for spacing in feet (e.g., 8 ft ceiling → 4 ft spacing), but adjust for beam angle and desired brightness.

Q: What color temperature works best for living rooms? A: Warm whites (2700–3000K) are most comfortable and flattering for living spaces; higher temps feel more clinical.

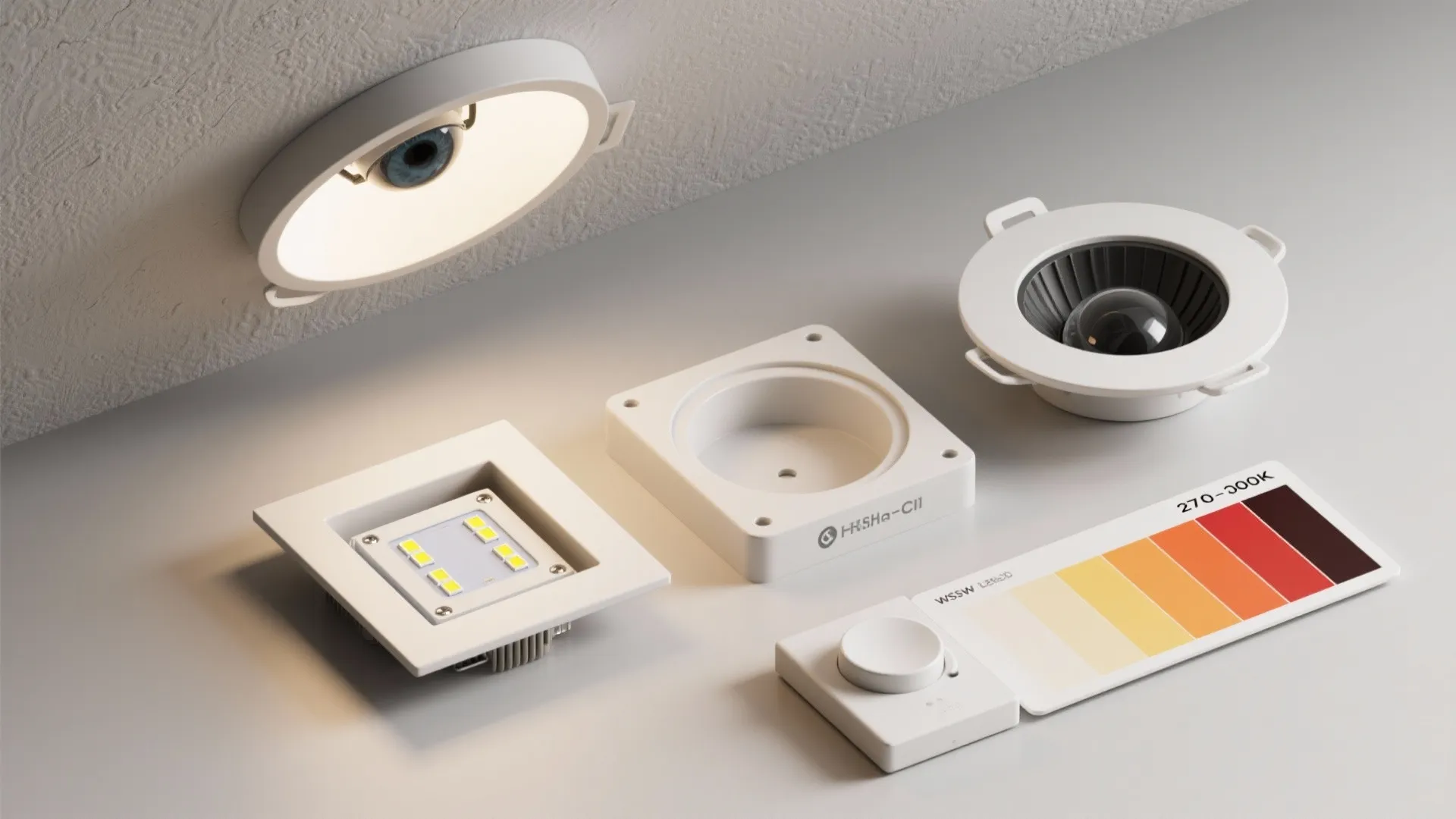

Q: Should I use baffles, trims, or adjustable eyeballs? A: Baffles reduce glare for general lighting; adjustable trims are ideal for accents. I mix types depending on function.

Q: How many circuits do I need for living room recessed lights? A: At least two circuits is wise to separate ambient and task/accent zones, preventing all lights from being on a single switch.

Q: Can recessed lighting work with low ceilings? A: Yes — use shallower housings and tighter spacing, and prefer diffuse washes over strong downlighting to avoid a cave effect.

Q: Are LED retrofit cans a good idea for upgrades? A: Yes, they’re energy-efficient and simpler to install than full housings; choose high-CRI LED modules for best color rendering.

Q: Where can I test different recessed layouts in 3D? A: Professional-grade planners let you try layouts and visualizations before installing; I often preview options with a 3D rendering case study to show clients realistic results.

Q: Are there any code or safety considerations? A: Always follow local electrical codes and fire-rated housing requirements; for authoritative guidance see the National Electrical Code (NEC) documentation for recessed luminaires (NFPA 70).
