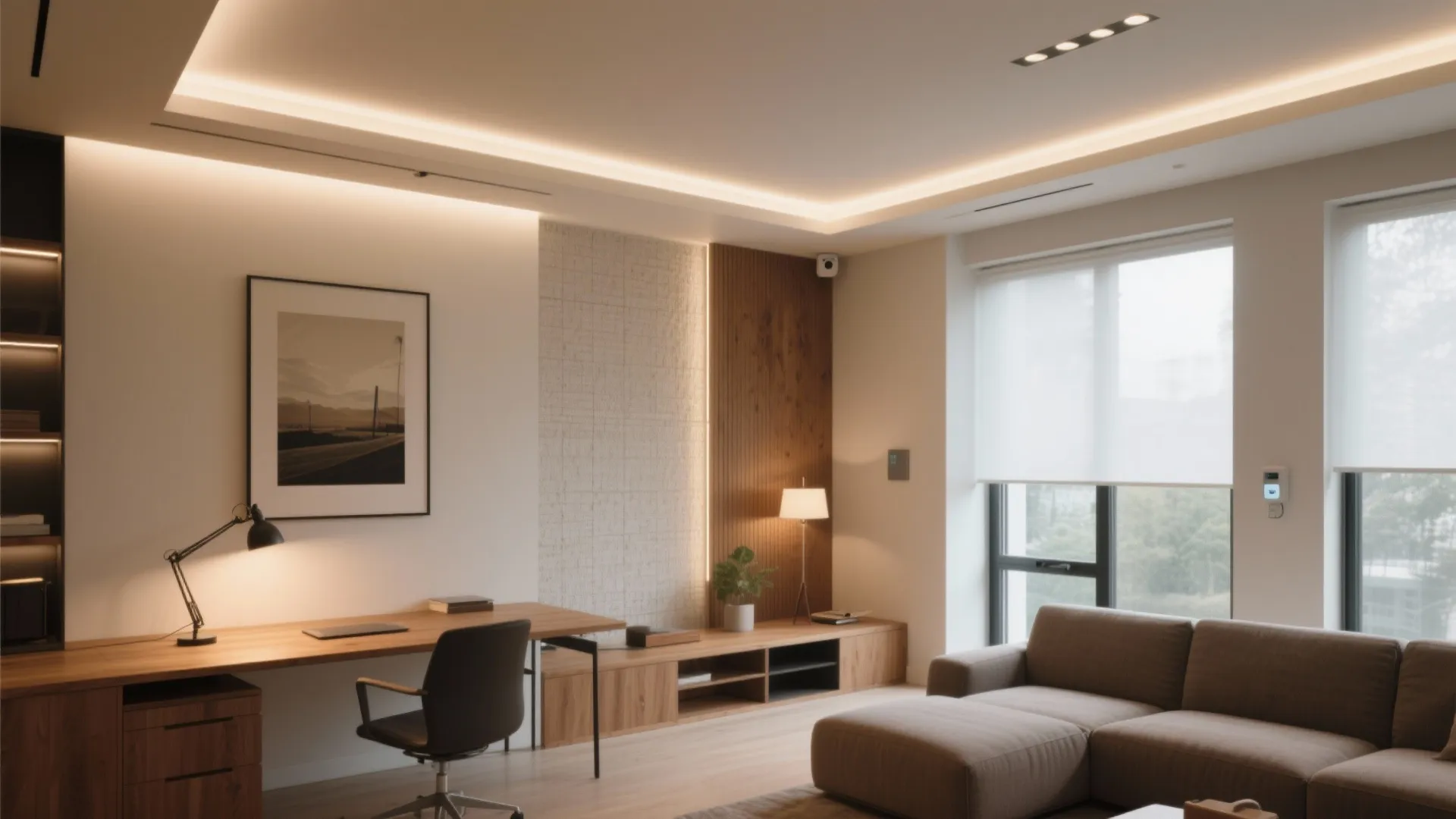

Automatic Room Lighting System: Intelligent Illumination Made Simple: Fast-Track Guide to Setting Up an Automatic Room Lighting System

I design lighting systems to feel intuitive—spaces where illumination follows behavior, time of day, and task without users thinking about switches. An automatic room lighting system should blend ambient, task, and accent layers, respond to occupancy and daylight, and preserve visual comfort through glare control and proper luminance ratios.

Measured performance matters. WELL v2 recommends maintaining 300–500 lux for most regularly occupied spaces and providing 150+ lux vertical illuminance at the eye to support circadian entrainment, while limiting direct glare through strategies like shielding and uniformity control. Steelcase reports that workers identify lighting quality as a top factor for comfort and performance, with lighting adjustments directly influencing perceived productivity and well‑being; pairing these findings with IES recommendations for task-specific illuminance (often 300–1000 lux depending on the activity) ensures an automatic system meets both human and technical benchmarks. For deeper guidance, WELL v2 Light and IES standards offer robust criteria for illuminance, uniformity, and glare metrics.

Color temperature impacts mood and cognitive response. Verywell Mind’s color psychology notes that cooler color temperatures (around 4000–5000K) can promote alertness, while warmer light (~2700–3000K) supports relaxation—critical when automating scenes across day and evening. In workplaces, Herman Miller’s research ties adjustable task lighting to reduced visual fatigue and improved focus; translating that to residential or hospitality settings means scheduling tunable white ranges to track circadian needs and activity patterns.

Design Intent: Human Factors First

I start with people: how they move, what they need to see, and when they need it. Automatic systems must detect occupancy smoothly (no harsh “on” shocks), ramp levels gently, and avoid overlighting. Ergonomically, vertical illuminance at eye level and balanced luminance across the visual field reduce strain. Spatial ratios matter—maintain a comfortable ambient base (approx. 30–50% of task level), introduce task light for precision, and add accent layers for depth without pushing contrast extremes that cause discomfort.

Layered Illumination Strategy

- Ambient: ceiling-integrated or wall-wash solutions delivering uniform base light (300–400 lux typical for living and general work areas).

- Task: focused beams with high CRI and glare shielding; 500–1000 lux for reading, crafting, cooking.

- Accent: 100–200 lux to sculpt materials, art, and architectural features, providing hierarchy and rhythm.

- Adaptive Scenes: daytime boost with cooler CCT for alertness; evening warm dim for wind-down; late-night low-level pathway lighting to preserve circadian rhythm.

Controls and Sensors: The Brain of the System

An intelligent scheme combines occupancy sensors (PIR or dual-tech), daylight sensors near fenestrations, and time-based scheduling. I prefer multi-parameter logic: if occupancy is detected and daylight is above threshold, ambient lights hold at minimum; task layers engage only when activity requires. Scene controllers should offer manual override with smooth fade times and ramp rates to preserve comfort.

Glare Management and Visual Comfort

Shield sources, use cut-off optics, and keep luminance of bright surfaces in proportion to adjacent fields. Avoid specular downlights directly in sightlines; integrate softened wall grazing and indirect coves. Follow IES recommended uniformity ratios to minimize hotspots and ensure readable visual hierarchies. For screens, position luminaires to avoid reflective veiling glare and tune CCT to reduce eye strain.

Color Rendering and Material Honesty

Pick LEDs with CRI 90+ for residential and hospitality zones, and consider TM-30 fidelity/gamut metrics to reveal material character accurately. Wood and warm textiles look best under 2700–3000K; polished stone and cool metals hold clarity under 3500–4000K. Automatic transitions should protect color memory—avoid abrupt CCT jumps; schedule gradual shifts over 15–30 minutes.

Acoustic and Thermal Synergy

Lighting can heighten acoustic comfort. Indirect lighting on acoustic panels brings texture without specular reflections that amplify noise perception. Control heat load by using efficient drivers and spacing luminaires to avoid thermal hotspots above seating; automated dimming during low-occupancy reduces unnecessary heat and preserves luminaire lifespan.

Behavioral Patterns and Scene Logic

I map routines—morning circulation paths, work zones, evening relaxation nodes—and assign scenes accordingly. Entry triggers a soft ambient lift with wayfinding accents; kitchen tasks engage brighter, cooler task beams; living room shifts to warm dim for social time. Late-night scenes provide low-level floor washes to protect melatonin. The logic is simple: only as much light as needed, only when needed, always with comfort.

Daylight Integration

Place sensors where they read representative daylight, not in direct sun patches. Calibrate setpoints seasonally; daylight harvesting should reduce artificial light smoothly to avoid flicker or perceived pulsing. Balance window glare with sheer treatments; automate luminance near glass to keep vertical illuminance adequate without overwhelming contrast.

Power, Controls, and Commissioning

Use dimmable drivers compatible with the control protocol (DALI, 0–10V, or wireless mesh). Commission scenes with measured lux values, verify uniformity, and test fade curves at different times of day. Keep a manual layer for user agency—simple presets labeled by activity beat cryptic technical names.

Future-Ready: Trends 2024–2025

- Circadian-aware tunable white systems normalized in living and work settings.

- Sensor fusion: occupancy, daylight, and environmental (temperature, CO2) informing holistic scenes.

- Low-glare microprismatic optics replacing harsh downlighting.

- Sustainable luminaires with modular boards and repairable drivers.

- Software-first commissioning with user-friendly scene editing via apps.

Applying Automation to Layouts

Lighting automation becomes meaningful when it maps to spatial planning. I simulate circulation paths and seating clusters, then position sensors and luminaires to match behavior. For quick planning, a room layout tool can help visualize fixture zones, detect glare risks from sightlines, and test scene logic before installation: room layout tool.

Maintenance and Reliability

Schedule periodic recalibration of sensors, verify lux levels after furniture changes, and keep firmware updated. Choose luminaires with documented lumen maintenance (L80/L90) and drivers rated for expected dimming cycles. Store commissioning data for troubleshooting and iteration.

FAQ

How bright should automatic ambient lighting be in living areas?

I target 300–400 lux for ambient levels, aligning with IES guidance for general tasks while preserving comfort. Task lighting adds higher lux where precision is needed.

What color temperature works best for day-to-night automation?

Use tunable white: 4000–5000K for daytime alertness, transitioning to 2700–3000K in the evening. Gradual shifts avoid eye strain and protect circadian rhythm.

How do I prevent glare in an automated system?

Pick luminaires with cut-off optics, position fixtures outside primary sightlines, add indirect lighting, and maintain balanced luminance ratios. Commission with uniformity checks.

Are occupancy sensors annoying if lights switch too often?

Set reasonable timeouts (5–15 minutes), include fade-in/out, and combine occupancy with daylight thresholds to avoid frequent toggling. Dual-tech sensors improve detection accuracy.

Can automation reduce energy costs noticeably?

Yes. Daylight harvesting and occupancy-based dimming typically decrease energy use while maintaining recommended lux levels. This extends luminaire life and reduces cooling loads.

What about color rendering for art and materials?

Use CRI 90+ and consider TM-30 metrics to maintain material fidelity. Warm materials read best under 2700–3000K; cooler materials hold clarity under 3500–4000K.

How should sensors be placed relative to windows?

Install daylight sensors where they measure representative light—not direct sun. Keep them away from glare spots and calibrate seasonally to stabilize dimming behavior.

Is automatic lighting suitable for home offices?

Absolutely. Pair a 3500–4000K ambient base with adjustable task lighting, maintain 300–500 lux at the workplane, and manage screen reflections to reduce visual fatigue.

Do I need a complex control protocol?

Choose what fits scale: 0–10V for simple zones, DALI for granular addressing, or wireless mesh for retrofit flexibility. Ensure drivers and luminaires are compatible and commission carefully.

How do I align automation with furniture changes?

Re-measure lux after reconfigurations, adjust scenes, and reposition task lights. A quick pass with a layout simulation helps re-balance illumination to new sightlines and tasks.
