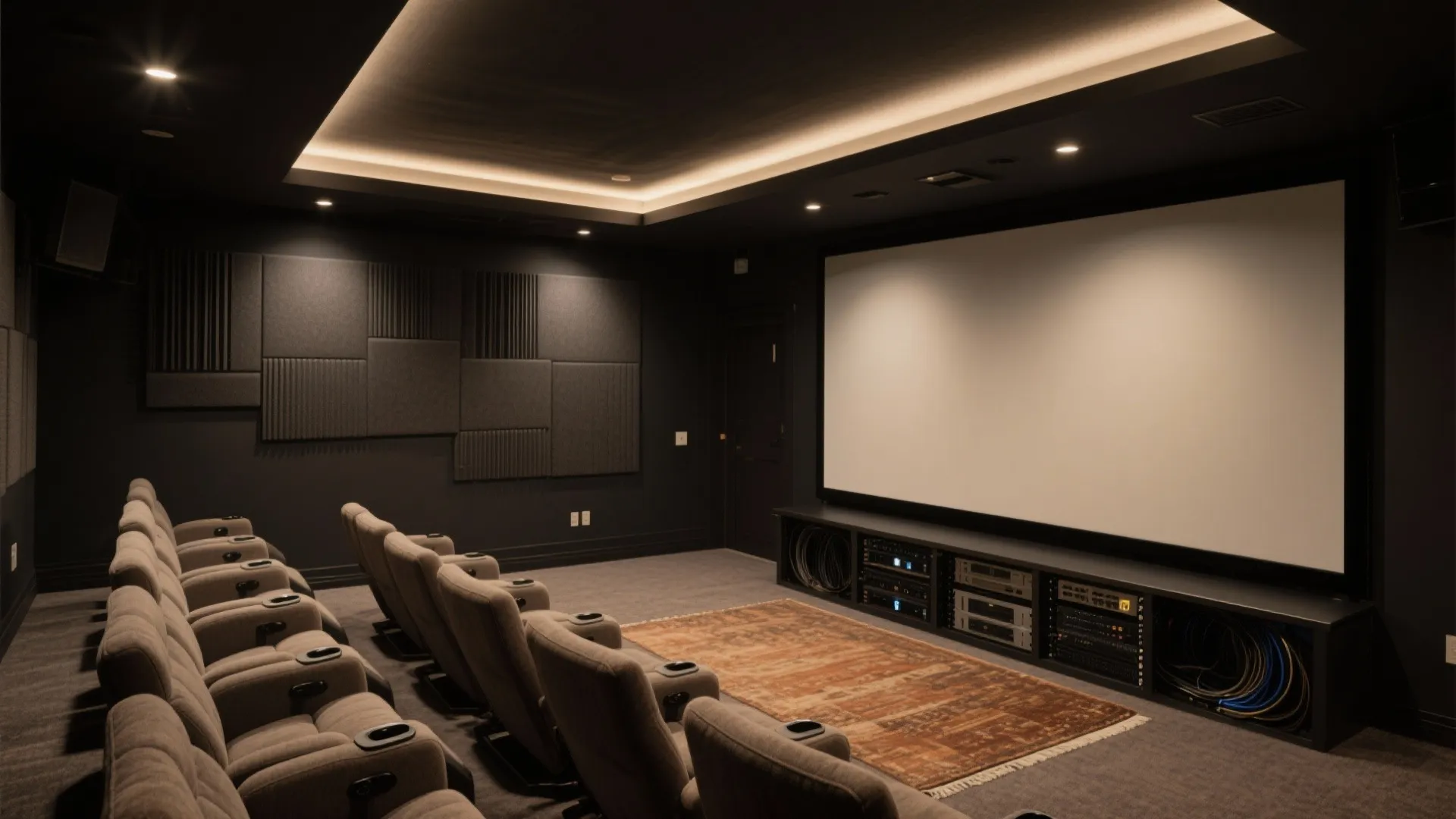

AV Room Plan: How to Design the Perfect Media Room: Fast-Track Guide to a High-Tech AV Room Layout in Minutes

I approach media rooms as performance spaces: every square foot should support sound fidelity, visual clarity, and comfort over long viewing sessions. The difference between a good and great AV room usually lies in how well you control light, sound, seating ergonomics, and signal paths. According to Steelcase research, discomfort can reduce focused performance by up to 16%, which translates in home cinemas to more fidgeting and less immersion; and WELL v2 recommends limiting glare and optimizing illuminance levels (often 100–300 lux for ambient tasks) to protect visual comfort during prolonged screen use. These aren’t abstract guidelines—when applied well, they produce noticeable improvements in perceived sound quality and picture depth.

For layout and workflow, I target simple line-of-sight and cable management. Gensler’s research on workplace environments connects spatial clarity with better cognitive performance; in media rooms, that translates to direct sightlines, predictable traffic flow, and clean routing that prevents trip hazards. WELL v2 also emphasizes acoustic separation—treating doors, joints, and HVAC paths reduces noise transfer and enhances dynamic range perception. To keep planning precise and collaborative, I prefer using a room layout tool that visualizes seating banks, speaker spreads, and projector throw distances: room layout tool.

Define the Intent and Envelope

Start with scale, use, and isolation. A dedicated 14–20 ft long room with minimal windows gives better control over light and acoustics. If the space must be multi-use (gaming, streaming, live sports), plan flexible seating and variable lighting. I aim for a slightly longer than wide footprint to support front staging and rear equipment space. Maintain a clear equipment alcove or rack closet with ventilation; heat load rises quickly with amplifiers and processors, and quiet airflow matters as much as cooling capacity.

Screen Size, Viewing Distance, and Sightlines

Match screen size to distance and content type. For 4K content, many viewers prefer a field of view around 30–40 degrees. A practical rule: viewing distance ≈ 1.2–1.6× the screen width for 4K; for 1080p, stretch to 1.6–2.0× to avoid pixel structure. Place screen center roughly at eye height when seated (typically 40–44 inches from floor for primary row). If using a projector, confirm throw ratios and lens shift early; a few inches of misalignment can compromise geometry. Keep seated sightlines clear—if you’re adding a second row, a 6–8 inch riser often maintains a comfortable view over the front row without pushing head rotations.

Acoustic Strategy: Treat, Place, and Isolate

Great sound depends on room behavior. I balance absorption and diffusion so the room doesn’t feel dead. Typical targets: early reflection control at first-order points (side walls and ceiling near the front L/R), bass management with corner traps, and diffusion at the rear wall to preserve envelopment. Bedroom-grade doors won’t cut it—solid-core with proper seals helps. Use carpet or area rugs to temper high-frequency flutter and add soft furnishings for mid-frequency control. Position L/R speakers to create an equilateral triangle with the main listening position; toe-in to stabilize imaging. Subwoofer placement benefits from experimentation; symmetrical front corners or mid-wall positions often smooth modal peaks. Maintain clear cable paths to avoid ground loops and interference.

Lighting: Layered, Dimmable, and Glare-Free

Light is essential for comfort and contrast. Ambient lighting should be dimmable to ~5–20% during playback and kept off the screen plane to prevent veiling glare. Use indirect coves or wall grazers behind the viewer, with color temperatures around 2700–3000K for a warm feel. Task lighting near equipment or side tables sits higher (300–500 lux) for adjustments without washing out the image. The Illuminating Engineering Society highlights glare control and uniformity as core to visual comfort; shield sources, add dim-to-warm LEDs, and avoid reflective finishes opposite the screen. Integrate blackout shades where windows exist, and consider magnetic threshold lights for safe egress without intruding into the visual field.

Seating Ergonomics and Comfort

Media rooms require posture and pressure relief over hours. Herman Miller’s research shows that ergonomic support reduces musculoskeletal strain and sustains focus; in practice, that means lumbar support, recline without excessive neck extension, and armrests that don’t force shoulders forward. Maintain armrest heights around 9–10 inches above the seat and allow 24–30 inches per person for shoulder clearance. Stagger seats slightly in wider rooms to equalize sightlines. If using theater chairs, test the recline angle relative to screen height to avoid chin lift. For casual zones, combine a deep sofa with supportive accent chairs so guests can self-select posture. Keep aisles to 30–36 inches for safe movement.

Materials, Finishes, and Sustainability

Select finishes that serve acoustics and maintenance. Low-sheen paints reduce specular reflections. Choose wool or solution-dyed nylon carpets for durability and sound absorption. Panels with recycled PET cores offer effective mid-frequency control and are easier on HVAC loads due to low off-gassing. Upholstery should balance breathability and cleanability—consider tight weaves for dust control. If you’re integrating timber elements, use matte finishes and vary panel depths to add passive diffusion. Plan cable trays and raceways early; maintenance-friendly design avoids tearing into walls for upgrades.

AV Infrastructure: Power, Ventilation, and Cable Management

Cluster equipment in a ventilated rack with front-to-back airflow, leaving 2–3 inches clearance around gear. Separate power circuits for amplifiers and source devices can mitigate noise. Use surge protection and clean grounding; label cables and document runs. Provide conduit from projector to rack for future standards (HDMI fiber, control). Keep cable bends within manufacturer limits and avoid parallel runs of low-voltage with high-voltage lines. Quiet fans and decoupled mounts keep the noise floor low, preserving dynamic range in quiet scenes.

Smart Control and Modes

The most successful rooms switch states fluidly: pre-show, playback, intermission, exit. Program scenes that dim ambient light, set task lights low, and arm HVAC for quiet mode. Conceal status LEDs where possible. Use tactile controls for core functions so guests aren’t trapped in app navigation; wall-mounted keypads alongside voice control provide redundancy. Calibrate system defaults to avoid sudden brightness or volume changes.

Layout Planning and Visualization

Before construction, run layout simulations to confirm seating clearances, throw distances, and speaker spreads. A dedicated interior layout planner helps you iterate quickly with accurate dimensions and collision checks. I often prototype multiple seating banks and riser heights, then test aisle widths and door swings. For clean collaboration with contractors, share annotated plans that specify power, conduit, ventilation, and acoustic treatments. Try a room design visualization tool to align decisions with the final experience: room design visualization tool.

Testing, Calibration, and Fine-Tuning

Post-installation, measure and adjust. Confirm illuminance at seating rows with a light meter; ensure ambient levels drop adequately during playback. Run audio sweeps to identify peaks and nulls—adjust sub positions or EQ sparingly, favoring physical fixes first. Verify lip sync across sources. Check that HVAC noise doesn’t rise during quiet scenes. Invite a few test viewers to sit in different seats and report on comfort, sightlines, and perceived clarity; you’ll catch issues faster than solo testing.

Common Pitfalls to Avoid

- Mounting the screen too high, causing neck strain.

- Relying solely on absorption, resulting in lifeless sound.

- Ignoring glare sources opposite the screen.

- Skipping ventilation in the equipment rack.

- Overcomplicating control interfaces, frustrating guests.

- Underestimating aisle widths and door swing clearance.

FAQ

How bright should ambient lighting be during playback?

Keep ambient light around 5–20% of full output, roughly 50–150 lux, positioned away from the screen. The IES emphasizes minimizing glare and ensuring uniformity for visual comfort.

What is an ideal viewing distance for a 120-inch 4K screen?

For 4K, a comfortable range is about 1.2–1.6× screen width. A 120-inch diagonal (≈105-inch width) puts seating around 10.5–14 feet.

Do I need acoustic panels, or will soft furnishings suffice?

Soft furnishings improve mid/high frequencies, but targeted panels at first reflection points and bass traps are typically needed for clarity and low-frequency control.

How many seats can I fit without compromising sightlines?

Allow 24–30 inches per person for shoulder clearance and stagger seats in wider rooms. If adding a second row, use a 6–8 inch riser to maintain visibility.

Should I choose a projector or a large TV?

Projectors excel in larger rooms with controlled light and cinematic scale. Large TVs offer higher peak brightness and simpler installation. Your envelope, throw constraints, and black level expectations decide.

What color temperature works best for media rooms?

Use 2700–3000K for ambient dimmed lighting to preserve warmth and contrast. Task areas can rise to neutral 3500K if needed.

How do I mitigate HVAC noise?

Use larger, slower ducts, line returns, and isolate equipment. Program quiet modes during playback and verify the NC/NR levels at seating after installation.

Is fiber HDMI worth it?

For longer runs and future-proofing, yes. Fiber mitigates signal loss over distances that copper struggles with, especially at higher bandwidths.

Can I create a multi-use media room without sacrificing performance?

Yes—use flexible seating, layered lighting scenes, and movable acoustic elements. Keep screen and speaker placements primary, and protect cabling paths.

What’s the simplest way to visualize and test layouts?

Use a layout simulation tool to trial seating rows, riser heights, throw distances, and sightlines before you build. Share annotated plans with your contractor for smooth execution.
