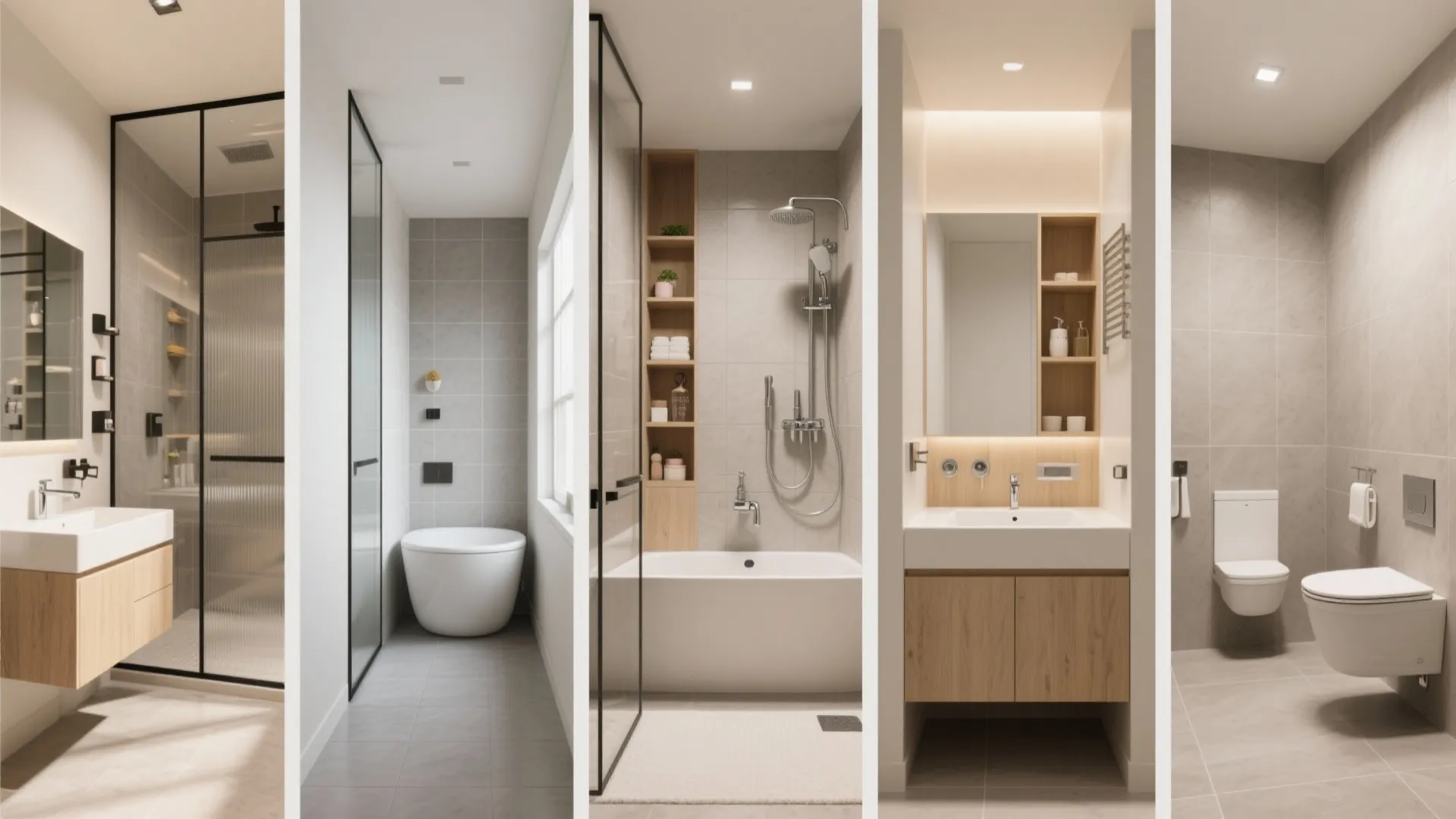

Bathroom Layout Ideas with Dimensions: 5 Plans: Compact and practical bathroom layouts with real dimensions and tips from a decade of remodeling

I once had a client insist their tiny bathroom should fit a soaking tub, a washer, and a full-size vanity — all in less than 5 sqm. I nearly laughed, then sketched a workable layout on a napkin and learned that constraints spark creativity. If you’re hunting for bathroom layout ideas with dimensions, I’ve got five real-world plans that I’ve used or adapted in projects — plus the quirks and trade-offs you’ll face. For quick inspiration, check these bathroom layout ideas from case studies I’ve followed.

1. The Efficient 1.5m x 2.4m Wet Bath

This is a classic wet-room layout for apartments: 1500mm wide by 2400mm long. I place a shower at the far end with a glass divider, a 500mm-deep wall-hung vanity on the side, and a compact toilet opposite. It’s cheap to build and feels open, but waterproofing and drainage must be top-notch.

save pin

2. The Long & Narrow 0.9m x 3.0m Corridor Bath

For skinny spaces, 900mm by 3000mm works: shower at one end, then toilet, then a slim 450mm vanity near the door. I once turned a former closet into this layout — plumbing relocation was the main headache, but the result gave a surprisingly comfortable flow.

save pin

3. The Comfortable 2.0m x 2.2m Family Bathroom

A 2.0m by 2.2m plan fits a 1600mm bathtub or shower-tub combo, a 600mm vanity, and a toilet with minimum clearances. This is my go-to when clients want both function and a bit of luxury without expanding the footprint. The trade-off is less storage: I recommend recessed niches and a tall linen cabinet above the toilet.

When you want to visualize these in 3D, I often pull references from a real project gallery to show clients how materials change perceived space.

save pin

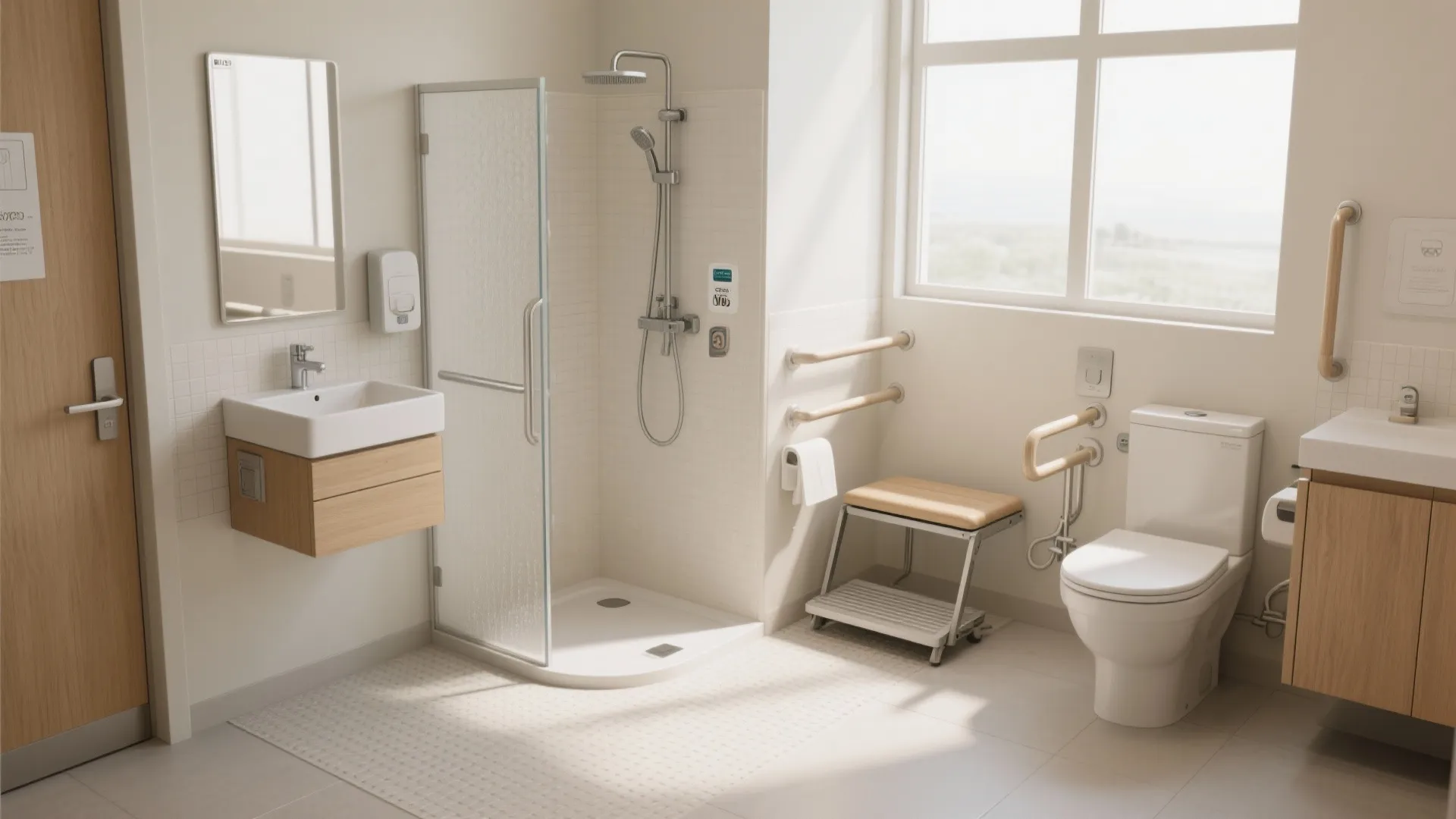

4. The Accessible 2.2m x 2.2m Layout

A square 2200mm by 2200mm bathroom can be adapted for accessibility: 900mm clear turning radius, wall-mounted fixtures to maximize floor space, and a roll-in shower. I’ve done this for aging-in-place clients — it costs more at the start but saves on future retrofits.

save pin

5. The Powder Room 1.0m x 1.6m Half Bath

Half baths can be tiny and stylish: 1000mm by 1600mm fits a corner basin and a compact toilet. In a recent renovation, I used a shallow vanity and large mirror to make the space feel twice as big. It’s budget-friendly, but storage is limited — think vertical shelves or mirrored medicine cabinets.

If you want downloadable plans or to try drawing exact layouts yourself, I recommend starting with a tool that creates editable floor plans and dimensioned drawings; you can export precise detailed floor plans to test different fixture placements before you build.

save pin

FAQ

1. What is the minimum bathroom size?

I usually say a minimum functional half bath is about 1.0m x 1.6m, while a comfortable full bathroom starts near 2.0m x 2.2m. Local codes can set lower limits for occupancy and plumbing fixtures.

2. How much clearance do I need in front of fixtures?

Standard recommendations are at least 600mm in front of toilets and vanities, and 750–900mm for shower entries. These clearances make the room usable and code-friendly.

3. Can I fit a tub in a small bathroom?

Yes — a 1400–1500mm tub fits well in a 2.0m-long bathroom if you accept reduced vanity depth or reposition the toilet. Consider acrylic alcove tubs for better space efficiency.

4. How do I plan plumbing when rearranging fixtures?

Keeping new fixtures near existing soil and water stacks cuts costs. If you must move plumbing, get a contractor estimate early — vertical stacks and venting add complexity and expense.

5. Are wet rooms waterproof?

Proper wet rooms require a continuous waterproof membrane, correct slope to the drain, and suitable finishes to avoid leaks. They’re brilliant for small bathrooms but need careful detailing.

6. What materials make small bathrooms feel larger?

Large-format tiles, light colors, and continuous flooring help. Reflective surfaces like mirrors and glass shower screens reduce visual clutter and expand perceived space.

7. How much should I budget for a mid-range bathroom remodel?

Mid-range remodels vary by region, but expect to allocate most of the budget to plumbing, fixtures, and waterproofing. Planning for 20–30% contingency is wise for hidden issues behind walls.

8. Where can I find accessibility standards for bathroom dimensions?

Refer to the 2010 ADA Standards for Accessible Design for precise dimensions and clearances; it’s authoritative and widely used (https://www.ada.gov/2010ADAstandards_index.htm).
