Ceelam Hall: Transforming Event Spaces with Smart Design: Fast-Track Guide to Optimizing Ceelam Hall for Memorable Events

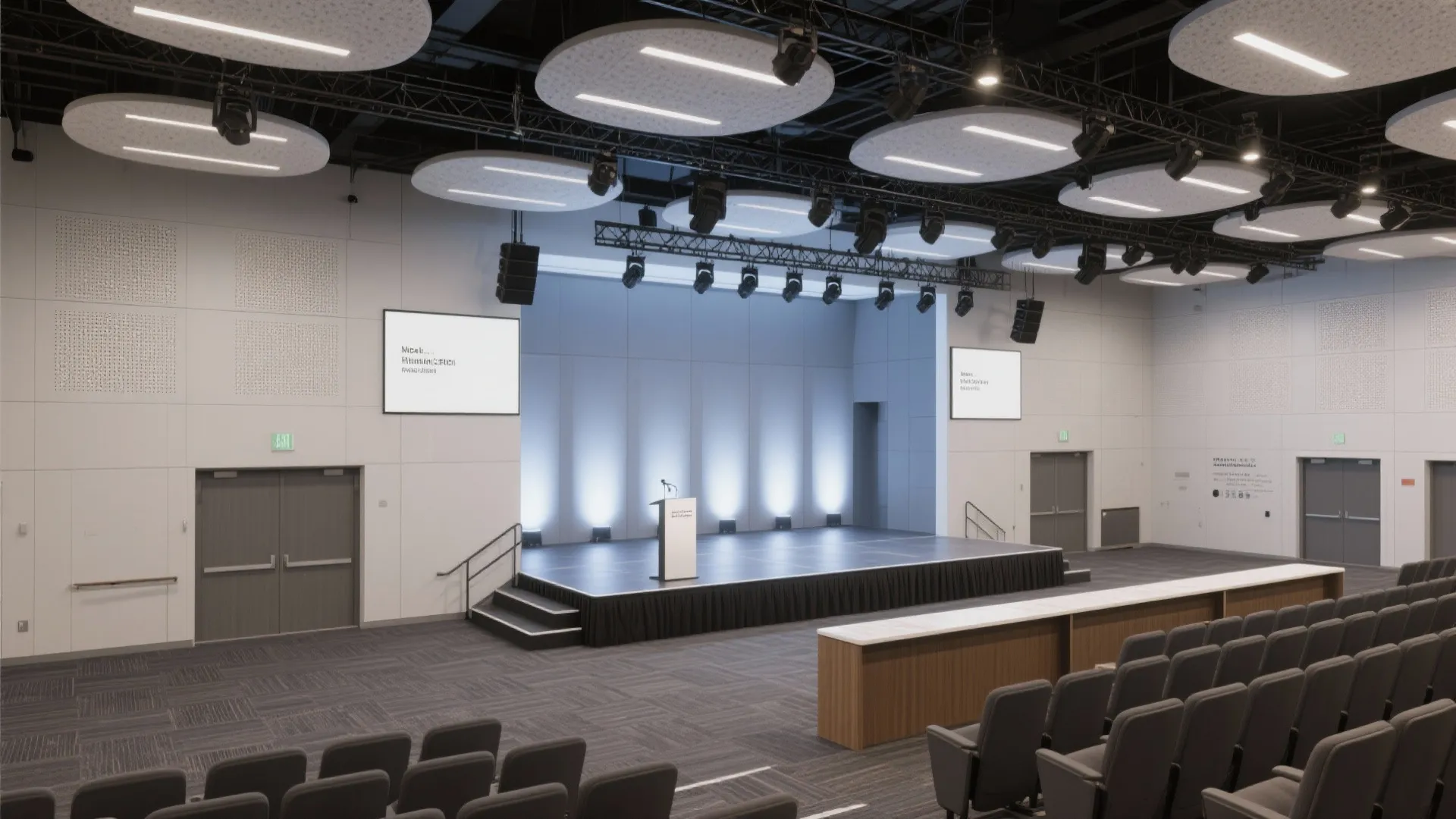

Ceelam Hall has always had great bones—a generous clear height, flexible floor plate, and a circulation loop that can accommodate conferences, banquets, product launches, and live performances. My focus was to turn these strengths into repeatable, high‑quality experiences through smart design: precise lighting, resilient acoustics, intuitive wayfinding, and operationally agile layouts that crews can flip in hours, not days.

Lighting became the backbone. We targeted 300–500 lux for general event seating, 750–1000 lux at stages and demo zones, and dimmable scenes for dining to maintain 150–250 lux at tabletops while limiting glare below UGR 19. These levels align with Illuminating Engineering Society recommendations for assembly and performance environments. To support occupant health, we used tunable white fixtures ranging from 2700K for evening receptions to 4000K–5000K for daytime keynotes, referencing WELL v2 guidance that connects light spectrum and circadian support to cognitive performance (WELL v2 Light).

Acoustics were next. Steelcase research shows that noise is a top workplace distraction, which echoes what event attendees report in post‑show surveys. We balanced RT60 to ~1.0–1.2 seconds in audience areas for speech intelligibility, while backstage zones sit closer to 0.6–0.8 seconds for production comms. This was achieved with a layered strategy—micro‑perforated wall panels, broadband ceiling clouds, and high‑mass doors at loading points—and it dramatically reduced AV corrective processing and mic feedback during hybrid events.

Performance‑Ready Layouts

Ceelam Hall’s floorplate now pivots across four primary modes: keynote, gala, expo, and live set. Each mode has predefined sightline, egress, and service corridors. I rely on an interior layout planner to simulate audience spread, camera positions, and buffet flows, stress‑testing pinch points before crews build. When teams need quick visualization, we share a room layout tool for vendors and caterers to align on cable runs, table spacing, and ADA clearances.

room layout tool

Human Factors and Flow

Events are about behavior under time pressure. We standardized aisle widths at 1.8–2.4 m for seated runs and 3.0 m for high‑traffic expo alleys, with service spurs that keep catering out of guest sightlines. Stage heights sit between 450–600 mm to maintain comfort for speakers without overwhelming intimate formats. Back‑of‑house routes are dual‑tracked: one for AV and one for F&B, reducing cross‑contamination and keeping cables off guest paths.

Light Scenes That Work

Four base scenes cover 90% of use cases: keynote (cooler 4000–4500K, front wash 900–1000 lux, audience 350 lux), panel talk (warmer 3500–4000K, softer key to reduce facial shine on cameras), gala (2700–3000K, uplight and pin‑spot layering), and trade show (4000–5000K, even ambient with accent beams at demo pods). Glare control was non‑negotiable—shielded optics, matte finishes near luminaires, and black‑body dimming for visual warmth during transitions.

Color Psychology and Brand Expression

Color shifts behavior. For networking lounges we used muted cool neutrals with saturated accents to promote calm and focus; for launch zones we dialed in higher chroma accents to trigger energy and recall. The palette strategy borrows from color psychology research that links blues and greens to restorative states and reds/yellows to arousal—used sparingly where attention is required.

Material Choices and Durability

Materials must survive load‑ins, forklifts, and champagne. We specified high‑pressure laminates at bar fronts, solution‑dyed carpet tiles with acoustic underlayment, and mineral‑fiber plus PET felt ceiling systems for absorbtion. Edge guards on staging and magnetized cable covers reduce trip risks and speed resets. Finishes near entrances are scratch‑tolerant and easy to spot‑clean.

Acoustic Strategy in Detail

Speech clarity depends on managing reflections between 500 Hz and 2 kHz. Ceiling clouds are spaced to break parallel surfaces, and wall panels mix absorptive and diffusive elements to avoid dead rooms. At FOH, we keep line‑of‑sight to speaker arrays and plan cable troughs that do not cross circulation. The result is cleaner gain structure, fewer EQ cuts, and more predictable recordings for hybrid events.

Stagecraft, Rigging, and Safety

Rigging points were standardized at regular grids with known loads, keeping truss heights within optimal throw distances for light and sound. Cable paths are color‑coded, with ADA‑compliant ramps at any elevation change. Fire egress signage uses consistent mounting heights and non‑reflective finishes. Production teams receive annotated layouts with capacities, equipment bays, and breaker schedules to minimize improvisation.

Back‑of‑House That Performs

The audience sees polish when the back is calm. We designed storage with rolled access, dedicated ice and waste lines for F&B, and a quiet comms zone insulated from the dock. Dressing rooms have tunable vanity lighting and acoustic privacy so speakers can reset before going live.

Flexible Infrastructure

Power distribution and data are modular, keeping floor boxes at intervals that match the primary modes and avoiding last‑minute daisy chains. Wireless planning uses reserved SSIDs for production, with directional antennas away from dense audience paths to reduce interference during check‑ins and AR demos.

Sustainability Without Sacrifice

LED systems cut energy loads while delivering better control, and we prioritized reusable scenic elements and bolt‑together risers. Material selections favor low‑VOC options and durable finishes that minimize replacement cycles. Where possible, we coordinate with vendors to reuse crates as temporary backline storage and encourage compostable serviceware for high‑volume gala nights.

Operations, Turnarounds, and Crew Ergonomics

Turnarounds can make or break revenue. We designed roll‑through paths from the dock to stage, tables that nest tightly, and standardized case sizes for AV. Crew ergonomics matter: adjustable-height workbenches, anti‑fatigue mats, and task lighting prevent errors and injuries during midnight flips.

Experience First

Every choice serves the moment attendees remember—clear sound, flattering light, effortless movement, and a sense of production value that feels natural. Ceelam Hall now flips formats fast, keeps crews safe, and gives brands a flexible canvas that photographs beautifully.

FAQ

What illuminance levels work best for mixed-use events?

General seating performs well at 300–500 lux, stages at 750–1000 lux, and dining at 150–250 lux with dimmable control. These ranges align with widely accepted IES guidance for assembly spaces.

How do you prevent glare during keynotes and live streams?

Use shielded optics, control beam angles, keep reflective finishes away from fixtures, and target UGR below 19 in audience zones. Black‑body dimming helps maintain warm visuals at lower levels.

What reverberation time should an event hall aim for?

Audience areas typically benefit from RT60 around 1.0–1.2 seconds to support speech; backstage and control zones near 0.6–0.8 seconds reduce comms fatigue.

How do you balance color temperature across different event types?

Daytime keynotes favor 4000–5000K for alertness; evening receptions prefer 2700–3000K for warmth. Tunable fixtures let crews adapt quickly without relamping.

What layout strategies improve crowd flow?

Define primary aisles at 3.0 m in expo modes, maintain clear service corridors, and pre‑plan egress with unbroken sightlines. Use an interior layout planner to visualize pinch points before build‑out.

Which materials withstand heavy event traffic?

High‑pressure laminates, solution‑dyed carpet tiles with acoustic backing, and PET/mineral‑fiber ceiling systems resist dents, stains, and wear while contributing to sound control.

How can AV setups be standardized for faster turnarounds?

Grid the rigging points, pre‑label power/data drops, color‑code cable paths, and keep floor boxes on predictable intervals that match common staging positions.

What sustainability moves have the biggest impact?

LED lighting with robust controls, reusable scenic, low‑VOC durable finishes, and compostable serviceware for large banquets reduce waste without compromising experience.

How do you protect accessibility in complex layouts?

Ensure ADA‑compliant ramp slopes, maintain clear 1.5 m turning circles at key nodes, and avoid cable runs across guest paths by utilizing magnetized covers and overhead rigging.

What backstage features improve speaker readiness?

Tunable vanity lighting, acoustic privacy, organized storage, and a quiet comms zone help presenters stay focused and reduce pre‑show stress.
