Cold Room Door Selection Guide for Efficient Storage: Fast-Track Guide to Choosing the Right Cold Room Door

Door selection is one of the most consequential choices in any cold room build or retrofit. A poorly specified door can leak energy, introduce moisture, slow throughput, and compromise food safety. In controlled environments, infiltration from an undersized or misaligned door can account for a meaningful portion of thermal load; industry field studies consistently show that air leakage at openings is a top driver of refrigeration energy waste in walk-ins and distribution spaces. From an operational standpoint, I’ve seen facilities cut door-related maintenance calls by over 30% simply by matching hardware and traffic patterns to the right door type.

Temperature stability is central to quality and shelf life. Workplace research on thermal comfort and performance also reinforces the value of stable, well-managed environments: Steelcase reports that environmental stressors—including temperature swings—correlate with reduced cognitive performance and increased errors in task-heavy settings. While the use case differs, the principle holds in food and pharma storage: tighter thermal control supports process reliability and safety. In addition, WELL v2 highlights the importance of envelope integrity and air quality management for health outcomes, a reminder that doors directly influence infiltration, condensation, and microbial risks (see WELL v2 Air concept, v2.wellcertified.com).

Light and visibility around doors matter as well. According to the Illuminating Engineering Society (IES), cold storage task zones still require adequate vertical illuminance for safe handling and labeling accuracy; good lighting at transitions reduces wayfinding errors and collision risks (see ies.org/standards for recommended practices). When I plan cold rooms, I treat doors as performance assemblies: insulation, vapor control, hardware, safety, and sightlines must work together with workflow and cleaning protocols.

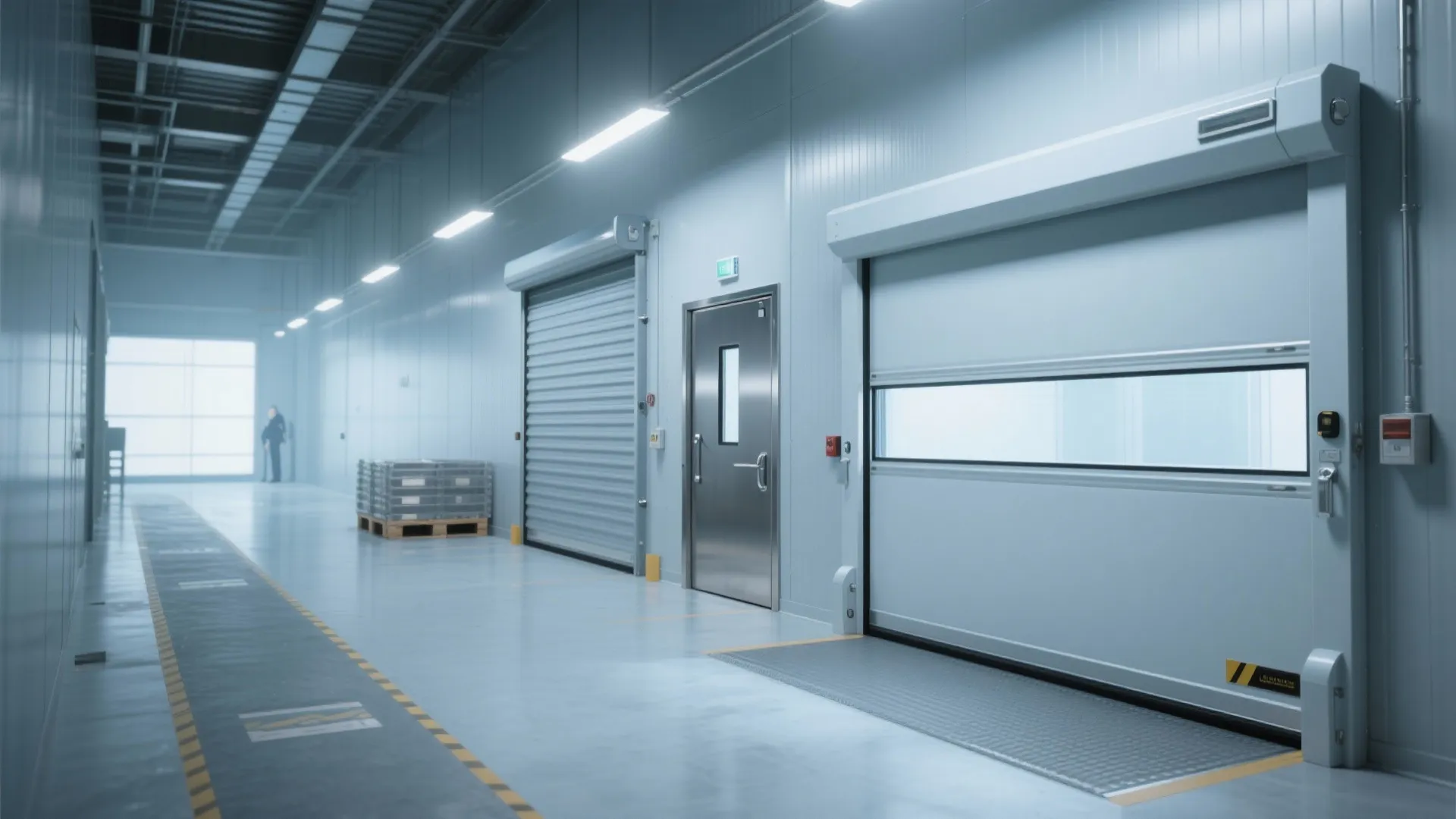

Core Door Types and Where They Fit

1) Hinged Swing Doors: Best for smaller openings and lower to moderate traffic. They offer excellent seal compression and usually the lowest initial cost. Use them for personnel access or small cart traffic. Prioritize heavy-duty hinges, adjustable strike plates, and perimeter heating for freezers below -5°C to mitigate gasket freeze.

2) Sliding Doors (manual or powered): Ideal for medium to large apertures and frequent pallet movement. Because the panel moves parallel to the wall, you reduce aisle conflict and door damage. A quality top-hung system with floor guide minimizes ice buildup. Select heated thresholds for freezers and specify soft-start motors to curb shock loads on the frame.

3) High-Speed Roll-Up Doors: Best for cross-dock corridors and high-cycle areas where infiltration must be minimized. With cycle speeds often 1–2 m/s, they materially reduce open time. Choose insulated curtains, heated side guides for freezers, and automatic refeed after impacts to limit downtime.

4) Vertical Lift and Bi-Fold Doors: Useful where lateral clearance is constrained. These can be engineered with thick cores and robust gaskets, though you must coordinate headroom with sprinklers and racking.

5) Personnel Hatches and Service Panels: For sampling or small pass-throughs, consider smaller insulated hatches to avoid opening full doors and dumping cold air.

Insulation, U-Value, and Thermal Bridging

Insulated door panels typically use high-density polyurethane or PIR cores. For chill rooms (0–5°C), target door U-values around 0.3–0.6 W/m²·K; for freezers (-18°C and below), aim for 0.2–0.35 W/m²·K. Pay special attention to frame and hardware interfaces—these are common thermal bridges. I always specify thermal breaks at frames and continuous gasket systems, plus heated gaskets/thresholds in subzero applications. Verify that the door leaf thickness matches the wall panel thickness for a clean, sealed interface.

Vapor Control and Condensation Management

Doors straddle warm and cold zones; without proper heat tracing and air seals, condensation forms on warm-side frames and vision panels, creating slip hazards and mold risks. Prioritize: perimeter heat on freezer doors, heated vision panel edges, positive pressure on the warm side where feasible, and air curtains or vestibules for large, frequently cycled openings. Maintain RH below 60% in the anteroom when possible to cut frost.

Hardware, Gaskets, and Lifecycle Durability

Heavy traffic punishes hardware. I specify stainless hinges with through-bolts, reinforced strike plates, and cam-lift hinges on swing doors for improved seal compression and lower wear. For sliding systems, choose corrosion-resistant trolleys with sealed bearings and adjustable hangers. Gaskets should be field-replaceable bulb or magnetic types; stock spares to avoid long lead times. Plan a quarterly inspection for compression set, tears, and ice bonding. In harsh washdown environments, use 304/316 stainless, sloped hardware covers, and closed-cell gasketing to resist water ingress.

Operator Safety and Workflow

Safe egress is non-negotiable. Include internal safety releases on all latchable doors and photo-eyes or presence sensors on powered doors. Reinforce door frames near forklift paths and use contrasting door edges for visibility. Steelcase research links environmental clarity to fewer process errors; high-contrast reveals, anti-glare lighting at the jamb, and clean line-of-sight through vision panels reduce collisions and lost time. Where layouts are evolving, validate placement with a room layout tool to simulate door swing, pallet turning radii, and sightlines before you commit to cut-outs: room layout tool.

Lighting and Visual Comfort at Transitions

Cold rooms often run 300–500 lux at task height, but vertical illuminance near doors is just as important for reading labels and spotting condensation. Choose 4000K–5000K CCT for crisp contrast, avoid high-glare lenses facing out of dark rooms, and seal fixtures to IP65+ where washdowns occur. Add anti-fog vision panels and specify heated glass in freezers to maintain visibility.

Hygiene, Cleanability, and Materials

Food and pharma facilities demand smooth, non-porous, and chemical-resistant finishes. Options include stainless steel skins or food-grade coated steel with antibacterial properties. Avoid exposed fasteners in splash zones. Integrate sloped sills and drip edges to keep condensate from pooling. For high-salt or protein-processing areas, 316 stainless hardware outlasts 304. Color coding doors by temperature zone helps staff compliance without relying on signage alone.

Acoustics and Behavior at Thresholds

Busy cold docks amplify noise. High-speed doors with flexible curtains dampen impact noise and shorten open times, cutting both sound and energy loss. Behavioral patterns also matter: traffic surges often follow production cycles. Pair auto-closing logic with sensor placement that avoids false triggers, and use side readers to separate pedestrian and forklift flows.

Compliance, Documentation, and Testing

Request third-party performance data for U-value, air leakage, and cycle testing. Confirm door heaters’ electrical load and redundancy. For pharmaceutical storage, align with validation protocols (IQ/OQ) and ensure event logging on powered doors. Emergency release training should be part of onboarding.

Freezer-Specific Strategies

Freezers magnify every weakness. I treat thresholds, sills, and floor insulation as one system: heated thresholds, thermal breaks, and vapor stops. Consider ante-rooms with dehumidification to halt frost blooms. High-speed doors with interlocks minimize open time and infiltration; where interlocks are not practical, deploy air curtains tuned to balance pressure without excessive turbulence.

Placement, Clearances, and Layout Coordination

Door placement should align with shortest travel paths while keeping corners open for turning radii. Provide clear side rooms for sliding panels and verify overhead conflicts with fire protection and utilities. Before fabrication, I run a quick simulation using an interior layout planner to confirm pallet flow, door swing arcs, and sightlines: interior layout planner.

Maintenance Playbook

- Weekly: Wipe gaskets, inspect for ice, verify heaters operate.

- Monthly: Check alignment, tighten fasteners, test safety releases.

- Quarterly: Measure close force, inspect bearing wear, recalibrate sensors.

- Annually: Replace tired gaskets, review U-value and leakage if monitoring exists, retrain staff on door protocol.

Budgeting and Total Cost of Ownership

Balance upfront cost with energy and downtime risk. A high-speed insulated door can repay the delta through reduced infiltration and fewer forklift incidents if cycle counts are high. In low-traffic rooms, a robust swing door with heated frame may be the best value. Track energy use at the panel level where possible to quantify savings from door upgrades.

FAQ

Q1. What U-value should I target for a freezer door?

A1. Aim for 0.2–0.35 W/m²·K with a PIR or polyurethane core, plus thermal breaks at the frame and heated gaskets to prevent ice bonding.

Q2. Sliding or swing—what’s better for pallet traffic?

A2. Sliding or high-speed roll-up doors are generally superior for frequent pallet movement because they reduce aisle conflict and shorten open times, cutting infiltration and impact damage.

Q3. How do I prevent condensation on door frames and glass?

A3. Use perimeter and vision panel heat on freezer doors, keep warm-side RH controlled, and consider vestibules or air curtains at high-cycle openings. Heated thresholds also help.

Q4. Do I need vision panels?

A4. In busy corridors, yes. Clear sightlines reduce collisions. Specify heated, anti-fog glazing in freezers and ensure impact protection around the panel.

Q5. What lighting should I provide at doorways?

A5. Provide sufficient vertical illuminance (commonly 300–500 lux task zones with focused vertical light at transitions). Choose 4000K–5000K to maintain contrast and minimize glare toward dark rooms in accordance with IES recommended practices.

Q6. How often should gaskets be replaced?

A6. Inspect quarterly and replace when compression set or tears appear—often every 12–24 months in high-use areas. Keep spares in stock to avoid downtime.

Q7. Are high-speed doors worth the premium?

A7. In high-cycle applications they typically are. Faster operation reduces open time, improving temperature stability and throughput, and modern self-repairing curtains reduce maintenance.

Q8. What about safety on powered doors?

A8. Specify photo-eyes, presence sensors, soft edges, and manual release mechanisms. Train staff on emergency egress and lockout/tagout procedures.

Q9. Which materials perform best in washdown environments?

A9. 304 or 316 stainless hardware, chemically resistant coated steel or stainless skins, sealed edges, and sloped covers to shed water. Avoid exposed fasteners in splash zones.

Q10. How do I coordinate doors with fire protection and utilities?

A10. Confirm headroom for vertical lifts and tracks, maintain clearances from sprinklers, and route conduits away from moving parts. Model conflicts during layout to avoid rework.

Q11. Can door placement improve efficiency?

A11. Yes—short, direct travel paths and clear turning space reduce open time and impacts. Simulate swing arcs and pallet radii with a layout simulation tool before cutting openings.

Q12. What role does pressure balance play?

A12. Maintaining slight pressure differentials (often positive on the warm side) reduces moist air ingress. Coordinate with HVAC to avoid doors being pulled open or frosting rapidly.
