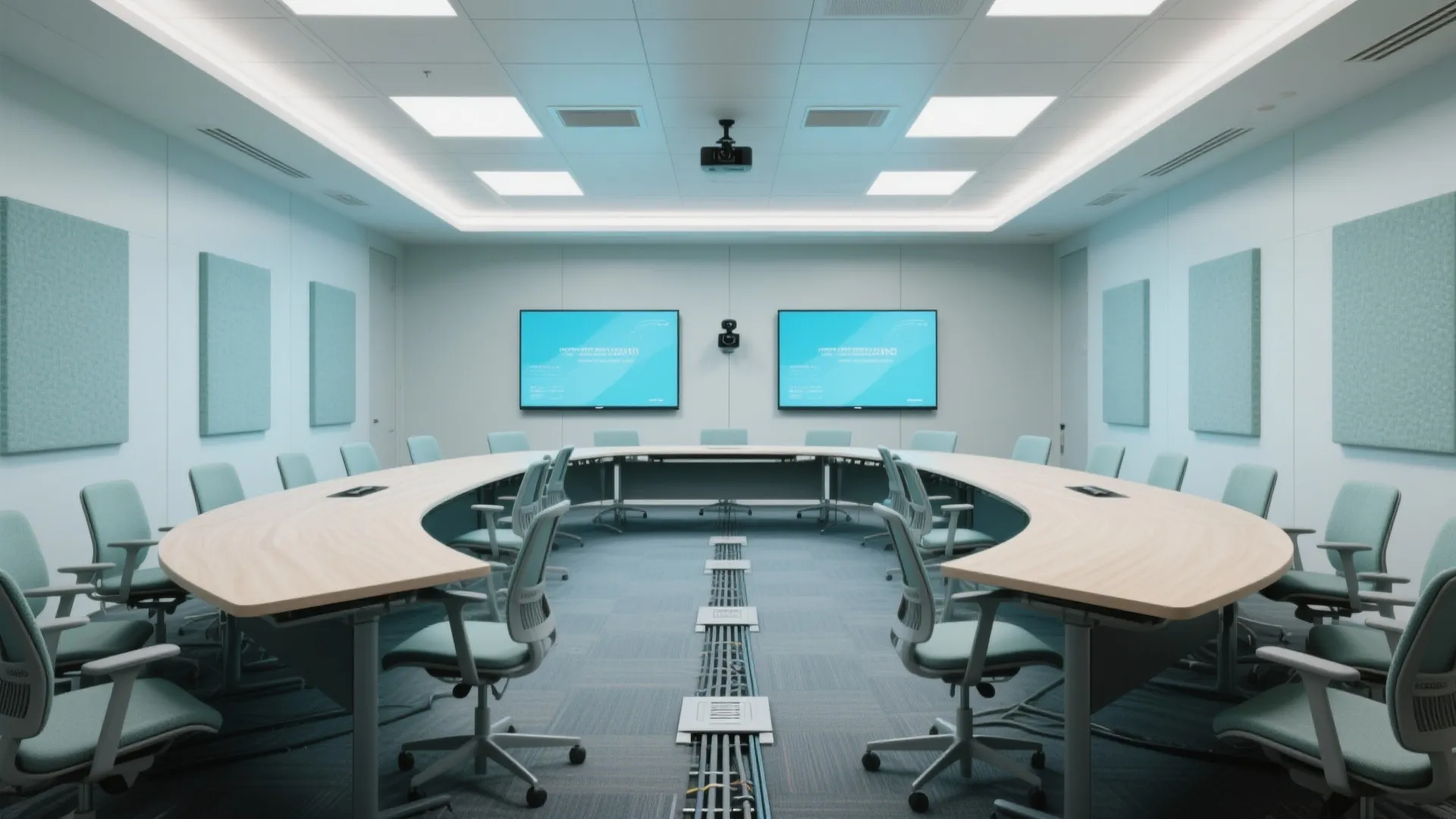

Conference Room CAD Block Design Guide: Fast-Track Guide to Effortless Conference Room Layouts with CAD Blocks

I design conference rooms with CAD blocks the same way I plan real spaces: start with human factors, align with lighting and acoustics, and let workflow drive geometry. A well-laid CAD library becomes a decision engine. In recent projects, I’ve found that seat pitch, sightlines, and cable management are far easier to get right when the blocks carry measured standards, not just pretty symbols.

Good design needs proof. WELL v2 recommends 300–500 lux for visual tasks in multipurpose rooms, with glare control and tunable light for circadian support; I model these targets directly into lighting blocks and schedules (source: v2.wellcertified.com). Steelcase research reports that meetings with better visual access and posture support reduce cognitive load and increase engagement—an insight that justifies wider aisles and variable seating densities in CAD. When chair centers are spaced 900–1000 mm and the primary viewing angle stays within 30° of screen centerline, participants track content with less eye strain.

Ergonomics drives dimensions. Herman Miller’s seating studies show optimal desk height around 710–740 mm for writing tasks, while many laptop tasks remain comfortable at 690–710 mm; I embed these ranges in table blocks with parameter notes. IES standards for meeting rooms focus on uniformity ratios and vertical illuminance on faces to aid communication; planning wall-wash locations and pendant grids in CAD helps achieve better facial illumination—critical for hybrid calls. Color psychology also matters: Verywell Mind notes that desaturated blues and greens are linked to focus and calm, so I annotate finishes per zone to guide material takeoffs.

Core CAD Block Set: What to Include

My conference room library covers: modular tables (rectangular, trapezoid, boat-shaped) with parametric lengths, widths, and knee clearance; ergonomic chairs with turning radii and arm-width indicators; displays (single, dual, or projection) with view-angle cones; cameras and microphones with pick-up patterns; ceiling luminaires, wall washers, and task lights; floor boxes, cable trays, and grommets; acoustic panels with NRC values; sightline blockers (columns, mullions) and transparency zones for glass; circulation and accessibility templates. Each block holds metadata: dimensions, clearances, service zones, and maintenance notes.

Human Factors and Spatial Ratios

I aim for 55–65% seating footprint, 20–25% circulation, 10–15% technology/service, and 5–10% flexibility storage in typical rooms. Chair center-to-center spacing at 900–1000 mm, minimum aisle width at 1100–1200 mm, and side clearance at 800–900 mm keep movement fluid. For collaborative sessions, I lower density and increase perimeter access to whiteboards and pin-up surfaces. If the plan involves multiple table configurations, I add a room layout tool to simulate transitions between boardroom, classroom, and U-shape quickly: room layout tool.

Sightlines, Screens, and Camera Logic

Screen height and distance rule the plan. Maintain a screen bottom edge 900–1100 mm above finished floor, with first row distance at 1.5–2.0× the screen diagonal for clarity. Keep viewing angles within ±30° horizontally and ±15° vertically from centerline for comfortable reading. For video, place cameras near the screen axis at eye level of seated users (typically 1150–1250 mm AFF) and avoid extreme foreshortening. Dual displays help remote participants appear at eye level during content sharing.

Lighting: Illuminance, Color, and Glare Control

Set general lighting to 300–500 lux on the table plane, layer vertical illuminance on faces at 150–250 lux for natural skin tones on video, and keep UGR below 19 to minimize discomfort. Use 3500–4000K for content-heavy tasks, shifting toward 3000–3500K for longer discussions to reduce fatigue. Incorporate indirect lighting to soften contrast and specify dimmable drivers to adapt to projection. Shade control is non-negotiable for glass-heavy rooms; top-down/bottom-up shades manage daylight without killing the view.

Acoustic Comfort and Material Strategy

Room acoustics either enable or sink meetings. Aim for RT60 around 0.4–0.6 seconds in small to medium rooms, achieved through a mix of absorptive ceilings (NRC 0.70+), wall panels (NRC 0.80 where needed), and soft surfaces. Place absorption behind the primary speaker to reduce flutter, and diffusion on lateral walls to keep voices intelligible. Carpets, upholstered seating, and ceiling clouds stabilize mid-high frequencies. Avoid parallel, hard finishes that bounce speech.

Power, Data, and Cable Management

CAD blocks must reserve service corridors under tables. Provide a power/data outlet per 2 users for laptops, plus dedicated ports for displays and cameras. Floor boxes should align with table module joints; cable trays under tables route discreetly to grommets. Keep table edge to outlet distance within 300–500 mm to limit cable span across walkways. Label pathways and maintenance clearances in the block metadata.

Layouts: Boardroom, U-Shape, Classroom, and Hybrid

Each layout has behavioral intent. Boardroom supports decision-making with a single focal axis and high eye contact—use boat-shaped tables to improve sightlines and equalize perceived status. U-shape favors training and demonstrations; keep the open end at 2400–3000 mm wide for facilitator movement and camera placement. Classroom layout increases capacity but risks poor engagement; add staggered rows and dual screens for lateral views. Hybrid rooms demand flexible layouts—create two focal axes: one for in-room collaboration, one for video.

When planning complex reconfigurations, I test three variants and time the changeover. Using an interior layout planner helps visualize circulation and cable routing before installation: interior layout planner.

Accessibility and Inclusive Design

Ensure wheelchair turning circles (1500 mm diameter) at key zones, keep pathways clear at 1100–1200 mm, and reserve front-row positions with optimal sightlines. Provide seating options with different seat heights and armrest types. For neurodiverse comfort, reduce visual clutter, use matte finishes, and avoid high-saturation color near screens. Lighting controls should be simple and labeled; acoustic zones can offer quieter seats away from doors and glass corners.

Workflow and Meeting Behavior

Rooms should reflect how teams collaborate. Decision-heavy meetings need tighter table geometry and centralized screens; creative sessions want perimeter tools—whiteboards, prototyping surfaces, pin-ups. The ratio of table to open floor determines whether discussions feel formal or exploratory. I place writable surfaces within 1200–1800 mm of seats and ensure camera views capture both faces and content to keep remote participants included.

Sustainability and Lifecycle Planning

Choose durable, repairable materials—high-pressure laminate for tables, modular carpet tiles for targeted replacement, and LED luminaires with field-swappable drivers. Specify low-VOC products and consider finishes that resist fingerprints around controls. CAD metadata should list embodied carbon data when available and identify refurbishment paths. Design cable trays and access panels for future tech upgrades without ripping floors.

Documentation: Layers, Metadata, and Revision Control

Keep disciplined layer naming for furniture, power, data, lighting, acoustics, and circulation. Use blocks with attributes: dimensions, clearances, service zones, lighting levels, acoustic ratings. Revision clouds and dated issue sets save time when vendors request updates. Export coordinated plans, RCPs, and elevations with consistent symbols so installers don’t guess.

Common Pitfalls and How I Avoid Them

Over-sized tables choke circulation; I cap depth at 1200–1400 mm unless microphones need extra reach. Single-axis rooms with off-center cameras produce awkward eye lines—place the camera on the screen centerline. Under-lit faces harm remote calls—even a clean plan fails without vertical light on people. Lastly, don’t let cables become trip hazards: integrate grommets and under-table trays on day one, not as an afterthought.

FAQ

1) What’s the ideal chair spacing in a conference room?

Center-to-center spacing at 900–1000 mm maintains comfort and allows for arm movement without collisions. Adjust down slightly for smaller chairs, up for wide-arm models.

2) How much light should I plan at the table surface?

Target 300–500 lux general illuminance at the work plane and add vertical illuminance on faces at 150–250 lux to improve video presence, aligned with WELL v2 guidance.

3) How do I size the screen and set viewing distances?

Keep first-row distance around 1.5–2.0× the screen diagonal, maintain horizontal viewing within ±30°, and raise the screen bottom 900–1100 mm above finished floor.

4) What’s a good reverberation time for speech clarity?

For small to medium rooms, aim for RT60 of 0.4–0.6 s using a mix of absorption (NRC 0.70+ ceilings, NRC 0.80 panels) and some diffusion on side walls.

5) Where should the camera go for hybrid meetings?

Mount near the screen centerline at seated eye height (approx. 1150–1250 mm AFF) to mimic natural eye contact and reduce foreshortening.

6) How wide should aisles and pathways be?

Primary aisles at 1100–1200 mm support safe passage and accessibility. Keep side clearances near 800–900 mm around table ends.

7) Which table shapes work best for boardrooms?

Boat-shaped or softly chamfered rectangles improve sightlines and proportional status. Trapezoids help modular reconfigurations without losing edge access.

8) What color temperatures support long meetings?

Use 3500–4000K for content clarity; shift toward 3000–3500K for extended discussions to reduce visual fatigue. Pair with glare-controlled luminaires.

9) How do I handle cables and power without clutter?

Plan floor boxes at table joints, route through under-table trays to grommets, and provide one power/data set per two users. Keep table-edge to outlet at 300–500 mm.

10) What layout suits training and workshops?

U-shape or staggered classroom layouts with dual screens balance demonstration and participant view lines. Keep the open end wide enough (2400–3000 mm) for facilitation.

11) How can I make the room inclusive?

Provide wheelchair turning circles (1500 mm), varied seating options, simple labeled lighting controls, and reduce visual clutter for neurodiverse comfort.

12) What documentation improves installation quality?

Use layered CAD standards, block attributes for dimensions and ratings, coordinated plans/RCPs/elevations, and clear revision clouds to minimize field errors.
