Designing Effective Government Building Floor Plans: Maximizing Functionality and Accessibility in Public Spaces

Direct Answer

Effective government building floor plans balance three priorities: public accessibility, operational security, and departmental efficiency. The most successful layouts separate public circulation from staff work zones while keeping essential services easy to locate.

In practice, that means clear public entry points, layered security zones, logical departmental clustering, and circulation paths that minimize confusion for visitors and staff.

Quick Takeaways

1. Separate public circulation paths from staff work areas to improve security and efficiency.
2. Cluster related departments to reduce inter‑department travel and operational delays.
3. Design intuitive navigation so first‑time visitors can reach services without assistance.
4. Layer security gradually instead of placing heavy screening everywhere.
5. Future flexibility is essential because government departments often change size.

Introduction

After working on multiple civic and municipal projects, I have learned that designing government building floor plans is very different from planning offices or residential buildings. The challenge is not just fitting rooms onto a drawing. It is balancing public access with security, supporting complex bureaucratic workflows, and preparing for constant administrative changes.

Many government facilities struggle because their floor plans were designed like conventional office buildings. Visitors get lost, security checkpoints cause bottlenecks, and departments that work closely together are located on opposite sides of the building. A thoughtful floor plan solves these problems before construction even begins.

In this guide, I will walk through the principles I rely on when planning civic buildings so they function well for the public, government staff, and security teams alike.

save pin

Why Government Buildings Need a Different Floor Planning Strategy

Key Insight: Government building floor plans must support public service operations, security protocols, and administrative workflows simultaneously.

Unlike commercial offices where most users are employees, government buildings serve large numbers of visitors every day. These visitors often arrive without appointments and may not be familiar with the building layout.

This creates several design pressures that standard office planning does not address:

1. High public traffic at service counters
2. Security screening requirements
3. Multiple departments interacting with the public
4. Record storage and administrative areas
5. Spaces for public meetings or hearings

The U.S. General Services Administration design guidelines emphasize zoning government buildings into three broad categories: public areas, controlled work areas, and secure spaces. This layered approach reduces risk while keeping services accessible.

How Should Public and Staff Circulation Be Separated

Key Insight: The most effective government building floor plans separate visitor circulation routes from internal staff movement.

One of the most common design mistakes is allowing visitors and staff to share the same circulation corridors. This increases congestion and creates unnecessary security exposure.

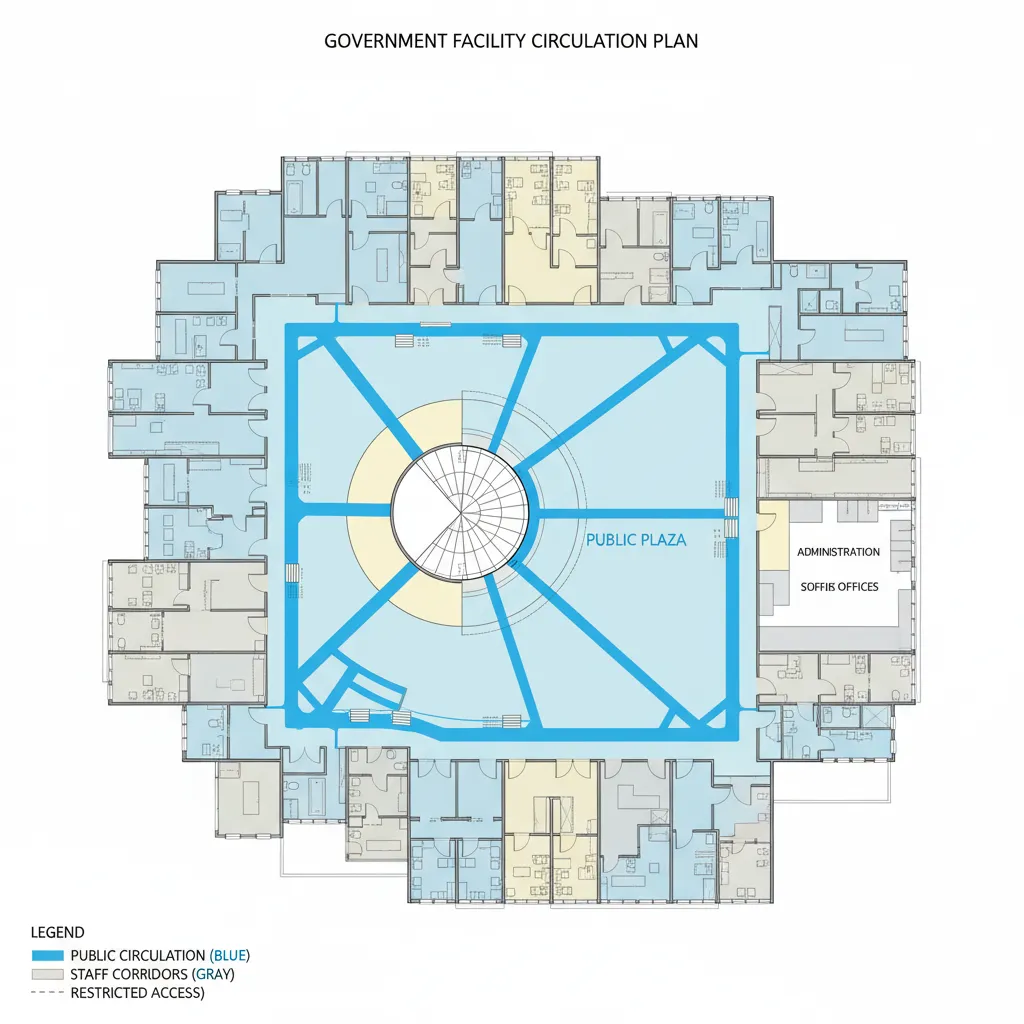

Instead, I typically structure the layout around two circulation systems:

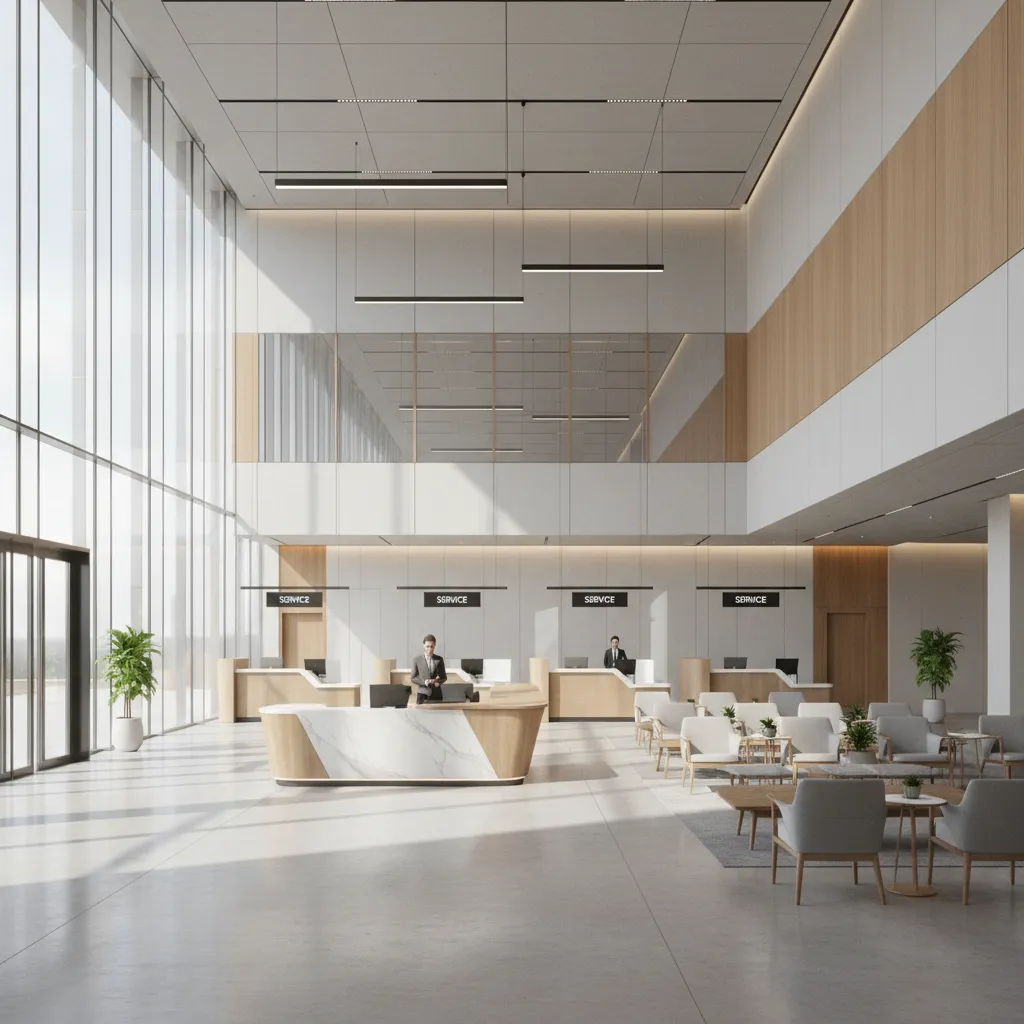

1. Public circulation: entry lobby, service counters, meeting rooms, public restrooms
2. Staff circulation: internal corridors connecting offices and departments

This separation allows employees to move between departments efficiently without crossing through busy public areas.

Typical zoning layout:

1. Front zone: lobby, reception, waiting areas
2. Service zone: counters and interview rooms
3. Administrative zone: offices and workspaces
4. Restricted zone: records, IT rooms, secure offices

save pin

What Departments Should Be Placed Near Each Other

Key Insight: Department clustering improves efficiency by reducing unnecessary internal travel.

In several municipal projects I worked on, the biggest inefficiency came from departments that frequently collaborate being located far apart. Staff spent a surprising amount of time simply walking between offices.

Smart government building floor plans group departments by workflow relationships.

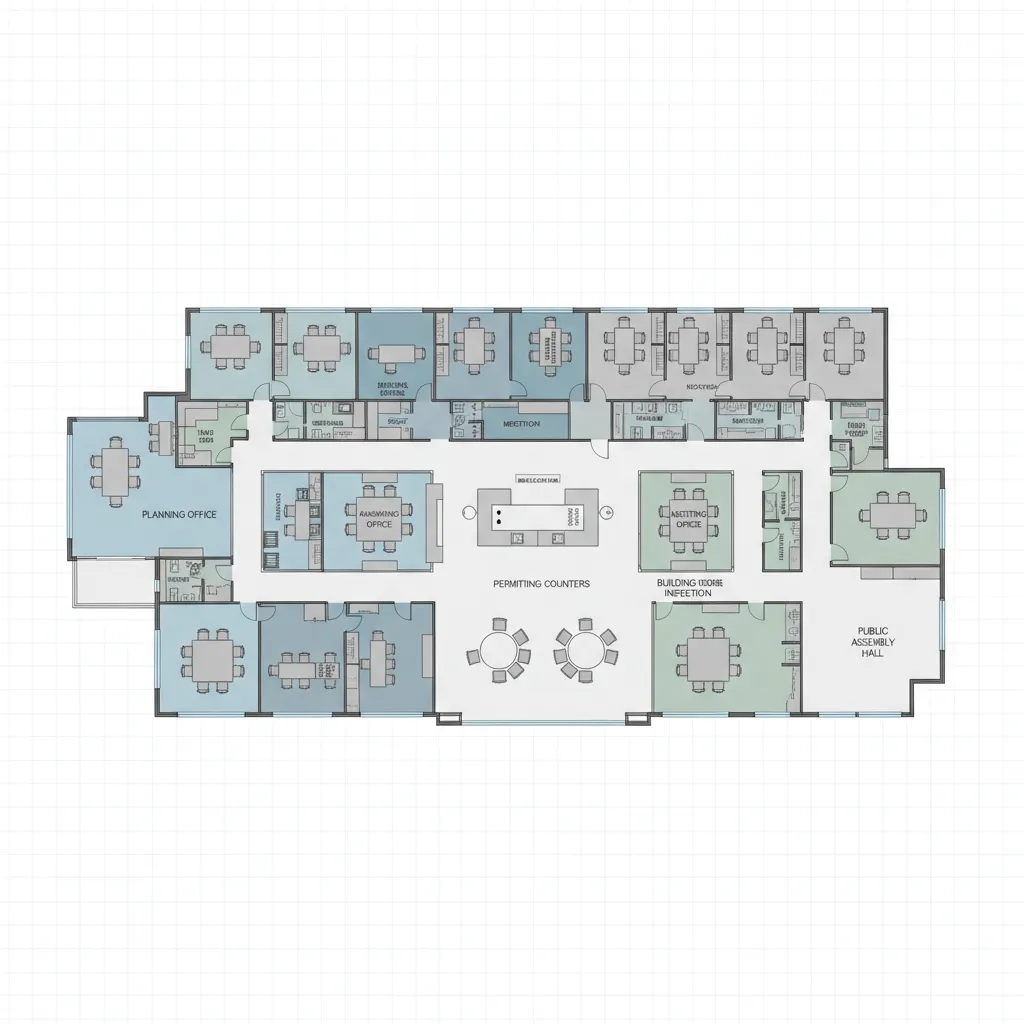

Example clustering strategy:

1. Planning department near zoning and permitting
2. Public records near citizen service counters
3. Finance close to administration offices
4. Council chambers near public meeting spaces

This strategy reflects workflow rather than organizational hierarchy, which is where many early designs go wrong.

save pin

How Security Zones Should Be Integrated Without Hurting Accessibility

Key Insight: Layered security is far more effective than placing a single strict checkpoint.

Government buildings often need security screening, but overly aggressive barriers can make public services feel intimidating and slow.

The most functional government floor plans create gradual security layers:

1. Public zone: open lobby and service desks
2. Semi controlled zone: interview rooms and meeting rooms
3. Controlled zone: staff workspaces
4. Restricted zone: archives, IT infrastructure, sensitive departments

Security experts often recommend visibility as an additional layer. Reception desks with clear sightlines across the lobby can identify issues before they escalate.

Common Design Mistakes in Government Building Floor Plans

Key Insight: Most government facilities fail because designers underestimate visitor behavior.

From my experience reviewing older civic buildings, several mistakes appear repeatedly:

1. Entrances that are difficult to locate
2. Service departments scattered across multiple floors
3. Waiting areas that are too small
4. Security checkpoints placed too deep inside the building
5. Confusing circulation paths without visual cues

One overlooked issue is wayfinding. Research from environmental design studies shows visitors form mental maps quickly. If the first hallway splits into too many directions, confusion spreads immediately.

How Can Government Buildings Stay Flexible for Future Changes

Key Insight: Flexibility is essential because government departments frequently expand, merge, or reorganize.

A rigid layout becomes obsolete within a decade. Instead, good government building floor plans allow departments to shift without major renovations.

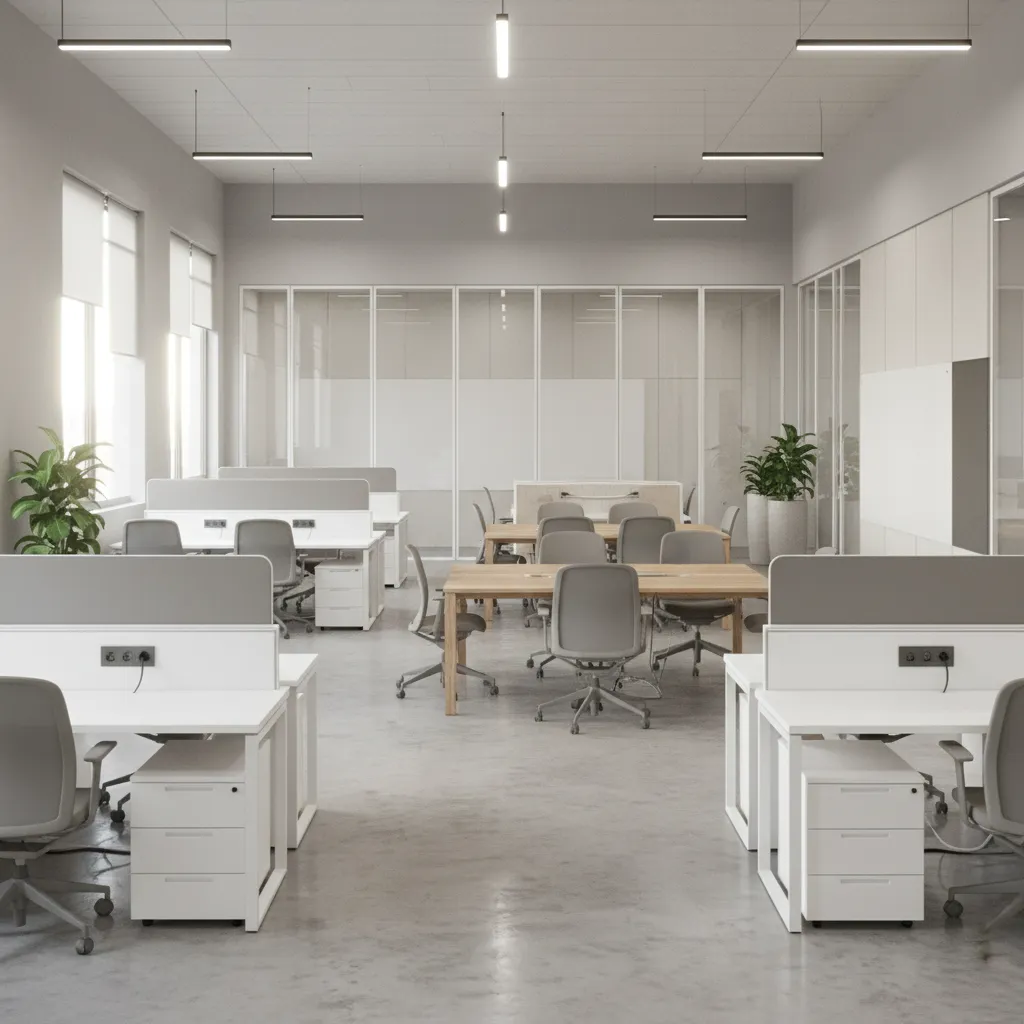

Design strategies that improve flexibility include:

1. Modular office grids
2. Movable partition walls
3. Shared meeting rooms between departments
4. Centralized service counters
5. Expandable office zones

Many modern civic buildings now adopt hybrid workspace layouts similar to large administrative offices. This allows departments to scale without structural modifications.

save pin

Answer Box

The best government building floor plans combine public accessibility with controlled internal operations. Separate circulation routes, department clustering, layered security, and flexible office zones create buildings that remain functional for decades.

Designing around real public behavior rather than theoretical layouts is what ultimately determines whether a civic building works well.

Final Summary

1. Separate visitor and staff circulation paths whenever possible.
2. Cluster departments based on workflow rather than hierarchy.
3. Use layered security instead of a single restrictive checkpoint.
4. Prioritize intuitive navigation for first‑time visitors.
5. Design flexible office zones for future government changes.

FAQ

What are government building floor plans?

Government building floor plans are layouts that organize public services, administrative offices, and secure areas within civic facilities.

Why is zoning important in government buildings?

Zoning separates public areas from staff workspaces and restricted spaces, improving both security and operational efficiency.

What spaces must most civic buildings include?

Typical spaces include a public lobby, service counters, administrative offices, meeting rooms, records storage, and security checkpoints.

How large should a government lobby be?

It depends on visitor volume, but designers typically size lobbies to handle peak service hours without congestion.

Do government building floor plans need separate entrances?

Many facilities include staff entrances for security and operational efficiency while maintaining a clear main public entrance.

What is the biggest mistake in civic building design?

Placing departments that serve the public on multiple floors often creates confusion and slows service delivery.

Are open offices suitable for government buildings?

They can work for administrative teams but should be balanced with private offices for confidential work.

How do modern government building floor plans improve navigation?

They use clear sightlines, logical corridors, and centralized service areas so visitors can intuitively find departments.
