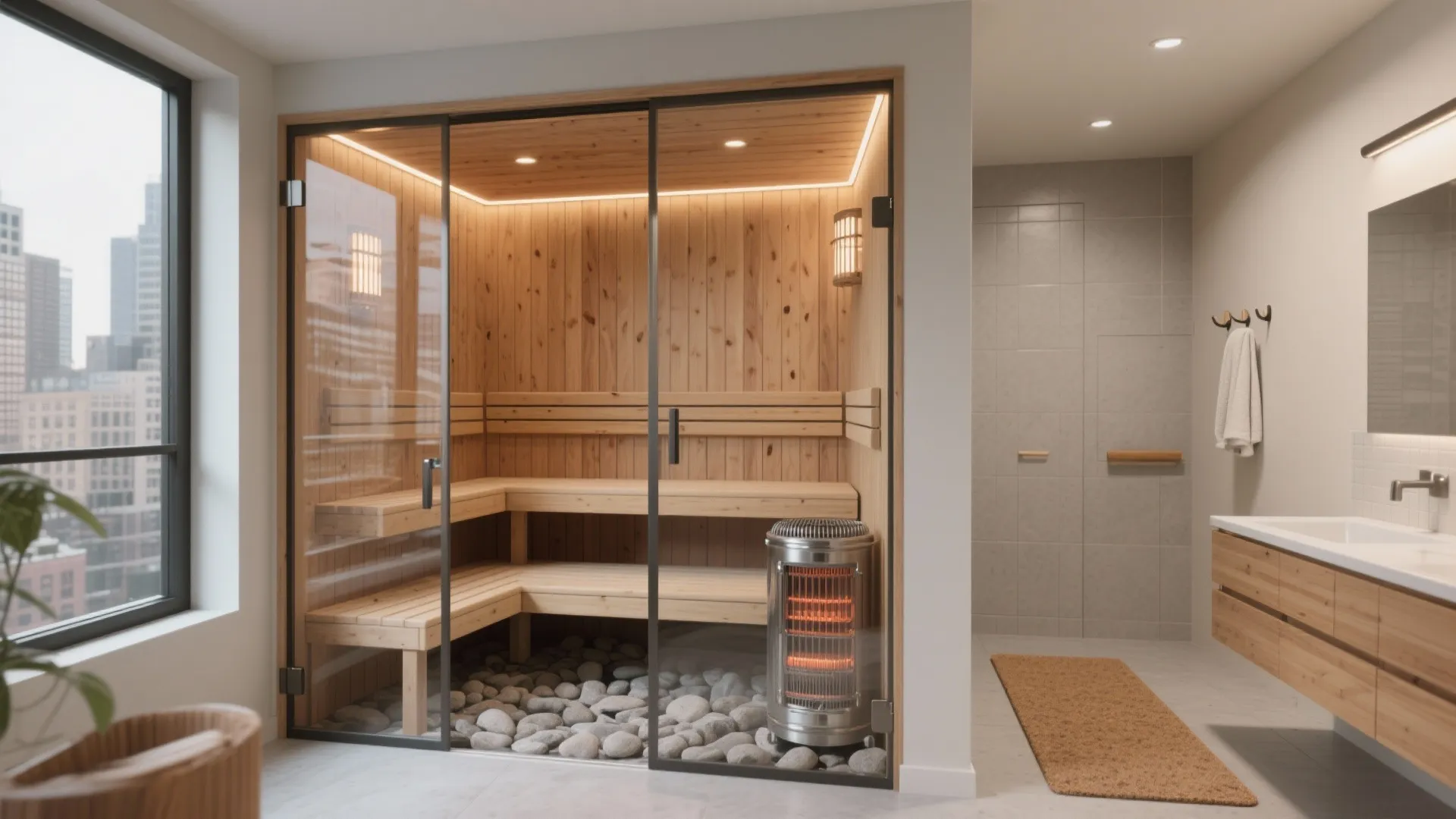

DIY At Home Sauna: Create Your Personal Wellness Retreat: 1 Minute to Your Steamy Sanctuary—A Fast-Track Guide to Home Sauna Creation

I’ve designed compact wellness spaces for city apartments and sprawling homes for years, and a well-planned DIY sauna consistently becomes the heartbeat of a retreat at home. Beyond the ritual, a sauna’s value is measurable: research cited by the International WELL Building Institute (WELL v2) notes thermal comfort and air quality as core contributors to perceived wellbeing, while Herman Miller’s workplace studies link restorative micro-breaks to improved cognitive performance in subsequent tasks. Bringing that restorative environment into your residence starts with thoughtful planning, safe materials, and efficient heat management.

Evidence matters when balancing heat, ventilation, and user comfort. The Illuminating Engineering Society (IES) recommends keeping surface luminance and glare under control in low-light spaces; in practice, warm 2700–3000K lighting with dimming ensures calmer perception under elevated temperatures. From ergonomics, Herman Miller’s research on posture resilience shows neutral spinal angles reduce strain—applied here, bench height and backrest angles prevent fatigue during 10–20 minute sessions. For psychology and mood, Verywell Mind’s color psychology overview highlights how warm wood tones can feel inviting yet grounded, ideal for a sauna’s cocooning effect.

Planning Your Sauna: Size, Location, and Layout

The best DIY saunas balance spatial ratios and circulation with clearances for heaters and ventilation. A useful target is 1.2–2.4 m² (13–26 sq ft) for one or two users, with a ceiling height around 2.1–2.2 m for efficient heat stratification. Keep the unit away from high-moisture zones unless you plan proper vapor barriers. If you’re configuring benches, a two-tier layout allows choice of heat intensity: the upper bench sits in the hottest stratified zone, while the lower provides a cooler option. To visualize door swing, heater clearance, and bench spacing, a room layout tool such as the interior layout planner below helps you simulate traffic and seating before you build:

room layout tool

Choosing Your Sauna Type: Dry, Steam, or Infrared

Dry Finnish saunas use electric or wood-burning heaters, delivering 70–90°C heat with low humidity; steam rooms operate at lower temperatures but high humidity; infrared models warm the body directly at roughly 50–60°C. Dry saunas offer the most classic ritual and easy DIY modularity. Infrared units are energy efficient and gentle for beginners. Match type to your comfort and maintenance capacity. Ensure your electrical system can support dedicated circuits and proper ventilation, especially for dry and infrared solutions.

Materials and Sustainability

Wood selection is the soul of a sauna. I typically specify Western Red Cedar, Nordic Spruce, or Hemlock for low resin, stability under heat, and minimal splintering. Use untreated, kiln-dried boards; avoid chemical finishes and film-forming coatings that can off-gas under heat. For sustainability, source FSC-certified timber and consider thermal-modified wood for dimensional stability. Fasteners should be stainless steel to resist corrosion. Insulation can be mineral wool for fire resistance; pair with foil-backed vapor barriers behind interior cladding to keep moisture under control and heat where you want it.

Heat Sources and Safety

Electric heaters with built-in thermostatic controls are the most straightforward DIY route. Follow manufacturer clearances rigorously; typically, 50–100 mm side and rear clearance and 300 mm above the heater are common, but always verify your model. For wood-burning options, add a non-combustible hearth and meet local code for flues. Infrared panels require careful positioning to maintain safe distances from seated users. Keep a wood bucket and ladle for humidity control in dry saunas, and install a high-temperature limit switch. A tempered glass door with magnetic latch prevents accidental openings without slamming under expansion.

Ventilation and Thermal Comfort

Sauna comfort depends on controlled air movement. Fresh air should enter low near the heater and exit high on the opposing wall, promoting convective flow and even temperature. WELL v2’s thermal comfort guidance underscores individual variability; give users agency with adjustable vents and a reliable thermometer/hygrometer set. Aim for a gentle, not drafty, turnover—approximately one full air change every 15–20 minutes in small DIY cabins keeps the atmosphere fresh while maintaining heat stability.

Lighting, Acoustics, and Atmosphere

Lighting needs to be calm and resilient in high temperatures. Choose LED fixtures rated for sauna environments, with IP ratings suitable for heat and humidity. Keep color temperature warm (2700–3000K), and integrate a dimmer outside the sauna for reliable operation. The IES glare guidance points to shielding and indirect lighting; tuck LEDs behind bench slats or a cove for soft diffusion. For acoustics, wood absorbs mid-high frequencies, but small rooms can feel “live.” Add soft towels and a cork mat in the changing nook to tame reflections. A small Bluetooth speaker outside the sauna, not in the hot zone, preserves electronics and keeps sound gentle.

Layout Essentials: Benches, Ratios, and Ergonomics

Bench depth affects posture and comfort: 400–500 mm allows seated support; 550–600 mm works for reclined lounging. Bench heights commonly range from ~450 mm (lower) to ~900 mm (upper). I set the backrest angle between 95–105 degrees for relaxed seating. Keep at least 600–760 mm clearance in front of benches for knees and safe passage. Rhythm matters—repeat vertical slat spacing for visual order, and align heater centerlines with bench bays for balance. If you’re iterating configurations, use a layout simulation tool to test tiered seating and door positions before committing.

layout simulation tool

Moisture Control and Detailing

A tight envelope keeps performance high. Install foil-faced vapor barriers behind interior cladding, taped and continuous. Use back-vented wall assemblies with 10–15 mm air gaps to prevent trapped moisture. Floor finishes should be non-slip and water-resistant—porcelain tile or sealed concrete outside, and wood slats with drainage gaps inside. Integrate a small floor drain if local codes allow. Doors should swing out for safety, with a wood handle that stays cool to the touch. Seal joints neatly; avoid over-caulking inside the hot zone.

Electrical and Code Considerations

Plan a dedicated circuit sized for the heater’s load and factor in voltage drops for longer runs. Use heat-rated cabling and junction boxes placed outside the hot envelope. All connections must meet local electrical codes and be installed by a qualified professional where required. Include a timer and high-limit cutoff to prevent overheating. Smoke detectors go outside the sauna in the adjacent space; inside units can false-alarm under steam and heat.

Rituals, Recovery, and Psychology

The ritual shapes behavior. Most users cycle 10–20 minutes of heat with a cool-down shower or plunge, repeating 2–3 times depending on comfort. Color psychology supports warm wood palettes for sanctuary vibes; introduce a contrasting cool zone outside—white tile, pale gray, or light stone—so the change in chroma and temperature feels restorative. Provide hydration and a bench in the changing nook to extend the experience into a mindful pause.

2024–2025 Design Touches

Current wellness trends favor natural materials, low-VOC finishes, concealed lighting, and compact, modular footprints. Consider a narrow transom window with privacy glass for daylight without losing heat. Smart controls with simple analog overrides keep rituals flexible. If space allows, pair the sauna with a cold rinse, a stool-height vanity, and hooks at 1,450–1,600 mm for towels to streamline movement.

Cost, Timeline, and Maintenance

A DIY cabin with electric heater and cedar interior typically ranges from modest budgets to mid-tier depending on finish level and size. Expect a weekend for framing and cladding once utilities are prepared; electrical permitting can add time. Maintenance is light: wipe benches, leave the door ajar post-use for drying, and sand lightly if resin blooms. Replace heater stones per manufacturer guidance and check fasteners annually.

FAQ

How hot should a home sauna be?

Classic dry saunas operate around 70–90°C. Beginners may prefer the lower end, while seasoned users enjoy the upper range for shorter sessions. Infrared runs cooler at 50–60°C but still provides a deep warming effect.

What bench heights and depths are most comfortable?

Lower bench ~450 mm height, upper bench ~900 mm is a common tiering. Depths of 400–500 mm suit seated use; 550–600 mm allow semi-recline. A backrest angle of 95–105 degrees supports relaxed posture.

Do I need special lighting for a sauna?

Yes—use sauna-rated LED fixtures, warm 2700–3000K color temperature, and shield sources to reduce glare per IES good practice. Keep drivers and dimmers outside the hot zone for longevity.

How should I ventilate a small sauna?

Introduce intake air low near the heater and exhaust high on the opposite wall. Target roughly one air change every 15–20 minutes for small cabins to keep air fresh without chilling users.

Which wood species are best?

Cedar, Hemlock, and Nordic Spruce are stable, low-splinter, and comfortable under heat. Choose untreated, kiln-dried boards and stainless fasteners. Avoid varnishes that can off-gas at temperature.

Is a steam room the same as a dry sauna?

No. Steam rooms run lower temperatures but high humidity, which affects finishes and ventilation differently. Dry saunas use higher temperatures with low humidity and are generally easier for DIY builds.

How long should each session last?

Most users enjoy 10–20 minutes per session, followed by a cool-down. Listen to your body, hydrate, and avoid prolonged exposure. Provide a thermometer and hygrometer for monitoring.

Can I place the sauna in a bathroom?

Yes, if moisture control is robust: use vapor barriers, non-slip floors, and ensure the bathroom’s exhaust fan and the sauna’s vents work independently. Keep electrical in compliance with wet-area codes.

What about electrical safety and controls?

Use a dedicated circuit sized to the heater, install high-limit cutoffs and timers, and locate controls outside the hot envelope. Engage a licensed electrician where local code requires.

How do I maintain the interior?

Wipe benches after use, prop the door open to dry, lightly sand if needed, and replace stones per manufacturer intervals. Check fasteners yearly and keep the drain clear if installed.

Can I customize the look without compromising safety?

Absolutely. Add cove lighting, a tempered glass door, and consistent slat rhythm for visual balance, but keep clearances around the heater and use only heat-safe materials.

Are there wellness benefits supported by research?

WELL v2 emphasizes thermal comfort and indoor air quality as pillars of wellbeing, and Herman Miller’s research ties restorative breaks to improved subsequent focus—sauna rituals can align with these principles.
