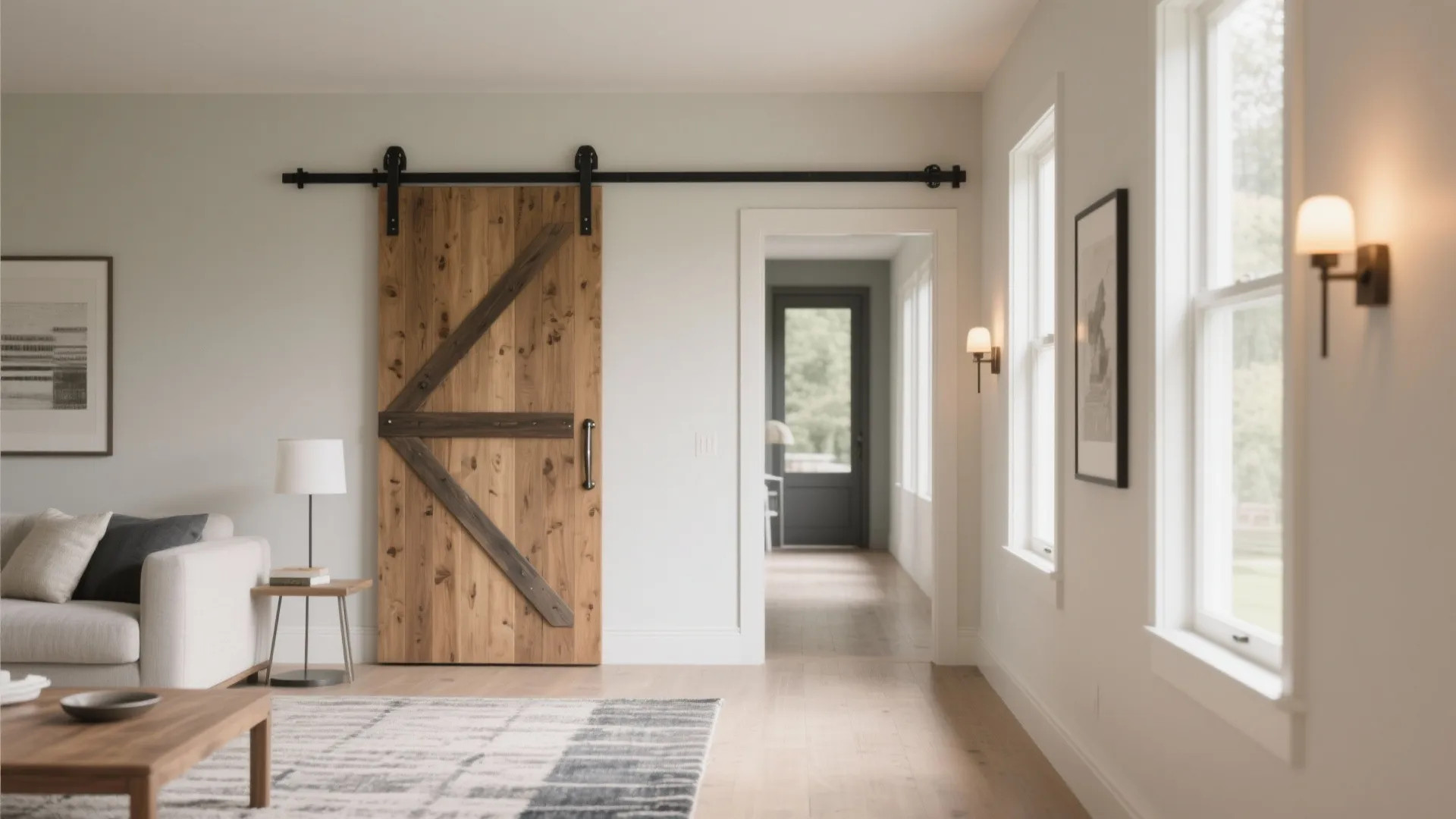

DIY Barn Doors Plans: Step-by-Step Guide for Stunning Results: 1 Minute to Learn the Fast-Track Guide to DIY Barn Doors Plans

I love barn doors for their blend of utility and character: they save swing space, deliver a strong design statement, and suit both modern and rustic interiors. Beyond aesthetics, a well-built barn door can improve circulation and privacy without the bulk of a hinged door. According to NKBA door planning guidelines, maintaining at least 32 inches of clear passage is recommended for accessibility, and sliding doors help preserve that clearance in tight corridors. In workplace testing, Gensler’s research shows movement efficiency increases when circulation paths stay uninterrupted—sliding doors support that by eliminating door-swing conflicts.

Comfort matters as much as look. Steelcase research indicates perceived privacy strongly influences satisfaction in multipurpose spaces, and a properly sealed sliding door improves acoustic separation by reducing direct sound paths. For nighttime use, balancing warm task lighting around 2700–3000K with low-glare illumination follows IES best practice for residential comfort, while WELL v2 points to controllable lighting and low VOC materials to support indoor air quality. For layout visualization and door clearance checks across tight rooms or hallways, a room layout tool can streamline sightline planning and traffic flow analysis: room layout tool.

Design Intent: Size, Style, and Proportions

Start by defining the opening and architectural rhythm. Measure rough opening width and height, note trim and baseboard depth, and check for obstructions like light switches or art. Aim for door width that covers the opening plus 1–2 inches on each side for privacy. Height typically 1 inch above the finished floor to clear thresholds or rugs. If replacing a hinge door, verify stud locations to anchor the track safely. Choose a panel style that matches your interior: classic planked with a Z-brace for farmhouse, flush veneer for minimal, or shiplap with a slim metal frame for modern industrial. Keep stiles and rails proportional—3–4 inch stiles read lighter; 5–6 inch stiles feel more robust. Use a 1:2 vertical rhythm on brace lines to avoid visual clutter.

Materials: Durable, Flat, and Low-VOC

Stability is everything. Opt for kiln-dried lumber to minimize warp, or use furniture-grade plywood with hardwood edge-banding for a flat, consistent panel. If choosing solid boards, select quarter-sawn where possible for dimensional stability. For finishes, low-VOC waterborne polyurethane or hardwax oils support better indoor air quality—wellcertified guidelines emphasize material emissions control for occupant health, aligning with household comfort targets. Hardware should be carbon steel or stainless with sealed bearings, rated for at least 1.5× the door’s final weight. Use felt or silicone door sweeps and soft-close dampers to enhance acoustic comfort and reduce impact noise.

Tools and Hardware Checklist

Gather: miter saw, circular saw or track saw, pocket-hole jig, clamps, sander (120–220 grit), drill/driver, level (48 inch), stud finder, chisels, wood glue, brad nailer (optional). Hardware set: track (length = 2× door width), hangers, spacers (usually 1–1.5 inches to clear trim), standoffs, anti-jump discs, floor guide, soft-close dampers, and a pull. Include a flush pull if the door must slide fully past a perpendicular wall. Verify bolt length matches wall thickness and track brackets.

Step 1: Measure, Plan, and Mock Up

Mark the door’s travel path with painter’s tape. Confirm the door can slide fully open without hitting sconces, thermostats, or outlets. Ensure the header area above the opening has solid blocking or studs for lag bolts; I aim for at least two studs or a continuous ledger anchored with structural screws. Sketch the stile-and-rail layout with exact dimensions; set rail locations slightly above mid-height for balanced visual weight. For tight spaces, simulate the layout quickly with an interior layout planner to check clearances and sightlines: interior layout planner.

Step 2: Build the Door Panel

Cut stiles and rails to length. For a classic plank build, rip boards to consistent width, joint edges, and glue up with biscuits or tongue-and-groove for alignment. Clamp across and check diagonal measurements for square. Add a backer sheet (thin plywood) on the rear if you need extra rigidity, especially in humid climates. If building a frame-and-panel door, assemble the perimeter frame with pocket screws and glue, drop in plywood or MDF core, and skin both sides with decorative planks. Sand progressively to 180–220 grit, breaking edges lightly to prevent finish chipping.

Step 3: Bracing and Edge-Banding

Install a Z-brace or horizontal battens, keeping screw lines aligned with grain to reduce split risk. Edge-band plywood builds with matching hardwood strips; clamp and flush-trim with a router for a clean shadow line. Reinforce hanger bolt locations with internal blocking or a doubled stile. Aim for hanger spacing 6–8 inches from each edge to distribute load evenly.

Step 4: Finish for Longevity

Apply a sanding sealer or waterborne primer to reduce grain raise, then two to three coats of durable finish. Choose a sheen that fits your light levels: matte or satin reduces glare in bright spaces; semi-gloss adds reflectivity in dim corridors. Color psychology suggests warmer natural tones feel welcoming, while charcoal hues add modern drama without overwhelming smaller rooms when paired with warm lighting around 2700–3000K.

Step 5: Prep the Wall and Mount the Track

Locate studs with a stud finder and mark heights. If studs are misaligned, install a solid wooden ledger level with the track elevation, anchored into studs with structural screws. Mount brackets per manufacturer spacing, ensuring at least 2 inches of clearance for trim. Use a long level to set the track perfectly plumb and level—any deviation causes drift. Add standoffs to clear door thickness, test soft-close damper alignment, and install anti-jump hardware.

Step 6: Hang the Door and Align

Attach hangers to the top of the door, verifying fastener length won’t pierce the panel face. Lift onto the track with a second person. Set the floor guide to prevent lateral sway; a U-channel or fin guide works well. Check reveal gaps: aim for 1/4 inch even gap along the sides and 1/2–3/4 inch at the bottom. Adjust hanger bolts for level. Test the soft-close; tune damper catch positions until the door glides and stops quietly.

Step 7: Seal, Handle, and Final Touches

Install felt seals or brush sweeps on the backside edges for improved acoustic separation and light control. Add a privacy latch if required; surface latches can be mounted to the jamb. Install a pull at comfortable reach height—typically 36–42 inches above floor. If the door covers a bathroom or bedroom, consider a bottom seal to reduce sound transfer and drafts.

Acoustic and Ergonomic Considerations

Sliding doors don’t seal as tightly as hinged ones, so think about layered strategies: soft-close hardware to minimize impact noise, felt seals for gaps, and rug or soft furnishing nearby to absorb reflections. Ergonomically, ensure the pull size fits various hand spans and mount height is accessible. WELL v2 emphasizes controllability of environmental features; translating that here means smooth travel and reliable privacy without excessive force.

Styling and Integration

Coordinate finishes with existing hardware—blackened steel for industrial, brushed nickel for contemporary, or aged brass for warmth. Pair with wall sconces or track lighting that offer dimmable, warm light to soften the door’s presence at night. Keep wall art clear of the slide path and align horizontal battens with chair rail or window mullion lines to strengthen visual continuity.

Common Mistakes to Avoid

Skipping blocking behind the track, under-rating hardware weight, ignoring floor guides, and neglecting finish edges are the usual culprits. Don’t forget to account for baseboards; add spacers or a thicker standoff if trim protrudes. Verify that the door can fully clear the opening—especially near corners or closet returns.

Maintenance

Annually check bracket tightness, clean the track, and add a touch of lubricant if the manufacturer permits. Reapply finish every few years depending on wear, and replace seals when they compress. Inspect soft-close dampers for alignment after seasonal humidity shifts.

FAQ

Q1: How wide should my barn door be?

A: Measure the opening and add 1–2 inches on each side to ensure privacy and coverage. For accessibility, aim for at least 32 inches clear passage per NKBA guidance.

Q2: What material resists warping best?

A: Kiln-dried, quarter-sawn hardwood is stable. For budget and flatness, furniture-grade plywood with hardwood edge-banding performs reliably across seasons.

Q3: Do I need a ledger if studs don’t line up?

A: Yes. Install a solid wood ledger anchored into studs, then mount the track to the ledger for a continuous, secure fastening surface.

Q4: How do I improve acoustic privacy?

A: Use felt seals or brush sweeps on vertical edges, add a bottom seal if needed, and select soft-close hardware to reduce impact noise. Layer with rugs and soft furnishings near the doorway.

Q5: What lighting works best around a barn door?

A: Warm, dimmable lighting around 2700–3000K reduces glare and keeps the door legible at night. Follow IES guidance for low-glare task lighting in circulation zones.

Q6: How high should I mount the handle?

A: Typically 36–42 inches above finished floor. Choose a handle size that accommodates different hand spans and avoids sharp edges.

Q7: Can a barn door work for a bathroom?

A: Yes, with proper seals, a privacy latch, and soft-close hardware. Ensure adequate overlap on all sides to limit sightlines and improve acoustic separation.

Q8: What track length do I need?

A: Usually twice the door width to allow full open travel. Confirm wall clearance so the door can slide past the opening without obstruction.

Q9: How do I prevent the door from jumping off the track?

A: Install anti-jump discs or brackets included with your hardware kit and verify they’re snug after alignment.

Q10: Are there sustainability choices I can make?

A: Select FSC-certified lumber where available, low-VOC finishes, and durable hardware that won’t need frequent replacement—aligning with WELL v2 emphasis on healthier materials.
