DIY Bathroom Wall Tile: Step-by-Step Installation Guide: Fast-Track Guide to Tiling Your Bathroom Like a Pro

I’ve tiled dozens of bathrooms over the past decade, and the same pattern holds true: great results come from disciplined prep, correct substrate choice, and small, consistent details. A well-executed wall tile job will not only look sharp but also stand up to moisture and daily cleaning.

Moisture performance is non-negotiable in bathrooms. The WELL v2 Water feature highlights controlling moisture to protect occupant health and finishes, and in wet zones, even minor water ingress can escalate into hidden mold. In practical terms, shower walls should achieve a water-resistant assembly—cement backer board plus waterproof membrane—with seams and penetrations fully sealed. Lighting also affects perceived quality and accuracy during installation: basic bathroom tasks benefit from horizontal illuminance around 300–500 lux, aligned with IES recommendations for residential grooming areas, which helps you see lippage and grout joint uniformity before the thinset cures.

Durability and user comfort are influenced by tile size and pattern. Research on workplace visual environments shows glare control and uniformity improve task accuracy; in tiling, consistent light reveals layout errors early. For color, Verywell Mind’s color psychology notes that cool hues can feel cleaner and more spacious, while warmer neutrals add comfort—useful when selecting wall tile tones for small baths. If planning a niche, bench, or staggered pattern, I map ratios (tile size to wall dimension) and test the layout with a room layout tool from Coohom to avoid sliver cuts, misaligned borders, and awkward niche reveals.

Planning and Measuring

Good layout starts with the focal wall—often the shower valve wall or the wall you see first. I measure the full height and width, note obstructions (niche, window, valve, spout), and calculate centerlines. Dry-fit a course on the floor to confirm module math: include grout joint width (typically 1/16–3/16 inch, depending on tile caliber and edge). Aim to avoid cuts under 1/3 tile at corners or ceiling terminations. If the ceiling isn’t level, plan a top cut that follows the ceiling rather than forcing a full tile that reveals a tapered gap.

Choosing Materials

Select the right tile body and edge. Porcelain resists moisture and is ideal for shower walls; ceramic is fine for non-wet accent walls. Rectified tiles demand tighter joints and more precise lippage control. Pair tile with a polymer-modified thinset suitable for porcelain if needed. Use a cementitious grout (sanded for 1/8 inch and above, unsanded for narrow joints) or high-performance ready-to-use grout for stain resistance. Always add a waterproofing membrane (sheet or liquid-applied) over cement backer board in wet zones; drywall is not appropriate inside showers. For trims, choose matching bullnose or metal profiles at edges and niches to achieve a clean termination.

Tools and Safety

I keep: level (24–48 inch), laser line, tape, pencil, square, mixing paddle, buckets, margin and notched trowels (check manufacturer’s notch recommendation), spacers/levelling clips, tile cutter and wet saw, drill/driver, sponge, and microfiber cloths. PPE counts—safety glasses, gloves, and a respirator when cutting tile or sanding. Maintain 300–500 lux task lighting; add a temporary work light to spot lippage before thinset sets.

Substrate Prep

Remove loose material, plumb and plane studs, and install cement backer board with appropriate fasteners and spacing. Stagger seams and leave required gaps. Tape seams with alkali-resistant mesh and thinset. Waterproof with a continuous membrane; overlap or coat per manufacturer instructions, and seal around valves and penetrations with gaskets or patch membranes. Confirm flatness: no more than 1/8 inch deviation in 10 feet for larger format tiles. Mark stud locations for future accessory mounting.

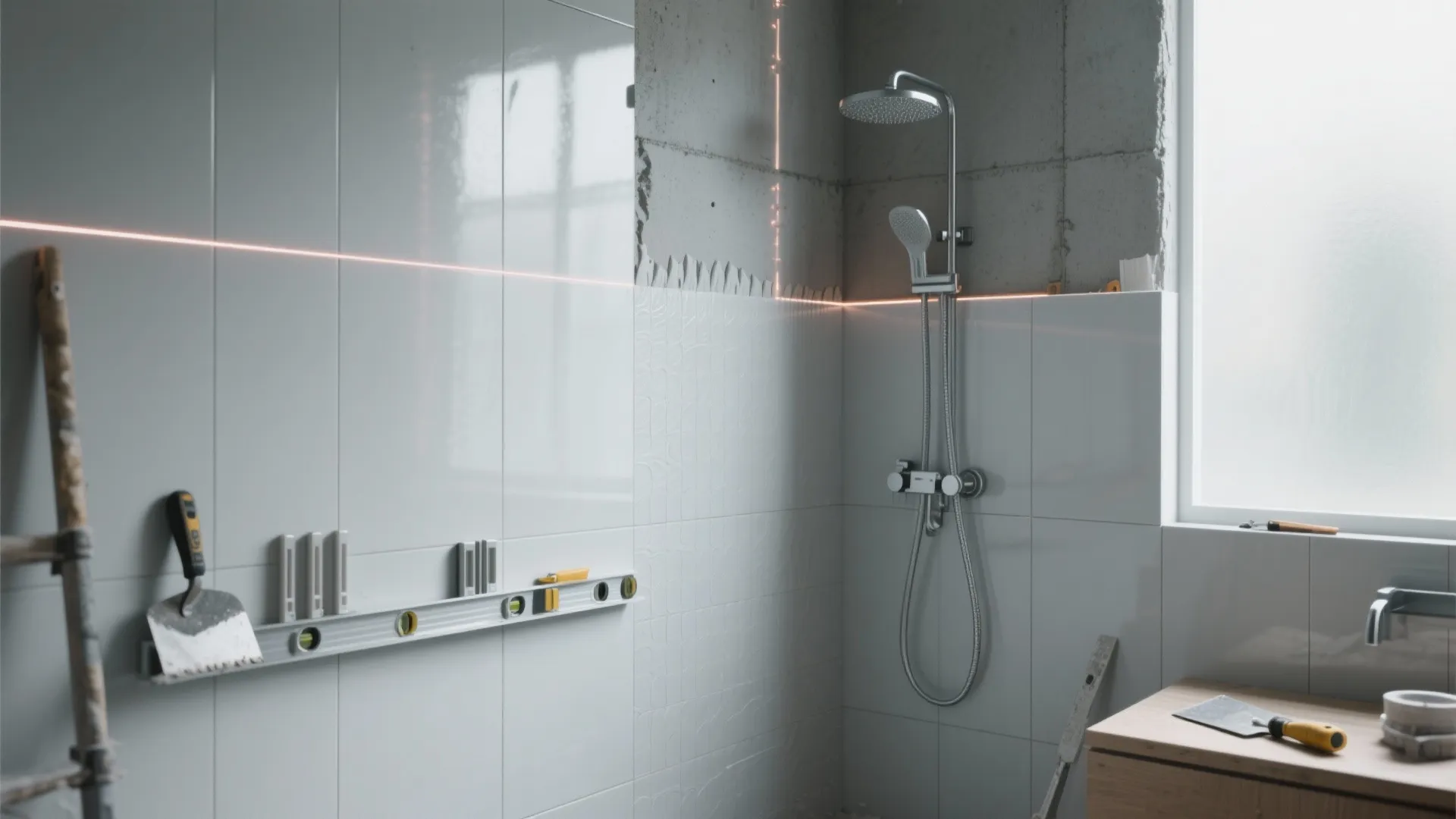

Layout and Reference Lines

Find your visual center. Snap vertical and horizontal reference lines with a laser. I establish a level starter line often one full tile up from the floor or shower base, cutting the bottom row later to follow slope while keeping top courses level. For niches, align grout joints through the opening to avoid slivers around the reveal. If the pattern is running bond or herringbone, pre-draw the alignment to avoid creeping offsets. When planning complex walls, an interior layout planner like Coohom’s room layout tool helps simulate joint lines and trims.

Mixing Thinset

Mix in small batches. Add powder to clean water, blend until creamy, let it slake (rest) per instructions, then re-mix. The consistency should hold a notch without slumping. Maintain pot life; discard when stiff or skinned. Back-butter large format tiles to ensure coverage.

Setting Tile: Step-by-Step

1) Trowel ridges correctly: comb thinset in straight, parallel lines to allow air to escape when the tile is pressed. 2) Press and slide: set tile and move slightly perpendicular to ridges. 3) Check coverage: aim for 95% in wet areas. Pull a tile occasionally to verify. 4) Spacers and clips: use consistent joint spacing and levelling clips sparingly to keep faces flush without introducing stress. 5) Maintain reveals: keep equal cuts at corners and align with niches and trims. 6) Clean as you go: remove squeeze-out from joints before it firms; thinset in joints compromises grout.

Cutting and Trims

Use a wet saw for clean edges and miter metal trims at corners when needed. For plumbing penetrations, mark from actual valve locations and use a hole saw rated for tile. Dry-fit trims before setting the adjoining tile. If mixing tile thicknesses, shim thinner pieces with additional thinset to keep a flush face.

Grouting

Let thinset cure (typically 24 hours). Vacuum joints, then mix grout to a smooth paste. Work diagonally across joints with a rubber float. After initial set, wipe with a damp sponge, rinsing frequently, then polish haze with a microfiber cloth. For showers, consider a high-performance or epoxy grout for stain resistance, acknowledging its shorter working time and precise cleanup requirements.

Sealing and Caulking

If using a cementitious grout that requires sealing, apply a penetrating sealer after full cure. Caulk all changes of plane (wall-to-wall, wall-to-ceiling, wall-to-base, and around fixtures) with 100% silicone or a color-matched sealant instead of grout to prevent cracking. Tool caulk smoothly for a discreet finish.

Quality Checks

Evaluate with good lighting from multiple directions. Check plumb, level, and consistent joints. Confirm full coverage at edges and around penetrations. Inspect for lippage by running a straightedge over joints. Verify trims are tight and aligned. Small corrections now prevent big frustrations later.

Maintenance and Longevity

Use pH-neutral cleaners and avoid abrasive pads. Keep ventilation effective; drier bathrooms reduce microbial growth and prolong grout integrity. Re-seal grout if specified and re-caulk as needed over time. Ceramic and porcelain surfaces typically offer decades of service when moisture management is correct.

Design Notes: Color, Light, and Comfort

Color affects perceived cleanliness and scale. Blues and cool grays read crisp and spacious; warm beiges and creams feel inviting. Control glare with appropriate vanity lighting and avoid overly specular finishes on tiles in tight spaces. Maintain a balanced rhythm—repeat modules, align edges, and let feature tiles highlight niches or the main wall without overwhelming small rooms.

Common Mistakes to Avoid

Skipping waterproofing, starting from an unlevel line, cutting slivers at corners, ignoring pot life, grouting changes of plane, and poor lighting during install. Each leads to premature failure or visually uneven results.

FAQ

Q1: What joint width should I use for wall tile?

A1: For rectified porcelain, 1/16–1/8 inch is common; for non-rectified ceramic, 1/8–3/16 inch offers tolerance. Always confirm with the tile manufacturer.

Q2: Do I need waterproofing over cement board in the shower?

A2: Yes. A continuous sheet or liquid-applied waterproof membrane is essential. It protects the assembly from moisture ingress and is standard best practice in wet zones.

Q3: How do I avoid lippage with large format tiles?

A3: Ensure substrate flatness, use the correct trowel notch, back-butter tiles, and set with parallel ridges. Levelling clips help, but they don’t fix poor prep.

Q4: Can I tile over drywall?

A4: In dry, non-wet accent areas you can, provided the drywall is sound. Inside showers, use cement backer board plus waterproofing.

Q5: What grout type is best for showers?

A5: High-performance cementitious or epoxy grouts resist staining and water better in wet areas. Match joint width to sanded or unsanded formulations.

Q6: How should I plan cuts around a niche?

A6: Align grout joints through the niche opening and aim for equal, non-sliver cuts on all sides. Dry-fit and use trims or bullnose for a clean reveal.

Q7: How long should thinset cure before grouting?

A7: Typically 24 hours, but temperature, humidity, and product specifics matter. Check the manufacturer’s instructions.

Q8: What lighting helps during installation?

A8: Provide task lighting in the 300–500 lux range to spot alignment and surface irregularities. Good light reduces errors before thinset sets.

Q9: Do I need to seal porcelain tile?

A9: Porcelain typically doesn’t need sealing. Cementitious grout may, depending on product; follow the grout manufacturer’s guidance.

Q10: How do I handle out-of-plumb walls?

A10: Correct framing if possible. Otherwise, adjust cuts at corners and use trims to keep the visible face true, maintaining a level reference line.

Q11: What’s the best starting point for tiling?

A11: Establish a level starter line, often one full tile up from the base or pan. This avoids telegraphing floor or pan irregularities and keeps sightlines clean.

Q12: Which color schemes work best in small bathrooms?

A12: Cooler light tones increase perceived space; pair with matte finishes and balanced lighting to reduce glare and enhance comfort.
