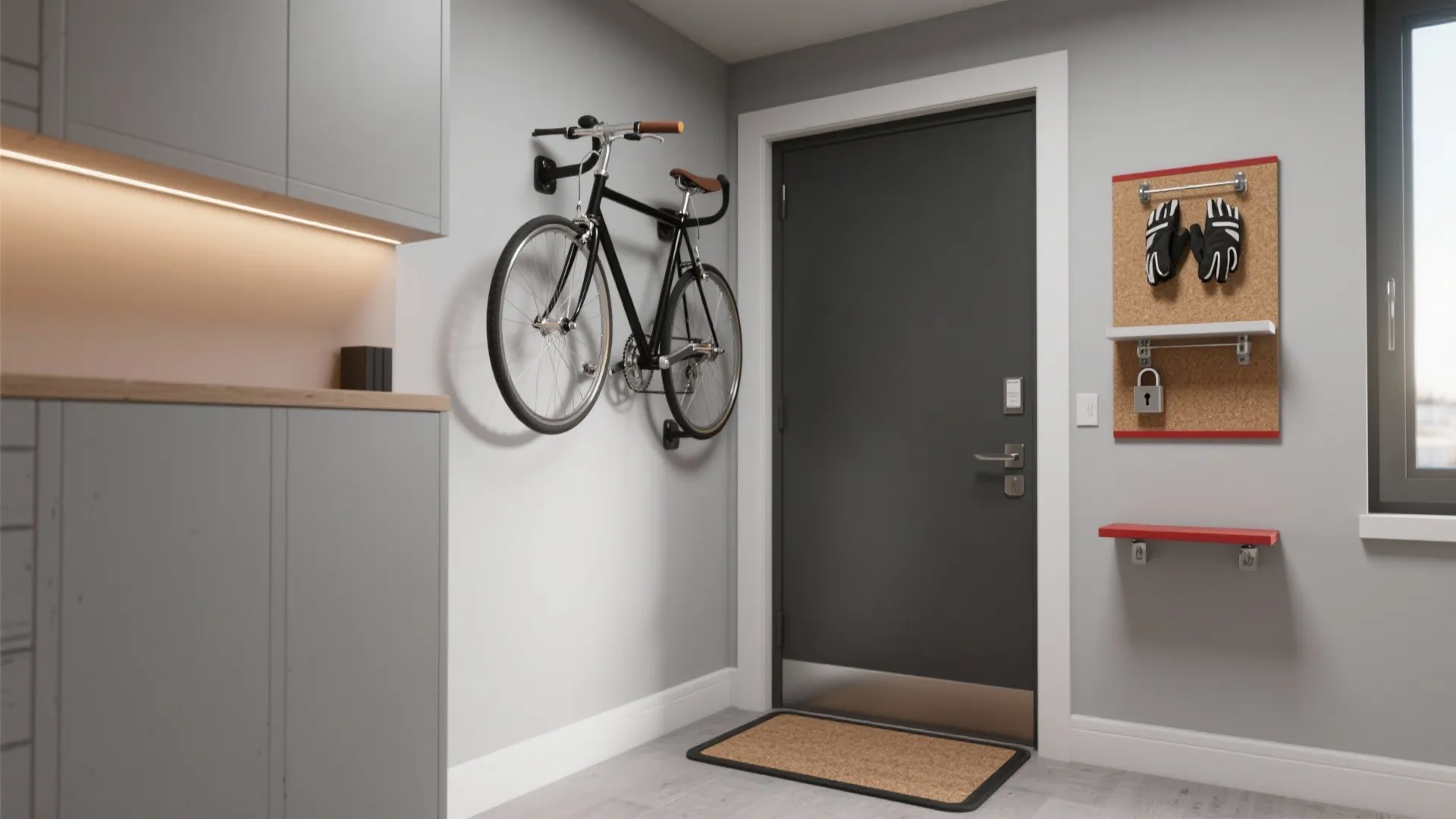

DIY Bike Mount Wall: Easy Storage for Small Spaces: Quick-Start Guide to Creating a DIY Bike Mount Wall in 10 Minutes

Mounting a bike on the wall is one of the simplest ways to reclaim floor space, minimize clutter, and protect components from tip-overs. In small apartments or tight garages, even a single bike can dominate circulation paths. A carefully planned DIY bike mount wall not only saves space, it improves daily flow and preserves the bike’s geometry by supporting it at structurally sound points.

Space efficiency is measurable. Steelcase’s research shows that clear, unobstructed circulation paths reduce workplace time-loss from interruptions, a principle that applies at home: fewer obstacles mean faster transitions and safer movement. Gensler Research also highlights that organizing vertical storage zones increases usable footprint by optimizing wall height and keeping floors open for activity.

Beyond space, ergonomics matter. WELL v2 guidance emphasizes human-centered ergonomics, encouraging reach ranges between shoulder and waist height to reduce strain. For most adults, that places the center of the bike between 42–54 inches from the finished floor, keeping lift forces manageable and avoiding awkward overhead loading. IES recommendations on task visibility support adequate lighting at the mount—aim for 300–500 lux to safely align hooks and wheel channels without glare.

Plan the Mounting Strategy

I start with intent: Are we showcasing a single road bike, rotating two city bikes, or parking a daily commuter for rapid grab-and-go? A wall mount can be horizontal (supporting the top tube), vertical (suspending from a wheel), or angled to balance multiple frames. If you’re laying out several bikes, a room layout tool can help simulate spacing, clearances, and lift paths: room layout tool.

Choose the Right Hardware

For a DIY build, choose hardware that matches frame geometry and tire type. Top-tube arms with padded cradles suit steel or aluminum road frames; deep hooks work well for mountain bikes with wide tires. For vertical systems, use a two-point approach: a wheel hook up high and a stabilizing floor bump stop or lower guide to control swing. Keep finishes gentle—EPDM rubber or cork pads prevent paint abrasion and damp vibrations.

Locate Studs and Define Load Path

A bicycle plus accessories often weighs 18–35 lb; e‑bikes can exceed 50–70 lb. Mount into wood studs or masonry. For wood framing, #10 or #12 screws at least 2.5–3 inches long provide reliable embedment. I place two or three fasteners per bracket and confirm the load path: vertical shear into the stud and minor torsion controlled by the bracket’s backplate. For masonry, use sleeve anchors sized to the bracket’s holes. Avoid drywall anchors for primary support.

Set Ergonomic Heights

For horizontal mounts, align the top-tube cradle around 48 inches above the floor for most users—this respects shoulder-height lift limits and keeps pedals clear of baseboards. For vertical mounts, position the upper hook around 66–70 inches, then set a lower wheel stop 12–16 inches above the floor, fine-tuned to tire diameter. Maintain 18 inches lateral clearance from adjacent walls or furniture to protect handlebars.

Lighting and Visibility

To reduce nicks and misalignment, provide 300–500 lux ambient lighting at the wall. A small wall washer or track head angled at 30 degrees minimizes glare and reveals the bracket’s edges. Warm-neutral color temperatures (3000–3500K) keep finishes pleasant while maintaining contrast for tires and hooks.

Acoustic and Material Considerations

Metal-on-metal contact rings and scrapes. Use elastomer pads on brackets and a cork strip where the rear wheel might kiss the wall. If the wall is shared with a living space, consider a thin acoustic panel behind the bike to damp vibrational noise from loading. Painted walls should use hard-wearing enamel; dark, satin finishes hide scuffs better than full gloss.

Layout for Multiple Bikes

Stagger heights and alternate handlebar directions. For vertical storage of two bikes, offset hooks by 8–12 inches to prevent bar overlap. For four bikes, create a grid: two high, two low, with 16–18 inches center-to-center horizontally. If a hallway is involved, confirm a 36-inch clear path for code-like comfort and safer egress. When planning, an interior layout planner helps visualize overlap and circulation: interior layout planner.

Protect the Wall

Add a slim kick plate or wheel rail at the base to catch dirt and protect paint. A removable silicone mat under the rear wheel keeps cleaning simple. If you ride in wet conditions, a drip tray or PVC strip prevents water tracks.

Step-by-Step DIY Build

1. Mark Studs

Use a stud finder and confirm with a pilot hole. Mark centerlines at desired height.

2. Pre‑drill and Mount Backplate

Drill pilot holes slightly smaller than the screw core. Hold the bracket level; add washers if the wall is uneven.

3. Add Padding

Apply adhesive-backed rubber or cork to contact points. Check clearance for cables and brake hoses.

4. Test With a Mock Load

Hang a sandbag or a weighted tote to verify deflection and fastener bite before lifting the bike.

5. Final Adjustments

Fine-tune the angle to keep the bike close to the wall without pedal strikes. Confirm the handlebar doesn’t interfere with doors.

Safety and Maintenance

Recheck fasteners every six months, especially in high-use entries. Inspect pads for wear and replace if they harden or crack. If mounting an e‑bike, verify bracket capacity and consider dual-stud spans with a continuous steel rail for distributed load.

Design Details That Elevate the Experience

A slim shelf above the bike holds lock, gloves, and lights. Add a concealed LED strip under the shelf edge for a soft halo and better visibility. Use color psychology subtly: a cool gray backdrop calms visual noise; a small accent band in vivid red near the mount adds a cue for alignment without overwhelming the room. Keep overall ratio balanced—bike centerline aligned with wall symmetry or an adjacent vertical element creates visual rhythm.

Cost and Time Snapshot

Hardware and pads typically run $25–75 per bike. Expect 60–90 minutes for a single mount, including layout, drilling, and cleanup. Masonry adds time for anchoring and dust control.

FAQ

How high should I place a vertical bike hook?

Typically 66–70 inches to the hook, with a lower wheel stop 12–16 inches above the floor. This keeps lift forces reasonable and stabilizes the frame.

Is it safe to hang a carbon frame by the top tube?

Yes, if the cradle is wide and padded, avoiding point loads. Many riders prefer wheel-based vertical mounts for carbon to minimize top-tube contact.

Can I mount into drywall only?

No. Use studs or masonry. Drywall anchors alone aren’t appropriate for dynamic loads like lifting and placing a bike.

How much clearance do I need around the bike?

Aim for 18 inches lateral clearance and a 36-inch clear path in front for easy maneuvering and door swings.

What lighting level is best near the mount?

Provide 300–500 lux ambient light with glare control, so hooks and guides are easy to see without harsh reflections.

Will hanging the bike affect hydraulic brakes?

Short-term vertical storage is fine. If you notice sponginess, cycle the brakes and store horizontally occasionally to let micro-bubbles settle.

How do I prevent tire marks on the wall?

Install a slim kick plate, wheel strip, or silicone mat. Dark satin paint also disguises scuffs while staying easy to clean.

What’s the best spacing for two or more bikes?

Offset vertical hooks by 8–12 inches and keep 16–18 inches center-to-center horizontally. Alternate handlebar directions to avoid clashes.

Can I mount an e‑bike on the wall?

Yes, with heavy-duty brackets rated for 50–70 lb, anchored into two studs or a continuous steel rail to distribute load.

Will a horizontal mount damage cables?

Use padded cradles and check that housings aren’t pinched. Adjust angle so cables rest freely.

How often should I check the fasteners?

Every six months, and after any heavy impact or relocation. Replace worn pads and re-tighten screws.

Do I need a lock if the bike is indoors?

In shared buildings or garages, add a wall eyelet for a U‑lock. It deters opportunistic access and secures accessories.
