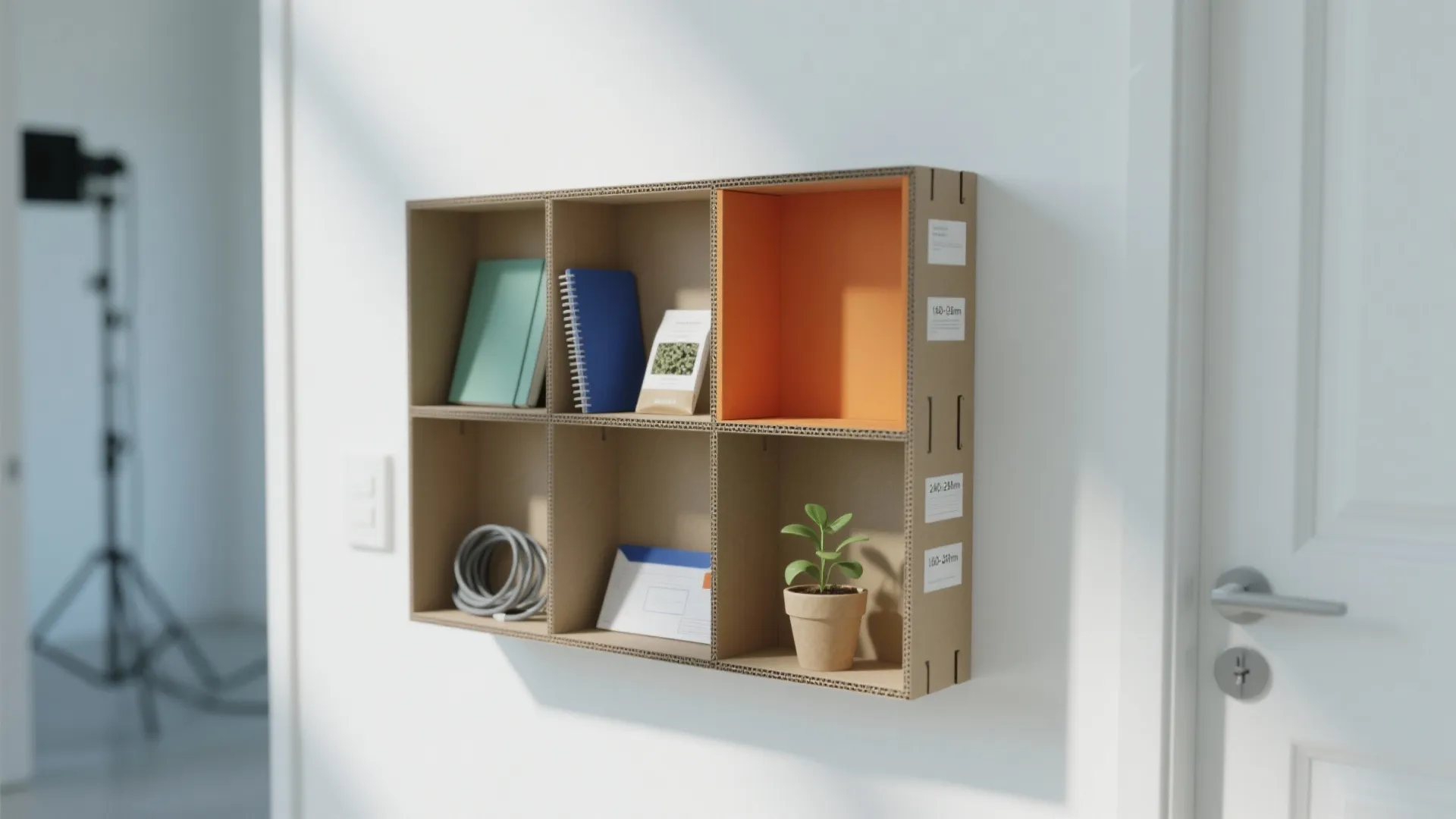

DIY Cardboard Wall Shelf: Space-Saving Storage Solution: Fast-Track Guide to Building a Cardboard Wall Shelf in 1 Hour

I’ve built more prototypes than I can count, and a cardboard wall shelf remains one of my favorite low-cost experiments for organizing lightweight items. Cardboard is abundant, easy to cut, and remarkably adaptable when reinforced correctly. A well-designed wall-mounted unit can live in entryways for mail, in studios for supplies, or beside a desk for notebooks. The trick is to treat it like real furniture: plan loads, choose the right material, and respect ergonomics and safety.

Before diving in, let’s anchor a few facts about load and comfort. WELL v2 recommends placing frequently used items within the ergonomic reach zone—roughly shoulder to waist height—to minimize strain; this simple placement guideline makes a big difference for daily use (WELL v2 Ergonomics). On color, cool hues can help a shelf visually recede and calm the space; Verywell Mind’s summary of color psychology notes blue is commonly associated with calmness and focus, while warm tones draw attention—useful if the shelf also acts as a focal point. Keep loads modest: a double-wall corrugated panel often supports 2–4 kg per compartment when properly braced and evenly distributed; I stick to notebooks, small plants in lightweight pots, mail, and craft tools. For detailed workplace reach guidelines and performance implications, the WELL standard offers practical references at WELL v2, and color behavior cues are well summarized by Verywell Mind.

Design Intent: Where a Cardboard Shelf Makes Sense

I use cardboard shelves in studios, kids’ rooms, and entry corridors where light storage keeps surfaces clear. They’re ideal for: mail sorting, sketchbooks, cables, lightweight décor, and seed packets. If you expect heavier loads (ceramics, stacks of books), move to plywood or metal brackets instead. The goal is space discipline—lifting small items off horizontal surfaces to reduce clutter and visual noise while keeping daily essentials within reach.

Material Selection and Reinforcement

Choose double-wall corrugated cardboard (DW) or triple-wall for added stiffness. Look for clean, dry sheets without humidity damage. Reinforce edges with U-folded channels: cut 40 mm strips, score, and fold into a U to cap shelf fronts and sides. Add vertical webs (internal dividers) every 150–250 mm to distribute load. Bond with PVA wood glue or a high-strength paper adhesive; hot glue is fast but can create brittle joints. For durability, laminate two sheets with glue, pressing under books overnight. A thin water-based polyurethane or clear acrylic spray can add abrasion resistance, but keep the finish light to avoid warping.

Human Factors: Height, Reach, and Visual Balance

Mount the shelf so the top edge sits around 1400–1550 mm from the floor for most adults—comfortable for standing access while staying below eye-level glare. Keep the heaviest compartment between 900–1200 mm to reduce shoulder strain. Visually, balance widths in a 3:2 rhythm: for example, three narrow bays above two wider bays to create an intuitive sort pattern (letters, keys, notes vs. sketchbooks). If you’re organizing entry essentials, dedicate a small left bay for keys and a center bay for mail; the habitual motion becomes automatic.

Acoustic and Lighting Considerations

Cardboard absorbs a touch of high-frequency sound; a bank of compartments can slightly soften echoes near hard walls, helpful in small apartments. For lighting, aim for 300–500 lux ambient at the shelf face to read labels clearly without glare. If task lighting sits near the shelf, pick matte finishes and avoid glossy tapes at the front edges; highlights on shiny surfaces can distract. Warm-neutral light at 3000–3500K keeps paper tones comfortable and reduces blue-shift on labels.

Color Psychology: Calm, Focus, and Wayfinding

Muted blues or desaturated greens help a shelf visually disappear and support focus during desk work. If you need wayfinding (kids’ craft station, shared office mail), use color blocks on dividers—one compartment per person—with high-contrast labels. Reserve strong warm accents for a single bay to avoid visual clutter. Blue accents can lower perceived stress and help with task concentration, while a small pop of orange can draw the eye to urgent items.

Layout Planning: Module Sizes and Spacing

For everyday items, I like modules at 240–280 mm wide, 160–220 mm high, and 180–220 mm deep. Dividers every 200 mm prevent sag. Keep front lips at 20–30 mm high to stop items from sliding out. If you’re mapping the shelf within a tight wall area—between a door casing and a window jamb—simulate clearances and reach with a simple interior layout planner; tools like this room layout tool can help visualize how your shelf relates to door swings and adjacent furniture: room layout tool.

Joinery: Folded Tabs vs. Hidden Frames

Two reliable construction methods: folded-tab boxes or a hidden frame. For folded-tab boxes, score hinge lines at 1/3 thickness, fold cleanly, and glue tabs inside. For frames, build a rectangular grid of vertical and horizontal ribs (like a honeycomb) and skin it with front and back panels. The frame approach carries load better and looks cleaner; it’s my go-to for wider sections.

Mounting: From Temporary to Semi-Permanent

Cardboard can’t take shear like wood, so spread the load. If you need a removable install, use 3M Command-style strips on a wide backer board bonded to the shelf; keep below 2 kg total. For semi-permanent mounting, fix a thin plywood cleat to the wall (anchored to studs), then hang the shelf off the cleat with a continuous cardboard hanger reinforced by a laminated top rail. Always anchor to studs for anything beyond very light loads.

Sustainability Notes

Use post-consumer cardboard and water-based adhesives. Design for disassembly: avoid mixed materials that complicate recycling. When the shelf retires, peel off tapes, separate any wooden cleats, and recycle the cardboard. If applying finish, choose low-VOC coatings and spot-apply rather than saturate.

Step-by-Step Build Guide

1) Sketch modules and overall width. Mark the wall height you want and note stud locations.

2) Cut panels: outer shell (top, bottom, sides), internal ribs, and front lips. Dry-fit to confirm spacing.

3) Laminate key load-bearing panels and press flat. Add U-channel reinforcements on long edges.

4) Assemble the internal frame with glue; square it as you go. Add dividers at 200 mm intervals.

5) Skin the frame with front and back faces. Clamp or weight until cured.

6) Mount: attach to a cleat or a backer board, distribute adhesive pads, and test with incremental loads.

7) Label compartments and add color accents for wayfinding.

Safety and Load Testing

Start with 0.5 kg per compartment and step up slowly. Watch for deflection over 48 hours—cardboard creep is real with humidity. If you see bowing over 3–5 mm, add ribs or reduce load. Keep liquids in sealed containers and avoid sharp objects that can cut fibers. In kids’ rooms, round all exposed edges and keep at shoulder height to prevent climbing.

Maintenance and Longevity

Vacuum dust with a soft brush. If a corner dents, add a new cap strip. In humid seasons, run a dehumidifier; cardboard loses stiffness when damp. If a bay sags, glue in a vertical web and a new front lip. The shelf’s lifespan depends on environment; I’ve had studio units last 18–24 months with light loads and occasional reinforcement.

FAQ

Q1: How much weight can a cardboard wall shelf hold?

A1: For a well-reinforced double-wall frame, plan 2–4 kg total spread across compartments, or about 0.5–1 kg per bay. Keep loads light and evenly distributed.

Q2: What cardboard type works best?

A2: Double-wall corrugated with clean liners. For larger spans, laminate two sheets or use triple-wall for the top rail and back panel.

Q3: What is the ideal mounting height?

A3: Place the main storage zone between 900–1200 mm from the floor to reduce shoulder strain, keeping the top edge roughly 1400–1550 mm for easy visibility.

Q4: Will lighting affect usability?

A4: Yes. Provide 300–500 lux ambient at the shelf face and avoid glossy finishes to reduce glare. Warm-neutral 3000–3500K is comfortable for paper items.

Q5: How can I make it more durable?

A5: Laminate key panels, add U-channel edge caps, and install vertical dividers every 150–250 mm. Seal lightly with a water-based clear coat to resist abrasion.

Q6: Is cardboard safe in humid environments?

A6: It’s sensitive to moisture. Keep it away from kitchens and bathrooms unless well-sealed and lightly loaded. Use a dehumidifier in damp seasons.

Q7: Any tips for color and organization?

A7: Use cool hues to calm and recede, warm accents for attention. Color-code compartments with labels for quick wayfinding, especially in shared spaces.

Q8: Can I mount it without drilling?

A8: For very light loads, use adhesive strips on a broad backer panel. For anything heavier, anchor a cleat to studs and hang the shelf from it.

Q9: How do I prevent sagging over time?

A9: Increase the number of internal ribs, shorten bay widths, and add a laminated top rail. Test loads gradually and reinforce any area showing deflection.

Q10: What items are suitable to store?

A10: Mail, notebooks, small craft tools, lightweight décor, seed packets, cables. Avoid heavy books, ceramic pots, or liquids that could leak.

Q11: Can children use it safely?

A11: Yes, with rounded edges, secure mounting, and light loads. Keep at shoulder height and avoid placing tempting heavy items that encourage climbing.

Q12: How do I plan the shelf in a tight wall area?

A12: Map clearances, door swings, and reach zones. Use a simple interior layout planner to visualize adjacency and traffic lines; simulate widths before cutting.
