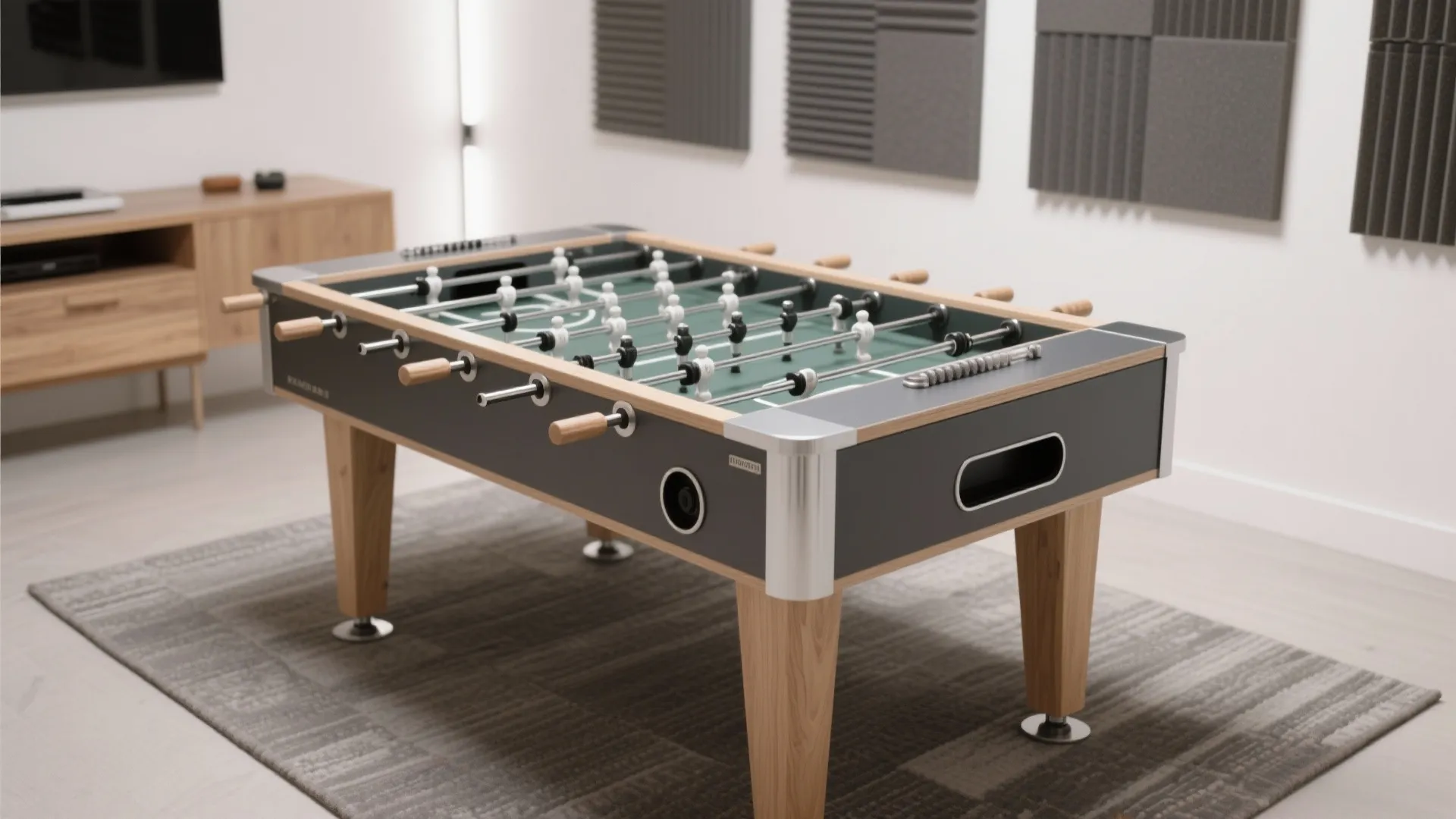

DIY Foosball Table: Build Your Own Game Room Centerpiece: Fast-Track Guide to Crafting a Foosball Table in Your Spare Time

I’ve built and repaired more foosball tables than I can count, and the difference between a novelty build and a table people actually love to play comes down to structure, ergonomics, and surface precision. The best home tables feel fast, stay square, and invite long sessions without wrist fatigue.

Before cutting a single board, size the table to real-world use. Standard tournament dimensions center around a 56 in (1422 mm) length, 30 in (762 mm) width, and a 36 in (914 mm) overall height. Comfortable play height matters more than you think: WELL v2 encourages work-surface ranges that reduce joint stress, and a 36 in playing height aligns with neutral elbow angles for most adults; I keep a 34–36 in adjustable target if kids will play often. On lighting, the Illuminating Engineering Society recommends 500–750 lux for task-like visual tracking; I aim for ~600 lux even, glare-free light across the pitch for fast ball visibility (ies.org/standards). For posture, I borrow from Herman Miller research showing that neutral wrist and shoulder angles reduce musculoskeletal strain during repetitive tasks—angle your handles roughly 4–6 in below elbow height to keep wrists straight (hermanmiller.com/research).

Frame First: A Rigid, Square Box

A foosball table is a torsion box. If the cabinet twists, rods bind and the ball drifts. I build sidewalls from 3/4 in (19 mm) Baltic birch plywood laminated to 1 in (25 mm) total thickness for stiffness. Inside the long sides, add 2–3 continuous stringers (1x2 hardwood) and two cross bulkheads to resist racking. Joinery: glued rabbet or dado for the end panels and a full perimeter cleat to support the playfield insert. Pocket screws alone won’t keep it square over time—use glue and mechanical fasteners.

Playfield: Speed, Flatness, and Bounce

Flatness tolerance is everything. I target ±0.5 mm across the long axis. Use a 1/2–5/8 in (12–16 mm) MDF or Baltic birch core skinned with high-pressure laminate (HPL) for durability and speed. A matte, low-glare laminate helps tracking under bright light. Crown the center by 1–2 mm or use subtle side ramps to prevent dead balls; I prefer ramp inserts at the last 3–4 in near sidewalls so possession feels fair across the field.

Legs and Leveling

Heavy, triangulated legs keep shots crisp. I build 2.25–2.5 in thick leg assemblies (laminated hardwood), splayed 5–7 degrees for lateral stability, tied with a lower stretcher. Use four 3/8–16 leveling feet with at least 1 in adjustment range. Set the table dead level left-to-right and a whisper high (0.5–1 mm) at the goalie side if you prefer faster clears.

Rods, Bushings, and Bearings

Quality rods transform play. Chrome-plated, hollow steel rods reduce inertia; target wall thickness around 1.5–2.0 mm for strength. Pair with low-friction split bearings or nylon bushings with dust lips; drawer-quality bearings aren’t designed for side loads. Grease sparingly with silicone-based lubricant to avoid swelling polymer handles. Keep hole centers perfectly coaxial—use a drill guide and ream to tolerance for zero rod wobble.

Handles, Grips, and Ergonomics

Comfortable grip diameter sits in the 30–34 mm range for most hands, which keeps wrist ulnar deviation low. A slightly tacky elastomer or wrapped leather grip dampens vibration and reduces grip force. I taper the handle profile toward the rod to promote fingertip control for quick snaps and pull shots. For family builds, consider two handle heights by raising the floor under one side with a removable platform when kids play.

Player Men and Layout

Stagger weights so rods self-center. Uniform player mass around 90–100 g feels lively without punishing wrists. Toe design matters: a flat, textured toe with a slight front bevel enables controlled pin shots. Typical row counts (1–2–5–3 vs 1–3–5–2) change the midfield dynamic; I stick to the classic 1–2–5–3 for broad appeal. If you’re experimenting with spacing, a quick layout simulation tool helps visualize clearances around players and walls before drilling your pattern.

Wall Clearances and Room Planning

Plan the game room as carefully as the table. Allow at least 4 ft (1220 mm) clear behind each long side for full rod extension and player stance. If the table sits in a multi-use room, zone acoustics with a rug and soft wall panels to keep impact noise down. For layout testing and circulation checks, an interior layout planner is handy before committing to a footprint.

Ball Returns, Goals, and Sound

Cut pro-style goal mouths with a slight chamfer and use UHMW or HDPE inserts on ramps to the return channel. Keep the return slope at least 4 degrees so balls don’t stall. If you play late at night, line inside return channels with 3–5 mm felt to reduce clatter. Netting behind goals softens impact without changing play.

Finish and Durability

High-touch surfaces take abuse. I seal exterior plywood with two coats of waterborne conversion varnish or a hardwax oil on hardwood trims. Round all edges to a 3 mm radius to protect laminate and hands. Where hands slide, avoid open-pore woods unless filled; sweat and chalk work their way in fast.

Lighting the Pitch

Even, neutral-white light (3500–4000K) reveals ball spin without color cast. Aim for ~600 lux measured at the play surface with a simple meter and diffuse the source with a lens or fabric shade to keep unified luminance. Avoid downlights that create hotspots and shadows that mask ball trajectory.

Safety, Stability, and Kids

Install rod end caps or telescoping rods to prevent eye-level hazards. Add hidden barrel locks if the table lives in a shared space. For moving, inset handholds into the end panels and design the cabinet to separate from the leg frame using cross dowels and bolts.

Cut List (Guideline)

- Sidewalls: 2 pcs, 56 x 12 in, laminated to 1 in thick

- End panels: 2 pcs, 30 x 12 in

- Playfield core: 48 x 27 in, 5/8 in thick + HPL skin

- Stringers: 1x2 hardwood, 2 long + 2 short

- Legs: 4 laminated blocks, 2.25–2.5 in thick

- Lower stretcher: 1 pc, 40–44 in (depends on leg spacing)

Build Sequence I Trust

1) Mill and laminate sidewalls; cut rabbets/dados. 2) Install internal stringers and bulkheads. 3) Dry-fit end panels and glue up the cabinet square. 4) Fabricate legs and stretcher; add threaded inserts for levelers. 5) Build the playfield sandwich and laminate. 6) Mark and drill bearing holes using a template and drill guide. 7) Mount bearings/bushings and test-fit rods. 8) Install player figures, handles, and bumpers; confirm spacing and clearance. 9) Fit goals, ball return, and finishing trims. 10) Level, light, and play-test.

Tuning for Play Style

- Faster table: choose lower-friction bearings, a slicker laminate, slightly higher lighting levels (still glare-free), and a lighter ball.

- Control-focused: opt for a slightly textured playfield, heavier ball, and tighter bumper tolerances to damp rebounds.

- Quieter play: felt in return channels, softer balls, and rubber isolation pads between cabinet and legs.

Color and Personality

Color aids spatial intention. Neutral cabinets with a single saturated accent (team colors on player shirts or leg insets) keep visual rhythm balanced. Verywell Mind’s color psychology notes that cool hues support focus while warm accents add energy—lean cool on the field, warm on the trims for a lively but readable contrast (verywellmind.com/color-psychology).

Maintenance

Wipe rods after sessions, lubricate lightly monthly, check level quarterly, and re-tighten handle set screws. Replace worn bumpers before rods start biting the sidewalls.

FAQ

Q1: What height works for mixed-age players?

A: 36 in suits most adults; for kids, add a removable platform or build 34–35 in. Keep handles 4–6 in below the average user’s elbow height for neutral wrists.

Q2: How much room do I need around the table?

A: Plan for the table footprint plus 4 ft clearance on both long sides and at least 2 ft at the ends so players and spectators can move safely.

Q3: Solid or hollow rods?

A: Hollow chrome-plated steel rods reduce inertia and feel faster while staying durable. They’re easier on wrists during quick repeats.

Q4: What playfield surface is best?

A: An HPL-laminated MDF or birch core gives a flat, fast, and durable surface. Choose a matte finish to control glare under bright task lighting.

Q5: How do I keep the table level over time?

A: Use heavy leg assemblies with threaded levelers, tie legs with a stretcher, and re-check level quarterly. A rigid internal frame prevents seasonal twist.

Q6: Any tips to reduce noise?

A: Line the ball return with felt, use rubber isolation between legs and cabinet, add a rug under the table, and choose slightly softer balls.

Q7: What lighting should I install?

A: Even, diffused 3500–4000K light at ~600 lux across the field, with minimal glare. A linear fixture with a diffuser above the centerline works well.

Q8: What finish holds up to sweaty hands?

A: Waterborne conversion varnish on cabinets and sealed or wrapped handles. Avoid open-pore woods unless grain-filled and sealed.

Q9: Can I customize player layout?

A: Yes—1–2–5–3 is classic. If you change spacing, mock it up and ensure even reach; test with a template before drilling permanent holes.

Q10: How heavy should the table be?

A: Target 175–225 lb (80–100 kg) for home builds. Mass stabilizes shots and keeps the cabinet from walking during aggressive play.

Q11: Is telescoping worth it for safety?

A: In tight spaces or with kids, yes. Telescoping rods eliminate through-rod hazards without heavily compromising play when quality parts are used.

Q12: How often should I replace the ball?

A: When the surface polishes smooth or chips. Fresh texture restores control; many home players swap every 6–12 months depending on use.
