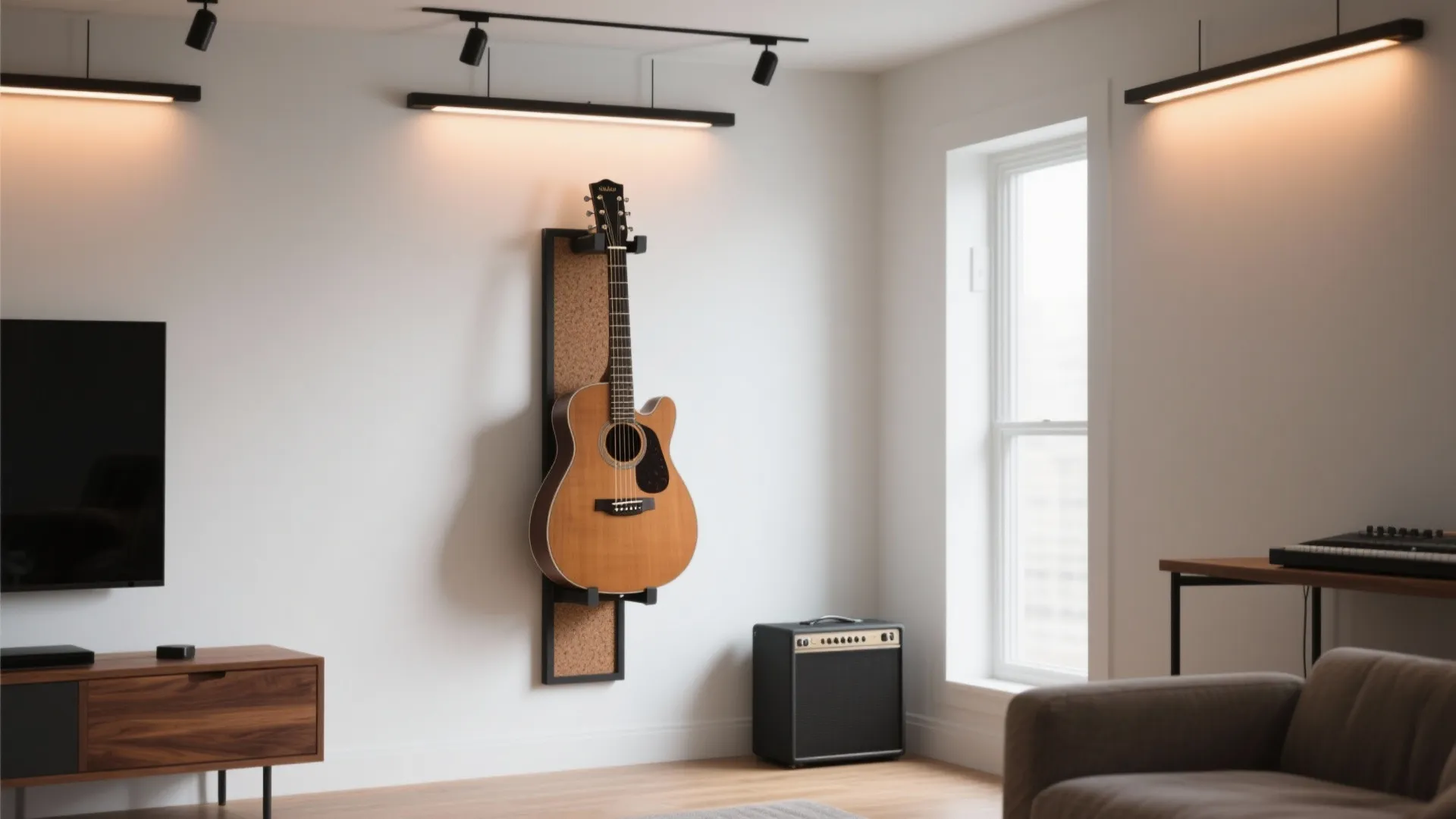

DIY Guitar Wall Holder: Secure and Stylish Home Storage: Fast-Track Guide to Mounting Your Guitar in 1 Minute

Guitars deserve better than a corner stand that collects dust and invites tip-overs. A well-built wall holder saves floor space, keeps the neck stress-free, and turns your instrument into a focal point. In studios I design, wall-mounting typically frees 6–10 square feet per instrument compared to floor stands, reducing clutter and improving traffic flow. Ergonomically, maintaining the guitar’s center of mass close to the wall reduces torque on anchors and keeps the neck aligned at rest, which helps prevent long-term warping.

Safety comes first. WELL v2 recommends limiting reach heights to reduce strain; for frequently accessed items, the comfortable vertical reach for most adults sits roughly between 900–1500 mm from the floor (WELL v2, Ergonomics). For lighting your display, the IES suggests 300–500 lux for general ambient and up to 1000 lux for accent tasks in displays, helping you balance visibility with glare control (IES lighting guidelines). For workflow and spatial comfort, Gensler’s workplace research consistently links decluttered environments with better perceived productivity and reduced stress, aligning with the idea of lifting gear off the floor and onto the wall.

Design Intent: Form Meets Instrument Care

I aim for three things: secure headstock support, stable body standoff, and a finish that won’t react with nitrocellulose lacquer. Many vintage and higher-end guitars use nitro finishes that can soften or discolor when in contact with certain foams or rubber. I favor silicone-free, medical-grade neoprene or cork-lined contact points. For multi-guitar walls, I keep 450–600 mm center-to-center spacing to avoid headstock collisions and allow comfortable grabs.

Planning Your Wall Mount

Locate studs if your walls are timber-framed; a single guitar can exert significant leverage on a single screw if not properly anchored. A solid 16-inch stud spacing is common in North America. For masonry, use proper sleeves. Drywall-only installations should rely on heavy-duty toggles rated well above the combined guitar and bracket weight. I aim for a 4x safety factor: if the guitar weighs 4 kg, I want hardware rated for 16 kg or more. When planning a wall with multiple instruments, mock up positions with painter’s tape first. If you’re mapping a full music wall or integrating with cabinets, a room layout tool can help you visualize spacing and circulation: room design visualization tool.

Materials and Finish

For the bracket arms, hardwoods like maple, ash, or walnut deliver stiffness and clean edges. For the backplate, 18–20 mm plywood or a mild-steel plate ensures minimal flex. Contact points: cork, leather, or nitrile rubber (NBR) with proven finish safety. Avoid PVC and unknown rubber blends. Fasteners: zinc-plated or stainless steel wood screws (#10 or #12) at 60–75 mm length for studs; M6 hardware for metal backplates. Seal wood with a hardwax oil or low-VOC polyurethane to prevent off-gassing.

Dimensional Guidelines (Single Guitar)

1. Backplate: 250–300 mm tall x 80–120 mm wide (wood) or 3–4 mm thick (steel).
2. Headstock cradle projection: 80–110 mm from wall to centerline, with a 5–10° upward pitch.
3. Cradle spacing: adjustable 45–60 mm gap to suit most headstocks; add felt/cork liners.
4. Lower body standoff: optional 15–20 mm bumper to keep body from touching wall.
5. Mounting hole vertical spacing: 120–180 mm between two main screws into a stud.
6. Recommended center height: for daily play, set headstock about 1300–1500 mm AFF (above finished floor); for display-only, align top edges for visual rhythm.

Step-by-Step Build

1) Backplate and Structure

Cut the backplate to size. If using wood, chamfer edges for a refined look. Pre-drill two vertically aligned mounting holes centered on the stud line. Add a third upper hole for a security screw if desired.

2) Headstock Cradle

Shape two arms from hardwood or cut from steel flat bar with rounded ends. Mount them to a small crossblock or welded spacer, setting a 45–60 mm inner gap. Tilt the assembly 5–10° upward to prevent slip. Line contact surfaces with cork or nitrile. Secure with bolts and thread-locker to resist vibration.

3) Optional Security Tether

For homes with kids or pets, add a discreet paracord or leather loop behind the cradle as a secondary catch. It should not bind strings or tuners.

4) Body Bumper

Install a small cork puck or leather pad at body contact height. Verify it clears contour lines on strat-style bodies and arched tops on semi-hollows.

5) Mounting to Wall

Find studs with a reliable detector and confirm with a thin pilot hole. Use two #10 or #12 screws into the stud. Check for plumbing/electrical before drilling. For masonry, use 6–8 mm anchors. Verify level and load by applying a slow pull test to 2–3x the guitar’s weight before hanging.

Lighting and Display

Accent your guitar without cooking it. Track heads with 3000–3500K LEDs create warm tone without UV. Target 300–500 lux on the guitar face with a 30° beam and aim slightly off-axis to reduce glare on glossy finishes. Keep drivers dimmable so you can adjust for photos or practice.

Acoustic and Behavioral Considerations

Wall-mounted instruments subtly invite more playing—visibility drives behavior. In shared spaces, control reflections: soft rugs, bookcases, or acoustic panels calm flutter echoes. Maintain clear reach paths and avoid mounting over heat sources or direct sunlight; wood instruments prefer stable humidity (40–50% RH) and moderate temperatures.

Color and Style Integration

Blackened steel brackets with walnut read modern-industrial; maple on white walls feels Scandinavian; brass with leather leans vintage. If you’re curating multiple instruments, stagger heights within a 100–150 mm band for rhythm without visual chaos. For a full feature wall, plan the grid and sightlines early with an interior layout planner so cases, amps, and seating resolve as a cohesive set: interior layout planner.

Maintenance and Longevity

Quarterly checks: retighten hardware, inspect liners, and confirm the backplate hasn’t loosened. Replace pads at the first sign of chemical softening. Dust with a microfiber cloth; avoid silicone sprays around nitro finishes.

Common Mistakes to Avoid

1. Relying on drywall screws without toggles or studs.
2. Using foam/rubber of unknown composition against nitro finishes.
3. Setting the cradle too horizontal, inviting slip.
4. Over-lighting with narrow beams that create hotspots and glare.
5. Skipping a body bumper, leading to wall scuffs and finish wear.

Reference Notes

Human reach ranges and ergonomic heights align with WELL v2 guidance on accessible design. For lighting levels and glare control, consult IES recommendations for display and accent lighting. For space planning and workflow benefits of decluttering, Gensler’s research highlights how organized environments support better focus and navigation.

FAQ

How high should I mount the guitar for daily use?

Set the headstock around 1300–1500 mm above the floor so the lower bout sits near chest height, aligning with comfortable reach ranges cited in WELL v2 ergonomics guidance.

Can wall hangers damage nitrocellulose finishes?

Yes, certain rubbers and foams can react. Use cork, leather, or nitrile liners known to be finish-safe, and avoid PVC or unknown rubber blends.

Do I have to hit a stud?

Preferably yes. If not, use heavy-duty toggle anchors rated well above the guitar plus hardware weight. Aim for a 4x safety factor.

What projection from the wall is ideal?

Keep the cradle centerline about 80–110 mm from the wall with a slight upward tilt (5–10°) to prevent slippage while minimizing torque on the fasteners.

How much spacing between multiple guitars?

Plan 450–600 mm center-to-center to avoid headstock clashes and to allow comfortable grabs without bumping tuners.

What lighting temperature works best?

Use 3000–3500K LEDs for warm, natural color on wood finishes. Target 300–500 lux as a baseline and avoid direct, tight beams that cause glare.

Is a lower body bumper necessary?

It’s highly recommended. A 15–20 mm padded standoff prevents the body from swiveling and keeps finishes off abrasive wall paint.

What if I have concrete or brick walls?

Use masonry anchors (6–8 mm) and a backplate to distribute load. Pre-drill using a hammer drill and confirm depth and fit before final mounting.

Will humidity affect a wall-mounted guitar?

Yes. Keep indoor RH around 40–50% and avoid mounting near HVAC registers or sun-baked walls to prevent neck movement and finish checking.

Can I integrate cable management?

Route a small leather loop or metal hook beneath the holder for coiled cables. For clean installs, run a shallow dado behind the backplate to hide a cable strip.

What finish should I use on the wooden bracket?

A hardwax oil or low-VOC polyurethane provides durability without sticky residue. Let it fully cure before contact with the guitar.

How do I test load safely?

Before hanging the guitar, perform a slow pull test at 2–3x the guitar’s weight. Listen for creaks and recheck fasteners after 24 hours.
