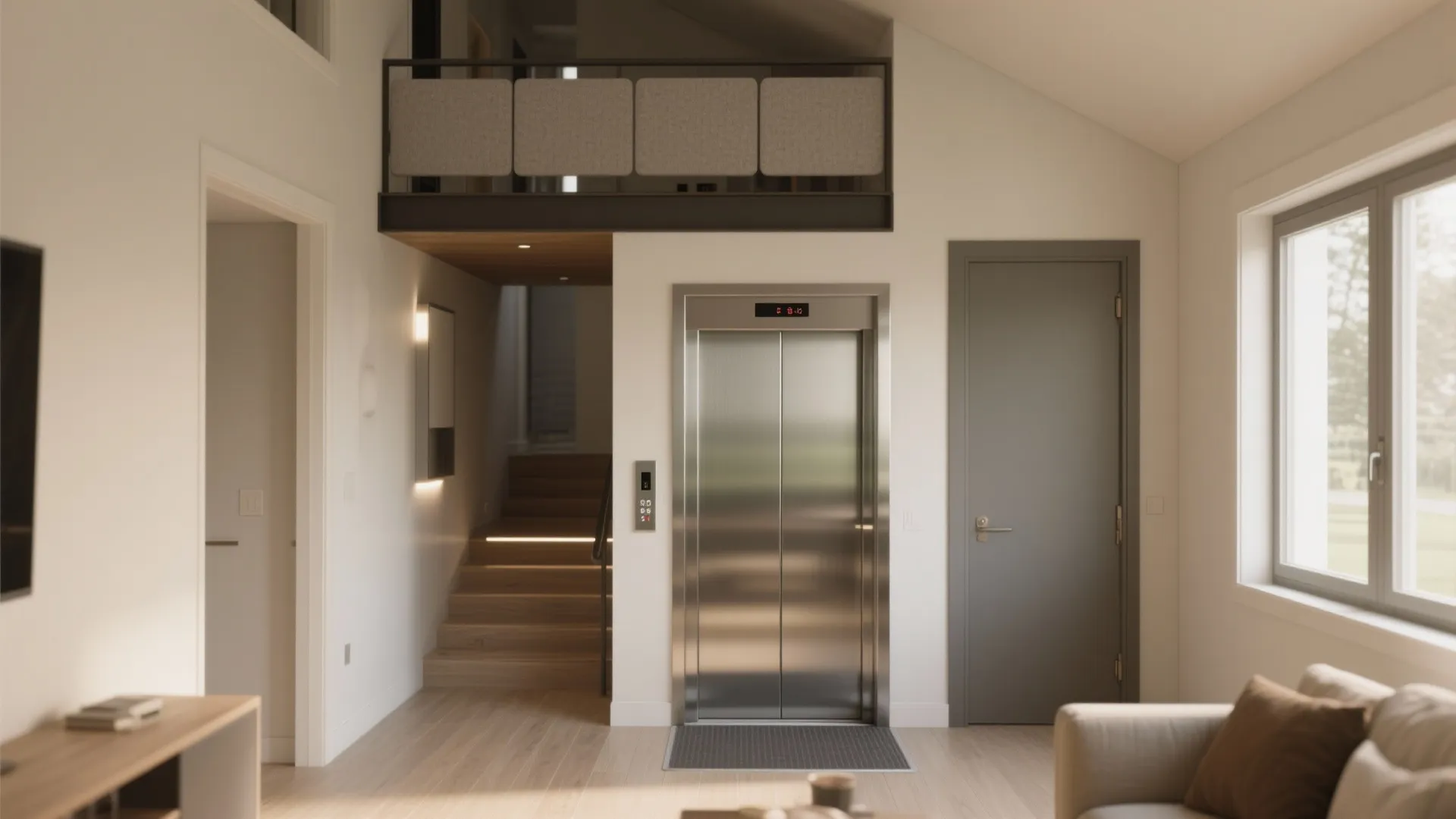

DIY Home Elevator Kits: A Practical Guide for Small Spaces: Fast-Track Guide to Installing a DIY Home Elevator Kit in Minutes

I’ve designed for clients who needed vertical mobility in tight footprints—a mezzanine loft, split-level townhome, or a micro duplex. DIY home elevator kits can be viable when planned with rigor: clearances, loads, acoustics, light, and code pathways. The sweet spot is a compact shaftless or modular enclosure, paired with a realistic install phasing and a safety-first mindset.

Space and safety drive every decision. In my projects, a 12–20 sq ft footprint typically fits a small residential unit; the NKBA’s circulation guidance often targets 36 in clear pathways, which pairs well with many shaftless models that require roughly 30–40 in cabin width. Ergonomically, a 34–38 in cab door width allows comfortable ingress with a cane or compact walker. For indoor lighting, the IES recommends ambient illuminance in the range of 100–300 lux for corridors; I keep elevator lobbies above 200 lux and cab interiors near 300–500 lux to reduce trip risk and ease wayfinding (IES lighting practice). On the wellness side, WELL v2 highlights both glare control and acoustic considerations; maintaining daytime interior noise levels around 35–45 dBA in living areas helps conversations and reduces fatigue (WELL Building Standard guidance).

Budgeting and performance should be grounded in research, not catalogs. Steelcase workplace findings link reduced physical strain and friction to improved task continuity, and while elevators are residential here, that principle translates: fewer stair trips regularly correlate with better adherence to daily routines for aging-in-place users (Steelcase research). Herman Miller’s ergonomics guidance underscores user reach, grip, and control height; I calibrate elevator call buttons at 36–48 in AFF for most users, with tactile feedback and adequate contrast to support low-vision residents (Herman Miller ergonomics research). These benchmarks shape control panel placement, lighting temperatures around 3000–3500K for warm clarity, and handrail positioning at 34–38 in AFF.

Choose the Right Kit for Tight Footprints

Small-space kits generally fall into three categories: shaftless lifts, modular shaft kits, and compact pneumatic units. Shaftless lifts reduce structural work—ideal for wood-framed homes with limited floor openings. Modular shafts offer better enclosure acoustics and fire separation but add construction complexity. Pneumatic units often have sleek tubes and a small footprint, but you’ll need to plan for their visual prominence and ceiling height requirements. I prioritize systems with integrated emergency lowering, mechanical brakes, and clear maintenance access. If the kit requires a pit, target 4–6 in minimum where feasible; if not, account for a gentle threshold ramp to avoid trip hazards.

Structural and Load Considerations

Before buying a kit, validate load paths. Typical residential floor framing can handle 40 psf live load, but point loads from elevator posts or guide rails must transfer to joists and down to bearing walls or posts. In small spaces, I often create a quiet corner column stack from the cab guide wall straight to the foundation. Keep cab weight and rated capacity in view—most compact kits range 500–950 lb capacity. Coordinate with a structural engineer for anchorage, vibration isolation pads, and deflection control; overly flexible framing increases noise and alignment issues. If ceiling height is limited (say 8 ft), check cab headroom specs and top clearance. A good target is at least 2–6 in overhead clearance above cab movement envelope.

Safety, Codes, and Home Compliance

Residential elevator safety intersects with local building codes, electrical permits, and inspection requirements. Guard clearances, door interlocks, and child safety gaps are non-negotiable. I specify a maximum sill gap of around 3/8 in where possible and ensure landing doors are interlocked so the cab cannot move unless doors are fully closed. Emergency lowering methods should be accessible, and backup power for cab lighting is a smart add-on. Fire-stopping around penetrations, smoke detectors in adjacent corridors, and a clear emergency egress plan round out compliance. Always confirm your jurisdiction’s residential lift standards and whether your kit aligns with applicable national or local codes.

Light, Color, and User Clarity

Good lighting in a small elevator reduces anxiety. I use low-glare fixtures with diffusers and color temperature around 3000–3500K. In the lobby or landing, a vertical illuminance boost helps facial recognition and wayfinding—pair wall sconces with ambient ceiling light for balanced contrast. Comfortable color palettes matter: muted warm neutrals reduce visual clutter and support aging eyes. Verywell Mind notes how color can influence mood; softer blues and greens tend to be calming, while saturated reds can elevate arousal—better as accents outside the cab rather than inside (VerywellMind color psychology). In limited footprints, mirrored panels can extend perceived space, but keep them off directly facing doors to avoid glare bursts.

Acoustic Comfort in Compact Installations

Small homes amplify noise. I isolate machinery mounts with rubber or neoprene pads, line shaft walls with mineral wool where available, and choose doors with solid cores. Pneumatic units produce a distinct airflow sound; placing them away from bedrooms or using a small acoustic screen in the landing area helps. Target 35–45 dBA at rest and under light operation in living zones; avoid rigid mechanical contact to structure where possible to reduce vibration transfer.

Ergonomics: Controls, Handrails, and Movement

Controls should be reachable from a standing or seated position. I place call buttons at 36–48 in AFF, with clear tactile feedback and Braille where possible. Handrails at 34–38 in AFF and a 1.25–1.5 in round profile feel secure. Maintain 30–32 in clear cab depth as a minimum for a solo user; 36–40 in improves maneuvering with a compact mobility aid. Threshold ramps should have a gentle slope (1:12) when pits aren’t feasible.

Layout Strategy for Small Homes

Locating the elevator is half the battle. I favor corners near existing structural walls to simplify load transfer and keep circulation clean. Stack openings to minimize offsets and allow simple landings. If you’re testing options in a constrained plan, a room layout tool can help you simulate clearances, swing arcs, and light spill patterns: room layout tool. Ensure 36 in minimum landing clearance in front of doors and avoid lining up landings with high-traffic pinch points like kitchen work aisles.

Material Selection and Sustainability

Use durable, non-slip flooring (R9–R10 slip rating) and low-VOC finishes to preserve indoor air quality. Powder-coated metals resist fingerprints. Laminates with a matte finish reduce glare. If the kit allows, LED lighting with high efficacy (≥80 lm/W) and 90+ CRI improves visual comfort. Seal edges cleanly to avoid dust traps, and specify easy-access panels for routine maintenance.

Power, Backup, and Smart Integration

Coordinate electrical early. Many compact lifts run on dedicated 120–240V circuits; confirm amperage and breaker size. An uninterruptible power supply (UPS) for cab lighting and controls provides safe egress during outages. Smart integration can be as simple as a status sensor linked to your home system—no need for complex automation. Prioritize physical redundancy over software convenience.

Installation Phasing and Risk Management

Plan the sequence: demo and framing, electrical rough-in, anchorage, unit install, finish trims, and testing. Protect floors and adjacent finishes—tight homes mean tight corners. During testing, cycle the cab through full travel, check interlocks, inspect gaps, verify emergency lowering, and measure light levels in the cab and landing. Train household members on basic safety and maintenance checks.

Cost and Value in Small Spaces

DIY kits can be cost-effective when structural work is modest and finishes are streamlined. Budget not just for the kit, but engineering review, electrical work, potential drywall and millwork, acoustic treatments, and inspection fees. In aging-in-place scenarios, value isn’t just resale—it’s daily function: reduced strain, safer movement, and extended use of upper floors.

FAQ

Q1: What footprint should I plan for a small DIY elevator?

A: Most compact residential kits fit within 12–20 sq ft. Aim for a cab width around 30–40 in and keep 36 in clear landing space in front of the door.

Q2: How bright should elevator lighting be?

A: Keep cab lighting around 300–500 lux with low glare. Landings should be at least 200 lux for safe approach, aligned with IES corridor guidance.

Q3: What door width works best for accessibility?

A: A 34–38 in door width supports comfortable access for most users, including those with compact mobility aids.

Q4: Do I need a pit for a shaftless kit?

A: Many shaftless kits avoid pits. If no pit is provided, specify a gentle threshold ramp (1:12 slope) to reduce trip risk.

Q5: How can I minimize noise?

A: Use vibration isolation pads, mineral wool in shaft walls, and solid-core doors. Target 35–45 dBA in living areas during operation.

Q6: What control height is recommended?

A: Place call buttons at 36–48 in above finished floor, with tactile feedback and clear contrast for low-vision users.

Q7: Where should I locate the elevator in a small home?

A: Near structural walls to simplify load transfer, with stacked openings and clean circulation. Validate clearances using an interior layout planner.

Q8: Are there safety features I shouldn’t compromise?

A: Door interlocks, emergency lowering, child-safe gaps, and backup cab lighting are must-haves. Confirm local code compliance before purchase.

Q9: What color scheme reduces stress in tight cabs?

A: Soft neutrals with warm white light (3000–3500K) feel calmer. Avoid high-gloss reds inside the cab; use them sparingly as exterior accents.

Q10: How do I plan electrical for the kit?

A: Provide a dedicated circuit per manufacturer specs (often 120–240V). Consider a small UPS for emergency lighting and controls.

Q11: Can a pneumatic tube elevator work in low ceilings?

A: It depends on model requirements; many need more top clearance. Verify your ceiling height and cab headroom before selecting.

Q12: What maintenance should I expect?

A: Regular checks on interlocks, belts or screws (as applicable), lighting, and door alignment. Keep an accessible panel for service and follow manufacturer intervals.
