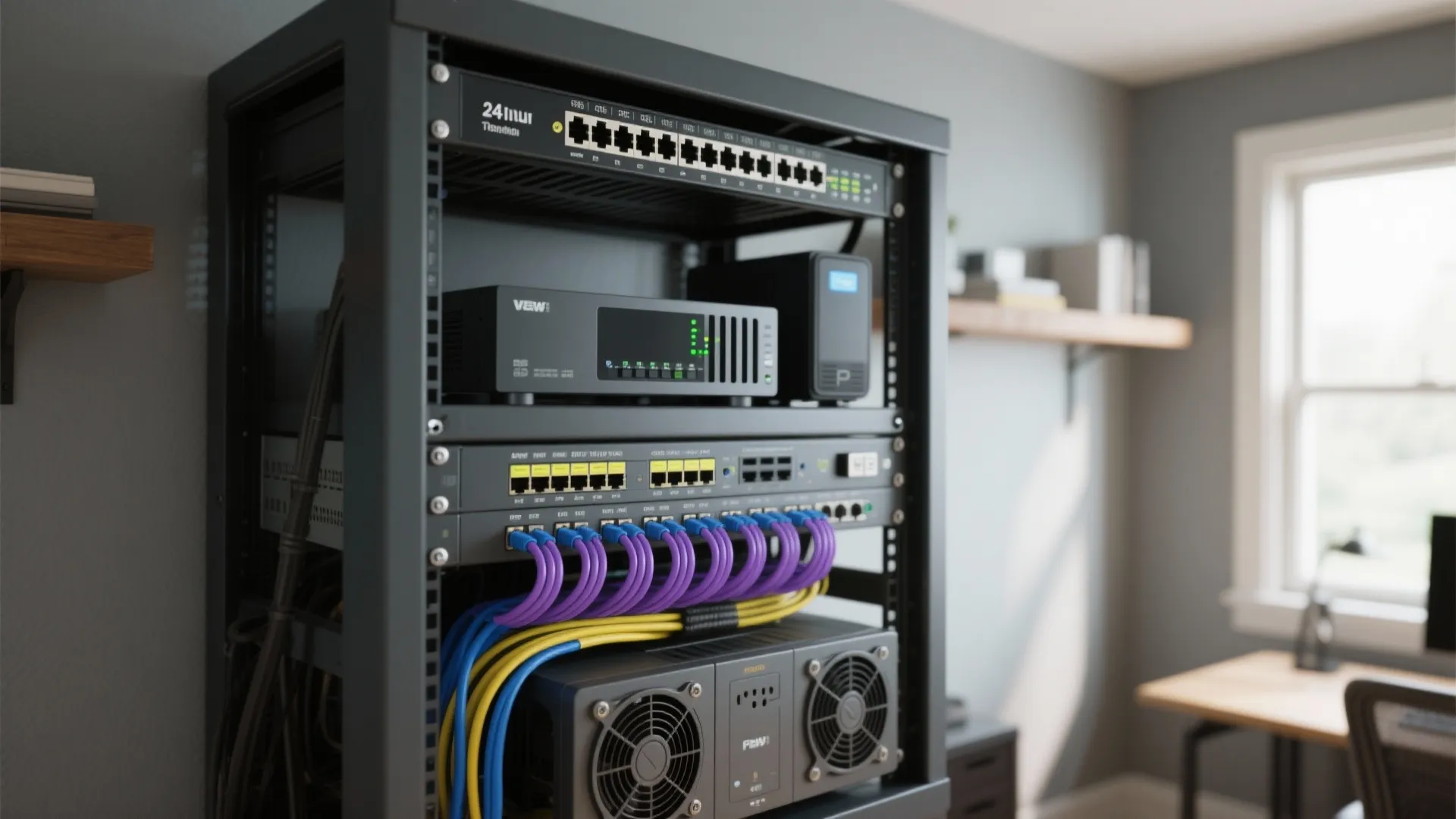

DIY Home Network Rack: Ultimate Setup Guide: 1 Minute to Build a Neat DIY Home Network Rack—Fast-Track Guide

I’ve built and tuned dozens of small network racks for homes and hybrid workspaces, and the best results always come from disciplined planning. A clean rack simplifies troubleshooting, keeps equipment cool, and protects your data and devices. Below is a practical roadmap—hardware selection, layout, cable management, power, cooling, noise, and security—with field-tested tips to make everything reliable and easy to maintain.

Define Your Requirements Before You Buy

Start with an inventory: modem/ONT, primary router or firewall, PoE switch, patch panel, NAS, UPS, and any controllers (smart home hub, Zigbee/Z-Wave bridges, cameras NVR). Note power draw, heat, and space. In my residential projects, a 24U wall-mount or short-depth floor rack typically covers a mid-size smart home with up to 24 wired drops and a small NAS.

Plan around real usage. Steelcase research indicates that hybrid work increases the need for dependable residential infrastructure; reliability issues are a major productivity drag when video and file-sharing are routine (steelcase.com/research). WELL v2 also clarifies thermal and acoustic comfort impacts on cognitive performance, which extends to equipment heat/noise in home offices (wellcertified.com). Ground your rack choices in these realities: if you work from home, prioritize stable power, managed switching, and quiet cooling.

Choose the Right Rack Form Factor

Pick a 19-inch standard rack to keep hardware options flexible. For apartments or closets, a 12–18U wall-mount swing frame is ideal for patch panels and short-depth switches. If you run a NAS or deeper firewall, a 4‑post open-frame or short-depth enclosed cabinet (600–800 mm) helps with weight and airflow. Keep 20–30% free U-space for future gear and cable slack, and reserve at least one 1U blank between high-heat devices.

Power Architecture and UPS Sizing

Stability starts with power. Tally the total wattage of your gear, then choose a line‑interactive UPS sized at 1.3–1.5x your load. For example, a 180 W network stack (router + 24‑port PoE switch + NAS) pairs well with a 300–450 W UPS, delivering 10–20 minutes runtime for graceful shutdowns. Use two PDUs: one for protected UPS output, one straight to utility for noncritical fans or lights. Separate critical services (router, switch) on battery-backed outlets and label them clearly.

Cable Management That Ages Well

Good cable hygiene saves hours later. Terminate runs to a 24‑ or 48‑port patch panel at the top of the rack; place the access switch below. Use short, color-coded patch leads—blue for data, yellow for uplinks, purple for PoE devices, for instance. Velcro over zip ties to avoid pinching. Maintain minimum bend radius, respect strain relief, and label both ends with room/port codes. If you’re mapping rooms or simulating furniture placement relative to network drops, a room layout tool can help visualize coverage and cable paths: room layout tool.

Cooling, Heat Zones, and Noise Control

Small residential racks often fail from heat buildup. Create a front‑to‑back airflow path and avoid mixing hot devices in the same vertical slice. I keep switches mid‑rack with blanking panels above and below, NAS low with direct intake, and noisy gear (older servers) off to a side or in an isolated cabinet. Target intake temperatures around 22–24°C. Use quiet 120/140 mm fans at low RPM with dust filters; avoid high static pressure screamers unless necessary.

Acoustics matter if the rack sits near living spaces. WELL v2 guidance on acoustic comfort highlights how continuous noise affects concentration; adding an enclosed cabinet, mass-loaded vinyl, and soft gaskets around cable entries helps tame hum and fan noise. Place vibration pads under rack feet to cut structure-borne sound.

Network Core: Router, Firewall, and Switch Strategy

For most homes, a capable router or firewall with gigabit WAN and VLAN support is the brain of the rack. Segment IoT, guest, and work devices with VLANs; enable QoS for video calls. Choose a managed PoE switch sized for your access points, cameras, and doorbells. If you have multiple APs, mount them in the ceiling away from the rack; use the rack patch panel to distribute runs cleanly. Keep the modem/ONT at the top with a short, well-shielded uplink to the router.

Patch Panel and Labeling Conventions

Organize ports by room, then by function. I use a simple schema: Rm01–Rm10 for rooms, suffixes for device types (AP, TV, CAM). Print laminated port maps and tape them inside the rack door. On the switch, mirror VLAN tags to patch panel groups for quick visual checks.

Security, Access, and Physical Protection

Secure racks deter tampering and accidental disconnections. Use a locking front door or swing gate and consider a simple temperature sensor with alerts. Keep critical cables routed away from child or pet access. If your NAS stores sensitive documents, enable full-disk encryption and schedule backups to an external drive kept offsite.

Monitoring and Maintenance

Set up SNMP or vendor dashboards to track temperatures, fan speeds, and link status. Test UPS batteries twice a year and clean dust filters quarterly. Maintain a changelog: date, device, firmware, and notes. This habit speeds recovery after outages or upgrades.

Space Planning: Where the Rack Lives

Prioritize a cool, dry, low-traffic area with nearby power and structured cabling. Closets work well if you add ventilation and sound damping. If you’re planning room adjacencies or testing cable lengths versus furniture, an interior layout planner helps align rack placement to outlets and drops: interior layout planner.

Step-by-Step Build Checklist

1) Measure space and confirm wall studs or floor load; 2) Mount rack rails and PDUs; 3) Install patch panel and cable management; 4) Fit router/firewall, switches, then NAS/UPS; 5) Dress cables and label; 6) Set VLANs, QoS, and PoE budgets; 7) Configure monitoring and backups; 8) Test failover and UPS shutdown; 9) Log configurations and document port maps.

Design Notes: Materials and Sustainability

Choose powder-coated steel racks with recycled content where possible, and efficient fans (PWM) to reduce power draw. Reuse cable trays and racks when upgrading—most 19-inch hardware is interoperable. Keep spare keystone jacks and short patch leads to avoid waste from cutting new lengths for minor changes.

Common Pitfalls I See

- Overstuffed racks with no thermal plan; - Underpowered UPS or single PDU chain; - Long, unlabelled patch leads that hide problems; - Mixing unmanaged and managed switches in the same core; - Placing APs inside the rack (poor RF); - Ignoring fan noise in shared spaces.

FAQ

How much rack space do I need for a typical smart home?

A 12–18U rack usually covers a modem/ONT, 1U firewall/router, 1–2U managed PoE switch, 1U patch panel, 2–4U NAS, and a 2–3U UPS, with a couple of blanking panels. Leave 20–30% headroom for future gear.

What UPS type is best for home networking?

Line‑interactive UPS units offer good voltage regulation and value. Size at 1.3–1.5x your measured load and ensure enough runtime for NAS shutdowns and router/switch continuity.

Do I need a managed switch?

Yes if you want VLANs, PoE power budgeting, link monitoring, and QoS. Managed switches make segmentation for IoT, guests, and work devices straightforward.

Should I rack-mount my NAS?

If you have the depth and weight capacity, rack-mounting keeps cables tidy and airflow predictable. Otherwise, a shelf with front intake and clear exhaust works fine—avoid stacking devices in front of NAS vents.

How do I cut noise if the rack is near living areas?

Use an enclosed cabinet, low‑RPM large fans, vibration pads, and seal cable penetrations. Position the rack away from reflective hard surfaces and consider acoustic panels on nearby walls.

What’s a sensible VLAN layout for a home?

Core (trusted PCs/NAS), Work (WFH devices), IoT (smart plugs, thermostats), Cameras (NVR), and Guest. Tag SSIDs to VLANs on your AP controller and set firewall rules to limit cross‑VLAN access.

How should I label ports and cables?

Use room codes (Rm01–Rm10) plus device type suffixes (AP, TV, CAM) and number each port. Label both ends and keep a printed map in the rack.

Where should access points go relative to the rack?

Ceiling or high wall positions in central zones. Don’t put APs inside the rack; metal and cables degrade RF performance. Run CAT6 or CAT6A drops from the patch panel to each AP location.

Is CAT6A worth it over CAT6?

If you plan long runs or multi‑gig (2.5/5G) to desktops or APs, CAT6A helps with shielding and higher bandwidth, though it’s stiffer. For short residential runs under 35 m, CAT6 is often sufficient.

How do I plan PoE budgets?

Sum device draws: APs (10–20 W), cameras (5–12 W), doorbells (3–8 W). Choose a switch with at least 25–30% extra PoE capacity to handle peak loads and future devices.

Should I use patch panels or keystone modules?

Patch panels provide consistent strain relief and faster reconfiguration. Keystone modules are fine for small setups; just ensure a proper termination tool and cable management.

What’s the ideal temperature inside the rack?

Keep intake around 22–24°C with unobstructed front‑to‑back airflow. Monitor with a simple sensor and clean dust filters quarterly.

How often should I test the UPS?

Twice a year. Run a self-test, verify runtime, and check battery health. Replace batteries every 3–5 years depending on environment and cycles.
