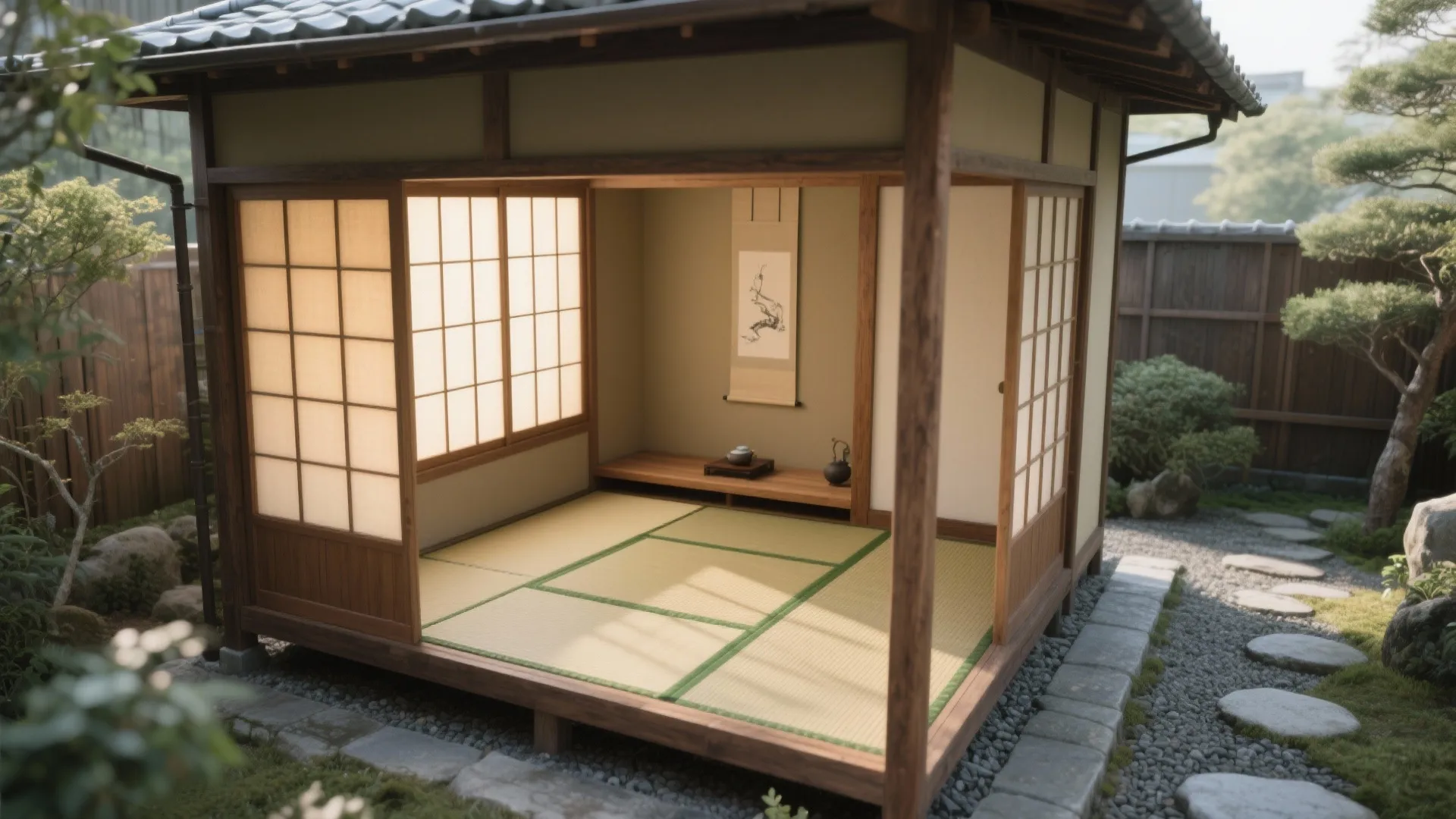

DIY Japanese Tea House Kit: Craft Your Tranquil Retreat: Fast-Track Guide to Building a Miniature Zen Oasis in Your Home

I’ve built and specified several compact tea pavilions over the years, and the same principles keep delivering: restraint, proportion, and a deep respect for light and material. A DIY Japanese tea house kit can bring those ideas into a backyard or a spare room with surprising authenticity—if you plan it with intention from the start. According to the WELL Building Standard, adequate daylight and glare control correlate with improved comfort and reduced eye strain, with WELL v2 recommending managed luminance ratios and access to views to support mental restoration. Steelcase research also links restorative micro‑retreats to reduced cognitive load and better focus during the workday, reinforcing the value of a contemplative corner in modern homes.

Color and sensory cues matter as much as joinery. Verywell Mind’s color psychology overview notes that desaturated greens and warm neutrals promote calm, whereas saturated reds increase arousal—useful guidance when choosing tatami edging, shoji paper tone, and wall finishes. In workplace studies, Gensler has found that spaces supporting focus and rejuvenation contribute to higher perceived performance; translated to a tea house, that means dialing in acoustics, lighting, and minimal visual clutter from the outset.

Define Your Intent and Footprint

Before you pick a kit, articulate the primary use: meditative tea ceremony (chanoyu), reading retreat, or flexible alcove for yoga and quiet work. Traditional chashitsu run compact—often 2–4.5 tatami mats (roughly 1.8 m × 1.8 m up to 2.7 m × 3.6 m). Smaller footprints invite intimacy, while a 4.5‑mat plan offers room for two to three guests. If you’re planning furnishings or a tokonoma (display alcove), sketch circulation first. A quick layout study with an interior layout planner helps test door swing, tatami grid, and tokonoma placement using a simple room layout tool.

Kit Anatomy: What to Expect

Most DIY tea house kits arrive as modular timber frames with shoji panels, translucent paper or acrylic inserts, and tatami or engineered rice‑straw mats. Look for mortise‑and‑tenon or concealed fasteners (clean lines, fewer exposed screws), cedar or hemlock for light tone and scent, and replaceable shoji paper. If the kit includes a raised engawa (veranda), confirm that the substructure is treated and that you have proper drainage and airflow below.

Light, Glare, and Color Temperature

Soft, lateral light suits tea rooms. I aim for ambient illuminance around 100–200 lux for a contemplative mood, with task accents to 300 lux at the tea prep area. The Illuminating Engineering Society’s recommendations for residential ambient lighting generally sit in that range for calm, non‑task zones, and adding a dimmable layer keeps evenings gentle on the eyes. Keep CCT warm (2200–3000 K) to maintain the amber hue of wood and tatami. Shield sources to avoid specular glare on low tables and black lacquer utensils; indirect linear LEDs tucked behind a beam or atop a shoji transom work well.

Acoustic Comfort and Sound Isolation

Quiet is non‑negotiable. Tatami already dampens footfall, but add a thin cork underlayment beneath mats if your base is plywood. Shoji are visually porous and acoustically light; if you’re close to traffic or a noisy household, set a secondary, solid partition behind one shoji wall or integrate felt‑lined panels on the interior of a closet‑like bay. Rugs outside the threshold and weatherstripping around sliding doors minimize sibilant leaks without breaking the aesthetic.

Materials That Age Gracefully

Choose woods with tight grain and a matte oil finish—cedar, hemlock, or ash—so patina becomes part of the story. Tatami edge (heri) in muted green, charcoal, or undyed hemp keeps the palette tranquil. If your climate is humid, specify shoji inserts in laminated washi or acrylic shoji film to resist sagging. Use low‑VOC finishes; WELL v2 advocates for reduced VOC content to support indoor air quality, which is especially valuable in small enclosures. For the tokonoma, a single slab of light wood and a clay‑based wall finish provide texture without visual noise.

Ergonomics and Ritual Flow

Even when you sit seiza or cross‑legged, human factors still apply. Seat height for a low chabudai (tea table) should be 300–350 mm to allow neutral shoulders and easy reach. Keep the tea set within a 400–500 mm reach envelope from the primary cushion. Pathways should clear 600 mm for a comfortable kneel‑and‑turn. If you include a mizuya (prep niche), set its counter at 650–700 mm for kneeling work, with concealed storage for utensils and tea tins to preserve the uncluttered feel.

Ventilation, Safety, and Code Notes

If you plan to heat water inside the pavilion, use an electric kettle rather than an open flame unless you have a code‑compliant flue. Provide low‑velocity cross ventilation: a lower intake near floor level and a higher outlet near the ridge dissipate steam without drafts. Electrical runs should be concealed in raceways; specify tamper‑resistant outlets and low‑heat LED sources. For exterior installations, set the structure on pavers or piers above grade; provide a capillary break between wood and concrete.

Assembly Roadmap

- Site and base: Square and level the base; a 0.5–1% slope away from the structure keeps splashback off wood. Mark the tatami grid on the subfloor before framing.

- Frame: Dry‑fit posts and beams, verify diagonals, then fasten. Pre‑drill for shoji tracks to keep lines crisp.

- Envelope: Install shoji panels last to avoid damage. If glazing is included, set it with neoprene gaskets to avoid rattling.

- Interior: Lay tatami after dusty work is finished. Hang the tokonoma scroll at seated eye level (roughly 900–1100 mm from floor to center), and keep floral ikebana low and asymmetric to reinforce wabi‑sabi balance.

Natural Light Orientation and Landscape

Orient the main shoji to capture softened eastern or northern light. Filter western sun with a bamboo screen or deciduous planting to break harsh afternoon glare. An exterior gravel strip and a simple stone path slow the approach, setting a meditative rhythm before you even slide the door. If space allows, float the pavilion with a narrow engawa to extend the threshold experience.

Maintenance Rituals

Rotate tatami every six months to even wear. Re‑oil wood annually with a breathable finish. Inspect shoji paper for punctures at the change of seasons; patching is part of the craft and keeps the surface luminous. Keep the object count low—one scroll, one arrangement, one vessel—to preserve a calm field of view.

Budget and Value

Entry kits run modest in size and cost, while custom‑sized frames with engawa and tokonoma details command a premium. Factor in base work, shoji paper replacements, and a few quality tools: a flush‑cut saw, a block plane, a soft mallet, and a non‑marring roller for shoji film. Invest in dimmable, high‑CRI LED lighting; color fidelity enhances the subtle greens of tatami and the warmth of cedar.

When Layout Needs a Second Look

If your kit footprint must flex for an irregular backyard nook or a multi‑use guest room, test variations virtually before committing. A fast interior layout planner helps you simulate tatami patterns (ryurei vs. seiza seating) and sliding door positions with a simple interior layout planner. Validate clearances, sightlines to the garden, and how light travels across the floor during the day.

FAQ

Q1: What size should I choose for a first tea house?

A1: A 2–3 tatami footprint (about 1.8 m × 2.7 m) is ideal for solo practice plus one guest. It balances intimacy with workable circulation and keeps structural costs manageable.

Q2: How bright should the tea house be?

A2: Aim for 100–200 lux ambient with warm 2200–3000 K LEDs and the option to dim. Provide 250–300 lux at the prep niche for safe pouring and utensil handling, following calm residential lighting levels aligned with IES guidance.

Q3: Shoji paper or acrylic inserts?

A3: Paper offers the most authentic diffusion and sound character. In humid or high‑traffic homes, laminated washi or acrylic shoji film improves durability while preserving the glow.

Q4: Can I place a tea house outdoors year‑round?

A4: Yes, if the structure sits on raised piers or pavers with a moisture break, uses exterior‑rated finishes, and includes ventilation. In snow regions, design for roof load and add a slight eave projection to protect shoji.

Q5: How do I manage acoustics without heavy walls?

A5: Layer soft materials: tatami, a thin cork underlayment, a small wool rug outside the threshold, and felt‑backed panels inside a storage niche. Seal door perimeters with discreet weatherstripping.

Q6: What’s the best color palette?

A6: Keep it neutral and low‑saturation—warm woods, clay off‑whites, soft greens. Color psychology research highlights these tones for calming effects, ideal for meditative use.

Q7: Can the tea house double as a work nook?

A7: Absolutely. Add a portable floor cushion with lumbar support, a low table at 300–350 mm, and glare‑free task light. Conceal charging in a floor grommet to keep the room visually quiet.

Q8: How do I integrate a tokonoma in a kit build?

A8: Reserve a 600–900 mm wide recess with a slightly raised or contrasting floor plank. Keep the alcove uncluttered—one scroll and one seasonal arrangement—to anchor the space without distraction.

Q9: Any safety tips for kettles?

A9: Use an electric kettle with auto shutoff, place it on a heat‑resistant mat, and route cords through concealed raceways. Provide cross‑ventilation to dissipate steam.

Q10: How often should I replace shoji paper?

A10: Expect touch‑ups annually in busy homes and full replacement every 3–5 years. Laminated washi stretches that cycle while retaining the diffused character.

Q11: What’s a sensible budget allocation?

A11: Roughly: 60–70% kit and structure, 10–15% base/foundation, 10% lighting and electrical, 5–10% finishes and tools. Reserve a small contingency for shoji repairs and tatami rotation supplies.

Q12: Do I need permits?

A12: Small, non‑habitable pavilions may be exempt in some jurisdictions, but always check local codes for accessory structures, set‑backs, and electrical work. Exterior gas or wood heat requires additional approvals.
