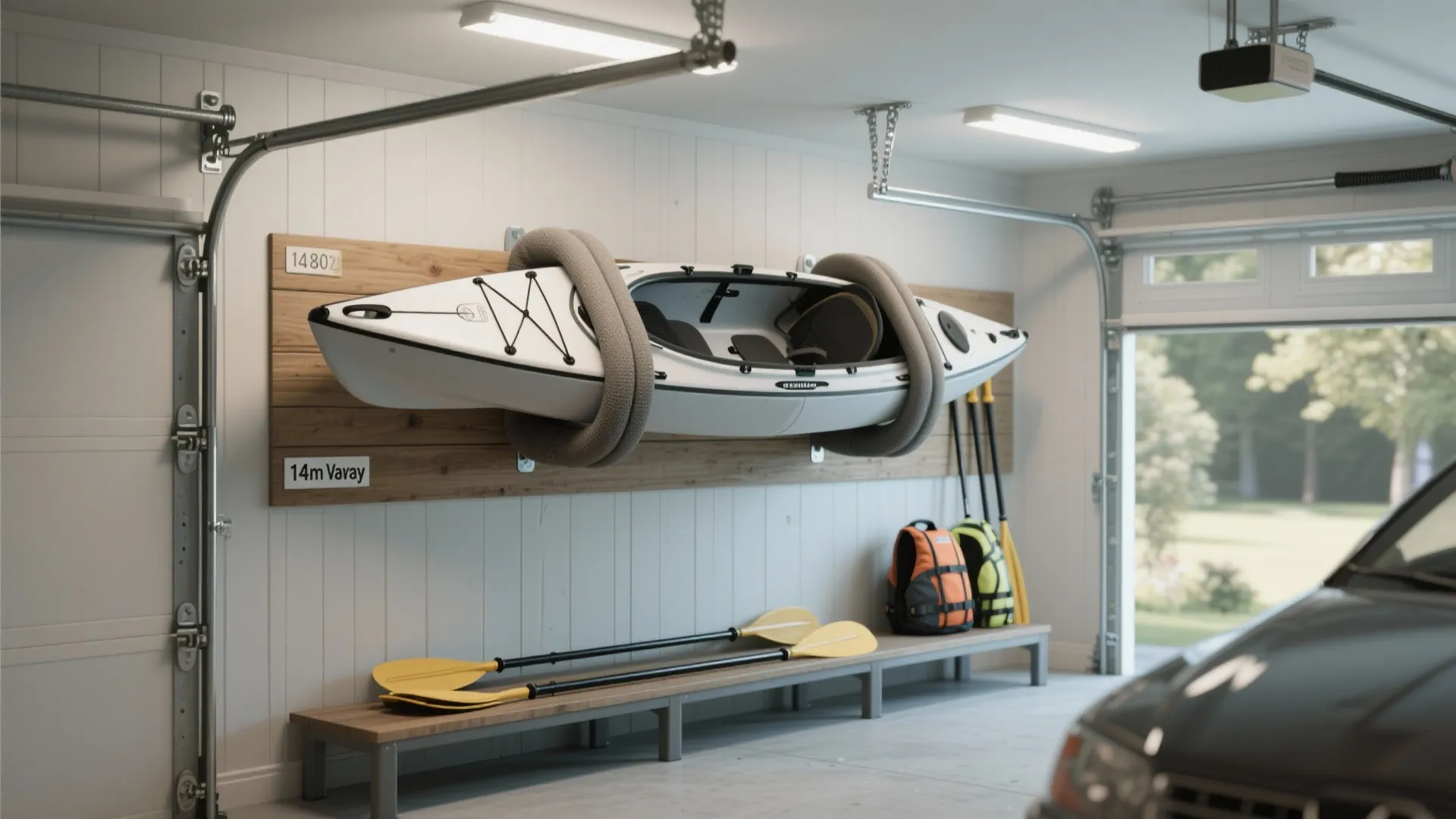

DIY Kayak Wall Hanger: Space-Saving Storage for Every Garage: Fast-Track Guide to Building a Simple Kayak Wall Hanger in Minutes

I’ve hung more boats than bikes in the past decade, and a well-built kayak wall hanger is one of the most impactful upgrades you can make to a garage. Done right, it protects the hull, recovers floor space, and keeps loading and maintenance friction-free. The core is simple: matched support arms, a safe mounting substrate, and padding that respects your kayak’s material.

Space matters. Gensler’s workplace research notes that clutter and poor spatial organization correlate with stress and reduced task performance; in a garage, that translates to lost time and avoidable damage. Steelcase research also found that better-organized environments improve perceived control and efficiency, reinforcing the value of vertical storage that’s intuitive and repeatable. Those observations map directly to small residential spaces—get the kayak off the floor, free circulation paths, and avoid pressure points on critical hull zones.

Comfort and safety deserve equal attention. The WELL Building Standard (WELL v2) highlights safe reach ranges and labeling clarity as contributors to injury prevention in day-to-day activities. Applying those principles, I design hangers with consistent handle heights, controlled reach distances, and clear load labels. The result: fewer awkward lifts, more reliable use, and less fatigue when you’re moving a 40–70 lb kayak at shoulder height.

Assess Your Wall, Studs, and Load

Start with structure. Most single sit-on-top kayaks weigh 45–65 lb; touring and fishing models can reach 80–100 lb with accessories. A pair of 2x4 studs in a typical residential wall can handle this when the hanger is through-bolted into the studs, not just drywall. I mark stud centers, confirm with a deep-scan stud finder, and pre-drill to reduce splitting. For masonry walls, use sleeve anchors rated above your kayak’s total weight plus a 2x safety factor. I also add a ledger board across two studs for load distribution if the kayak is long (12–16 ft) or if the wallboard is older gypsum.

Choose Your Arm Style: Fixed, Folding, or Adjustable

There are three practical arm styles: fixed welded arms, folding arms that tuck away when not in use, and adjustable slotted arms to suit varying hull widths. I favor 1.25 in steel tubing with a welded base plate for rigidity; for DIY wood arms, laminated hardwood (oak or ash) with a steel angle bracket performs well. Keep arm length between 16–24 in for adult kayaks. Ensure a slight upward tilt (about 3–5 degrees) to prevent slippage, and add a retaining strap for redundancy.

Protect the Hull: Padding and Contact Zones

Hull protection is non-negotiable. Polyethylene kayaks are tough but scuff easily; composite and thermoform hulls need gentle, broad contact. I wrap arms with closed-cell foam (Neoprene or EVA), then a UV-stable fabric sleeve. Contact points should align with the kayak’s strongest bulkhead or rib areas—never mid-span on thin touring hulls. For fishing kayaks with rails or accessories, set the arms to clear protrusions and support the keel line.

Set the Right Height and Spacing

Ergonomics matter. Typical comfortable lift height for most adults sits around 36–44 in from the floor to the lower arm, which lets you pivot the bow into place with minimal wrist strain. If stacking two kayaks vertically, leave 20–24 in of vertical clearance between arms to accommodate hull depth and hand clearance. I always test with the kayak and add an inch of overhead buffer to prevent rubbing on wall fixtures.

Hardware and Fasteners: Don’t Skimp

Use lag screws (3/8 in or M10) at a minimum for stud walls, with washers to spread load. For masonry, select 3/8 in sleeve or wedge anchors. All steel hardware should be zinc-plated or stainless in coastal or humid garages. Torque fasteners firmly but avoid crushing foam wraps—tighten base plates first, then add padding and straps.

Straps, Retention, and Redundancy

Even with tilt, I add a secondary retention system: 1 in polyester cam straps rated at 600–1000 lb. Place them at one-third from bow and stern, avoiding rudder or skeg components. Quick-release buckles help with winter storage when kayaks sit for months. If your garage is prone to vibration or door impact, add a soft bumper at bow and stern contact points.

Plan the Garage Layout Around Movement

Think choreography: approach path from the car, a spot to stage paddles and PFDs, then a smooth pivot onto the hanger. Where the layout allows, I simulate reach and clearance before drilling—using an interior layout planner helps visualize kayak swing arcs, door interference, and ceiling obstructions. If you need to model the footprint and access, try a room layout tool from Coohom to validate spacing and circulation: room layout tool.

Light and Visibility

Task lighting reduces missteps. I set 300–500 lux at the hanger zone with neutral-white 4000 K lamps to balance contrast and color rendering. Avoid glare—aim fixtures perpendicular to the kayak to prevent reflective hotspots on glossy hulls and keep shadows off the handholds.

Moisture, Temperature, and Material Care

Store clean and dry. Residual salt degrades hardware and straps, while moisture trapped under foam invites mildew. Leave a 2–3 in wall gap behind the kayak for airflow. In high-heat garages, avoid direct sun on thermoform hulls to prevent creep; UV films on windows and venting can help. For long-term storage, loosen straps slightly to reduce compression set.

Acoustics and Quiet Handling

A padded landing helps. I add a rubber floor mat beneath the hanger to damp impact if a bow slips. Soft interfaces reduce sudden noise, which makes early-morning departures less disruptive in shared homes and keeps you in better control when maneuvering heavier fishing kayaks.

Safety Labelling and Checks

Label the hanger with capacity and install date. Quarterly, tighten hardware, inspect foam for wear, and check straps for fraying. If you’ve swapped to a heavier kayak, re-validate anchors and fasteners. Clear visual cues reduce misuse—an insight reinforced by WELL v2’s emphasis on wayfinding and safe use cues.

Step-by-Step Build Snapshot

1) Map studs and mark arm centers; 2) cut and prepare arms (steel or laminated wood); 3) drill base plates, pre-drill studs; 4) mount arms with lag screws and washers; 5) add foam padding and fabric sleeves; 6) install retention straps; 7) test with the kayak and adjust spacing and tilt; 8) label capacity and finalize lighting alignment.

FAQ

How much weight should my wall hanger support?

Most single kayaks fall between 45–80 lb. Build for at least 2x the expected load to cover accessories and dynamic handling.

Is drywall alone ever acceptable?

No. Always anchor into studs or masonry. Drywall is a finish layer, not structural.

What arm length works best?

16–24 in is ideal for adult kayaks. Shorter arms risk point loading; longer arms need bracing to avoid flex.

Do I need padding if my kayak is polyethylene?

Yes. Padding spreads load and prevents cold-flow dents over long storage periods, even on tough PE hulls.

Can I stack two kayaks on one wall section?

Yes, with independent arm pairs and 20–24 in vertical clearance. Verify total wall load and anchor capacity.

What strap type should I use?

Polyester cam straps with non-marring buckles. Avoid ratchet straps that can over-compress hulls.

What’s the best lighting for the hanger zone?

Target 300–500 lux at 4000 K for neutral-white task lighting, and position fixtures to minimize glare.

How do I protect composite hulls?

Use wider arm padding, distribute contact at reinforced sections, and avoid hard straps or narrow points.

Will temperature swings affect storage?

Yes. High heat can soften thermoform hulls; UV control and airflow help. Loosen straps slightly for seasonal storage.

Can I use folding arms in a tight garage?

Absolutely. Folding arms free lateral clearance when the kayak is out, improving circulation around cars and tools.

How often should I inspect the hanger?

Quarterly. Check fasteners, padding wear, strap integrity, and confirm there’s no wall movement or cracking.

Where should the hanger be placed?

Near the garage entrance for direct loading, away from vehicle doors and overhead interference. Validate with a layout simulation before drilling.
