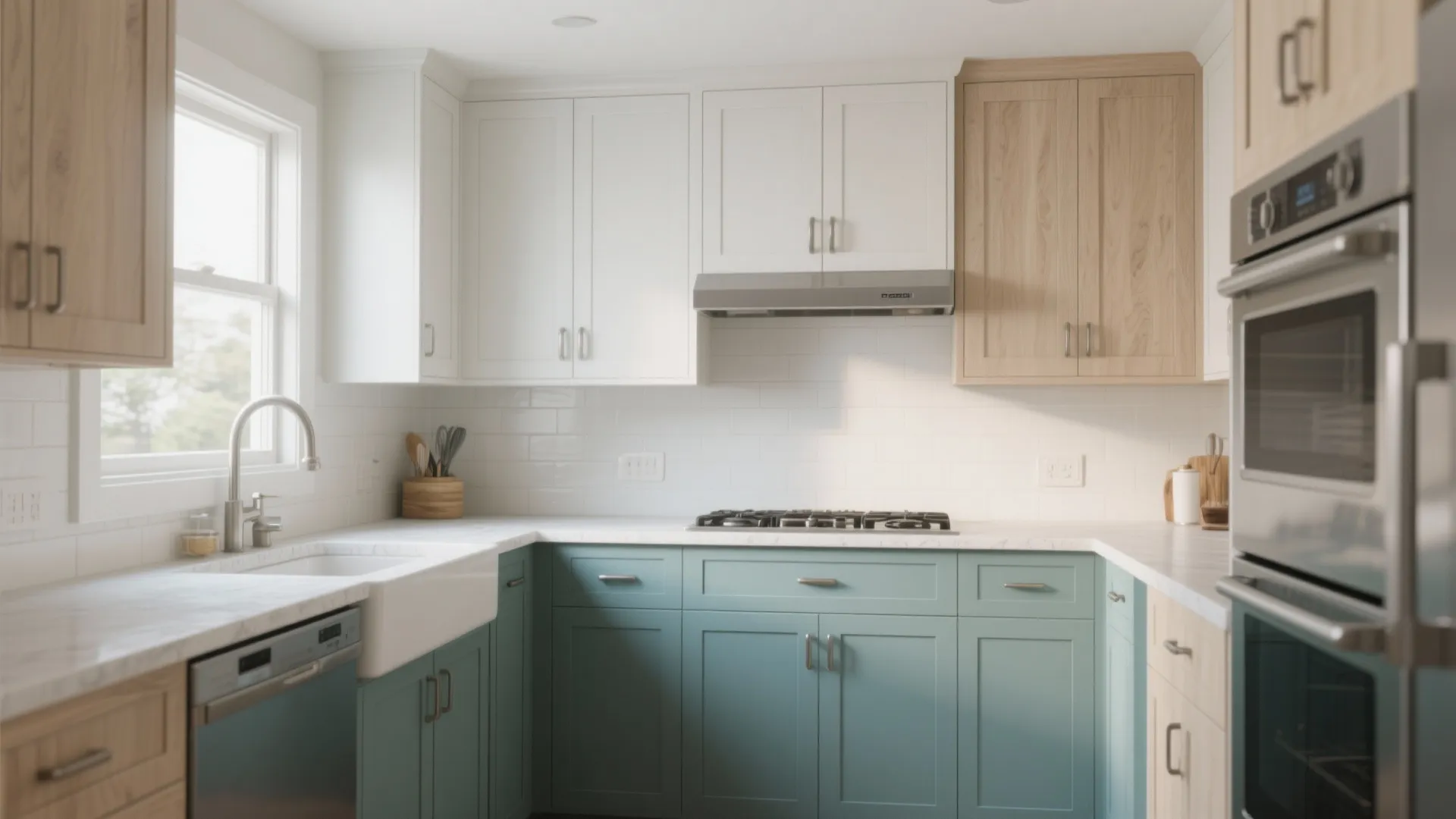

DIY Kitchen Cabinet Doors: Transform Your Space Affordably: 1 Minute to Fresh-Looking Cabinets—No Pro Needed

Refreshing cabinet doors can reset the entire mood of a kitchen without gut-renovation costs. I typically see a 60–70% visual impact from doors alone, because they dominate sightlines and color fields. That’s promising for DIY—and with careful planning, material discipline, and ergonomic thinking, you can achieve a crisp, long‑lasting finish at an approachable budget.

Budget clarity helps shape decisions: refacing or replacing doors generally costs 25–50% of a full kitchen remodel, and simple DIY slab doors can land under $400–$800 for a mid‑size kitchen, depending on material. Performance matters too. WELL v2 highlights glare control and low‑emitting materials as contributors to occupant comfort; combine satin finishes and low‑VOC topcoats to reduce visual strain and odors during finishing. For workflow, Steelcase research shows proximity and frictionless access improve task efficiency—translating in kitchens to handle placement and door swing that minimize reach and micro‑delays. For broader best practices around interior environments, I often reference the WELL Standard (v2.wellcertified.com) and Steelcase Research (steelcase.com/research).

Plan the Scope and Layout

Start with an audit: count doors and drawer fronts, measure each opening, note hinge type (overlay, inset, partial), and record any warping or misaligned boxes. If you’re reusing existing boxes, confirm they’re square within 1/16" across diagonals—otherwise new doors won’t sit cleanly. Map panel styles (slab, Shaker, beaded) to your kitchen’s visual rhythm; tall pantry doors benefit from stronger vertical stiles to resist bowing. For layout testing and spacing—especially in tight galley kitchens—a room layout tool can help simulate clearances, swing arcs, and collision points for doors near appliances: interior layout planner.

Choose the Right Door Construction

Three common build paths cover most DIY needs:

1. Slab Doors: Fast and modern. Use high‑grade MDF with hardwood edge banding or prefinished plywood. MDF machines cleanly and paints smoothly; plywood adds grain for natural finishes. Keep thickness at 3/4" for rigidity on doors up to 30" high; for taller pieces, add back stiffeners.
2. Five‑Piece Shaker: Classic and forgiving. Assemble solid wood stiles/rails with a 1/4" panel (MDF for paint, plywood for stain). Glue only the rails/stiles; float the panel with 1/16" clearance to avoid seasonal bind.
3. Applied Moulding: A slab door dressed with trim for visual depth. It’s budget friendly and hides slight substrate inconsistencies.

For inset cabinets, tolerances tighten—aim for 3/32" reveals. Overlay doors are more forgiving; standard 1/2" overlay works with many European hinges.

Material Selection and Sustainability

Painted finishes prefer MDF for the core due to smoothness and dimensional stability. For stain‑grade, look to maple or ash for closed‑grain subtlety, or white oak for pronounced figure. If you’re exploring innovative surfaces, Material ConneXion maintains a broad library of materials and performance data that can inform durability and sustainability choices. Pair materials with low‑VOC primers and waterborne topcoats to reduce indoor pollutants during finishing.

Hardware and Ergonomics

Hardware shapes daily behavior. Soft‑close concealed hinges reduce impact noise and protect finishes. Match hinge cup size (typically 35mm) and choose the correct mounting plate height for your overlay or inset spec. For pulls, center‑to‑center spacing between 96–128mm feels natural for adult grip and reduces wrist torque. Steelcase workplace studies tie efficiency to intuitive reach zones; apply that thinking by aligning pull placement between 2.5"–3" from door edges so your hand finds hardware without visual search.

Lighting, Color, and Visual Comfort

Cabinet fronts act as reflectors. Under-cabinet task lighting at 300–500 lux supports food prep; keep color temperature around 3000–3500K to balance warmth and clarity. Avoid high‑gloss on broad doors under strong LEDs—it amplifies specular highlights and glare. Color psychology suggests cool desaturated blues and greens can lower arousal and feel calming, while warm neutrals make food appear more inviting. If your kitchen gets limited daylight, lighter mid‑tones in satin finishes preserve depth without visual fatigue.

Acoustics and Daily Use

Kitchen acoustics often get ignored. Soft‑close dampers, felt bumpers, and continuous gaskets on tall pantry doors can reduce sharp transients. Heavier doors add mass that lowers resonance; if you’re using lightweight cores, incorporate damping bumpers to avoid the “clack” that travels through boxes.

Measured Drawings and Cutting Strategy

Create a cut list with each door’s width/height, style, and hinge datum. For Shaker frames, mill stiles and rails from the same board run to maintain color consistency. Set a consistent reveal rule—commonly 1/8" between doors—and hold that across the kitchen for visual rhythm. For slab MDF, seal edges with a thinned primer to prevent fuzzing; two coats, sanded to 220 grit, deliver a paint‑ready edge.

Joinery and Assembly

Use pocket screws or mortise‑and‑tenon for Shaker frames. Keep clamping square with cauls; measure diagonals and adjust until within 1/32". If you’re floating a panel, don’t glue the center—use space balls or thin foam to control rattle while allowing movement. For slabs, apply edge banding with heat and pressure; trim with a flush‑cut and finish sand lightly before priming.

Surface Prep and Finishing

Great paint hides in the prep. Fill pores, sand progressively (120 → 180 → 220), then vacuum and tack. Prime with a high‑build waterborne primer; for MDF, seal faces and edges thoroughly. Spray finishes deliver uniformity; if brushing, use high‑quality synthetic bristles and flow‑enhancing additives. Two topcoats in satin or matte minimize glare and fingerprints. Keep doors horizontal during drying to avoid sags, and maintain 50–60% RH to reduce cure defects.

Hinges, Alignment, and Reveal Tuning

Drill hinge cups with a 35mm Forstner bit, typically 3–5mm from the door edge depending on hinge spec. Mount doors, then fine‑tune with the cam adjustments: depth for in/out, side for reveal, and height for vertical gaps. Aim for uniform reveals; misalignment creates visual noise and undermines craftsmanship. Add bumpers to the corners to prevent finish burnish over time.

Layout Interference Checks

Before finalizing, simulate door swings against appliance handles, backsplashes, and adjacent doors. If you have a tight corner, switch one door to a reverse hinge or use 155° hinges for better access. In compact kitchens, I often shift tall pantry handles slightly higher to avoid collisions with countertop appliances. For virtual checks of clearances and traffic lines, a layout simulation tool can save onsite rework: room design visualization tool.

Budget and Time Planning

Allocate budget across materials (50–60%), hardware (20–25%), finishing supplies (10–15%), and contingencies (10%). A 20–30 door set typically spans two to three weekends for cutting, assembly, and finishing, with installation on a final day. Stage work in batches to keep quality consistent and avoid mixing finish tones.

Style Moves That Stretch Value

Consider two‑tone palettes: darker lowers anchor the base, lighter uppers reflect light and keep the room airy. Slim shaker (2" rails/stiles) modernizes a classic profile. Edge detail—micro‑bevels (1/32") softens light transitions and hides minor paint chips. If you’re refacing, swap only a subset (like upper doors) and re‑finish lowers to balance cost and impact.

Common Mistakes to Avoid

1. Skipping box checks: Out‑of‑square boxes lead to uneven reveals.
2. Under‑sealing MDF edges: They’ll fuzz and telegraph through paint.
3. Ignoring lighting: High‑gloss under strong LEDs causes glare.
4. Hinge mismatch: Cup depth and overlay errors create binding.
5. Panel glue‑up mistakes: Gluing floating panels causes cracks.

FAQ

What’s the most cost‑effective door style for DIY?

Painted slab MDF doors are the most budget‑friendly and quickest to build. They paint cleanly, resist warping when properly sealed, and avoid complex joinery.

How do I choose between MDF and plywood?

MDF is ideal for paint due to a uniform surface; plywood is better for stain and has stronger screw holding. For tall doors, plywood adds stiffness, while MDF needs thicker cores or stiffeners.

Which hinges should I use for soft‑close functionality?

Concealed European hinges with integrated dampers provide soft‑close. Verify overlay or inset configuration and cup depth (usually 35mm) to match your door and cabinet specs.

What finish sheen works best to reduce glare and fingerprints?

Satin or matte sheens control specular highlights and hide fingerprints. They align with visual comfort guidelines that discourage high‑gloss in task-heavy zones.

How can I improve kitchen lighting for better cabinet appearance?

Use under‑cabinet task lighting at roughly 300–500 lux with 3000–3500K color temperature. Balanced lighting prevents harsh glare and renders colors accurately on doors.

Will painted doors hold up near sinks and dishwashers?

Yes, with proper sealing. Use a high‑build primer and two waterborne topcoats; add soft‑close hardware to reduce impact wear. Maintain caulk lines near humid zones.

What reveal gaps should I aim for?

For overlay doors, 1/8" between doors is common; for inset, keep reveals tighter around 3/32". Consistency matters more than the exact number for visual harmony.

Can I reface instead of replace to save money?

Absolutely. If boxes are sound, new doors and drawer fronts deliver the biggest visual change. You can retain existing hinges if compatible, or upgrade to soft‑close for relatively low cost.

How do I prevent MDF edge fuzzing before paint?

Seal edges with thinned primer, sand to 220, repeat, then apply full primer coats. This creates a smooth, durable edge that won’t telegraph through the finish.

What’s the best strategy for aligning multiple doors?

Mount doors loosely, then adjust with hinge cams: side for reveal, depth for plane, height for vertical alignment. Work left to right and re‑check diagonals and handles for consistency.

Any tips for noise reduction?

Use soft‑close hinges and foam bumpers. Heavier doors dampen resonance; for light doors, add bumpers and avoid hard contact with frames.

How long should I expect the project to take?

A typical 20–30 door set spans two to three weekends, including cutting, assembly, finishing, and installation, assuming you have basic tools and a spray or brush setup.
