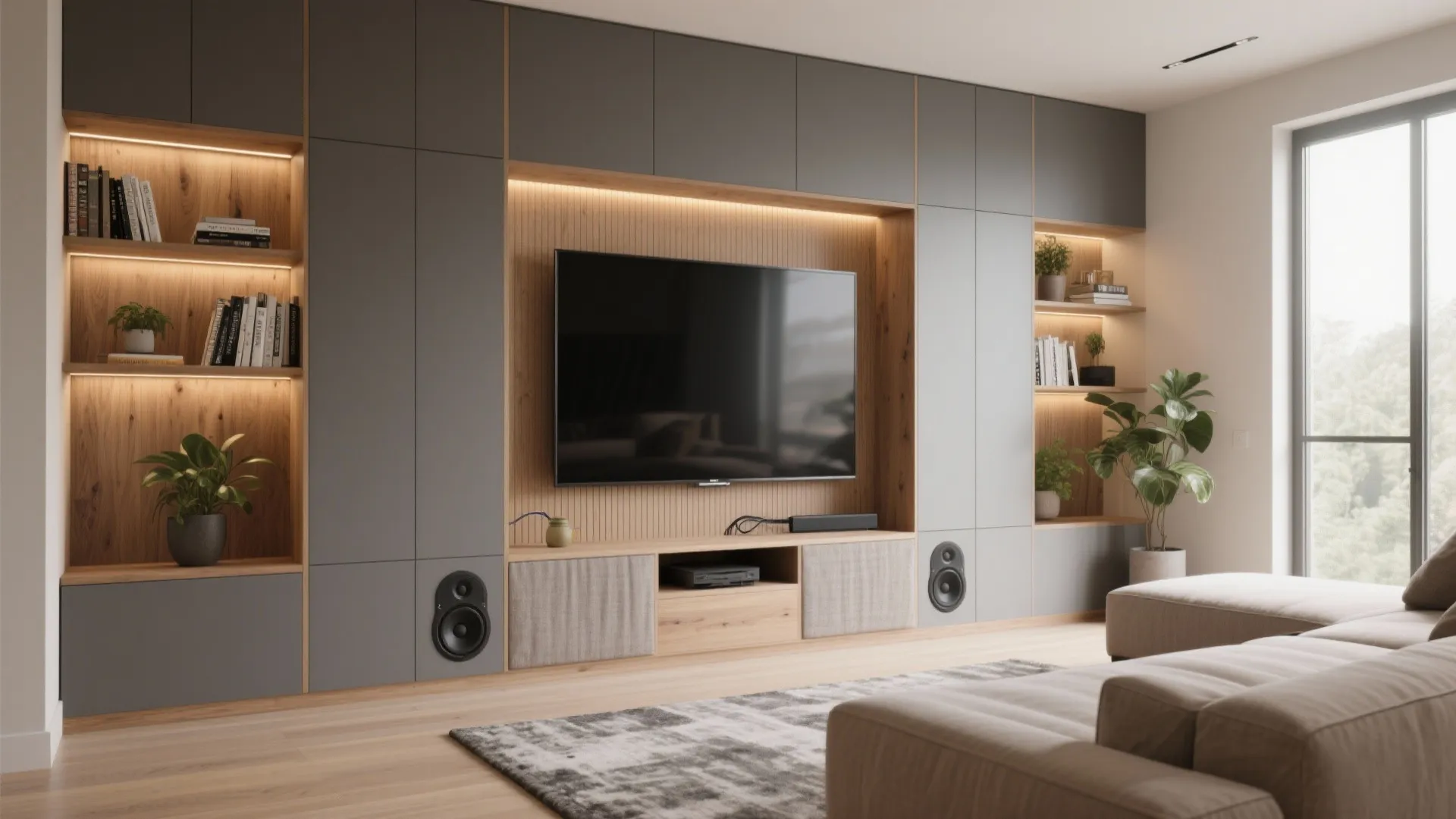

DIY Media Wall Plans: Transform Your Living Room: 1 Minute to a Sleek Entertainment Center Setup

I’ve planned and built more media walls than I can count, and the difference between a good-looking façade and a truly high-performing feature is always in the details: sightlines, acoustic control, cable management, and lighting that respects the screen. Below is a refined approach you can use to plan, size, and build a DIY media wall that elevates both comfort and daily use.

Screen height and distance set the foundation. WELL v2 recommends placing primary displays so the top third sits at or slightly below eye level when seated, which typically puts the screen center 42–48 inches off the floor for most sofas. For viewing distance, I follow 1.2–1.6 times the screen diagonal for 4K content; for a 65-inch TV, that’s roughly 6.5–8.5 feet. Steelcase’s research on posture and visual ergonomics also reinforces keeping content within a comfortable eye-height band to reduce strain. These practical ratios avoid neck craning and keep text crisp without magnifying artifacts. For deeper reading on environmental comfort, WELL v2’s visual comfort guidance is a helpful reference (wellcertified.com).

Ambient lighting is just as critical as placement. The Illuminating Engineering Society (IES) suggests typical living spaces sit around 100–300 lux for general ambient light; in front of a TV, lean toward the lower end and eliminate direct glare paths to the screen. Use dimmable, high-CRI (90+) fixtures at 2700–3000K for warm evenings and cap luminance ratios so bright sources aren’t in the field of view. A soft backlight or bias lighting behind the TV can reduce perceived contrast fatigue without introducing reflection—keep it subtle and indirect. For deeper standards and recommended practices, IES lighting guidance is a reliable anchor (ies.org/standards).

Plan the Structure: Proportion, Modules, and Sightlines

Start with a scaled elevation: mark the TV outline, centerlines, speaker positions, and component bays. I size the TV cavity with 1–1.5 inches of clearance on sides and top for airflow, and 2 inches at the bottom if components sit beneath. Flank the center with modular cabinets or open niches. A 3:4 rhythm—three vertical bays to four horizontal divisions—usually balances the mass, keeping the TV visually anchored without feeling heavy.

When layout simulations help, I quickly prototype bay widths and seating alignments with an interior layout planner like a room layout tool to validate sightlines, distances, and circulation. It’s far easier to adjust paper (or a model) than drywall.

Manage Cables, Power, and Ventilation

Cable discipline keeps a DIY media wall feeling custom. Plan a dedicated chase behind the TV for power and signal, with low-voltage and high-voltage routes separated. Leave service loops and label both ends. Ventilation is essential: if you’re enclosing receivers or gaming consoles, provide at least 10–15 square inches of passive venting high and low in each equipment bay, or add a quiet fan if temperatures climb.

Acoustic Comfort and Speaker Integration

Acoustics should be integrated, not an afterthought. For front left/center/right speakers, align tweeters near ear height when seated. Avoid placing speakers in fully enclosed cavities; face them flush with minimal obstruction. Add soft materials to balance reflections: a rug in front of the wall, fabric-front doors, or acoustic panels disguised as art. Bass traps aren’t mandatory, but corner absorption reduces boominess in small rooms. Keep subwoofers slightly off corners to smooth response.

Lighting the Wall Without Washing Out the Screen

Layer light sources. Use recessed or track fixtures aimed at shelves and art, never at the TV plane. Integrated LED strips in niches should be diffused with at least 0.3 inches of setback from the lens to reduce hotspots. Dimmers are non-negotiable, and smart controls let you store scene presets—"Watch", "Game", "Read"—that balance lux levels and color temperature for multi-use living rooms.

Materials, Finishes, and Heat Tolerance

Choose materials that handle heat and fingerprints. High-pressure laminate or matte lacquer keeps glare down; avoid high-gloss right around the screen. If you prefer wood, stable species like oak or walnut with a matte polyurethane finish look sophisticated and stand up to touch. Perforated metal or acoustically transparent fabric fronts are excellent for hiding speakers while maintaining performance. Always prime and seal MDF edges to prevent fuzzing.

Storage That Works: Drawers, Doors, and Hidden Niches

Design for real-life clutter. I include a shallow drawer for remotes, controllers, and charging banks, plus a hidden niche with a hinged panel for routers and hubs. Use vented cable grommets so doors can stay closed without overheating gear. If you wall-mount the TV, a slim cavity with a removable panel behind it is invaluable for streaming sticks and switchers.

Mounting and Structural Anchors

For masonry or stud walls, always confirm load paths. Center the TV mount on studs or install a plywood backer sheet spanning at least two studs. Check the mount’s VESA compatibility and weight rating; overspec by 25% for peace of mind. If you’re building a freestanding media wall, distribute weight with a continuous base and anti-tip brackets anchored to studs.

Ergonomics and Seating Coordination

The media wall doesn’t live in isolation; seating positions dictate comfort. Keep the primary seat centered on the screen and within that 1.2–1.6x diagonal distance range for 4K content. Side chairs can angle in at 15–25 degrees to maintain sightlines. Allow 36 inches for circulation behind seating. If glare persists, adjust drapery or add top-down shades to control reflective paths.

Color Psychology Around Screens

I use desaturated hues around the TV to reduce visual competition—think warm greys, olive, or muted navy. Color psychology research highlights that cooler, subdued palettes can lower arousal and support focus, while intense reds heighten energy and distraction. Keep bolder colors on flanking niches or lower cabinets, not directly behind the screen, so content remains the hero.

Step-by-Step DIY Build Sequence

1. Measure and mark

Confirm screen size, centerline, outlet positions, and furniture distances. Sketch the elevation with exact dimensions.

2. Frame and backer

Add a plywood backer for mounts and shelves. Frame niches with 2x timber or metal studs, confirming clearances for devices.

3. Run power and data

Install dedicated outlets, conduit, and low-voltage paths. Label at both ends.

4. Vent and access

Cut vents high and low on equipment bays. Include removable panels for service.

5. Finish and paint

Apply primer and matte finishes to minimize glare. Install edge banding on exposed MDF.

6. Mount and align

Set the TV mount height per eye-level targets, then level shelves and doors.

7. Light and test

Install dimmable fixtures and bias lighting. Test scenes for reflection control.

8. Dress and tune

Add soft furnishings, calibrate audio, and rebalance seating for comfort.

Maintenance and Future-Proofing

Plan for upgrades. Leave an extra HDMI path, an empty shelf space, and a spare power receptacle. Keep a small kit—cable labels, velcro ties, microfiber cloth—nearby for quick resets. Seasonal checks on vent dust and dimmer performance keep things running smoothly.

FAQ

How high should I mount my TV in a living room?

Set the screen so the top third is at or below seated eye level. For most sofas, that puts the center around 42–48 inches from the floor, aligning with visual comfort guidance highlighted in WELL v2.

What is the ideal viewing distance for a 65-inch 4K TV?

About 1.2–1.6 times the diagonal, so roughly 6.5–8.5 feet. This range balances detail perception with reduced eye strain.

How bright should my room be while watching TV?

Aim near the lower end of typical living space levels, roughly 100–200 lux ambient, and use dimmable layers. Avoid direct light on the screen to control glare, consistent with IES comfort principles.

Do I need ventilation in equipment cabinets?

Yes. Provide passive vents high and low (10–15 square inches per bay) or add a quiet fan. Heat shortens component life and can cause throttling in consoles.

What materials reduce glare around the TV?

Matte paints and finishes, high-pressure laminates, and low-sheen wood coatings. Avoid high-gloss panels in the screen’s immediate field.

How should I place front speakers?

Align tweeters near ear height when seated and keep the baffle unobstructed. Use soft surfaces in the room to tame reflections.

Is bias lighting behind the TV helpful?

Yes, if subtle and indirect. A soft backlight reduces eye fatigue by lowering contrast extremes without reflecting on the screen.

What’s the best way to hide cables in a DIY build?

Create a dedicated chase with separate routes for power and low-voltage, include service loops, and label both ends for easy maintenance.

How do I avoid screen reflections from windows?

Use top-down shades, rotate seating slightly, and aim fixtures away from the screen plane. Matte finishes on the wall help as well.

Can I integrate smart lighting scenes for different activities?

Absolutely. Program dimmers or smart systems with presets like Watch, Game, Read to manage lux and color temperature per task.

What storage features are most useful in a media wall?

Shallow drawers for remotes/controllers, vented doors for equipment, and a hidden niche for routers and hubs with easy access.

How do I future-proof for new devices?

Leave spare conduit, an unused HDMI path, an extra power receptacle, and adjustable shelves. A removable rear panel behind the TV is invaluable.
