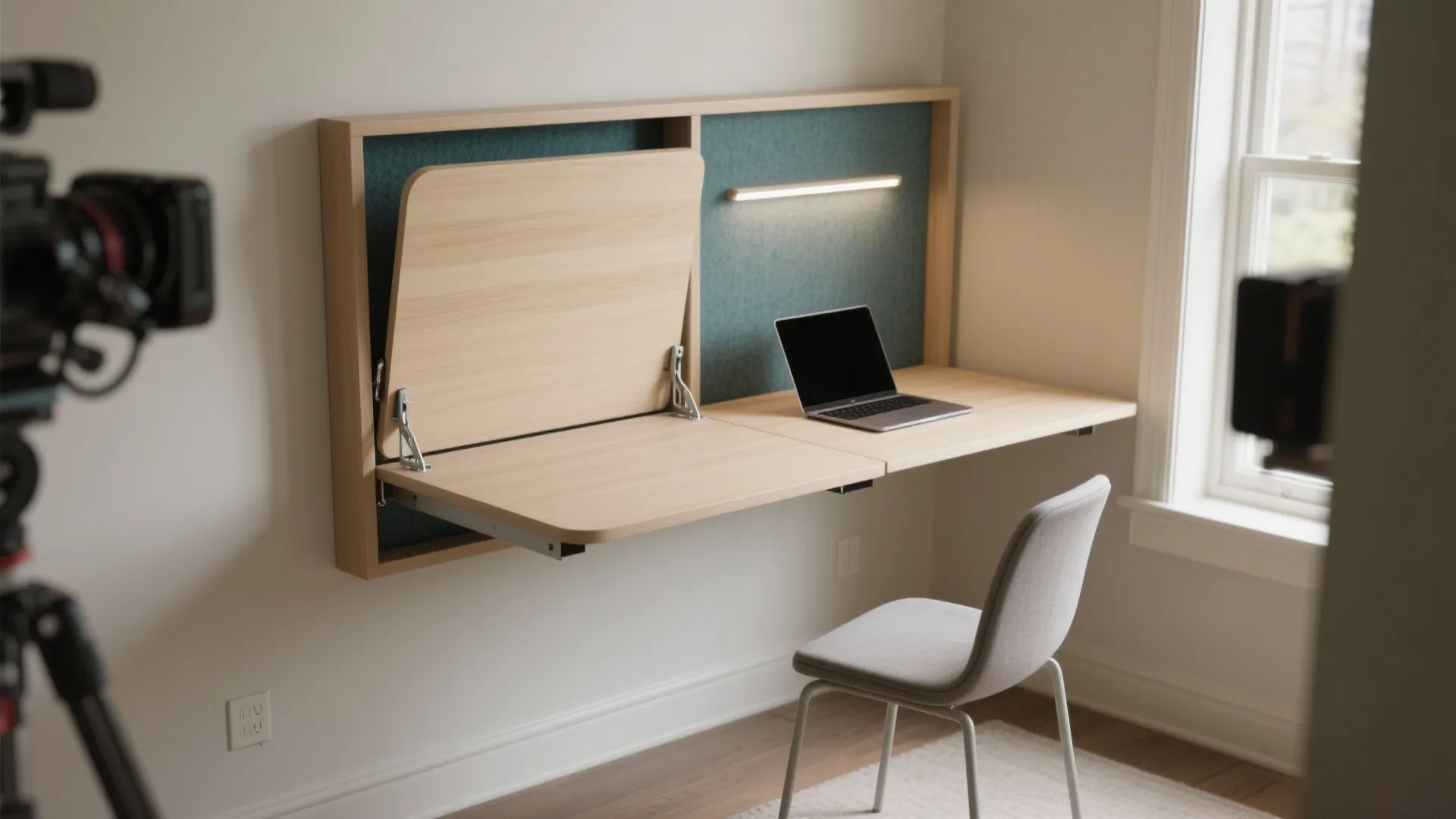

DIY Murphy Table: A Space-Saving Guide for Modern Homes: 1 Minute to Master the Murphy Table—The Fast-Track Guide for Small Spaces

I’ve designed and installed more fold-down solutions than I can count—Murphy tables are often the hero piece in tight studios, multifunction dining rooms, and micro-offices. Done right, they deliver clean lines, safe ergonomics, and adaptable use without cluttering circulation. In small homes, smart surfaces can directly impact how people work, dine, and unwind; according to Steelcase research, task surfaces around 28–30 inches high support neutral shoulder posture for most adults, minimizing strain over longer use sessions. Pairing an appropriate height with stable wall anchoring and glare-free lighting keeps a compact table feeling generous and comfortable.

Space-performance matters. Gensler’s workplace research notes that spatial flexibility—being able to switch modes quickly—correlates with perceived effectiveness and satisfaction, especially in hybrid living-working setups. WELL v2 also emphasizes glare control and target illuminance around 300–500 lux for common tasks, which is the difference between a fold-down nook that invites use and one that sits ignored. If you’re building a Murphy table for dining plus laptop work, get the height and lighting right early, and plan a clear 30–36 inch circulation zone so the piece never feels like an obstruction. For deeper ergonomics references and planning benchmarks, I keep Herman Miller and Steelcase research bookmarked for measurements and posture guidance.

A Murphy table isn’t just a wall panel with hinges—it’s an integration of structure, reach zones, lighting, acoustic control, and material cues. I typically start by mapping user behavior: morning coffee, mid-day laptop sessions, evening meals. Each mode pushes different choices in hinge type, leg strategy, edge profile, and laminate durability. Below I’ll break down planning ratios, measurement targets, hardware choices, and build steps, along with small but consequential details that keep a fold-down table feeling stable, quiet, and elegant.

Assess Your Space and Set Dimensions

Measure the wall and floor clearance, then define the working envelope. For a compact two-person dining surface, 24–26 inches deep and 36–42 inches wide is functional; for solo work, 20–24 inches deep and 30–36 inches wide usually suffices. Maintain 30–36 inches of free circulation when the table is open. Standard seated surface height is 28–30 inches; for stool seating, 36 inches (counter height) can work, but keep elbows near 90 degrees to reduce shoulder load. Lighting should deliver roughly 300–500 lux at the table plane with warm-neutral 3000–4000K LEDs to balance alertness and comfort.

If the wall hosts switches or outlets, plan cutouts or relocate fixtures. Check stud locations and mark a continuous, load-bearing anchoring line—ideally spanning two studs for even load distribution. If you’re previewing different widths or circulation scenarios before construction, a quick layout simulation tool such as an interior layout planner helps validate clearances and walking lines: room layout tool.

Choose a Hardware Strategy

Hinges: A continuous piano hinge provides uniform load transfer and reduces racking. For heavier tops (solid wood, 3/4 inch plywood with laminate), choose a stainless or brass piano hinge with at least 8–10 screws into the table and 8–10 into the wall cleat. Concealed hinges are possible but typically add complexity for a flush finish.

Support legs: Options include drop-down legs, fold-out brackets, or cable stays. Drop-down legs deliver the best vertical stability and acoustic quiet; cable stays save weight but can introduce bounce. For a clean look, I often specify folding steel brackets rated 200–300 lbs, with a secondary soft-close support to prevent slam.

Wall cleat: A 2x4 or 1x3 hardwood cleat, lag-bolted into studs, spreads the load. Dimension the cleat length to match or exceed the table width. Use washers to prevent bolt heads from crushing fibers.

Material Selection and Finish

For durability, 3/4 inch Baltic birch plywood with high-pressure laminate resists warping and coffee-ring abuse. Solid maple or oak offers tactility but add weight; if you go solid wood, keep the depth modest and consider edge undercuts to reduce perceived bulk. Edge profiles matter—soft 1/8 inch radius reduces sharp contacts for kids and elbows. A matte finish (20–30 gloss units) minimizes glare and visual noise.

Color psychology is subtle but valuable. Cool neutrals calm busy corners; a saturated accent like deep teal or olive under the folded panel can signal “activity mode” when open. Verywell Mind’s overview of color psychology suggests blues and greens support focus, while warmer tones feel social—use this deliberately for a work-dine hybrid surface.

Lighting, Acoustics, and Comfort

Integrate a slim LED task strip beneath the closed panel so illumination is ready when you open the table. Target 300–500 lux at the surface, 3000–4000K, CRI 90+ for color accuracy. Control glare by positioning fixtures perpendicular to the user’s line of sight and consider a micro-prismatic diffuser. If your table faces a window, add a roller shade with 3–5% openness to cut veiling reflections.

Acoustic comfort matters in compact homes. A felt-backed panel or cork pinboard on the wall behind the table dampens reflections and doubles as a display surface. Soft underfoot rugs reduce footfall noise, making the nook feel more settled.

Human Factors: Reach, Clearance, and Safety

Maintain fingertip-to-elbow reach zones: frequently used items within 16–20 inches of the front edge. Keep knees happy with a 24-inch minimum leg clearance depth, and avoid center supports that collide with shins. If kids will use the table, add soft-close stays and limit drop speed. Round corners (R6–R10 mm) help prevent bruises in circulation paths.

Weight planning is critical. Estimate live loads: two adults leaning plus table contents can approach 200–250 lbs. Verify bracket ratings and bolt shear values. If mounting on plaster over masonry, use sleeve anchors; for drywall, always anchor into studs, not just toggles.

Planning the Build

1) Map studs, set cleat height, and pre-drill lag bolt holes. 2) Fabricate the tabletop with your chosen core and finish; add a continuous hinge along the long edge. 3) Install folding brackets or drop legs aligned with studs. 4) Test open/close cycles; adjust for level and fit. 5) Add bumpers or a concealed magnet catch so the panel sits flush when closed.

I often add a shallow storage rail inside the panel—just enough for napkins, pencils, or a compact power strip. Keep storage under 2 inches deep so it doesn’t interfere with fold thickness or wall clearance.

Integrate Power and Cable Management

Where possible, place a low-profile outlet or a surface raceway below the table line. A grommet near the rear corner keeps laptop cables tidy. If the table doubles as a breakfast bar, under-surface hooks manage bags or headphones without visual clutter.

Style and Visual Balance

In small rooms, visual rhythm matters as much as square footage. Align the table’s closed panel with existing wall elements—sconces, art frames, shelf lines—so when folded it reads as intentional millwork. Use vertical grain if the panel is tall to emphasize height; horizontal grain can visually widen a narrow wall. A two-tone scheme (neutral exterior, warm wood interior) adds a small “reveal moment” when the surface lowers.

Common Dimensions and Ratios

- Seated height: 28–30 inches

- Counter height: ~36 inches

- Depth for dining: 24–26 inches

- Depth for laptop tasks: 20–24 inches

- Circulation clearance when open: 30–36 inches

- Knee clearance depth: ≥24 inches

- Lighting: 300–500 lux at surface, 3000–4000K

Maintenance and Longevity

Re-tighten hinge and bracket screws every six months. Use felt pads where the table meets the wall to prevent paint damage. Clean laminate with mild soap; avoid abrasives. If you’ve used natural wood, refresh with a hardwax oil yearly. Inspect cables or stays for frayed edges and replace before they fail.

Project Variations

- Minimalist studio: slim laminate top, piano hinge, two folding brackets, matte white panel that blends with walls.

- Family kitchen: deeper top, rounded corners, drop-down legs, chalkboard finish inside for notes.

- Micro office: narrower top with cable grommet, LED strip, cork acoustic panel behind, magnet latch for quiet closure.

Safety Checklist Before First Use

- Confirm lag bolts are seated in studs (use a stud finder and pilot holes).

- Verify bracket or leg ratings against expected load.

- Ensure level across the full width; shim brackets if needed.

- Test soft-close or stays to prevent finger pinch.

- Check lighting for glare and sufficient illuminance.

FAQ

Q1: What is the ideal height for a Murphy table used for both dining and laptop work?

A: Aim for 29 inches as a balanced seated height. It aligns with ergonomic guidance for neutral shoulders and works with standard dining chairs.

Q2: How much wall space do I need?

A: Reserve the table width (30–42 inches for most builds) plus at least 30–36 inches of clear floor in front when open so circulation remains comfortable.

Q3: Which hinge is best for stability?

A: A continuous piano hinge distributes load evenly along the edge, reducing wobble compared to two or three discrete hinges.

Q4: Can I rely on drywall anchors?

A: No—anchor into studs or masonry. Drywall toggles are not sufficient for dynamic loads from leaning or daily fold-down use.

Q5: What lighting should I install above the table?

A: A slim LED with 300–500 lux at the surface and 3000–4000K color temperature minimizes glare and supports comfortable reading and dining.

Q6: How do I reduce noise when opening/closing?

A: Add felt bumpers, soft-close stays, and a magnet catch. A cork or felt panel behind the table also dampens acoustic reflections.

Q7: What materials are most durable?

A: 3/4 inch Baltic birch plywood with high-pressure laminate is a robust, warp-resistant choice. Solid hardwood is beautiful but heavier.

Q8: How do I manage cables for remote work?

A: Use a rear-corner grommet, adhesive cable clips under the surface, and consider a compact raceway to reach a nearby outlet cleanly.

Q9: Is a counter-height Murphy table practical?

A: It works with stools for quick tasks or breakfast, but for typing-heavy sessions, seated height at ~29 inches offers better shoulder and wrist neutrality.

Q10: What edge profile is safest in tight spaces?

A: A soft 1/8 inch radius or R6–R10 mm round-over reduces impact risk along circulation paths and is more comfortable for forearms.

Q11: How often should I check hardware?

A: Inspect every six months, tightening screws and examining brackets, stays, and hinges for wear.

Q12: Can I add storage inside the fold-down panel?

A: Yes—keep it shallow (≤2 inches) to avoid interference with fold thickness and maintain a flush close.
