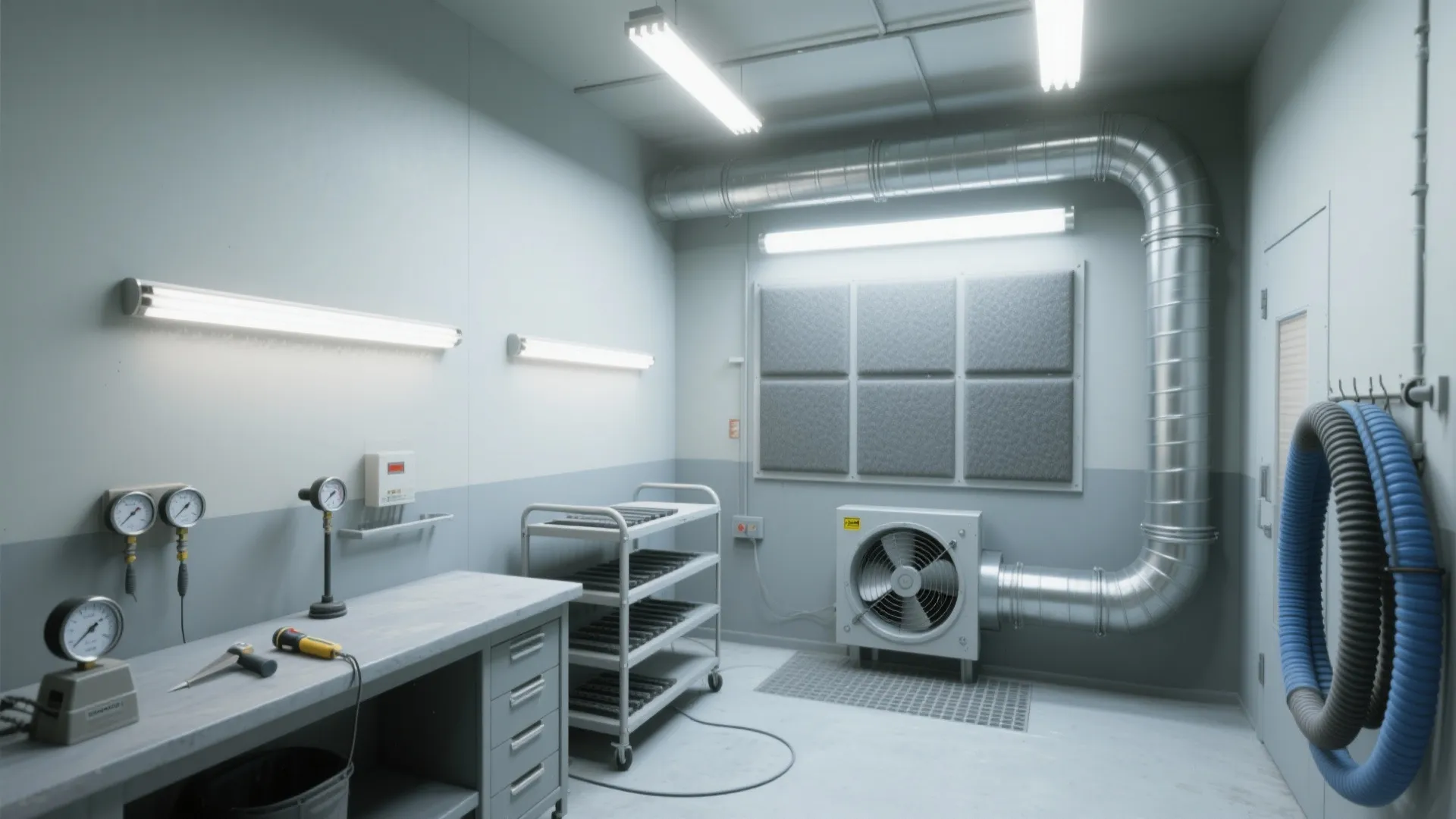

DIY Paint Booth Exhaust Wall: Step-by-Step Guide: Fast-Track Guide to Building a Clean, Safe Paint Booth Exhaust in Minutes

I’ve built and tuned several small-shop paint booths over the past decade, and the exhaust wall is what separates a clean finish from dust, fumes, and overspray chaos. This guide walks through the essentials—airflow, filtration, lighting, and acoustic control—so your setup runs cleaner, safer, and more consistently than a basic fan-in-a-wall approach.

Target airflow and filtration are not guesswork. In finishing environments, many pros size for 100–150 feet per minute (fpm) face velocity across the booth opening for consistent capture of overspray, while small DIY booths may operate effectively around 75–125 fpm depending on filter area and job type. For lighting, the Illuminating Engineering Society (IES) recommends task illuminance in the 750–1000 lux range for detailed finishing, with 4000–5000K neutral-white color temperature to reveal true color without harsh glare (source: IES lighting practices). On the wellness side, WELL v2 emphasizes controlling particulate and VOCs through source capture and filtration strategies for better indoor air quality, which directly supports safer hobbyist spraying at home (source: WELL v2 features on Air).

In a small workshop, behavior patterns matter: where you mix paint, how you move around the workpiece, and how you stage parts will dictate the exhaust wall size and return-air path. Steelcase research has shown that environmental comfort strongly influences performance; translating that to a shop, predictable airflow, good sightlines, and low noise lead to steadier handwork during coats and better results. If you’re planning the footprint or zoning the space, a quick mock-up with a room layout tool helps you visualize clearances, makeup air routes, and safe egress before you cut lumber.

Plan the Airflow Strategy

Pick a booth style first: crossdraft (air enters opposite the exhaust wall and moves straight across) or downdraft (air drops from above and exits near the floor). For DIY, crossdraft is simpler and cost-effective. Aim for full-booth sweeps where fresh air enters behind or beside you and exits through a unified exhaust wall, minimizing recirculation and dead zones.

Calculate your target CFM. Measure the booth opening (width × height) to get area in square feet. Multiply by your desired face velocity (start at ~100 fpm for general spraying). Example: a 6 ft × 7 ft opening = 42 sq ft. At 100 fpm, you need ~4200 CFM through your exhaust wall. If you reduce face velocity to 80 fpm for light-duty work, that’s ~3360 CFM. Ensure the fan, duct, and filter bank can truly deliver that after accounting for filter resistance and duct losses.

Size and Place the Exhaust Wall

For uniform draw, use a full-height filter wall when possible. If space is tight, a centered filter bank placed at least 12–18 inches from corners reduces vortices. Keep the bottom of the filter bank 6–12 inches above the floor to avoid clogging from floor dust and to protect against accidental kicks.

Spatial ratios that work well in small shops: exhaust-wall width around 60–80% of booth width and filter area sized generously so your face velocity is achieved at moderate static pressure. Overly small filter banks force the fan to work harder and amplify noise.

Select the Right Filtration Stack

Use a staged approach: a prefilter (MERV 8–11) to capture bulk overspray, followed by a higher-efficiency stage (MERV 13–15) for finer particulates. If you spray solvent-borne coatings, pair filtration with safe exhaust routing outdoors and keep ignition sources away. Activated carbon panels help adsorb odors and some VOCs, but they saturate quickly—treat them as supplemental, not primary protection. Replace filters based on pressure drop, not just appearance.

Track static pressure with a simple manometer or differential gauge across the filter wall. Note the baseline with clean filters, and set a changeout threshold (e.g., +0.3 to +0.5 in. w.g. above baseline) so airflow stays consistent during multi-coat sessions.

Choose a Fan Built for the Job

Axial fans move big CFM but struggle against resistance from dense filters and long ducts. Many DIY booths work best with a backward-inclined or radial centrifugal blower that maintains flow under higher static pressure. Check the fan curve at your estimated system pressure (often 0.5–1.5 in. w.g. for DIY filter walls and ducting). Use smooth, sealed duct transitions and wide-radius elbows to lower losses.

Noise control matters for long sessions. Line the fan plenum with acoustic foam suitable for HVAC use, isolate the fan with rubber mounts, and consider a short silencer section on the discharge side. Keeping blade tips and ducts clean prevents whine and restores efficiency.

Build the Exhaust Wall Frame

Construct a rigid frame from 2×4s or metal studs. I typically add a central mullion and perimeter stops to nest standard filter sizes (20×20 or 24×24). Include compression bars or spring clips for a tight seal; any bypass reduces capture efficiency. Face the wall with sheet goods as needed and seal seams with paintable sealant.

Behind the filters, create an even plenum depth (8–16 inches for small booths) so air pulls uniformly across the entire bank. Add a clean-out access panel to vacuum overspray dust. All electrical should be outside the airstream unless rated for the environment.

Manage Makeup Air Safely

Exhaust without makeup air starves the booth and can backdraft combustion appliances. Provide a passive intake louver or duct sized near the exhaust flow, ideally filtered with a low-resistance prefilter. Keep the intake opposite the exhaust to maintain crossdraft. If you heat the space, ensure the furnace or water heater is sealed-combustion or isolated from pressure swings.

Lighting for True Color and Low Eye Strain

Paint shows every flaw under good light. Follow IES guidance by targeting 750–1000 lux on work surfaces. Use high-CRI (90+) LED fixtures at 4000–5000K to balance warmth and clarity. Position lights on sidewalls and ceiling at angles that graze the surface, which highlights orange peel and sags without direct glare into your eyes. Diffusers or lens covers reduce sparkle and make the booth easier on the eyes during long sessions.

Ergonomics, Color Psychology, and Workflow

A calm, neutral backdrop (light gray walls) prevents color bias when judging coats; Verywell Mind notes that saturated reds can heighten arousal, which isn’t ideal for precise finishing. Keep the main pass-ways at least 30–36 inches and store hoses off the floor to reduce trip risk. Organize a staging cart near the intake side for clean parts and a separate rack near the exhaust for drying; this aligns with predictable flow from clean to coated to curing.

Seal, Test, and Balance

After assembly, seal all joints. With the fan running, use incense or a fogger to trace airflow. You should see a steady sweep toward the exhaust without swirling. If fog hangs in corners, add deflectors or expand the filter area. Verify velocity at the booth opening using a vane anemometer, then calculate CFM to confirm your target. Record your readings with clean filters so you have a benchmark as filters load.

Safety and Code Considerations

Use non-sparking tools near the airstream and keep electrical outside the exhaust path unless properly rated. Duct exhaust outdoors and away from doors and intakes. Store solvents in closed containers, and ground metal parts to reduce static. Wear a properly fitted respirator suitable for your coating type.

Step-by-Step Build Summary

1) Define booth size and airflow target (area × 80–120 fpm). 2) Choose a centrifugal fan that meets CFM at your estimated static pressure. 3) Frame the exhaust wall to accept multiple standard filters with a tight seal. 4) Build a uniform plenum behind filters and connect smooth, sealed ductwork to the fan and discharge. 5) Provide filtered makeup air opposite the exhaust wall. 6) Install high-CRI LED lighting at 4000–5000K to achieve ~750–1000 lux. 7) Add noise isolation and access for maintenance. 8) Commission: measure velocity, check pressure drop, and fog-test flow.

When to Use a Layout Simulation Tool

If your shop has obstacles—columns, doors, or sloped ceilings—map the booth, exhaust wall, and makeup air path with an interior layout planner to see clearances and working aisles before building. A quick pass with a layout simulation tool helps identify better exhaust wall widths, light positions, and storage zones that won’t disrupt airflow.

References Worth Bookmarking

For lighting, see IES lighting standards on task illuminance and glare control (ies.org/standards). For indoor air guidance and pollutant control, WELL v2’s Air concept clarifies filtration and source-control strategies (v2.wellcertified.com). Both provide a useful framework when translating professional practices to a DIY scale.

FAQ

Q1. What face velocity should I target at the booth opening?

A1. For DIY crossdraft booths, 80–120 fpm is a practical range. Higher isn’t always better—excess velocity can kick up dust and waste energy. Size filter area and fan capacity together to hit your target under real pressure.

Q2. How much filter area do I need?

A2. Start by dividing your required CFM by a comfortable filter face velocity of 200–300 fpm. Example: 3600 CFM / 250 fpm ≈ 14.4 sq ft of filter area. More area lowers pressure drop and noise and extends filter life.

Q3. Which filters should I use for overspray?

A3. A two-stage setup works well: MERV 8–11 prefilters for bulk capture and MERV 13–15 second stage for finer particles. Add carbon panels only for odor mitigation and replace them frequently if used.

Q4. Do I need explosion-proof (hazardous location) equipment?

A4. For solvent-borne coatings, components in the airstream should be appropriately rated, and ignition sources kept outside the exhaust path. When in doubt, locate motors out of the air stream using belt-drive blowers and keep all wiring compliant with local codes.

Q5. What lighting spec minimizes color errors?

A5. Use 4000–5000K LEDs with 90+ CRI and aim for 750–1000 lux on the work. Position fixtures at angles to graze the surface and add diffusers to control glare—guidance aligns with IES task lighting practice.

Q6. How do I control noise from the fan?

A6. Choose a centrifugal blower suited to your system pressure, add flexible isolators, line the plenum with HVAC-safe acoustic foam, and keep the duct path smooth with gentle elbows. Larger, slower fans are typically quieter for the same CFM.

Q7. What’s the best way to test airflow?

A7. Use a vane anemometer to measure velocity at several points across the booth opening. Average the readings and multiply by opening area to estimate CFM. A fog test helps visualize dead zones to correct with baffles or added filter area.

Q8. Can I recirculate air back into the shop?

A8. Avoid recirculating air when spraying solvent-based coatings due to fire and health risks. For waterborne-only operations with proper filtration and local code compliance, some shops use partial recirculation with rigorous monitoring, but exhausting outdoors remains the safer default.

Q9. How often should I change filters?

A9. Track the pressure drop across the filter wall and replace when the differential rises about 0.3–0.5 in. w.g. from the clean baseline, or sooner if airflow or finish quality declines.

Q10. What booth size works in a single-car garage?

A10. A common footprint is roughly 8×12 to 10×16 feet, leaving perimeter clearance for movement and storage. Use a layout planner to confirm door swing, aisle width (30–36 inches), and duct runs before framing.

Q11. How do I protect other areas of the shop?

A11. Use curtain walls or rigid panels to contain overspray, maintain slight negative pressure in the booth, and keep the rest of the shop neutral. Seal gaps around doors and route exhaust away from intakes and walkways.

Q12. Will color on the booth walls affect how I perceive the paint?

A12. Yes. Neutral gray walls reduce color bias. Highly saturated hues can skew perception and increase visual fatigue, which is counterproductive during fine finishing work.
