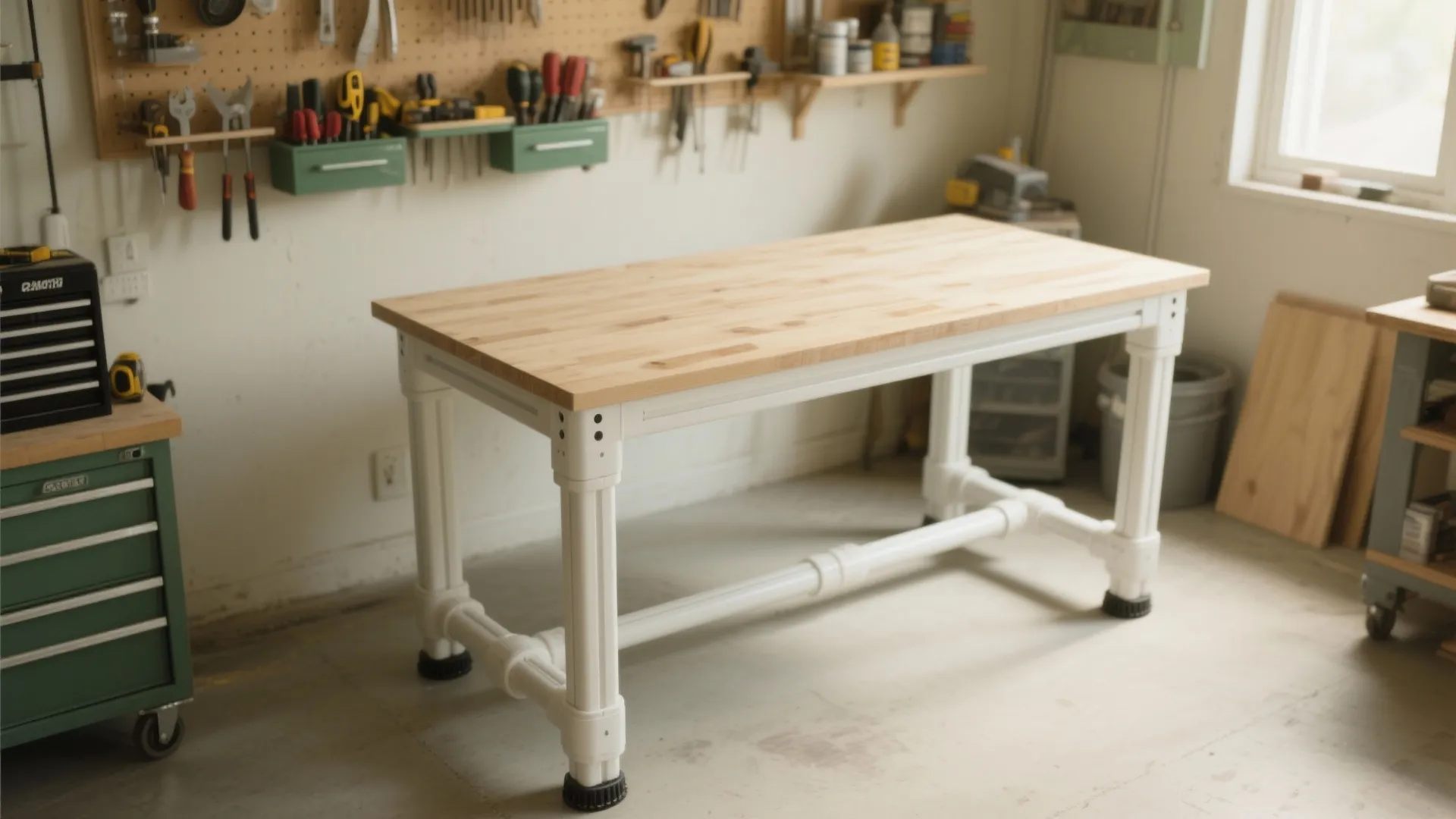

DIY PVC Table: Step-by-Step Guide to Easy Table Making: 1 Minute to Your Own Custom PVC Table—A Fast-Track Guide

I’ve built more than a few lightweight worktables over the years, and PVC remains my go-to when I need something fast, modular, and budget-friendly. It’s surprisingly strong for everyday use, easy to cut, and compatible with common fittings. To keep your table comfortable and stable, I follow ergonomic height ranges and simple bracing techniques that mimic what we do in interior and shop furniture planning.

Before we start, a couple of data points guide my dimensions. For a standing task surface, WELL v2 suggests encouraging posture variation; most hybrid work settings use 36–42 inches table height for light tasks, with 30 inches as the seated desk standard. The National Kitchen & Bath Association (NKBA) also references 36 inches as the typical counter height, which translates well to standing hobby tables. These benchmarks help you dial your table to the right height for your body and use.

For stability, keep spans sensible. Steelcase research on workplace ergonomics emphasizes maintaining comfortable reach zones of 18–24 inches for frequently used items; building your top in the 24–30 inch depth range keeps loads centered over the frame and reduces racking. I typically aim for a 24x48 inch top for compact rooms, scaling to 30x60 inches only if I add diagonal bracing or a mid-rail.

Tools and Materials

• Schedule 40 PVC pipe (1 inch or 1-1/4 inch outer diameter, choose based on load)

• PVC elbows (90°), tees, and couplings

• PVC primer and cement (if you plan semi-permanent joints)

• Measuring tape, marker, and miter box or pipe cutter

• Rubber mallet for press-fit assembly

• Non-slip feet or end caps

• Tabletop: plywood, MDF, or a reclaimed solid-core door (sealed)

• Stainless or coated wood screws and small L-brackets (optional for securing top)

• Sandpaper, finishing oil or waterborne polyurethane for the top

• Optional: cross-brace cord or perforated steel straps for diagonal bracing

Design the Dimensions

Pick your primary use: seated desk (30 inches tall), craft counter (36 inches), or tall assembly bench (40–42 inches). For seated comfort, use a 28–30 inch height and pair with a chair that sets elbow height near the surface; WELL v2 supports neutral wrist postures and adjustable setups. For compact rooms, a 24x48 inch top works well; go larger only with added bracing. If you’re laying out a tight space and want to visualize clearances, a simple room layout tool can help you simulate walking paths and reach zones: room layout tool.

Cut the PVC

• Legs: cut four equal lengths to your target height minus tabletop thickness (usually 3/4 inch).

• Long rails: two pieces equal to your table length minus fitting offsets (typically subtract 2–2.5 inches per side for elbows/tees).

• Short rails: two pieces for table width minus fitting offsets.

• Mid-rails: optional pieces 8–10 inches above floor to connect legs for torsional stiffness.

• Cross-brace segments: short pieces to create diagonal support with tees and elbows.

Dry-Fit the Frame

Lay out the rectangle: elbows at corners, tees on legs where mid-rails connect. Press-fit all parts without cement first to confirm squareness and height. Check for rocking—if one leg is slightly off, shave a millimeter and re-seat. I aim for less than 1/8 inch discrepancy across legs.

Add Structural Bracing

PVC is rigid but can rack under side loads. A mid-rail rectangle 8–10 inches off the floor reduces flex. For tops longer than 48 inches, add a center tee and a longitudinal mid-rail. Diagonal bracing with perforated steel strap, crossed between legs, dramatically increases lateral stability in small footprints.

Secure Joints

Decide if you want disassembly. Press-fit is fine for light loads, but a dab of PVC cement at high-stress points (top corner elbows and mid-rail tees) keeps alignment. Prime, then cement; work fast, as cure sets within seconds. Leave lower end caps unglued to replace non-slip feet later.

Prepare and Mount the Top

• Material: a 3/4 inch plywood or MDF top is economical; for durability, a reclaimed solid-core door makes a sturdy work surface.

• Finish: seal with waterborne polyurethane to resist stains; if it’s a craft table, a matte finish controls glare, which helps visual comfort.

• Attachment: set the frame beneath the top, center it with equal overhangs (typically 1–1.5 inches). Use small L-brackets or screw through pre-drilled pilot holes in the rails into blocking under the top. Avoid overtightening to prevent crushing PVC.

Set the Height Ergonomically

Stand at the table: elbows should rest near 90 degrees for light assembly; for keyboard use, seated elbow height should align with the surface to reduce wrist extension. Steelcase and Herman Miller ergonomic guidance both prioritize neutral forearm alignment and easy reach within 18–24 inches. If your elbows flare or shoulders lift, adjust leg length by re-cutting or adding slip couplings.

Footing, Stability, and Acoustics

Add rubber end caps for grip and vibration damping. On hard floors, soft caps reduce noise and micro-slipping. If the table will host noisy tools, consider a dense top (birch ply) and a thin cork mat to absorb impact sounds; controlling acoustic harshness reduces fatigue during repetitive tasks.

Color and Finish Choices

White PVC brightens small rooms, but glare can be an issue under cool lighting. Pair with a low-sheen top and warm-neutral colors to soften contrast. Verywell Mind’s overview of color psychology notes that blues and greens can promote calm focus, while high-chroma reds increase arousal—use saturated accents sparingly for task areas.

Load Capacity and Use Cases

For typical craft loads (10–30 lb evenly distributed), 1 inch Schedule 40 PVC with mid-rails is adequate. If you plan to mount a small vise or handle dynamic loads, move to 1-1/4 inch PVC and add diagonal strapping. Keep heavy point loads within 6–8 inches of legs.

Maintenance and Modularity

Wipe PVC with mild soap; avoid solvents that can craze the surface. If you need a lower shelf, add tees on legs and a secondary frame with a thin plywood insert. The beauty of PVC is easy reconfiguration—swap elbows for tees to introduce future expansions.

Step-by-Step Summary

1) Define size and height using ergonomic benchmarks (30 inch seated, 36 inch counter).

2) Cut legs, rails, and optional mid-rails.

3) Dry-fit the rectangular frame with elbows and tees.

4) Add mid-rails; test for racking.

5) Cement critical joints if you don’t need full disassembly.

6) Prepare the top; seal and attach with brackets or screws into blocking.

7) Add non-slip feet and fine-tune leg lengths for posture.

8) Finish with low-glare surfaces and optional color accents.

Lighting and Visual Comfort

If the table is a task station, balance light levels around 300–500 lux for crafts, with neutral color temperature (3500–4000K) to maintain color accuracy. Following IES guidelines for task lighting will keep shadows soft; a diffuse LED panel above and a movable task lamp at 30–45 degrees reduce glare on glossy finishes.

FAQ

What PVC diameter should I use for a sturdy table?

For light craft use, 1 inch Schedule 40 is sufficient. If you expect heavier loads, move to 1-1/4 inch and add mid-rails and diagonal bracing.

How tall should a seated PVC desk be?

Aim for 28–30 inches. Pair it with a chair that places elbows near tabletop height for neutral wrist posture, consistent with ergonomic recommendations.

Is press-fit strong enough without glue?

For lightweight tasks and static loads, press-fit works. Glue high-stress joints (corner elbows, mid-rail tees) for better torsional stability.

How do I prevent the table from wobbling?

Use mid-rails 8–10 inches off the floor and add diagonal bracing for longer tops. Ensure all legs are cut precisely; even a 1/8 inch difference can cause rocking.

What tabletop material is best?

3/4 inch plywood is a good balance of cost and strength. MDF is smooth but less durable. A reclaimed solid-core door is excellent for heavy use once sealed.

Will PVC discolor or degrade over time?

Indoors, PVC holds up well. UV exposure can cause yellowing; if the table will live near a sunny window, consider a UV-stable paint or keep it inside away from direct sun.

How can I plan the table within a small room?

Keep depth to 24–30 inches and test clearances virtually with an interior layout planner: interior layout planner.

What lighting should I use over the table?

Provide 300–500 lux with neutral 3500–4000K LEDs. Use diffusers to reduce glare and add a task lamp angled to minimize reflections.

Can I add wheels to a PVC table?

Yes, use locking casters with stem inserts fitted into reinforced leg ends. Expect a small stability trade-off; maintain a wider frame if you add mobility.

How much weight can a PVC table hold?

With 1 inch Schedule 40, mid-rails, and a plywood top, treat 30–50 lb as a comfortable working range. For higher loads, upgrade diameter and bracing.

What finishes improve visual comfort?

Low-sheen polyurethane on the top controls glare. Pair with warm-neutral wall colors; reserve high-saturation accents for tool markers, not large surfaces.

Can I disassemble and reconfigure later?

Yes. Keep most joints press-fit, cement only stress points, and use couplings to adjust leg length or add shelves.
