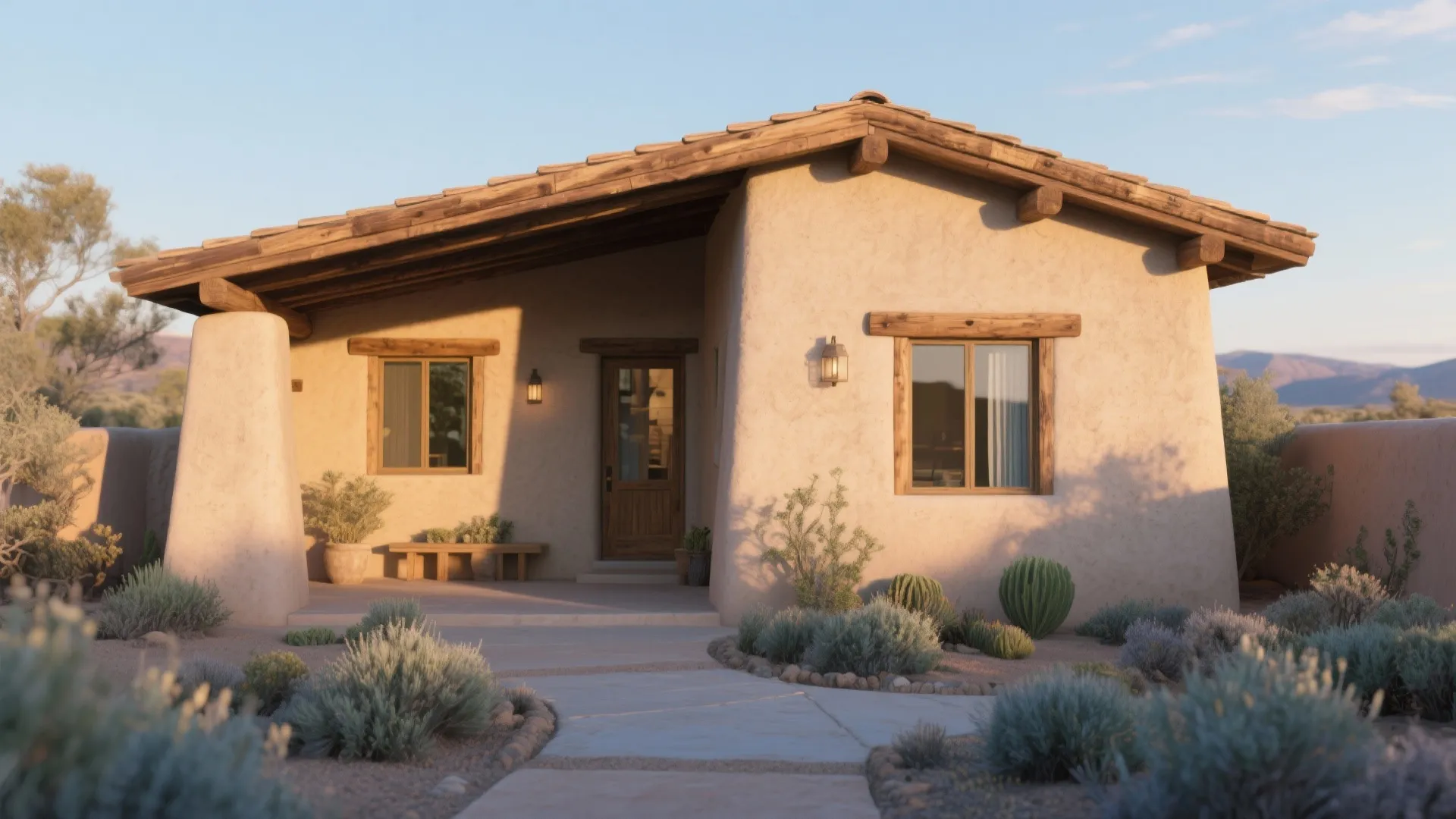

DIY Small Adobe House Plans: Build Your Dream Home: Fast-Track Guide to Adobe House Planning in Minutes

I’ve sketched and built with earthen materials for over a decade, and small adobe houses remain some of the most rewarding projects—quiet, thermally stable, and genuinely tactile. A thoughtfully designed plan balances wall mass, orientation, daylight, and ventilation, then threads in ergonomic details so daily life feels effortless.

Thermal comfort is the backbone of adobe design. High-mass walls buffer temperature swings, but success hinges on solar control and ventilation. In workplace studies applicable to homes, improved thermal comfort has been linked to better performance; Herman Miller’s research notes that well-managed temperature and air quality are associated with higher task effectiveness and satisfaction. The WELL Building Standard further sets clear expectations for indoor air and thermal criteria (WELL v2, Thermal Comfort). You can explore broader performance guidance at wellcertified.com.

Daylight matters as much as thermal mass. The Illuminating Engineering Society suggests typical residential ambient lighting targets around 100–300 lux depending on task and room use, with task zones (kitchen prep, desks) often needing 300–500 lux. I aim for layered daylight and low-glare supplemental lighting to keep circadian cues consistent and visual comfort high. For planning window orientation and interior circulation, a room layout tool helps visualize the massing and openings before you mix the first batch of earth: room design visualization tool.

Designing for Small Adobe Living

A compact adobe plan thrives on spatial clarity. I start with a tight footprint—typically 350–800 sq ft—and prioritize a single thermal zone with a short service core. That means grouping kitchen, bath, and mechanicals to minimize runs and penetrations in thick walls. The living/sleeping areas stay on sun-favored sides, and circulation doubles as storage.

Orientation and Solar Strategy

South-facing glazing (in the northern hemisphere) paired with deep overhangs manages winter gains and summer shading. I target window-to-wall ratios around 12–18% for small homes, modulating by climate. Clerestories can bounce light deeper without adding glare; high-low operable windows promote stack ventilation on warm evenings.

Wall Systems and Thermal Mass

Adobe blocks or rammed earth deliver mass; stabilized earthen mixes can improve durability in wet conditions. Interior plasters in clay or lime allow vapor exchange, maintaining steady humidity. A typical small adobe wall thickness ranges from 10–14 inches for blocks, or 12–18 inches for rammed earth, depending on structural loads and seismic considerations. Integrate reinforced bond beams at the top of walls and sill protection at openings.

Ergonomics, Flow, and Daily Comfort

Compact homes succeed when movement feels intuitive. I keep clear pathways at 32–36 inches minimum and set work surfaces at 36 inches in kitchens. Seating heights around 17–18 inches and table heights near 29–30 inches help posture. Window seat niches make use of thick walls while offering storage below. Lighting follows tasks: ambient pendants, task lights at counters, and warm accent lamps for evenings. For layout experiments, an interior layout planner makes quick work of shifting walls and furniture before committing: interior layout planner.

Material Choices: Earth, Wood, and Lime

Adobe blocks are typically a blend of subsoil with adequate clay content, sand, and fiber like straw. Test mixes for shrinkage and compressive strength before full production. Lime-stabilized plasters offer durability and breathability; earthen floors with oil finish bring warmth underfoot. For roofs, pair timber framing with ventilated assemblies. Insulated roof planes are essential in cold climates; adobe walls manage diurnal swings but cannot replace roof insulation.

Moisture, Detailing, and Durability

Protect earthen construction from water: generous eaves (24–36 inches), capillary breaks at foundations, and raised thresholds. Site drainage, gutters, and well-compacted plinths are non-negotiable. Use limewash or sacrificial earthen plasters for maintainable finishes. Flashing at windows and doors should be meticulous; a small home makes every detail count.

Acoustics and Quietude

Adobe’s mass delivers excellent low-frequency absorption and reduces sound transmission. Pair that with soft interiors—rugs, woven wall hangings, fabric shades—and you’ll tame mid to high frequencies. Keep hard parallel walls to a minimum; niches and textured plasters scatter reflections.

Color Psychology and Atmosphere

Color choices shape perception in compact spaces. Warm, desaturated earth tones expand the sense of coziness without shrinking the room. According to color psychology writing at Verywell Mind, blues tend to promote calm and focus, while greens support balance and rest. In practice, I blend clay neutrals with muted blues in work corners, and olive or sage accents in sleeping nooks to keep the house grounded yet uplifting.

Spatial Ratios, Rhythm, and Visual Balance

Small homes need a consistent rhythm. Align openings along a datum, maintain consistent head heights, and repeat materials to create calm. Proportions matter: doorways around 80 inches, transoms at 12–18 inches, and window heads aligned with interior beams give coherence. In thick-walled adobe, recesses and reveals add depth and articulation without visual clutter.

Layout Templates for Small Adobe Houses

Consider three proven patterns:

1. Linear Studio: one long volume with kitchen and bath clustered at one end, living/sleeping separated by storage wall.
2. L-Shape: living and kitchen on the sunny leg, bedroom in the shaded leg, creating a protected courtyard microclimate.
3. Courtyard Micro: two compact wings around a small patio, optimizing cross-ventilation and privacy in tight footprints.

Run quick layout simulation to test furniture, window seats, and circulation widths with a layout simulation tool: layout simulation tool.

Construction Sequence: From Soil to Shelter

1. Site and orientation analysis; set footprint and drainage plan.
2. Foundation with capillary break and raised stem walls.
3. Block making or rammed earth formwork; cure and stack sequence.
4. Bond beams; roof framing; insulated roof assembly.
5. Windows, doors, and flashing; services clustered through chases.
6. Interior plasters, floors, built-ins; exterior lime or clay finish.
7. Commission ventilation and shading; fine-tune lighting levels.

Permitting, Codes, and Testing

Earthen construction may require engineering depending on seismic and wind loads. Some jurisdictions accept earthen walls with testing for compressive strength and shear, plus engineered bond beams. Engage local authorities early and plan for inspection milestones.

Sustainability and Maintenance

Adobe’s embodied energy is low compared to fired brick or concrete, and local soils reduce transport. Maintenance is cyclical and gentle: reapply limewash, repair plasters, keep roof drainage clear. Small footprints translate to lower operating energy, especially when orientation and shading are dialed in.

Lighting Strategy in a Compact Adobe

Layer daylight with low-glare electric light. Aim ambient levels in living areas between roughly 100–200 lux, nudging task zones to 300–500 lux. Warmer color temperatures (2700–3000K) in evenings support relaxation; cooler white (3500–4000K) can be used sparingly for day tasks. Control glare with matte surfaces and recessed fixtures; the mass of adobe is perfect for creating deep reveals that hide light sources.

Budgeting and Phasing

DIY builds benefit from phasing: earthwork and blocks, shell and roof, then interiors. Invest in weather protection and roof insulation first; finishes can evolve. Salvaged timbers, reclaimed doors, and simple casework fit the material honesty of adobe.

Common Mistakes to Avoid

1. Insufficient roof insulation leading to summer overheating and winter losses.
2. Poor detailing at openings causing moisture intrusion.
3. Over-glazing without shading controls in hot climates.
4. Fragmented layouts that multiply exterior penetrations.
5. Ignoring mechanical chases and service clustering.

FAQ

How small can an adobe home be without feeling cramped?

Between 350–500 sq ft is workable if circulation is disciplined and storage is embedded in wall niches. Align openings and use consistent material palettes to maintain visual calm.

What lighting levels should I design for in a compact adobe?

Target ambient 100–200 lux and 300–500 lux for tasks like cooking or desk work, in line with common residential practice informed by IES recommendations. Pair daylight with low-glare fixtures.

Do thick adobe walls eliminate the need for roof insulation?

No. Wall mass moderates temperature swings, but roofs drive heat gain and loss. Insulate the roof thoroughly and use ventilated assemblies.

Which colors work best in small earthen interiors?

Clay neutrals with muted blues for focus and greens for rest create balance, reflecting widely documented color psychology.

How do I protect adobe from rain?

Use generous eaves, raised foundations, capillary breaks, careful flashing, and maintain exterior plasters or limewash as sacrificial layers.

Can I integrate modern HVAC in an adobe micro-home?

Yes. Mini-splits work well; route linesets through planned chases. Pair mechanical cooling with passive strategies—shading, night flush ventilation—to reduce loads.

What’s the best layout for cross-ventilation?

Opposing operable windows and a slight L-shape around a patio promote airflow. High-low openings enable stack ventilation on warm evenings.

Is DIY block making realistic?

It is with planning. Test soil for clay/sand balance, produce small batches to check shrinkage and strength, and cure blocks properly before stacking.

Are earthen floors practical?

Yes, with stabilized mixes and oil finishes. They’re warm underfoot and repairable. Add area rugs for acoustic and tactile comfort.

How do I handle seismic concerns?

Use reinforced bond beams, proper wall thickness, and consult an engineer. Some regions require testing for shear and compressive strength.

Can I model my layout before building?

Absolutely. A room layout tool lets you simulate wall thickness, furniture, and circulation to catch issues early.

Does adobe help with noise?

The mass significantly reduces transmission and improves low-frequency control. Combine with soft finishes to tame high-frequency reflections.

What maintenance does a small adobe house need?

Routine checks of roof drainage, reapplication of limewash or plaster touch-ups, and periodic inspection of openings and sills.

How should I plan electrical in thick walls?

Use conduit runs in service chases, pre-plan box locations, and consider surface-mounted fixtures where cutting deep channels is impractical.
