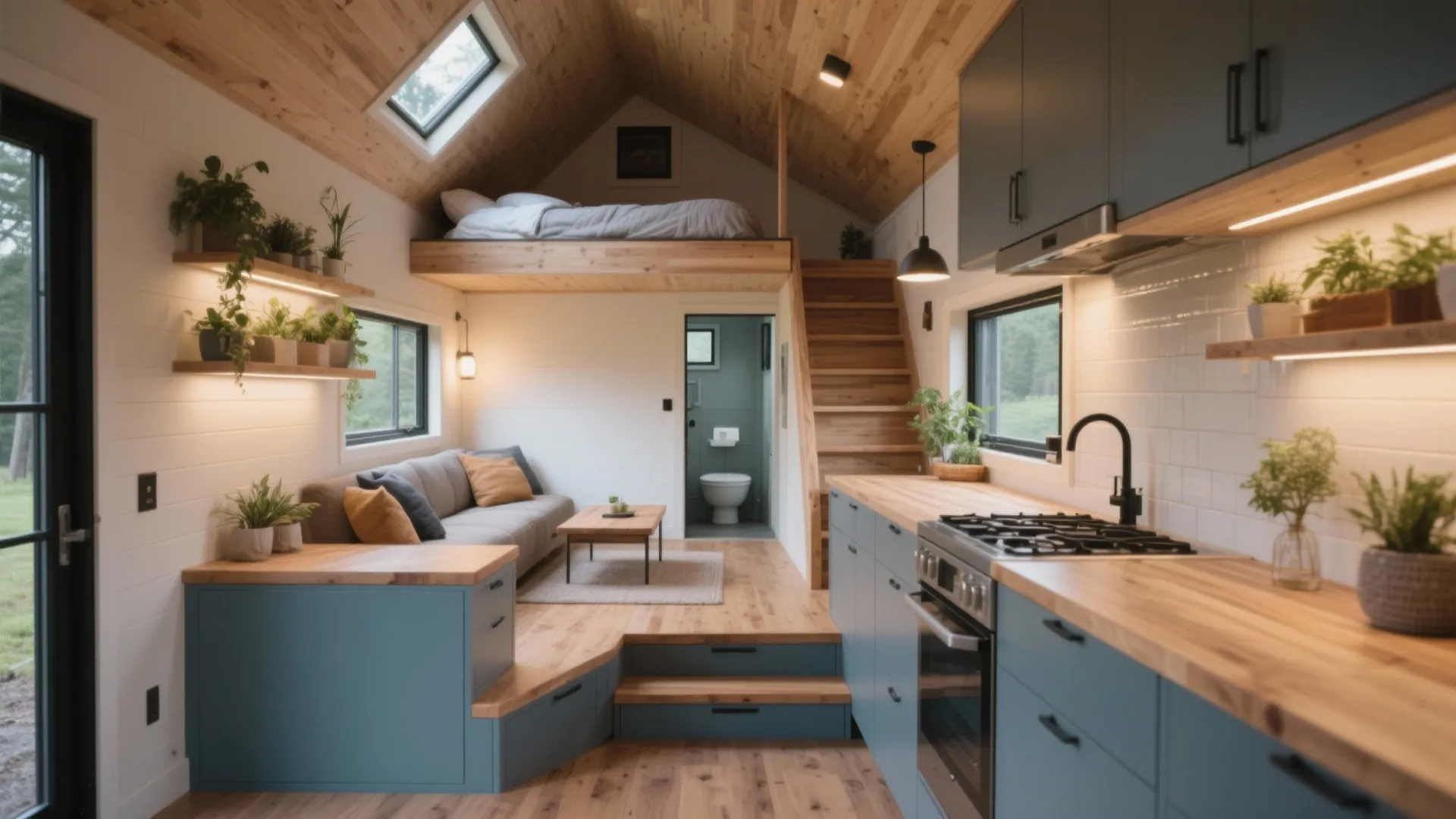

DIY Tiny House Plans: Design Your Dream Small Home: Fast-Track Guide to Making Your Own Tiny House Blueprint in Minutes

I’ve designed compact homes on wheels and on foundations for over a decade, and the best tiny houses balance human factors, light, storage, and circulation—before dreaming up finishes. A strong plan starts with clear spatial ratios: roughly 60–65% for primary living (kitchen + lounge), 20–25% for sleeping, and 10–15% for bath, entries, and mechanical. That ratio keeps movement fluid and avoids the cramped feel that happens when bedrooms or lofts dominate the footprint.

Space performance isn’t only about square footage; it’s behavioral. In Gensler’s workplace research, 44% of respondents cited the ability to focus as a top driver of performance—tiny homes benefit from that same principle: create one focus zone and one social zone, then protect them acoustically and visually. Lighting also plays an outsized role. The Illuminating Engineering Society (IES) recommends approximately 300–500 lux for task areas like kitchen prep and desks, and 100–200 lux for ambient relaxation zones; in small spaces, I tune these with dimmable layers so tasks pop while evenings feel soft.

Plan First: Define Your Intent, Then Your Footprint

Start with your lifestyle inventory: daily routines, hobbies, work hours, cooking habits, and sleeping preferences. Map circulation paths at 24–36 inches wide for primary routes; anything tighter compromises ergonomics, especially near hot surfaces or sharp corners. If you’ll host guests or work from home, consider a convertible lounge (daybed + fold-down table) rather than squeezing a second loft. When laying out zones, a room layout tool helps visualize traffic lines, furniture clearances, and multi-use configurations before you commit to framing.

Smart Micro-Zoning: Kitchen, Lounge, Loft

Kitchens anchor most tiny homes, so I design an efficient work triangle within 8–12 feet total travel. Keep counters at 36 inches high, toe kicks at 3 inches deep for foot clearance, and specify drawers over doors for better access. For acoustics, separate the cooktop from the lounge by at least 4–6 feet or a half-height partition; you’ll lower noise and splatter while keeping sightlines open. In lofts, aim for 30–36 inches of headroom to avoid neck strain, and add operable windows to vent heat—warm air pools up there quickly in winter and summer.

Lighting Layers That Shape Mood and Function

Use three layers: ambient (linear LED or ceiling fixtures ~100–200 lux), task (under-cabinet LED at 300–500 lux), and accent (wall washers or micro spots). Keep color temperatures consistent: 2700–3000K for living areas to maintain warmth, 3500K for task clarity if you prefer a crisper feel. Control glare with diffusers and matte finishes near bright sources; tiny homes magnify hotspots because surfaces sit closer to luminaires. For overnight comfort, motion-sensor night lights at <200 lux guide trips to the bath without spiking melatonin disruption. Reference IES guidelines for task zones and dimming ranges to fine-tune performance.

Color Psychology and Visual Balance

Color is a tool, not decoration. Cooler hues (soft greens and blue-grays) tend to lower perceived temperature and promote calm, while warm neutrals make tight areas feel welcoming. Verywell Mind’s overview of color psychology highlights how blues can support focus and reduce stress; I deploy them sparingly on accent planes to avoid a cold atmosphere. Keep ceilings lighter than walls to visually lift height, and ground floors with slightly darker tones or natural wood for stability. Rhythm matters: repeat one material in three places (cabinet fronts, stair treads, window trim) to make the space feel coherent rather than busy.

Ergonomics: Human Factors in Small Footprints

Sit-to-stand flexibility is crucial when furniture is multi-use. A drop-leaf table at 28–30 inches high pairs with stools at 24–26 inches for counter seating; ensure knee clearance of 12 inches. Ladder vs. stair to the loft is a safety call: ladders save space but demand better grip profiles and 70–75 degree angles, while alternating tread stairs require about 18–22 inches of run and integrated handrails. Aim for 80 inches clear length for a sofa that doubles as a guest bed. In the bath, a 30 x 30 inch shower is the absolute minimum; 32 x 36 feels practical and still compact.

Storage That Disappears

Prioritize vertical storage: 12-inch-deep wall cabinets won’t crowd the room but swallow pantry staples and books. Under-stair drawers, toe-kick drawers, and bed boxes turn dead space into capacity. I like a single tall closet (18–24 inches deep) paired with overhead bins to keep daily items accessible and seasonal gear out of sight. Use pocket doors where swing conflicts exist, and keep door hardware low-profile to avoid snags along narrow paths.

Acoustic Comfort in a Small Envelope

Small homes amplify sound. I specify soft surfaces strategically: wool rugs, upholstered panels near media zones, and acoustic curtains over glazing. Separate the work surface from the cooktop and fridge to cut compressor hum during calls. If space allows, a short vestibule or bookcase wall between entry and lounge acts as a sound buffer. HVAC noise should target ≤35 dB(A) in sleeping areas—choose variable-speed mini-splits and mount outdoor units away from head-of-bed walls.

Material Selection and Sustainability

Prioritize durable, low-VOC materials: solid wood or high-pressure laminate for counters, FSC-certified plywood for cabinetry, and water-based finishes. In wet zones, fiber-cement or porcelain resists swelling and scratches. Thermal performance matters: continuous insulation, high-performance windows, and tight air sealing reduce load; then use an ERV to maintain fresh air. Choose materials that age gracefully; tiny homes reveal wear quickly because every surface is touched often.

Mechanical, Electrical, and Safety

Design the MEP early. Plan a dedicated electrical circuit for cooking appliances and one for HVAC. Keep outlets every 4–6 feet along counters and lounges, and add USB-C in the loft. Install CO/smoke detectors near sleep zones and the kitchen, and plan egress: loft windows should open to 20 x 24 inches clear minimum with quick-release hardware. If on wheels, distribute weight evenly and place heavy systems (batteries, water tanks) low and near the axles for stability.

Layout Strategies: From Concept to Framing

For a 20–26-foot tiny house on wheels, I typically zone from hitch to tail: entry with storage, kitchen centered over axles, lounge opposite, bath at the tail, and loft above the entry or lounge. This balances weight while keeping plumbing short. On foundations, rotate the bath to share walls with kitchen for common wet lines and add a small mud zone to protect interiors. Use an interior layout planner to test door swings, appliance clearances, and stair angles—the simulation catches conflicts before they’re expensive.

2024–2025 Tiny Home Design Trends

Flexible micro-offices with fold-flat monitors and acoustic panels; warm LED with high CRI (90+) to render natural materials beautifully; biophilic touches like integrated planters and daylight shelves; and hybrid power systems combining rooftop PV with compact battery storage. I’m also seeing more modular wet cores—prefab bath + laundry pods that drop into the shell to reduce plumbing complexity and build time.

Cost Planning and Buildability

Break the budget into shell, systems, and finishes. Shell: framing, sheathing, windows, insulation. Systems: electrical, plumbing, HVAC, ERV. Finishes: cabinetry, flooring, fixtures. A clear cost map keeps scope honest and helps decide where to DIY vs. hire. Sequence the build: frame, rough-in MEP, insulate and air seal, drywall/ply, install cabinetry and fixtures, then trim and paint. Keep a contingency for fasteners, sealants, and extra blocking—you’ll need more than you expect in compact builds.

Checklist: From Plan to Move-In

- Define intent and lifestyle needs

- Set spatial ratios and circulation widths

- Validate layout with a room design visualization tool

- Lock materials, lighting temperatures, and acoustic strategy

- Sequence MEP with safety clearances and egress

- Balance storage and openness

- Finalize finishes and ergonomics (stairs, counters, seating)

FAQ

How big should a tiny house be for two people?

For full-time living, 200–260 sq ft can work well if storage is vertical and circulation remains 30–36 inches. Allocate a convertible lounge so guests aren’t forced into the loft.

What lighting levels are best for tiny homes?

Target 300–500 lux for task areas (kitchen, desk) and 100–200 lux ambient for lounge and bedroom, with 2700–3000K color temperature to keep evenings comfortable per IES guidance.

How do I reduce noise in a small space?

Use soft finishes, separate noisy appliances from work zones, and specify HVAC targeting ≤35 dB(A) in sleep areas. A short vestibule or bookcase wall helps buffer entry noise.

Is a loft comfortable for daily sleep?

Yes if you maintain 30–36 inches headroom, add operable windows for heat relief, and ensure safe access via alternating tread stairs or a well-angled ladder with handholds.

What’s the most efficient kitchen layout in a tiny house?

A compact work triangle within 8–12 feet total travel, drawers over doors, 36-inch counters, and under-cabinet task lighting at 300–500 lux for prep clarity.

Which materials are best for longevity?

Low-VOC finishes, FSC-certified plywood for cabinets, solid wood or HPL counters, and porcelain or fiber-cement in wet areas. Prioritize durability and easy maintenance.

How do I plan mechanical and electrical safely?

Dedicate circuits to high-load appliances and HVAC, place outlets every 4–6 feet, and install CO/smoke detectors. Ensure loft egress windows meet clear opening targets.

What color palette makes small spaces feel larger?

Light ceilings with warm-neutral walls and slightly darker floors for grounding. Use cool accents (blue/green) to promote calm and focus, applied sparingly to avoid chill.

Can I balance weight in a tiny house on wheels?

Yes—center heavy items over the axles, keep batteries and tanks low, and distribute mass evenly front to back. Place the kitchen mid-span and bath at the tail or near the center.

How do I keep the space flexible over time?

Choose modular furniture, drop-leaf tables, and storage that can reconfigure. Plan spare circuits and blocking behind walls to add shelves or fixtures later.
