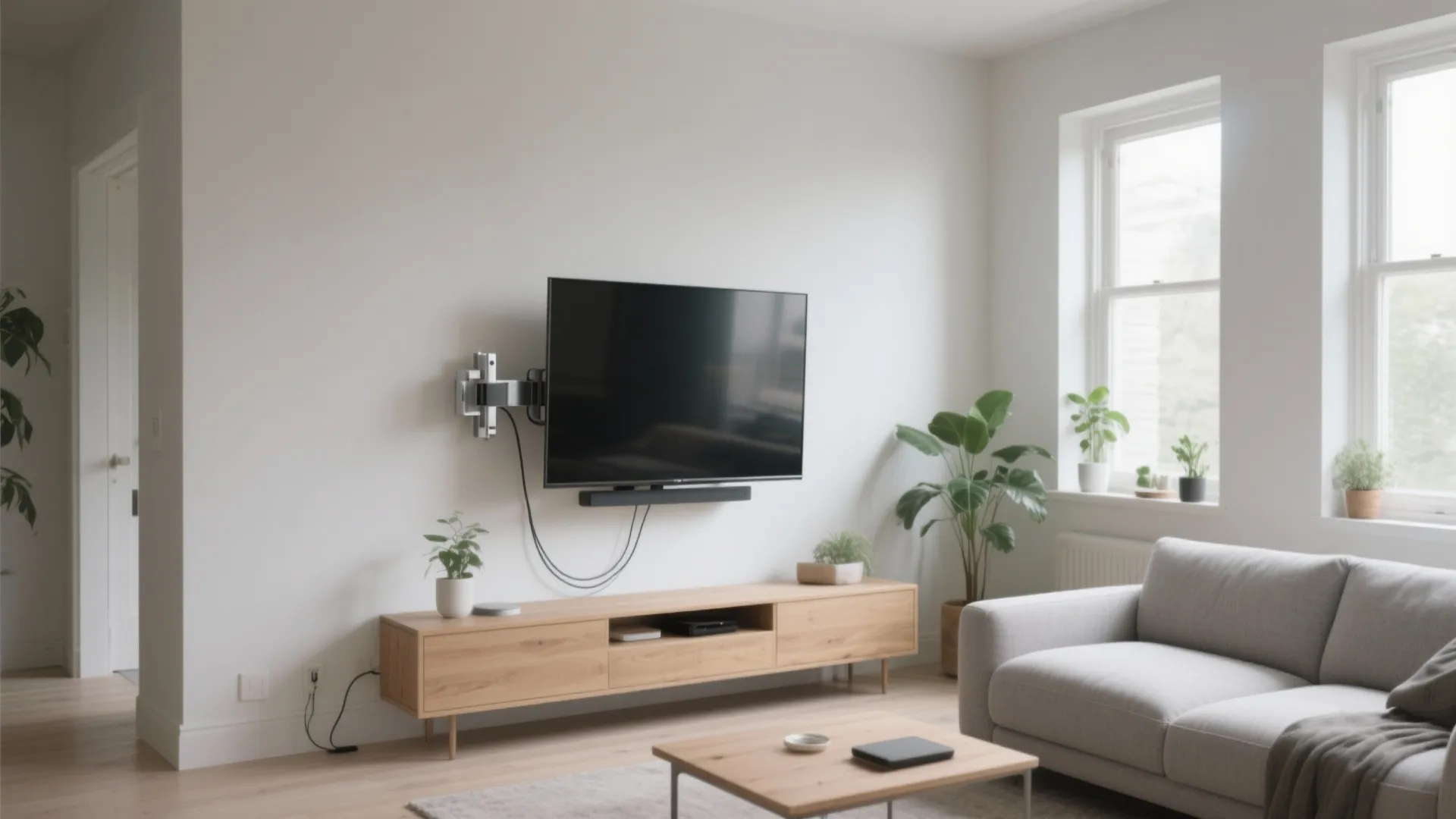

DIY TV Wall Mount Swivel: Step-by-Step Guide for Anyone: 1 Minute to the Easiest Swivel TV Wall Mount DIY Instructions

I’ve installed more than a hundred swivel TV wall mounts across homes and small offices, and the same rule always applies: plan, measure, and anchor correctly before you ever drill. A well-mounted swivel TV reduces glare, improves posture, and frees floor space—all while protecting equipment and walls.

Viewing comfort and safety should drive your decisions. The WELL v2 guideline for Light recommends controlling glare and ensuring comfortable visual conditions, which is far easier when a screen can swivel away from direct light and windows (v2.wellcertified.com). Ergonomically, keeping the center of the screen near eye level limits neck flexion and reduces strain; research by Herman Miller highlights how proper ergonomic positioning reduces musculoskeletal discomfort—placing centers around eye height and minimizing awkward postures (hermanmiller.com/research).

Pre-Install Checklist: Tools, Walls, and Safety

Gather: stud finder, level, tape measure, pencil, drill/driver, masonry bits (if applicable), socket set, lag bolts (usually supplied with the bracket), and a second set of hands. Confirm your wall type and stud spacing—typical spacing is 16 inches on center in many North American homes. Check the mount’s VESA pattern compatibility with the TV (e.g., 200x200, 400x400). Verify the mount’s weight rating exceeds your TV’s weight with a 25–30% margin for safety. If you have concrete or brick, use appropriate anchors; for drywall-only, do not mount—always anchor into studs or structural blocking.

Step 1: Choose the Right Swivel Mount

Select a full-motion mount if you want both lateral swivel and tilt. Look for smooth articulating arms, cable management channels, and a wall plate wide enough to capture at least two studs. The mount should include a tilt mechanism to reduce glare and fine-tune vertical angle; I prefer models with tool-free micro-adjustments for post-leveling. Inspect the hardware pack: you need the correct bolts for your TV’s VESA pattern and robust lag screws for the wall plate.

Step 2: Define Height and Viewing Geometry

Mark the ideal center height: in living rooms, I aim for roughly 42–48 inches to the screen center, but adjust for seating height. For bedrooms, lower angles and tilt become crucial to prevent neck strain. Seating distance matters too—many designers use a simple rule of thumb: for 4K TVs, viewing distance of roughly 1–1.5 times the screen diagonal can keep pixel density comfortable. Keep the mount’s swivel arc in mind; ensure the screen won’t strike casework or window trim when extended.

Step 3: Locate Studs and Plan Cable Routes

Use a stud finder and confirm with a small pilot hole if needed. Mark two studs where the wall plate will land. Plan power and signal: if you want hidden cables, map an in-wall rated power kit and low-voltage pass-throughs. Avoid running standard power cords inside walls. Lay out the cable slack to allow full extension of the arm without tensioning HDMI or power. If you’re coordinating a media console below, test the footprint and door clearances; a simple room layout tool helps visualize sightlines and wall clearance before drilling.

Step 4: Mount the Wall Plate

Hold the wall plate against the wall and level it carefully. Pre-drill pilot holes into studs per the mount’s instructions. Install lag bolts snugly, alternating sides to keep the plate level. Don’t overtighten to avoid crushing drywall; the plate should be firm with no wobble. For masonry walls, drill appropriately sized holes with a hammer drill and set rated sleeve anchors or wedge anchors.

Step 5: Attach Brackets to the TV

Lay the TV face-down on a soft, clean surface. Align the vertical brackets with the VESA holes and use the supplied screws and spacers if the back is curved. Tighten firmly, but don’t strip threads. Manage cables before lifting—connect HDMI, power, and any streaming device leads, leaving service loops for swivel extension. If the mount includes quick-release tabs, confirm they engage smoothly.

Step 6: Hang and Secure, Then Level and Tilt

With a helper, lift the TV and hook the brackets onto the wall plate. Secure with safety screws or locks as specified. Use the mount’s micro-adjustments to perfect level. Set a slight downward tilt if your seating is lower than the screen center; this reduces upward neck extension. Test the swivel range: extend fully, swing left and right, and confirm that cables don’t snag and the screen clears adjacent walls or furniture.

Step 7: Fine-Tune Ergonomics and Light

Check for reflections from windows and fixtures, especially in late afternoon when glare spikes. A gentle tilt and a few degrees of swivel usually resolve hotspots. The Illuminating Engineering Society recommends controlling luminance ratios to avoid visual discomfort (ies.org/standards)—lowering contrast between the screen and background wall helps. Consider dimmable, warmer task lighting around 2700–3000K for evening viewing to reduce eye fatigue.

Step 8: Cable Management and Ventilation

Bundle cables with Velcro ties along the arm channels, keeping gentle bends. Ensure ventilation gaps around set-top boxes or soundbars; heat buildup shortens component life. If you’re adding a soundbar, mount it close to the screen to keep audio anchored to the image and avoid phase issues. For multi-source setups, label cables—HDMI 1 (console), HDMI 2 (streamer), eARC (AVR)—so troubleshooting is painless.

Step 9: Safety Checks

Reconfirm lag bolts, bracket locks, and level. Tug gently on the corners to ensure stability. If the wall feels spongy or the mount flexes excessively, stop and reassess stud capture or hardware choice. Keep the swivel arm retracted when not in use to reduce leverage forces on the wall over time.

Placement Tips for Different Rooms

Living room: prioritize eye-level center and minimal glare; swivel toward the main seating cluster. Bedroom: use more tilt to accommodate reclined viewing and avoid neck strain. Kitchen or multipurpose space: swivel to multiple stations; ensure cables have extra slack for frequent repositioning. Small rooms benefit from a light-colored wall behind the TV; softer contrast reduces visual fatigue.

Common Mistakes to Avoid

Skipping stud confirmation, over-relying on drywall anchors, placing the screen too high, forgetting cable slack for full extension, and failing to pre-plan power access are the top pitfalls. Measure twice, drill once, and always keep a spirit level handy.

Maintenance and Upgrades

Recheck fasteners every six months. Update HDMI cables if you change sources (e.g., to support eARC or higher bandwidth). If you notice drift in tilt or swivel tension, adjust the mount’s friction settings per the manual. Consider adding an anti-glare film or upgrading to a mount with improved arm stiffness if you experience bounce.

FAQ

How do I know the mount is strong enough for my TV?

Match the mount’s weight rating to your TV and add a safety margin of 25–30%. Verify anchor type and stud capture; two studs with lag bolts are standard for larger screens.

What is the ideal height for a wall-mounted TV?

Aim for the screen center near seated eye level—around 42–48 inches in many living rooms, adjusting for furniture height and posture.

Can I mount on drywall only?

No. Always anchor into studs or masonry. Drywall anchors are not designed for the leverage of a swivel arm.

How much swivel clearance do I need?

Measure the arm extension and the TV width. Leave at least 2–3 inches of clearance from adjacent walls or casework to avoid edge contact.

How do I reduce glare?

Use the mount’s tilt and swivel to redirect reflections away from windows and lights. Warmer, dimmable ambient lighting helps; controlling luminance ratios aligns with IES guidance.

Is cable management necessary?

Yes. Slack loops prevent strain during extension; organized cables reduce signal issues and make maintenance easier.

Can I hide power cords inside the wall?

Use an in-wall rated power relocation kit that meets electrical codes; never run standard power cords behind drywall.

What if my studs are not centered where I want the TV?

Choose a mount with a wide wall plate or lateral adjustment slots. Alternatively, add structural blocking during renovation to place the TV precisely.

How far should I sit from a 4K TV?

Many designers use roughly 1–1.5 times the screen diagonal for 4K content, balancing detail perception and comfort.

Do I need a tilt feature if I have swivel?

Tilt complements swivel by managing vertical glare and neck posture—particularly important in rooms with varying seat heights.
