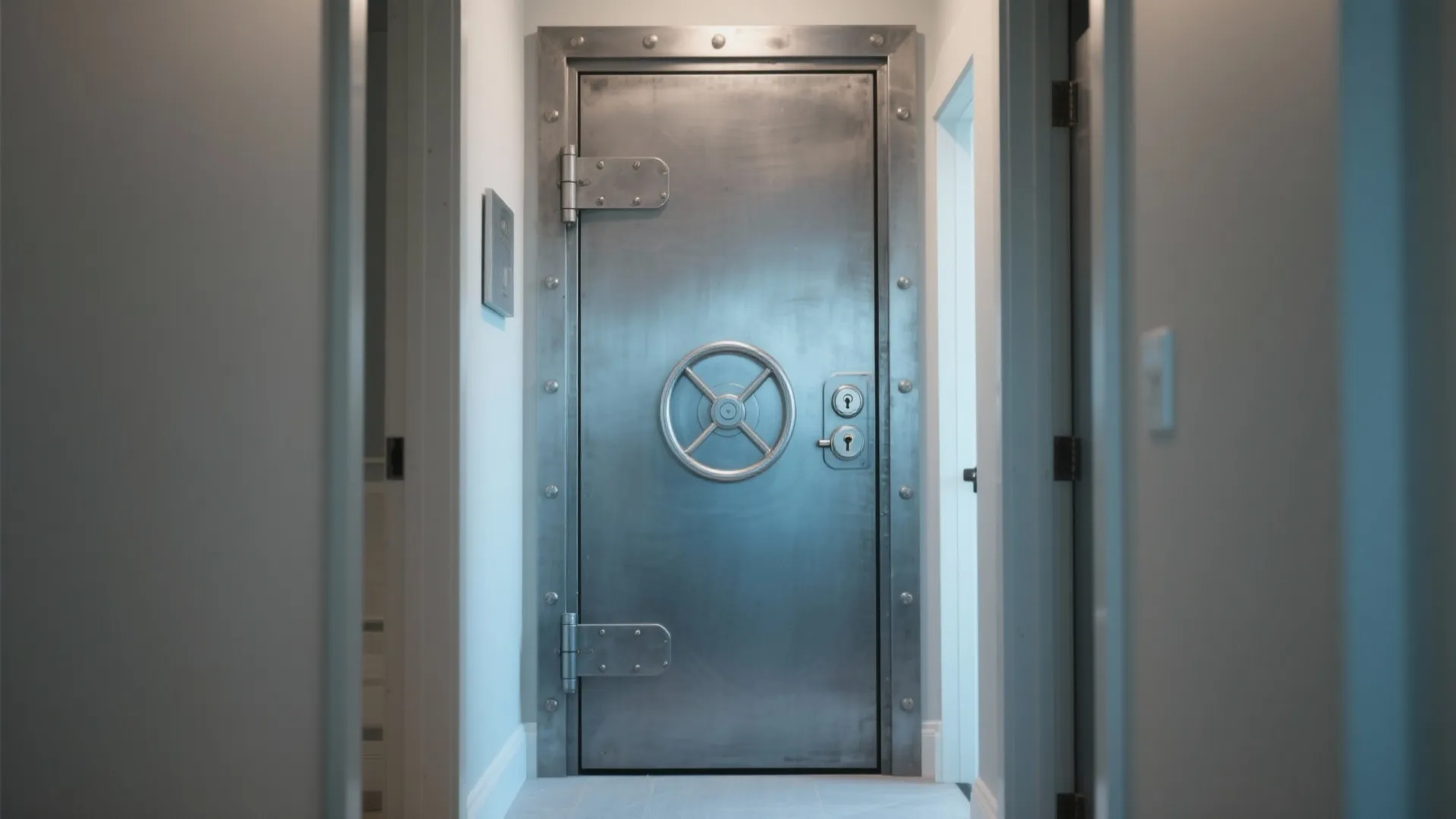

DIY Vault Door: Secure Your Space With a Custom Solution: Fast-Track Guide to Building Your Own Vault Door at Home

I’ve built custom vault-style doors for residential safe rooms and small commercial back-of-house spaces where security and daily usability both matter. A DIY vault door isn’t about mimicking a bank vault; it’s about achieving credible resistance to forced entry while maintaining safe egress, thermal stability, and acoustic control. The goal is a balanced envelope: hardened structure, intelligent hardware, and clean operation.

Performance needs should be defined first. In workplace research, layout and visibility affect behavior and risk exposure; Gensler’s research notes that clear circulation and controlled access improve perceived safety and task focus. For ergonomic fundamentals, WELL v2 highlights egress, reach, and operability standards that reduce injury risk during emergency exits. These references shape the vault door brief: a door that resists common attack vectors yet opens predictably under stress. For color and psychological comfort, Verywell Mind’s color psychology resource is helpful when choosing finishes that lower anxiety and support alertness in protective spaces.

On the engineering side, lighting glare and task visibility matter when operating combination locks or reinforced handles. The Illuminating Engineering Society (IES) recommends task lighting levels in the 300–500 lux range for fine visual tasks; plan your interior fixture placement to deliver at least 300 lux at the locking mechanism without harsh shadows. Acoustic comfort also has value: in my projects, adding a composite door core can improve sound damping by 5–10 dB compared to hollow-core construction, helping occupants remain calm during high-stress events.

Core Design Criteria

Think in layers: structure, hardware, sealing, and user operation. Structure handles physical attack; hardware delays manipulation; sealing blocks pry points, air leakage, smoke, and sound; operation keeps the door usable for all occupants.

Structural Envelope

I start with a steel skin over a composite core. A practical DIY specification: 3 mm (11-gauge) steel exterior plate bonded to a 19–25 mm composite substrate (plywood or MDF laminated with fiberglass mats) and an inner 1.5–2 mm steel liner. Reinforce the latch zone with a 6 mm strike plate welded to a continuous jamb box. Weight will climb quickly; a door at 900 x 2100 mm with this build can exceed 90–120 kg, so hinges and framing must match.

Frame and Anchorage

Use a continuous steel jamb fabricated from 3–4 mm sheet folded into a closed section. Anchor with through-bolts to the wall structure: in concrete or CMU, set mechanical anchors at 300–400 mm intervals around the jamb; in wood framing, use 10–12 mm lag bolts into doubled studs and a header. Always bridge the hinge and latch zones with backing plates so the fasteners can’t be pulled through.

Hardware Strategy

Hardware is your second line of defense. I favor three heavy-duty butt hinges or a pair of welded barrel hinges rated for loads upward of 150 kg. Add at least three passive hinge-side dead bolts (relocking pins) that extend into jamb pockets when the door is shut; these defeat hinge removal attacks. For the primary lock, choose a commercial mortise lockcase with a multi-point bolt or pair it with a surface-mounted vertical rod system for top/bottom locking points.

Handles should be large, grippy, and operable with gloved hands. The ergonomics community emphasizes neutral wrist posture; a D-shaped pull at 900–1100 mm height with 65–80 mm projection feels natural and reduces strain. Integrate an interior quick-release that overrides the exterior locking set—WELL v2’s egress intent is a good north star for this safety layer.

Sealing, Gaps, and Anti-Pry Details

Security failures often happen at edges, not at the lock. Keep the door-to-jamb gap between 2–3 mm where possible. Add a 20–25 mm anti-pry astragal along the latch side: a continuous steel fin that covers the gap and prevents crowbar access. Use bulb weatherstripping around the perimeter to improve air and smoke resistance, plus a drop seal at the threshold to limit dust and sound infiltration.

Light, Color, and Acoustic Comfort

Inside the safe room, aim for 300–500 lux at the lock and desk surface to avoid eye strain while dialing codes or reading instructions, aligning with IES task lighting guidance. Choose finishes deliberately: muted neutrals (mid-gray, desaturated blue) support calm focus, while a high-contrast edge color around the handle improves visibility under stress—an idea supported by color psychology insights from Verywell Mind. Acoustic dampening in the door build, coupled with wall treatments (dense insulation and mass-loaded vinyl), reduces external noise bleed and aids decision-making in emergencies.

Thermal and Material Selection

Metal doors conduct heat and cold. I insert rigid mineral wool (40–60 kg/m³) within the core for fire resistance and temperature damping. Finish the exterior with powder-coated steel for durability and corrosion resistance. Inside, a textured finish helps grip and hides scuffs. Use low-VOC coatings to keep indoor air quality in check.

Dimensional Planning and Layout

Standard residential rough openings sit around 915 x 2134 mm. If you need wheel-in access, target 950–1000 mm clear opening and ensure a 12–19 mm threshold with beveled edges. Think through swing clearance and panic-outs: in tight spaces, a 180-degree opening risks handle strikes against adjacent walls; limit swing with stops and test the circulation path. For quick iterations of hinge swing and clearance zones, a room layout tool can help visualize wall returns and door arcs: interior layout planner.

Build Sequence I Trust

1) Fabricate the jamb and test-fit in the opening. 2) Assemble the door leaf with core, liners, and perimeter box tube. 3) Weld hinge barrels or mount heavy butt hinges; dry-fit to verify alignment and reveal gaps. 4) Install primary lock and relocking pins; test smooth operation before finishing. 5) Fit weatherstripping, astragal, and drop seal; adjust for compression. 6) Prime and powder-coat or paint. 7) Commission lighting and signage, then run emergency egress drills with occupants.

Risk Vectors and Countermeasures

- Pry attack: counter with tight gaps and astragal coverage.

- Hinge removal: counter with hinge-side dead pins and continuous jamb.

- Lock manipulation: use hardened strike plates and shielded cylinders.

- Impact: distribute force via reinforced perimeter frame and internal stiffeners.

- Fire and smoke: add mineral wool core and high-temperature weatherstripping.

Maintenance and Testing

Quarterly checks work well: measure hinge sag, re-lubricate moving parts, inspect seals, and test emergency release. Replace worn seals when compression memory declines. Confirm lighting at the lock stays above your target lux and that signage remains legible.

Budget Notes

A DIY vault door with the specs above typically lands in the mid-to-high four figures when using new steel, quality hardware, and powder-coat finishing. Repurposed materials can bring costs down, but don’t compromise hinge ratings, lock integrity, or frame anchorage.

FAQ

Q1: What thickness of steel is practical for a DIY vault door?

A1: 3 mm (11-gauge) for the exterior skin is a solid starting point; reinforce the latch zone with 6 mm plate and use a 1.5–2 mm inner liner to manage weight and rigidity.

Q2: How much lighting should I provide at the lock?

A2: Target 300–500 lux at the lock area to support precise visual tasks, consistent with IES task lighting recommendations.

Q3: Which hinges are best for heavy doors?

A3: Two welded barrel hinges or three heavy-duty butt hinges rated above your door’s weight (often 150 kg+) with through-bolted or welded attachment to a continuous steel jamb.

Q4: How do I prevent pry attacks?

A4: Keep the gap at 2–3 mm, add a continuous anti-pry astragal on the latch side, and use a reinforced strike plate integrated into a closed-section jamb.

Q5: Can I include multi-point locking without specialized gear?

A5: Yes—pair a robust mortise lock with vertical rods for top/bottom engagement or add secondary surface bolts that engage reinforced pockets in the jamb.

Q6: What materials help with fire resistance?

A6: Mineral wool within the core provides heat resistance and thermal damping; complement with high-temperature seals and noncombustible steel skins.

Q7: How do I ensure safe egress?

A7: Integrate an interior quick-release and verify clear swing arcs; egress and operability principles aligned with WELL v2 encourage intuitive, low-force exit actions.

Q8: What finish colors work best psychologically?

A8: Neutral mid-grays or desaturated blues support calm; use high-contrast accents around handles to aid visibility—consistent with general color psychology insights.

Q9: How should I anchor the frame?

A9: In masonry, use mechanical anchors at 300–400 mm intervals; in wood framing, use 10–12 mm lag bolts into doubled studs and a header, backed by steel plates.

Q10: What maintenance schedule keeps performance consistent?

A10: Quarterly inspections: check hinge sag, lubricate, verify seal compression, retighten anchors, and confirm lighting levels near the lock.

Q11: Does acoustic performance matter?

A11: Yes—composite cores and perimeter seals can reduce transmission by 5–10 dB, helping occupants remain calm and communicate clearly.

Q12: How do I plan the door swing within a tight layout?

A12: Model wall returns and swing arcs, then set stops to avoid handle strikes; using a room design visualization tool helps validate clearance before fabrication.
