DIY Wall Entertainment Center Ideas for Modern Living Rooms: Fast-Track Guide to Your Dream DIY Wall Entertainment Center

I design living rooms around how people really watch, gather, and unwind. A DIY wall entertainment center should anchor the space without overwhelming it, delivering storage, cable management, acoustics, and flexible lighting in a clean profile. In recent client surveys, Gensler’s workplace research notes that clear visual organization reduces cognitive load and decision fatigue, a principle that translates neatly to residential focal walls where clutter-free surfaces improve relaxation and focus. Steelcase studies report that visual order and ergonomic viewing angles reduce micro-stress during screen time—useful guidance when you’re framing a TV and speakers into a streamlined wall system.

Lighting and proportions matter as much as joinery. According to the WELL Building Standard v2 (Light), recommended strategies include layered ambient and task lighting to support visual comfort and circadian cues; even at home, balanced vertical illuminance lowers glare and helps eyes adapt between screen and room. The Illuminating Engineering Society (IES) guidance on luminance ratios also helps avoid high contrast around the TV—keep reflective surfaces matte and maintain a comfortable brightness ratio in the viewing cone. I align these standards with practical design moves: soft indirect light behind panels, dimmable sconces, and thoughtful cable runs that keep hardware tidy.

Establish a Clean Visual Spine

Start with a strong horizontal datum—typically the line formed by the TV center and the main shelving shelf. I prefer a 1:0.62 shelf-to-gap ratio across a 10–12 ft wall for pleasing rhythm: thicker elements low and thinner, lighter elements above. Center the screen at eye level when seated (usually 42–48 inches to the center for most sofas), and place speaker tweeters near ear height. This alignment reduces neck tilt and preserves audio imaging.

Modular Grid with Hidden Storage

Build a simple grid using 12–18 inch modules. Closed cabinets low, open niches mid to high. Push a 4–6 inch cavity behind the grid to route power, data, and AV cables across the wall without surface raceways. Magnetic access panels or a removable backer board keep maintenance easy. If you’re planning the exact shelf spacing and TV clearance, a room layout tool can help visualize massing and sightlines before cutting any plywood: room layout tool.

Floating Console + Slatted Accents

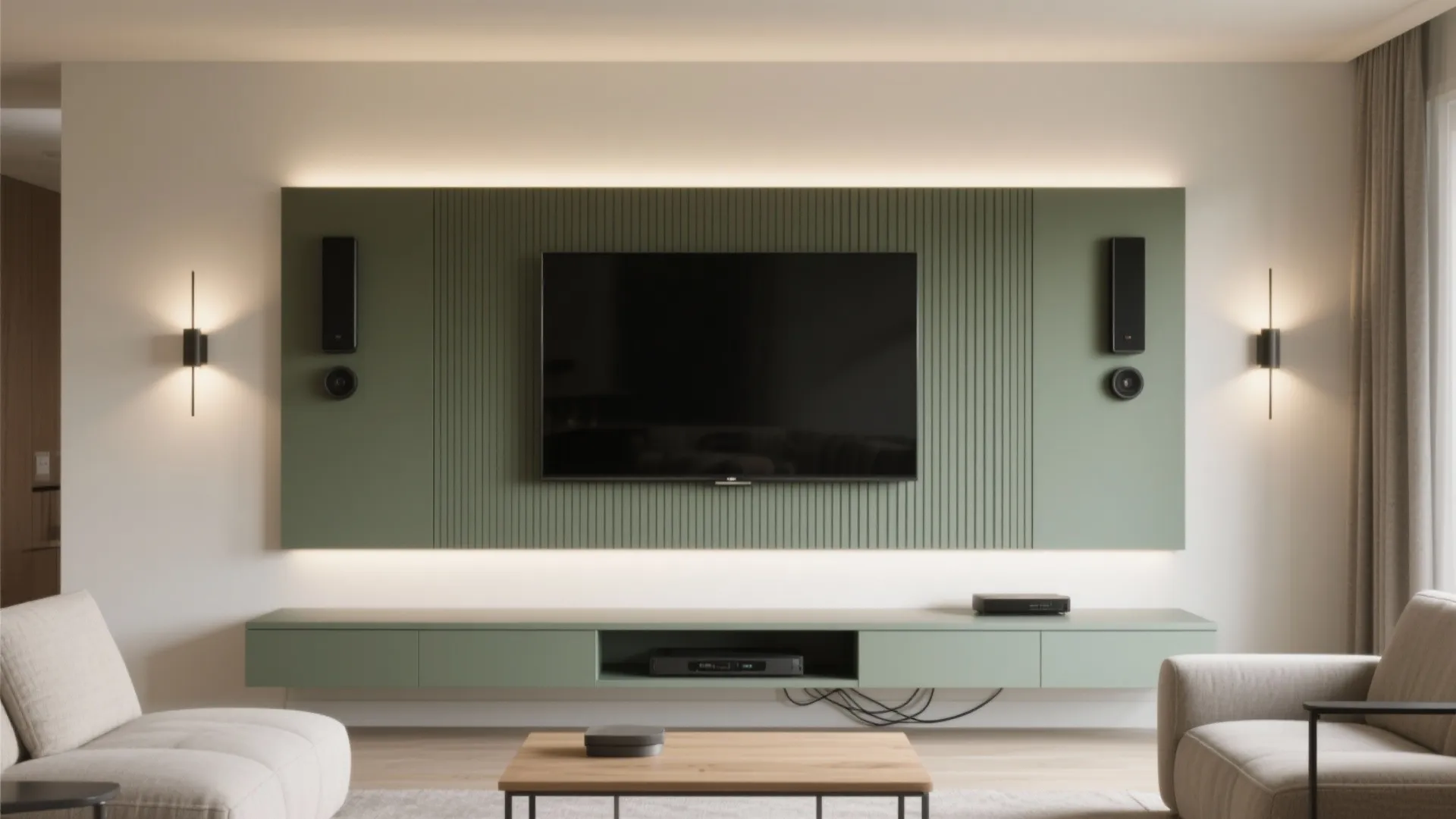

A floating console 8–10 inches off the floor visually lightens the base while protecting electronics from dust. Pair it with vertical slats or ribbed panels behind the TV to damp minor reflections and add texture. Keep the slats matte-finished; glossy ribs amplify glare. I often alternate 1-inch and 2-inch slat widths for a subtle rhythm that reads modern without feeling busy.

Integrated Lighting That Respects the Screen

Use indirect LED strips along the top rail or behind a shallow reveal to create a soft halo that reduces contrast around the TV. Add two dimmable sconces with cut-off optics at roughly 30–36 inches either side of the screen so light washes the wall without spilling directly onto the display. Based on WELL v2 Light recommendations, provide dimming to support evening viewing and keep the combined vertical illuminance balanced to avoid eye strain. If accent lighting is needed in niches, aim for 2700–3000K LEDs for warmth and choose low-CRI sources only if absolutely necessary—ideally 90+ CRI maintains material authenticity.

Acoustic Comfort Without Bulk

Sound behaves differently in compact living rooms. Incorporate fabric-wrapped panels or micro-perforated wood behind artwork and inside side niches to tame first reflections. Keep subwoofers off direct corners if possible to avoid boom; slide them 6–12 inches off the wall. If you’re housing speakers, decouple shelves using thin neoprene pads to reduce vibration transfer. A millwork cavity lined with mineral wool behind the TV can discreetly absorb mid frequencies without thick absorbers.

Cable Management and Ventilation

Ventilation is often overlooked in DIY builds. Leave a 1–1.5 inch slot at the back of enclosed electronics bays and add side vents concealed in the slat pattern. Pull cables through grommeted holes and separate power from signal runs by at least 6 inches to reduce interference. Label every cable at both ends—my trick is heat-shrink labels so they don’t peel with warmth.

Material Palette: Durable, Matte, and Cohesive

Choose materials with low sheen and good wear. Pre-finished plywood, FENIX NTM or similar super-matte laminates, and waterborne lacquer on MDF deliver a modern look while minimizing reflections. Combine one wood tone with one neutral paint and one matte metal; three materials are usually enough for harmony. If sustainability is a priority, verify low-VOC finishes and FSC-certified cores. For deeper material exploration, Material ConneXion maintains research on performance characteristics, useful when evaluating scratch resistance and tactile quality.

Proportion and Color Psychology

Color shapes mood around media. Verywell Mind’s color psychology research points to blues and desaturated greens as calming choices, while warm neutrals add comfort without pulling too much attention. I keep bright colors away from the immediate TV surround to avoid peripheral distraction. A gentle contrast (around 20–30% lightness difference) between the TV panel and adjacent walls prevents the screen from feeling like a dark void.

Open Shelves for Personality, Closed Bays for Calm

Reserve 25–35% of the wall for display—books, low-glare ceramics, plants—and keep the remainder closed for devices and media. This ratio balances personality and calm. Use adjustable shelf pins so the display can evolve seasonally; it keeps the composition fresh without redesigning the millwork.

Mounting and Safety

Always hit studs or use a continuous plywood backer for mounts. For stacked elements, create a concealed steel angle or French cleat rail to carry load. Set the TV with a low-profile tilt mount to tune viewing angle by a few degrees; this helps reduce reflections from windows and ceiling lights. Secure child-safe edge radii on protruding shelves—rounded or chamfered edges soften impact risks.

Small Space Strategies

In tight living rooms, compress depth. A 6–8 inch deep wall system with a recessed TV pocket still reads robust. Use sliding panels to hide the screen when entertaining, and fold-down desks integrated into a bay turn the wall into a multifunction hub. Plan circulation clearances of at least 30 inches in front of the console to keep the walkway comfortable.

Modern Minimalist Variations

- Monolithic plaster niche: a single painted recess with concealed LED reveals and a thin metal picture ledge; austere and elegant.

- Warm timber grid: white oak frame with matte black accents and linen inserts for acoustics.

- Mixed stone and wood: a slim porcelain slab panel behind the TV with flanking walnut cabinets; durable and timeless.

Planning and Visualization

Before cutting material, mock up the composition with painter’s tape on the wall and validate sightlines from every seat. Check reflections at night and midday—glare is often a daylight issue. If you prefer a digital pass, an interior layout planner makes it easy to test TV height, speaker placement, and shelf spacing: interior layout planner.

Step-by-Step Build Sequence

1) Map studs and electrical points; add a dedicated circuit if your load is heavy.

2) Install a continuous plywood backer for mounting.

3) Run conduit or cable trays; test all lines before closing.

4) Build base cabinets with ventilation and access panels.

5) Set floating console rails and mount.

6) Install vertical panels/slats; integrate acoustic inserts where needed.

7) Mount TV and speakers; fine-tune height and angle.

8) Add lighting: strips, drivers, dimmers, and sconces.

9) Finish with paint and edge detailing; commission the system and label everything.

FAQ

Q1: What is the ideal TV height for comfortable viewing?

A1: Aim for the center of the screen at roughly 42–48 inches from the floor when seated on a standard sofa. This typically aligns with natural eye level and reduces neck tilt.

Q2: How do I prevent glare around the TV?

A2: Keep finishes matte, use indirect LED backlighting, and position sconces with controlled optics so light washes the wall, not the screen. Follow IES luminance ratio guidance to avoid high contrast in the viewing cone.

Q3: What color palette works best behind a media wall?

A3: Desaturated blues/greens or warm neutrals support calm. Avoid high-chroma accents immediately around the TV; Verywell Mind’s color psychology insights support softer hues for relaxation.

Q4: How deep should a DIY entertainment center be?

A4: For modern living rooms, 6–12 inches typically suffices for shelves and cable cavities. Use a 4–6 inch service void to route power and data cleanly.

Q5: How can I improve acoustics without bulky panels?

A5: Integrate fabric-wrapped sections behind artwork, micro-perforated wood in niches, and a thin mineral-wool layer within the millwork cavity to absorb mid frequencies. Decouple shelves with neoprene pads to reduce vibration.

Q6: What lighting temperatures should I choose?

A6: For evening viewing, 2700–3000K LEDs provide warmth. Keep high-CRI (90+) sources for accurate material color, and ensure dimming to meet WELL v2 visual comfort strategies.

Q7: How do I manage cables effectively?

A7: Separate power and signal runs by at least 6 inches, use grommeted pass-throughs, label both ends with heat-shrink markers, and plan a removable backer or magnetic panels for maintenance.

Q8: What mounting system is safest for a heavy TV?

A8: Use a continuous plywood backer on the wall, then a rated tilt mount fixed into studs or anchors specified for the load. Consider a steel angle or French cleat for heavy millwork components.

Q9: Can I combine open display with concealed storage?

A9: Yes—allocate about 25–35% of the wall to open shelves and keep the remainder enclosed. This ratio maintains visual calm while showcasing personal objects.

Q10: How do I plan the layout before building?

A10: Tape out modules on the wall and test sightlines from each seat. For digital planning, a room design visualization tool helps simulate heights and spacing: room design visualization tool.

Q11: What materials are durable and modern?

A11: Pre-finished plywood, super-matte laminates, and waterborne lacquered MDF resist wear and reduce reflections. Verify low-VOC finishes and, when possible, FSC-certified cores.

Q12: How do I ensure proper ventilation for electronics?

A12: Provide a rear slot of 1–1.5 inches in equipment bays, add discrete side vents, and avoid sealing drivers within closed compartments. Passive airflow often suffices if paths are clear.
