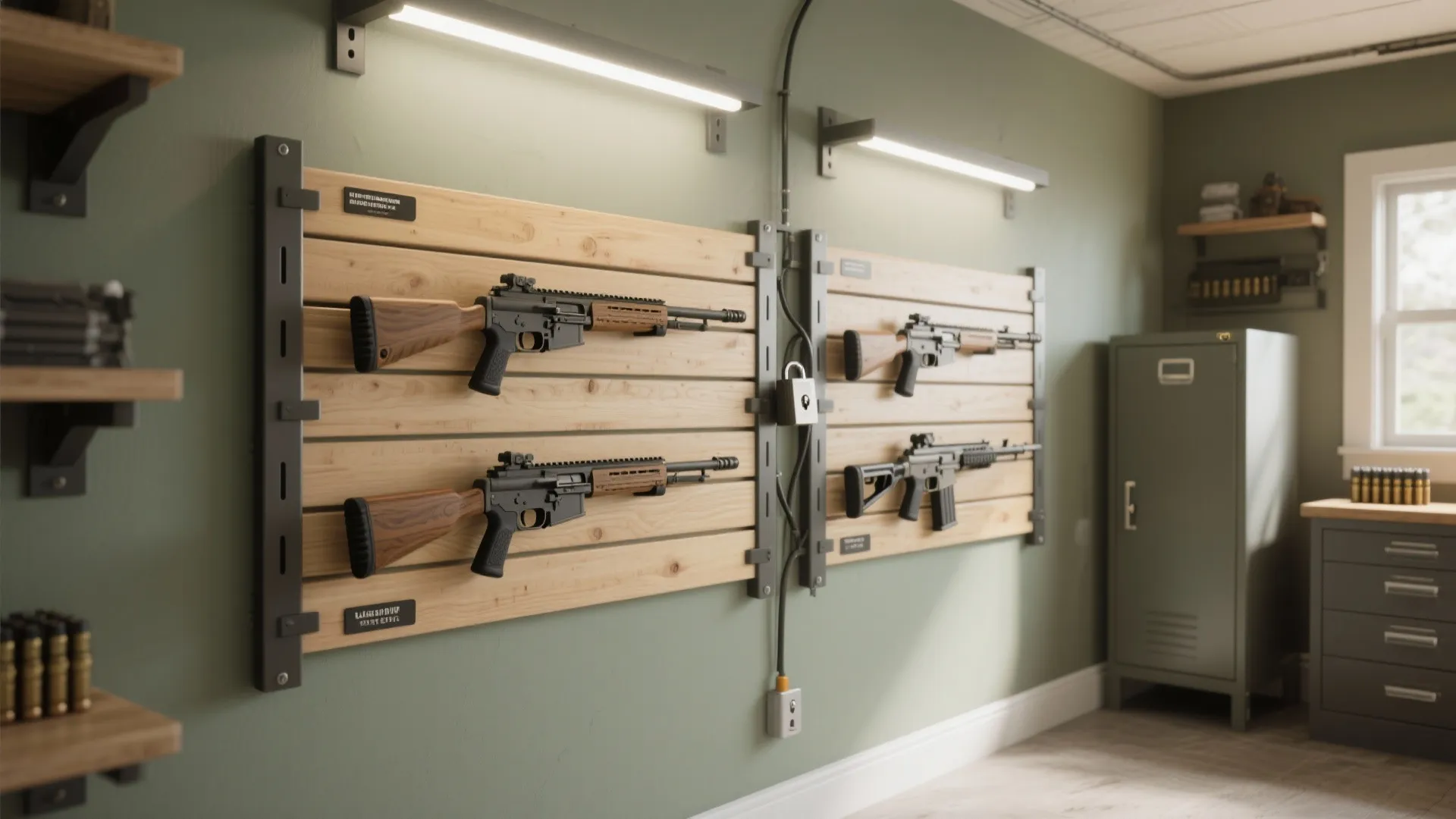

DIY Wall Mount Gun Rack: Step-by-Step Guide for Safe Storage: 1 Minute to Organize Firearms—A Fast-Track Guide to DIY Wall Racks

Safe firearm storage should balance accessibility, security, and visual order. I prefer wall-mount racks in homes where quick identification, routine maintenance, and stable climate are valued—while still meeting lock and separation requirements. Well-designed storage reduces risk and enhances everyday function. According to Steelcase workplace research, visual clarity and organized environments can decrease cognitive load, improving task efficiency by up to 23%, which translates well to how we maintain and retrieve gear. WELL v2 also underscores controllable lighting and clear wayfinding as contributors to safer environments, providing measurable health and safety benefits.

In my projects, lighting and ergonomics are non-negotiable. The Illuminating Engineering Society (IES) generally recommends task lighting around 300–500 lux for inspection-level work; I target 350–400 lux at the rack so serial numbers and fasteners are readable without eye strain. From an ergonomics standpoint, Herman Miller’s research on neutral reach zones supports mounting often-used items between 900–1200 mm (36–48 inches) off the floor to reduce awkward reaches and shoulder elevation. That height range keeps controls and locking mechanisms comfortably accessible while maintaining safe separation from children.

Before we dive into construction, two planning notes: ensure compliance with local laws (locks, ammo separation, and transport/storage requirements) and verify wall structure. Studs, blocking, or masonry anchors must handle static load and moment forces. A loaded rack with wood stock rifles can weigh 20–45 lbs; add safety margins for redundancy and dynamic handling.

Design Goals and Layout Strategy

I aim for three outcomes: secure retention, quick visual identification, and minimal print on the wall. The rack should present a balanced rhythm—regular spacing (110–140 mm centers for long guns is typical), consistent angles, and a clear path for hands. If planning a gear wall or mixed storage layout, a room layout tool can help visualize spacing and workflow before drilling.

Consider future-proofing: allow two extra slots beyond your current collection, provide modular hooks for optics-heavy setups, and dedicate an accessory rail for slings, cases, bore snakes, and silica packs. Ammunition and magazines belong in a separate locked unit per most safety best practices; I segregate by function and place ammo at least 1–2 meters away, often inside a lockable cabinet.

Materials and Hardware Selection

Material choice affects longevity and safety. I use:

1. Backboard: 18–19 mm (3/4") hardwood plywood or solid maple/oak for dimensional stability.
2. Arms/Cradles: Powder-coated steel U-brackets or hardwood pegs with rubberized sleeves to protect finishes.
3. Padding: Closed-cell EVA foam or silicone sleeves; avoid felt that traps moisture and grit.
4. Fasteners: 8 mm lag screws or #12 wood screws into studs; for masonry, use sleeve anchors rated 150 lbs+.
5. Locking: A steel cable lock or trigger locks per firearm, plus a discrete hasp with padlock for the rack.

Finish the backboard with low-VOC polyurethane; it resists humidity shifts. If you prefer anodized aluminum rails, choose corrosion-resistant fasteners and isolate dissimilar metals to avoid galvanic corrosion in humid basements.

Lighting, Color, and Acoustic Considerations

Good visibility reduces handling errors. Keep 350–400 lux at the rack (IES guidance for task lighting), with 3000–3500K warm-neutral LEDs to reveal wood tones without harsh glare. A matte wall paint helps prevent specular reflections on blued steel. Color psychology suggests muted greens and gray-blues promote calm focus, aiding careful handling. If the rack sits near a workshop, add soft acoustic panels or cork backing to dampen clangs and reduce startle risk when placing rifles in cradles.

Safety First: Separation, Locks, and Behavior

Safe storage is about layers: mechanical retention (cradles or pegs), locking (trigger or cable, plus rack lock), and procedural habits. I enforce a ritual: verify clear chamber before placement, lock immediately after mounting, and store ammunition separately in a locked container. If children or guests are present, mount higher (1200–1400 mm to bottom edge) and use a full-length hasp cover. Document serial numbers and keep a discreet inventory list.

Step-by-Step Build Guide

1) Measure and Plan

Lay out your firearms on a padded surface. Note barrel lengths, optics height, and sling attachments. Decide on vertical or angled presentation. Standard spacing: 120 mm centers for long guns without large optics; increase to 150–160 mm for scoped rifles to avoid interference. Mark a horizontal datum line on the wall with a laser.

2) Locate Structure

Use a stud finder and confirm with a pilot hole. For masonry, map mortar joints and choose anchor positions at least 75 mm from edges. If studs don’t align with your ideal layout, add a 19 mm backboard spanning at least two studs; screw the backboard first, then mount brackets to the board.

3) Cut and Finish the Backboard

Rip the plywood to desired width (typically 250–300 mm for single-tier racks). Ease edges with a 3 mm roundover to prevent splinters and avoid sling wear. Sand to 180–220 grit and seal. Allow full cure before mounting hardware.

4) Pre-Drill and Mount Hardware

Transfer your measured centers onto the backboard. For U-brackets, pre-drill with proper pilot size; for hardwood pegs, use a snug dowel bore and epoxy set. Add protective sleeves or foam and test fit with an unloaded firearm. Include a continuous steel cable path to accept locks through trigger guards or receiver openings.

5) Fasten to Wall

Hold the backboard level on the datum line. Drive lag screws through countersunk holes into studs—two screws per stud at 450–600 mm vertical spacing is typical. Check plumb and level. For masonry, drill with an SDS bit, blow out dust, set sleeve anchors, and torque per manufacturer specs.

6) Add Locking and Labeling

Install the hasp, padlock, or cable lock points. Discreet laser-etched or vinyl labels help inventory without visual clutter. Integrate a small desiccant compartment to manage humidity.

7) Test, Adjust, and Document

Test each slot with unloaded firearms. Check clearance at optics, levers, and stocks. Adjust spacing or angle to avoid contact points. Photograph the final layout and update your inventory sheet.

Ergonomics and Reach Zones

To reduce strain, organize by frequency of use. Place frequently-used firearms between 900–1200 mm height—aligned with neutral reach. Reserve higher zones (1400–1700 mm) for infrequent items or storage boxes. Keep lock points reachable without wrist deviation. This approach mirrors human-factors guidance often cited in workplace ergonomics research, where optimized reach reduces musculoskeletal risk.

Moisture, Cleaning, and Finish Care

Maintain 40–50% relative humidity and avoid direct HVAC blasts. After range sessions, allow cooldown, wipe with a silicone cloth, and place on the rack only when dry. Quarterly, inspect padding for abrasions or embedded grit. Replace sleeves if they scuff—and avoid fleece or felt that can hold moisture. If you use a basement location, consider a low-sone dehumidifier and vibration isolation pads to decouple the rack from laundry machines.

Visual Balance and Aesthetic Integration

Racks can read as crafted cabinetry rather than hardware. I align bracket heights to create a unified visual rhythm, choose finishes that echo nearby millwork, and use a restrained palette so the rack becomes a quiet feature rather than a focal beacon. This refined approach supports cognitive ease per Steelcase’s observations and calms the space, making maintenance more deliberate.

Legal and Ethical Notes

Regulations vary widely. As a baseline, keep firearms locked, store ammunition separately, and restrict access. Consider local guidance, training, and regular audits of storage practices. If laws require full locking cabinets, use the wall rack as display when permitted and keep the primary locked enclosure for everyday storage.

Sourcing and Alternatives

Well-built commercial brackets can save time and deliver tested load ratings. If you’re building from scratch, verify material quality and choose finishes that won’t react with oils or solvents. A modular rail system allows future expansion without redrilling the wall.

Maintenance Schedule

Monthly: check fasteners and locks. Quarterly: clean and recondition sleeves and inspect anchors. Annually: re-level, confirm humidity control, and refresh finish if needed. Keep documentation updated and photograph any changes.

FAQs

How high should I mount a wall gun rack?

Place frequently used firearms between 900–1200 mm (36–48 inches) for neutral reach. If children are present, raise the bottom edge to 1200–1400 mm and add locking measures.

What lighting level is best at the rack?

Aim for 350–400 lux task lighting to read markings and inspect parts without glare, aligning with IES guidance for detailed tasks.

Can I store ammunition on the same rack?

Best practice is separate, locked storage for ammunition. Most jurisdictions favor physical separation to reduce risk.

Which materials protect firearm finishes?

Closed-cell EVA foam, silicone sleeves, and powder-coated steel brackets are reliable. Avoid felt and fleece that trap moisture and grit.

How do I anchor into drywall safely?

Never rely on drywall alone. Fasten into studs with lag screws or install a structural backboard that spans multiple studs.

What spacing works for scoped rifles?

Increase centers to 150–160 mm to prevent optics from contacting adjacent firearms and to allow comfortable grasping.

Is a wall rack enough for legal compliance?

It depends on local laws. Many require locks on each firearm and sometimes fully enclosed, lockable storage. Treat the rack as one layer in a multi-layer safety system.

How do I manage humidity?

Maintain 40–50% RH, use desiccants near the rack, and consider a dehumidifier if in a basement. Always store dry firearms.

What finish should I use on the backboard?

Low-VOC polyurethane provides durable protection without off-gassing long-term. Let it cure fully before mounting hardware.

Do I need acoustic treatment near the rack?

Not required, but cork pads or small acoustic panels reduce clang noise and make handling calmer—useful near workshops.

How often should I service the rack?

Monthly fastener checks, quarterly sleeve cleaning, and annual alignment/humidity reviews keep the system safe and stable.

Can I integrate locks without marring finishes?

Use silicone-coated cables and route through lock-friendly points like trigger guards or receivers; avoid abrasive contact with bluing.
