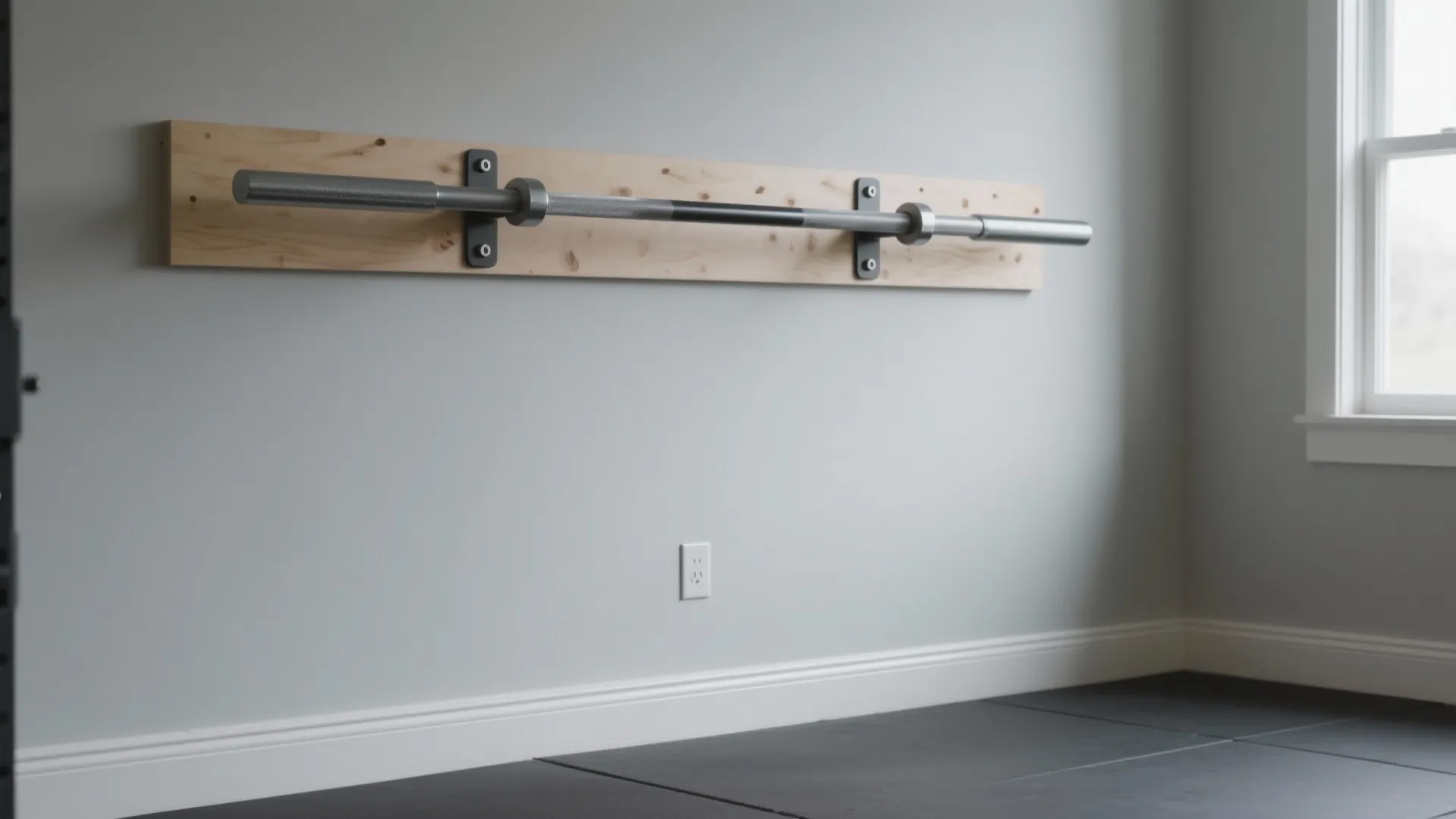

DIY Wall Mount Pull Up Bar: Strong, Simple, and Affordable: Fast-Track Guide to Building a Wall Mounted Pull Up Bar in 1 Hour

I’ve built and installed more wall-mounted pull-up bars than I can count, both in home gyms and small studio projects. The goal here is straightforward: a bar that feels solid under load, is comfortable to grip, and won’t shred your wall. I’ll walk through sizing, materials, mounting strategy, and finish—keeping costs in check without compromising safety.

Strength and safety aren’t just about thick steel. Load transfer into the structure, fastener selection, and spacing matter more. Steelcase research links well-designed, accessible fitness setups with improved user adherence; and the WELL Building Standard v2 emphasizes clear anchorage and safe reach ranges in movement spaces, supporting injury reduction. For context, WELL’s Movement feature encourages accessible exercise infrastructure, while ergonomic ranges keep shoulder elevation under control for repetitive use. I size a home pull-up bar to safely handle 2–3x the expected user load to account for dynamic forces.

Lighting and visibility are part of safety. I aim for 300–500 lux ambient lighting around the bar so users see hand placement and hardware; the Illuminating Engineering Society (IES) references this band for general workout/task zones. Color can nudge behavior: Verywell Mind’s notes on color psychology suggest cooler palettes can feel calming and focused; I often paint the backer board a muted graphite to reduce glare and visual noise around the bar.

Core Specifications

• Bar length: 36–48 inches for single-user home gyms; 42 inches hits the sweet spot.

• Clearance from wall: 18–22 inches to avoid knee/foot contact; I prefer 20 inches.

• Height: 84–92 inches from finished floor; 88 inches fits most users while allowing full hang without floor contact.

• Pipe/Bar: 1.25-inch outside diameter (OD) steel pipe for grip comfort; schedule 40 is plenty for typical home loads.

• Side plates/arms: 2x steel brackets (3/16–1/4 inch thick) with triangular gussets, or lumber arms reinforced with steel angle.

• Fasteners: 3/8-inch structural lag screws or through-bolts into studs; use at least four per side.

Material Options

• Steel pipe (1.25-inch OD), black or galvanized, cut to length.

• Two 90° steel elbows + two threaded flanges if using a pipe/flange system.

• Brackets: steel flat bar and angle with gussets, or heavy-duty off-the-shelf shelf brackets rated 300+ lb each.

• Backer board: 3/4-inch plywood, 12–14 inches tall x 36–48 inches wide, to distribute loads across multiple studs.

• Fasteners: 3/8-inch x 3–4 inch lag screws with washers; or 3/8-inch through-bolts and lock nuts if accessible from the other side.

• Finish: non-slip bar tape or textured powder coat; avoid glossy paint that gets slippery.

Mounting Strategy and Layout

Wall mounting is only as strong as the substrate. I never mount directly to drywall; I span studs with a plywood backer board so the load spreads and fasteners bite wood, not gypsum. If you’re planning your gym wall and want to visualize clearances, a room layout tool from Coohom can help you simulate reach envelopes and circulation paths: room design visualization tool.

Stud Location and Backer Board

• Find studs with a reliable finder; verify with a small pilot hole.

• Center the backer board on at least two studs; three is better for wider bars.

• Pre-drill 1/4-inch pilot holes for 3/8-inch lag screws to prevent splitting and ensure torque accuracy.

• Level the board and fasten with washers; check for zero wobble before adding the bar.

Bracket Geometry

• Arms at 90° from the wall with a triangular gusset reduce flex under dynamic loads.

• Keep the bar-to-wall standoff consistent (20 inches recommended).

• If using pipe flanges, ensure four-lag fastening per flange into solid wood—never anchors alone.

Ergonomics and Grip Comfort

Grip size dictates fatigue. At 1.25-inch OD, most hands achieve neutral wrist alignment with solid friction. If you train high-rep sets, add a light, tactile wrap; this reduces sweat slip without altering diameter too much. Maintain shoulder-friendly width around 20–24 inches for neutral pulls; wider grips are fine, but avoid forcing the hands beyond shoulder external rotation limits repeatedly.

Step-by-Step Build (Pipe + Flange Method)

1. Cut and dry-fit the pipe, elbows, and flanges; confirm a 42-inch clear span.

2. Prep the backer board, seal edges, and mount to studs with six lag screws minimum.

3. Mark flange locations on the backer; ensure symmetrical height and spacing.

4. Pre-drill and fix the flanges with four lag screws each; use washers.

5. Thread and tighten the pipe assembly; check level and torque.

6. Add gusseted side brackets below the bar if extra support is needed.

7. Test with static load: hang plates or a sandbag approximating 1.5–2x user weight before first use.

Alternative: Welded Bracket + Solid Bar

If you have access to basic welding, a single solid bar seated in two welded cup brackets with gussets gives a cleaner look and fewer fasteners. Keep bracket plates large enough (at least 4x8 inches) to carry four fasteners each into the backer board.

Acoustics, Lighting, and Finish

Mounted bars can transmit impact sound into adjacent rooms. If noise is a concern, use neoprene isolation pads between backer board and drywall, and avoid metal-on-metal contact where possible. Lighting at 300–500 lux prevents harsh shadows at the grip; if the bar sits near a window, control glare with matte wall finishes. A slightly textured powder coat or taped grip keeps the bar usable when hands are damp.

Sustainability and Material Care

Choose durable finishes that don’t off-gas heavily; low-VOC coatings are worth it in small home gyms. Galvanized steel resists corrosion in humid basements. If you want warmth, a sealed plywood backer can visually tie into other gym storage elements.

Cost Breakdown (Typical DIY)

• Steel pipe + fittings: $25–45 depending on length and finish.

• Backer board: $20–35 for 3/4-inch plywood offcut or half sheet.

• Fasteners and washers: $10–20.

• Optional brackets or angles: $20–40.

• Finish/wrap: $8–15.

Total: roughly $85–155, well under most retail units with comparable strength.

Testing and Safety Checks

• Perform a static load test with sandbags equal to 2x expected user weight.

• Inspect fasteners monthly; retighten if you notice creaks.

• Keep clear floor space of at least 36 inches in front to avoid foot strikes.

• Avoid mounting over doors or fragile interior partitions.

References and Design Rationale

I align sightlines, reach ranges, and grip heights with general movement guidance from WELL v2, which promotes safe, accessible fitness features in built environments. For lighting, I follow the IES practice of providing 300–500 lux for task clarity in small workout zones. For color cues that reduce anxiety around new training routines, I lean on Verywell Mind’s accessible summaries of color psychology. For workplace research on adherence and behavior, Steelcase’s research library is a helpful framing resource for placing fitness within daily use patterns.

FAQ

Q1: What bar diameter is best for most hands?

A: 1.25-inch OD strikes the balance between grip comfort and forearm fatigue. Larger diameters increase strength demands and can compromise wrist alignment for smaller hands.

Q2: How high should I mount the bar?

A: Aim for 88 inches from finished floor for average ceilings. Adjust so you can hang without your feet touching, with a small bend in knees if necessary.

Q3: Is a pipe-and-flange setup strong enough?

A: Yes, when flanges are lagged into a plywood backer board spanning multiple studs, and you use 3/8-inch structural lags. The weak link is usually poor anchorage, not the pipe.

Q4: Can I mount directly into drywall with heavy-duty anchors?

A: No. Drywall anchors are not rated for dynamic loads. Always anchor into studs, ideally through a backer board that spreads the load.

Q5: How far from the wall should the bar be?

A: 20 inches is my go-to. It avoids knee contact during kipping or tucked variations and keeps leverage reasonable on the brackets.

Q6: What lighting level should I target?

A: Provide 300–500 lux ambient around the bar. This reduces mis-grips and shadowing. If glare is an issue, use matte wall finishes near the bar.

Q7: What finishes improve grip without chalk?

A: Textured powder coat or a thin athletic tape wrap. Avoid glossy paint, which can become slippery with sweat.

Q8: How do I reduce noise transfer?

A: Add neoprene isolation pads behind the backer board, use washers to distribute pressure, and avoid metal-on-metal contact points where possible.

Q9: Is 1.5-inch diameter better for strength training?

A: It increases grip challenge, which can be useful for advanced trainees, but most users perform better on 1.25-inch for strict pull-ups and longer sets.

Q10: What’s a safe test before first use?

A: Hang sandbags equal to 2x your body weight for 30–60 seconds while observing for movement or creaks. Re-tighten hardware and re-test.
