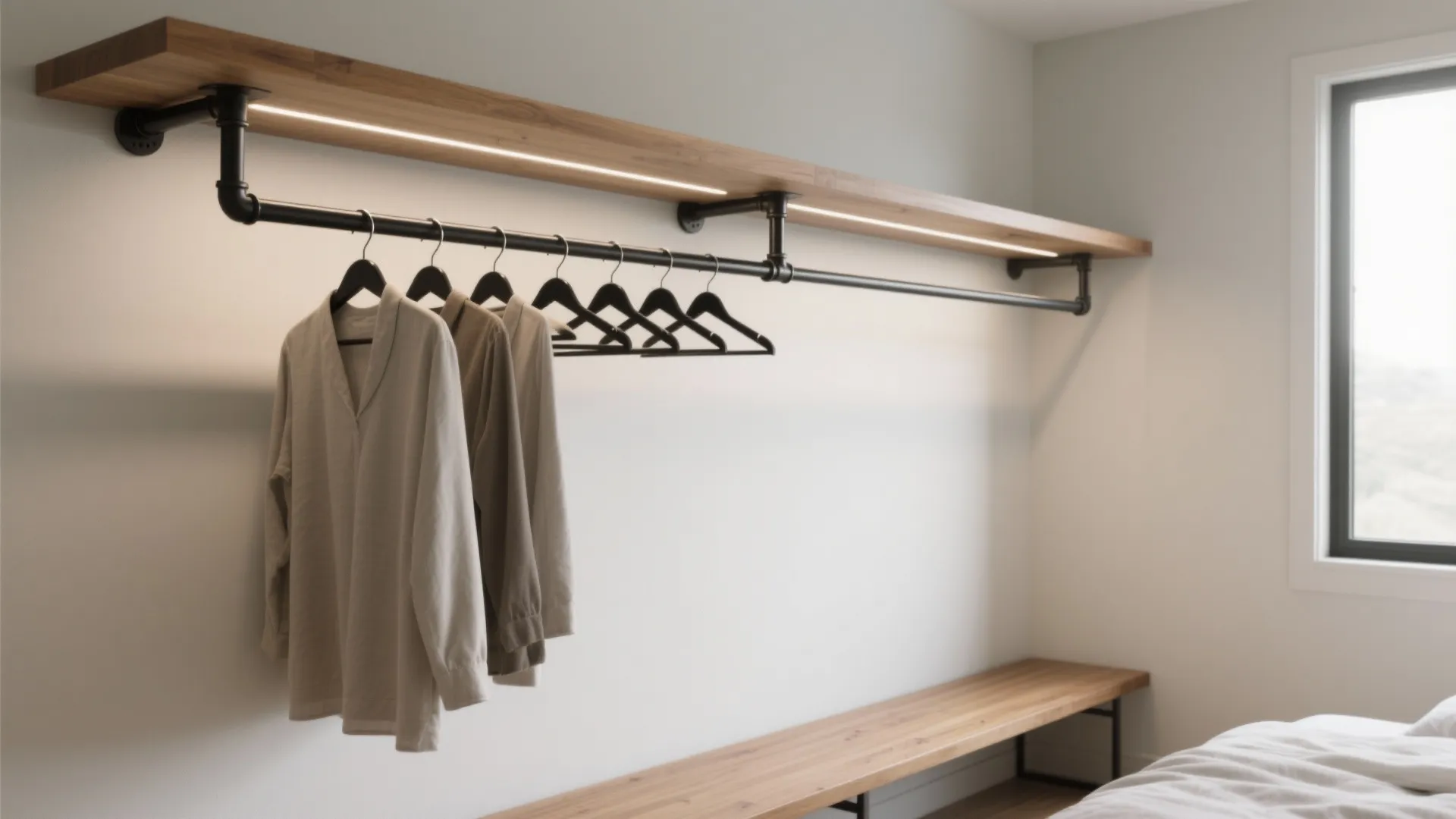

DIY Wall Mounted Clothing Rack: Maximize Bedroom Storage: Fast-Track Guide to Building Your Own Wall Mounted Clothes Rack

I’ve installed and refined more wall-mounted clothing racks than I can count—especially in compact bedrooms where every inch matters. When designed with the right anchors, spacing, and lighting, a DIY wall rack can free up floor area, improve circulation, and make daily dressing remarkably efficient.

Smart planning pays off. Steelcase’s research indicates 60% of people cite clutter and disorganization as a key source of stress in home work and living zones, and reducing visual noise directly improves perceived control and satisfaction. On the lighting side, the Illuminating Engineering Society (IES) recommends general ambient lighting around 150–300 lux in bedrooms, with task lighting for closets and clothing areas reaching 300–500 lux for accurate color recognition and easier selection. For broader wellness criteria—especially ventilation and VOC control—the WELL v2 performance approach reinforces clean air and material safety in residential projects. You’ll find the WELL v2 framework here: WELL v2.

Assess Space, Structure, and Load

Start by mapping the wall surface you plan to use. Mark stud locations with a stud finder—racks need solid backing to avoid sagging. Typical studs are spaced 16 inches on center in many North American homes; verify your pattern. I prefer a minimum of two studs for any rack exceeding 24 inches in length, with three studs for heavier loads or if you store denim, coats, or bags. A general rule of thumb: a well-anchored steel pipe rack fixed into studs with lag screws can safely hold 75–100 lbs, but always cross-check the hardware manufacturer’s specs and consider your wall substrate (drywall, plaster, or masonry).

Define Hanging Heights and Horizontal Rhythm

Measure your longest garments. Full-length dresses often require 60–65 inches of vertical clearance; outerwear typically needs 45–50 inches. For a flexible setup, split the wall into top and bottom hanging zones—two-tier hanging works well for shirts and trousers and nearly doubles capacity. Keep rods 12–16 inches from the wall for hanger depth and airflow. I aim for consistent spacing: 8–10 inches between hangers for less crushing, 6 inches if you need maximum density. Consider aligning rods along visual axes (door frames, windows) to minimize visual clutter and reinforce symmetry.

Choose Materials That Work as Hard as You Do

For DIY builds, black steel pipe (schedule 40) with threaded fittings is cost-effective, sturdy, and easy to assemble. Pair it with heavy-duty flanges and lag screws rated for your substrate. If you prefer a lighter look, anodized aluminum racks with concealed brackets keep sightlines clean. Add a hardwood top ledge for folded items or hat storage—maple or white oak offers durability with a warm grain. In small rooms, matte finishes cut glare and reduce visual busyness; satin black or gunmetal blends well with most palettes.

Anchor Hardware and Safety

Always pre-drill pilot holes to prevent splitting and improve screw bite. Use washers and lock nuts to resist loosening over time. If you’re mounting into masonry, use sleeve anchors or wedge anchors with suitable embed depth. For drywall-only areas, add a continuous plywood backing strip tied to studs, then mount the rack onto that substrate. Test the rack by gradually adding weight and checking for deflection; any noticeable bowing signals the need for additional supports or thicker pipe.

Integrate Lighting for Color Accuracy and Ease

Good lighting is the difference between guessing and choosing. Aim for 300–500 lux on garments with a color rendering index (CRI) of 90+ to avoid off-color decisions—this is especially important for navy and black differentiation. Warm-neutral LEDs at 3000–3500K keep colors honest without looking clinical. Shield sources to reduce glare and provide a gentle wash of light across hangers. If you prefer a boutique vibe, use slim linear LEDs above the rod angled at 30–45 degrees, and add a dimmer for early mornings.

Ergonomics and Daily Flow

Place frequently used items between 30–60 inches from the floor—this matches the comfortable reach zone for most adults. Reserve the higher tier for off-season or special-occasion pieces and the lower tier for heavier folded items. Keep the most-used garments near the dominant hand side (right side for right-handed users) and stage accessories (belts, scarves) within a single arm’s reach to minimize micro-frictions that slow mornings.

Color Psychology and Visual Calm

Clothing walls can quickly become busy. A restrained backdrop helps. Research on color perception highlights that neutral, low-saturation backgrounds reduce cognitive load when evaluating hues. I like a pale gray or warm off-white behind racks; it softens shadows while maintaining contrast. If your wardrobe is colorful, choose a single accent color for hooks or shelf edges to create a sense of cohesion rather than visual noise.

Acoustic and Airflow Considerations

While clothing softens sound, metal hardware can ring or rattle. Felt washers between flanges and wall surfaces dampen vibration, and rubber caps on hangers cut micro-squeaks. Keep at least 3 inches of clearance from the wall to prevent fabric from pressing against painted surfaces—better airflow reduces mustiness. Where possible, avoid placing racks directly over supply vents; distribute airflow so garments don’t flutter and collect dust unevenly.

Spatial Ratios and Balance

In small bedrooms, I balance the rack length to 60–70% of the wall run to avoid an overbearing presence. If you add a shelf above the rod, keep it 10–12 inches deep to prevent shadowing and head bumps. Visually anchor the rack with a low console or bench below if the room feels top-heavy; maintaining a 1:1 or 2:3 mass ratio between top and bottom elements yields calmer composition.

Layout Planning and Simulation

Before drilling, I always tape out the rack footprint on the wall and floor, hang a few empty hangers from painter’s tape, and test door swing, window clearance, and circulation. If you’re reworking a tight room, a layout simulation tool helps you iterate heights and spacing quickly. Try a room layout tool to visualize the arrangement and traffic flow: room layout tool.

Step-by-Step Build Outline

- Locate studs and mark mounting points.

- Confirm desired heights: single-long (60–65 inches) or double-tier (35–40 inches + 70–75 inches overall).

- Cut and dry-fit pipe sections; confirm reach and hanger clearance.

- Pre-drill and anchor flanges into studs; level each run.

- Assemble rods, tighten fittings, and stress test with incremental loads.

- Add shelf and lighting; verify lux and glare control.

- Finish with protective caps, felt washers, and cable management for LEDs.

Maintenance and Seasonal Rotation

Set a quarterly edit to prevent overload—once capacity exceeds 80–85%, access declines. Wipe metal with a dry microfiber to reduce dust, and check fasteners annually. Rotate heavy items to lower positions in winter to reduce daily strain.

Common Mistakes I Avoid

- Mounting into drywall without stud support or proper anchors.

- Over-deep shelves that cast harsh shadows on garments.

- Cold 4000–5000K lighting in bedrooms that makes fabrics look sterile.

- Ignoring clearance for doors and windows.

- Underestimating total load when adding bags or accessories.

FAQ

How high should I mount a single clothing rod?

For long dresses and coats, 60–65 inches from the floor works well. If you mostly hang shirts and trousers, 58–60 inches is sufficient.

Can drywall anchors alone support a wall-mounted rack?

I don’t recommend it. Tie into at least two studs with lag screws. If studs aren’t where you need them, add a plywood backer attached to studs, then mount the rack to that.

What pipe diameter is best for DIY racks?

Three-quarter-inch black steel pipe offers a good balance of rigidity and weight. Half-inch can flex under heavy loads; one-inch is robust but visually heavier.

What lighting should I use to see true colors?

LEDs with CRI 90+ at 3000–3500K, delivering 300–500 lux on garments. This range supports comfortable bedroom light while preserving color accuracy.

How deep should the rod be from the wall?

Keep 12–16 inches from the wall to accommodate hanger depth and airflow. Less than 12 inches compresses garments; more than 16 inches can encroach on circulation.

Will a two-tier setup fit in a small bedroom?

Yes. Set the lower rod around 35–40 inches and the upper around 70–75 inches overall. Ensure the upper tier doesn’t conflict with ceiling fixtures or shelves.

What finish minimizes visual clutter?

Matte or satin finishes in neutral tones—satin black, graphite, or brushed aluminum—reduce glare and help the rack recede visually.

How do I keep the rack from loosening over time?

Use lock nuts, thread tape on fittings, and recheck fasteners annually. Add felt washers to dampen vibration at wall connections.

Is there a recommended maximum load?

It depends on anchors and substrate. A stud-mounted steel pipe rack typically supports 75–100 lbs; verify with your specific hardware ratings and test gradually.

What’s the best way to plan the rack layout?

Tape out dimensions, test with a few hangers, and simulate traffic paths. A digital room layout tool helps explore heights, lengths, and clearances before drilling.
