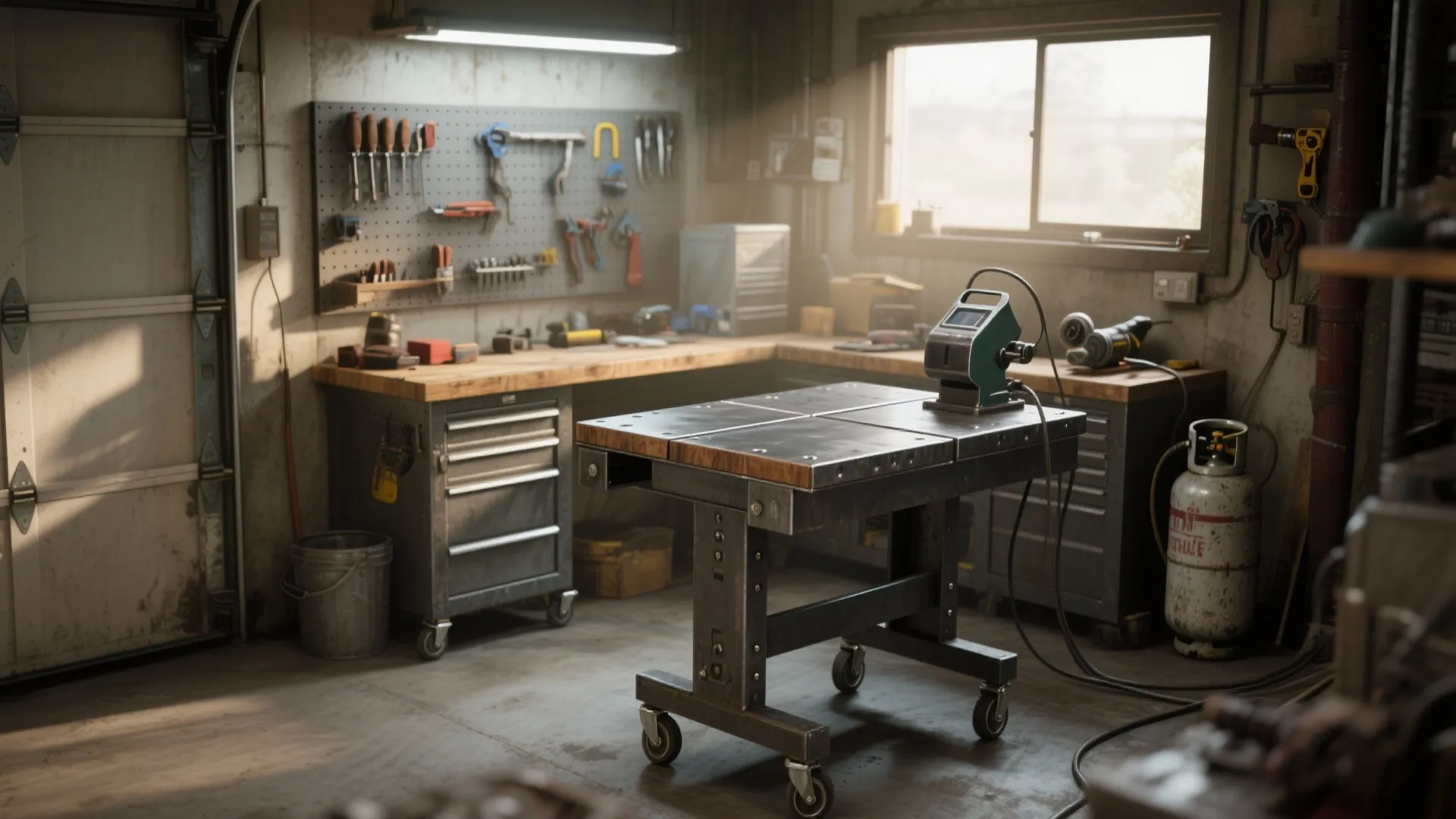

DIY Welding Table Kit — 5 Workshop Ideas: Compact, modular and budget-friendly DIY welding table kit ideas I’ve built and tested

I once had a client ask me to build a welding table that could double as a dining table for surprise dinner guests — true story. That little moment taught me that a DIY welding table kit isn’t just a bench: it’s a chance to make something tough, clever, and space-smart. If you’re working in a small garage or shared studio, small spaces can actually spark big creativity, and I’ll show you five ideas that prove it. Check out some workshop layout examples workshop layout examples I referred to when arranging tight areas.

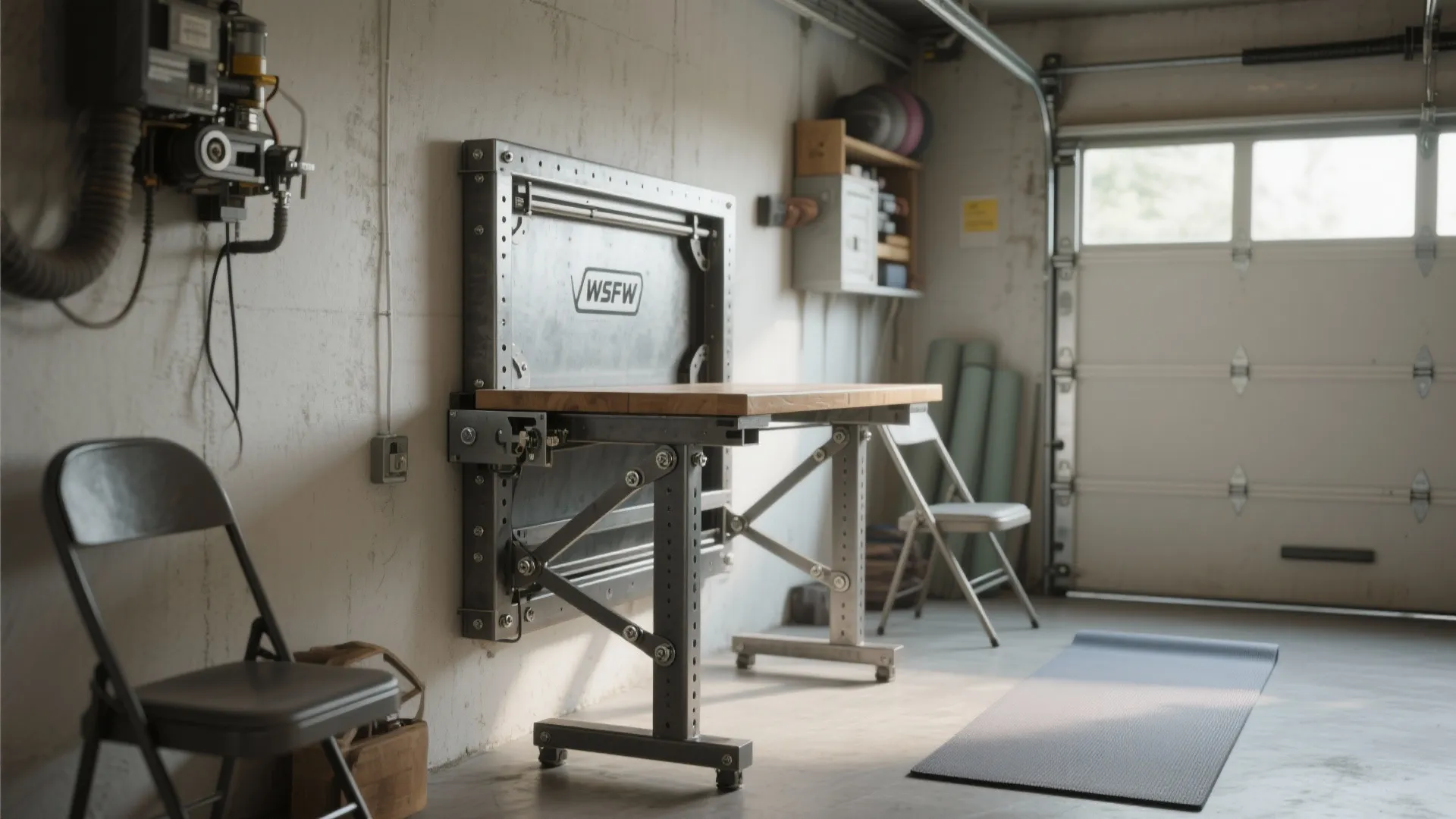

1. Compact Foldaway Table

I designed a foldaway welding table for a client who turns their garage into a yoga studio on weekends. The table hinges to the wall and locks solid when upright, saving floor space while still handling medium-duty projects. It’s simple, cheap, and perfect if you need a strong surface but can’t commit floor area full-time; the main challenge is reinforcing the hinge points so they don’t flex under heavy loads.

save pin

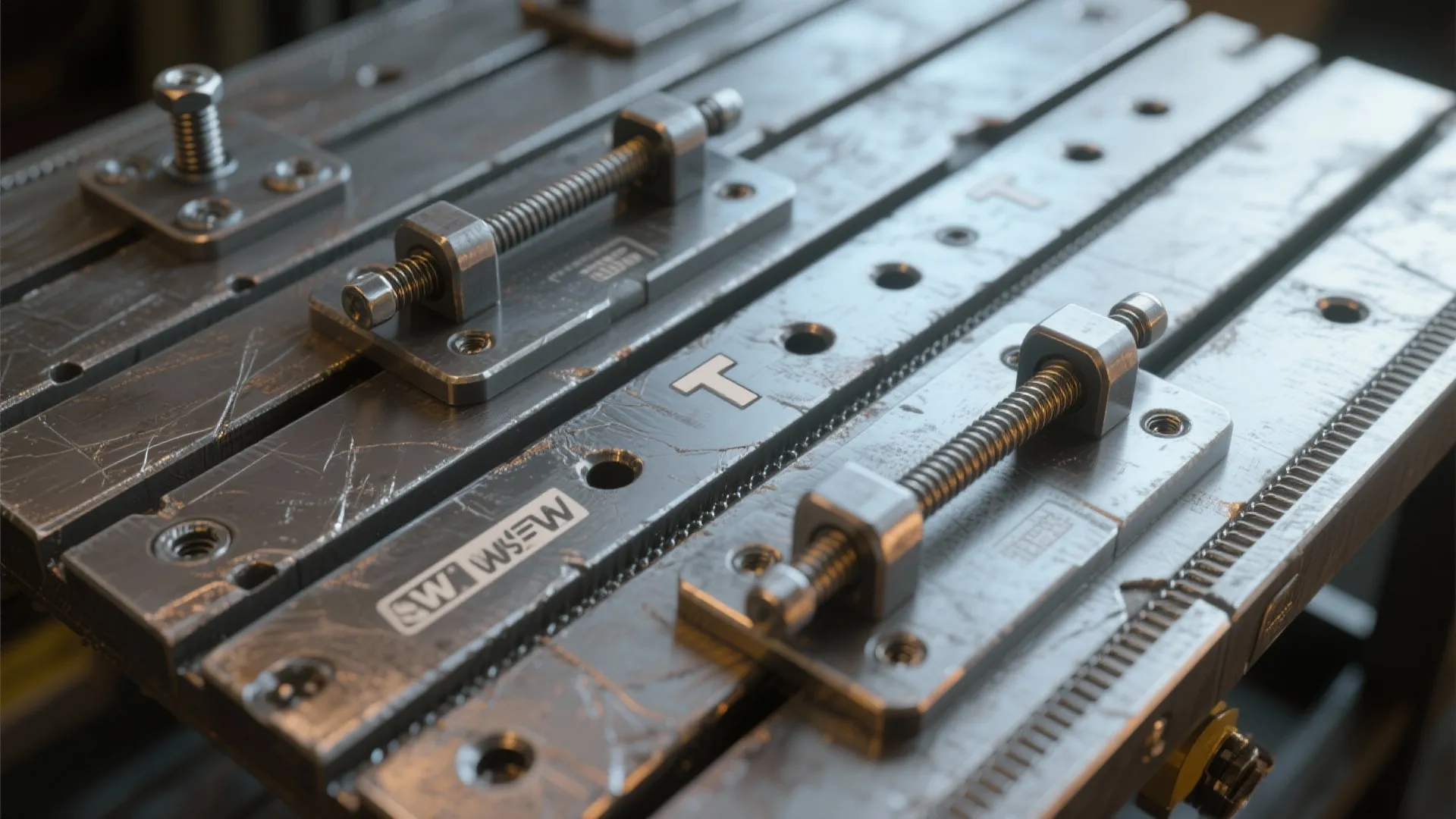

2. Modular Slot-and-Plate System

One of my favorite builds uses a slotted top with removable fixture plates so you can bolt jigs anywhere. I love the flexibility — swap plates, add clamps, and adapt for piping or sheet metal. The downside is initial fabrication time and the need for precise welding, but once built it’s endlessly useful and scales with added plates.

save pin

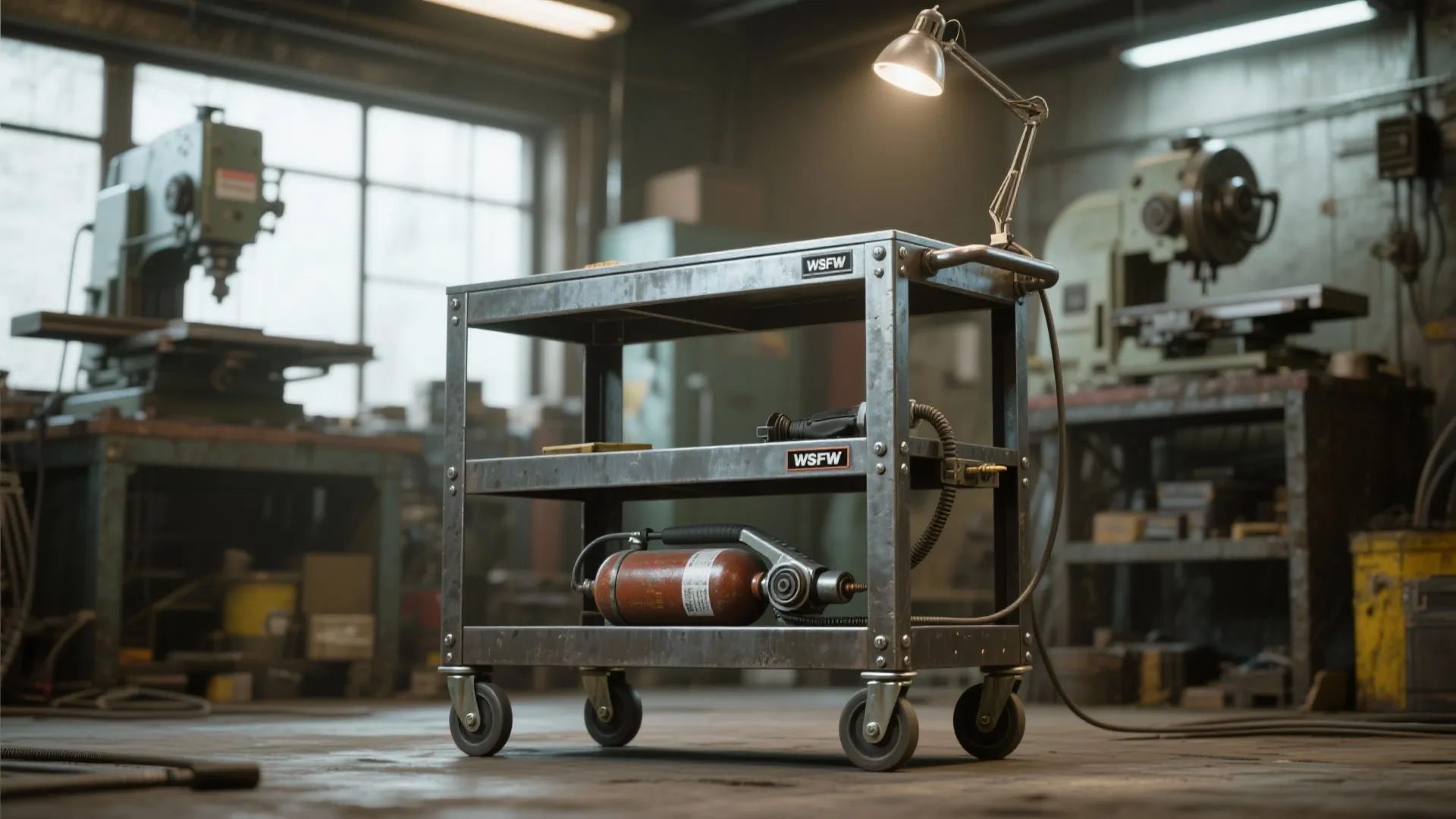

3. Mobile Heavy-Duty Cart

Rolling weld tables are lifesavers when you need to move projects between machines. I made a cart with hardened steel casters, lockable wheels, and a lower storage shelf for gas bottles and grinders. Mobility adds convenience, but you’ll want stout casters and a low center of gravity to prevent tipping. For visualization and inspiration I often browse 3D render inspiration 3D render inspiration to test proportions before cutting metal.

save pin

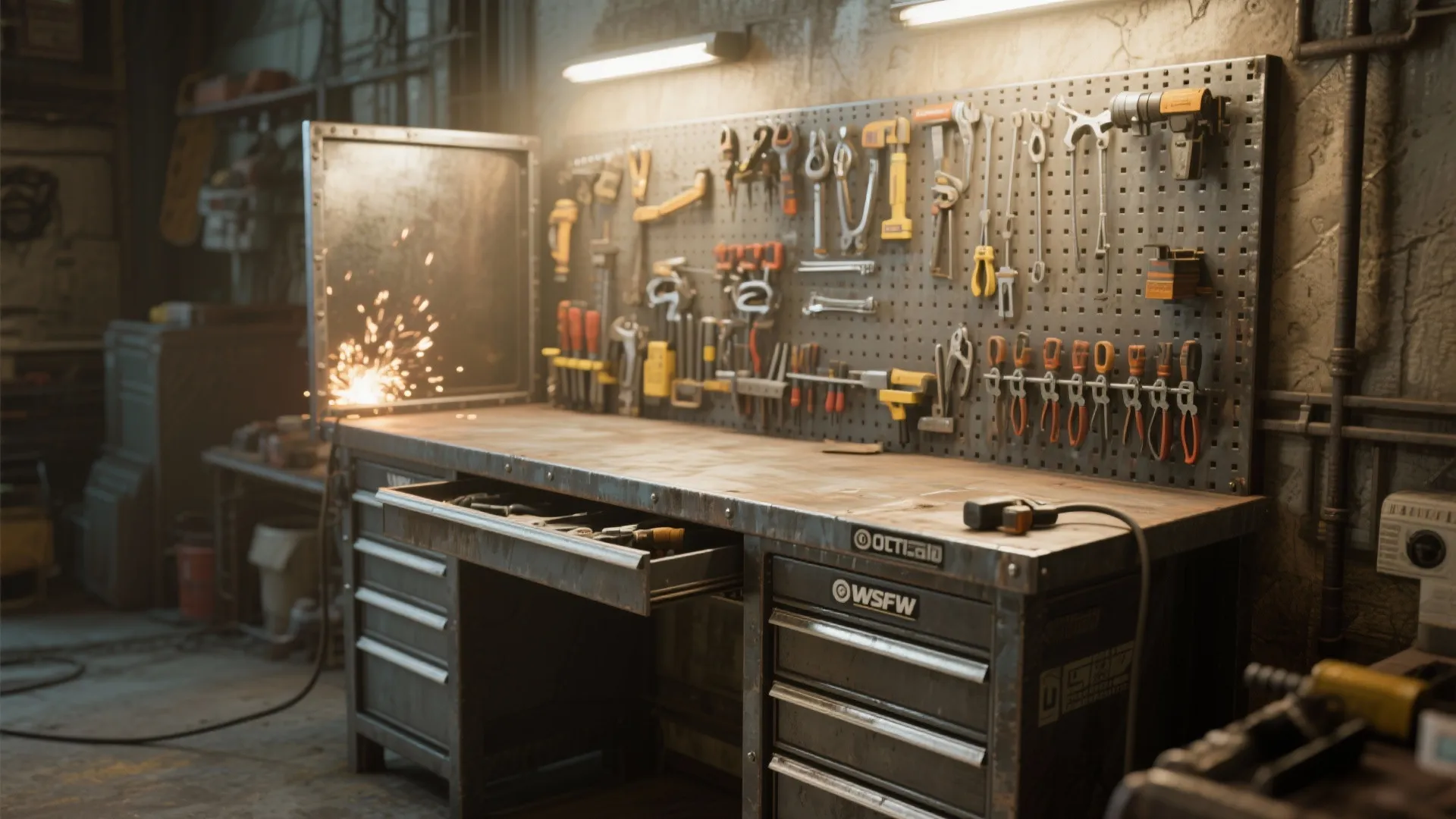

4. Integrated Storage & Toolboard

Combine a welded frame with pegboard and drawers to keep tools close and protect the workspace. I built a table with a fold-out toolboard that doubles as a shield for sparks when closed. It’s fantastic for workflow, though it adds complexity and cost — think about whether you want fixed storage or modular bins that you can reconfigure.

save pin

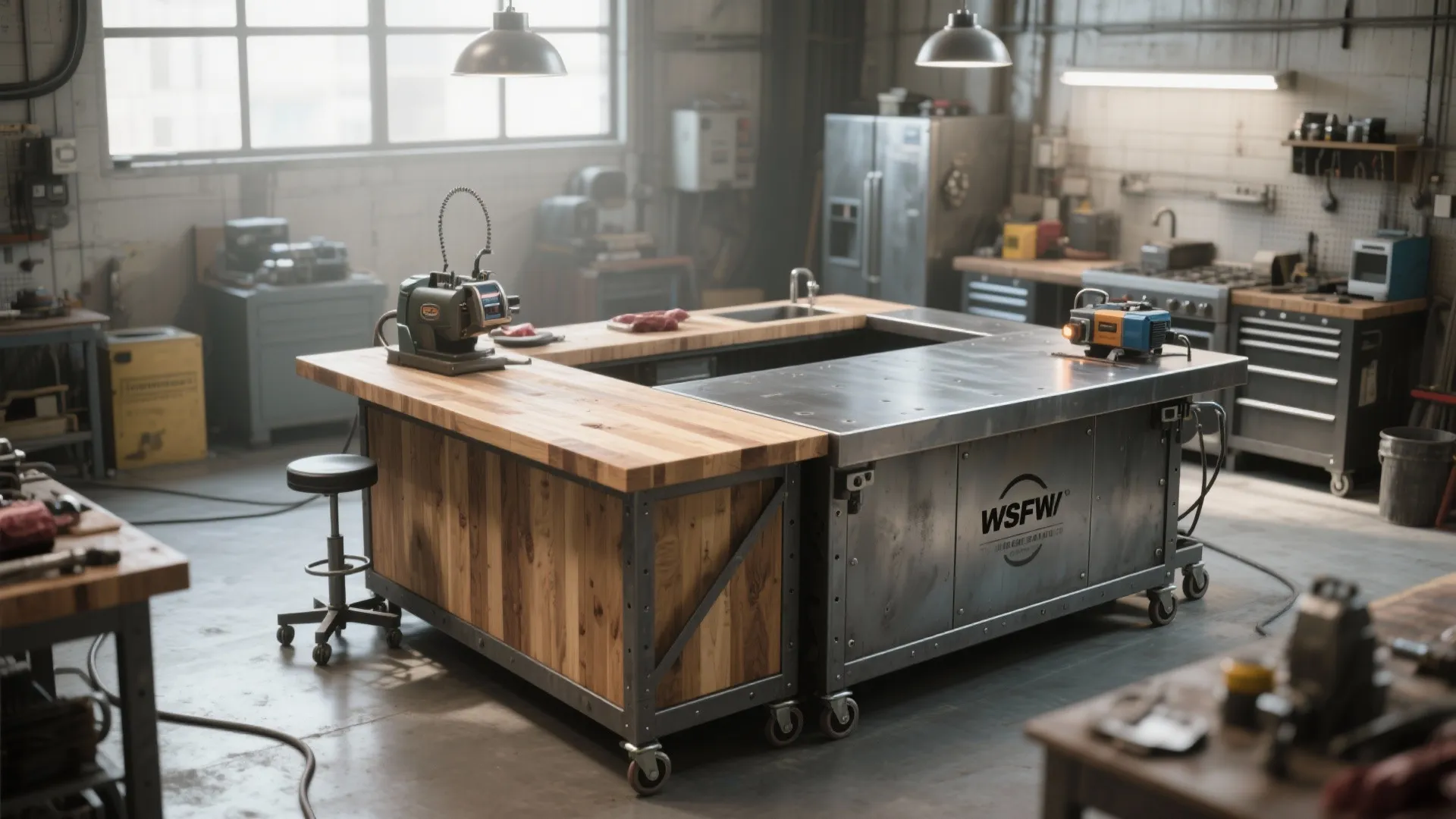

5. Multi-Purpose Welding Island

If you have a slightly larger footprint, go island-style: butcher-block top for assembly on one side, steel plate on the other for tack welding, with casters for repositioning. I once adapted kitchen planning tricks to make a shop island, so drawing ideas from compact workbench plans compact workbench plans helped me balance clearances and circulation. It’s versatile, but heavier and pricier — budget for thicker steel and good anchoring.

save pin

FAQ

Q: What steel thickness should I use for a DIY welding table kit?

I typically recommend 10–12 mm (3/8") for a solid top that resists warping, and 6–8 mm for cross members. If you’re doing light fabrication, 6 mm plate can work, but heavier work needs thicker material.

Q: How much weight can a home-made welding table hold?

Load capacity depends on frame design and plate thickness; a well-braced 3/8" top on a box-section frame can support several hundred kilos. Always overbuild the frame if you expect concentrated loads.

Q: Do I need a grounding hookup on the table?

Yes — bond the table electrically to the welding ground to avoid stray currents and improve arc stability. Regularly check connections and clean contact points to maintain a solid ground.

Q: What safety standards should I follow?

Follow OSHA guidance for welding and cutting operations (see OSHA Welding, Cutting and Brazing standards at https://www.osha.gov/welding-cutting). Proper ventilation, PPE, and fire prevention measures are essential.

Q: Can I build a DIY welding table kit on a tight budget?

Absolutely — salvage steel and repurpose old frames to cut costs, and prioritize a sturdy frame and a flat top. The trade-off is time and extra finishing to remove rust and ensure flatness.

Q: Is a modular kit better than a welded custom table?

Modular kits win on flexibility and transportability; welded custom tables win on rigidity and lower long-term maintenance. I choose based on expected load and how permanent the workspace is.

Q: What tools do I need to build one?

At minimum: a MIG or TIG welder, angle grinder with flap disc, drill, clamps, and a square. Jigs for right angles make assembly much cleaner and faster.

Q: Where can I find reliable plans or inspiration?

Look for community shop builds, maker forums, and case studies from trusted design tools — many designers share measured plans and BOMs that you can adapt to your space.
