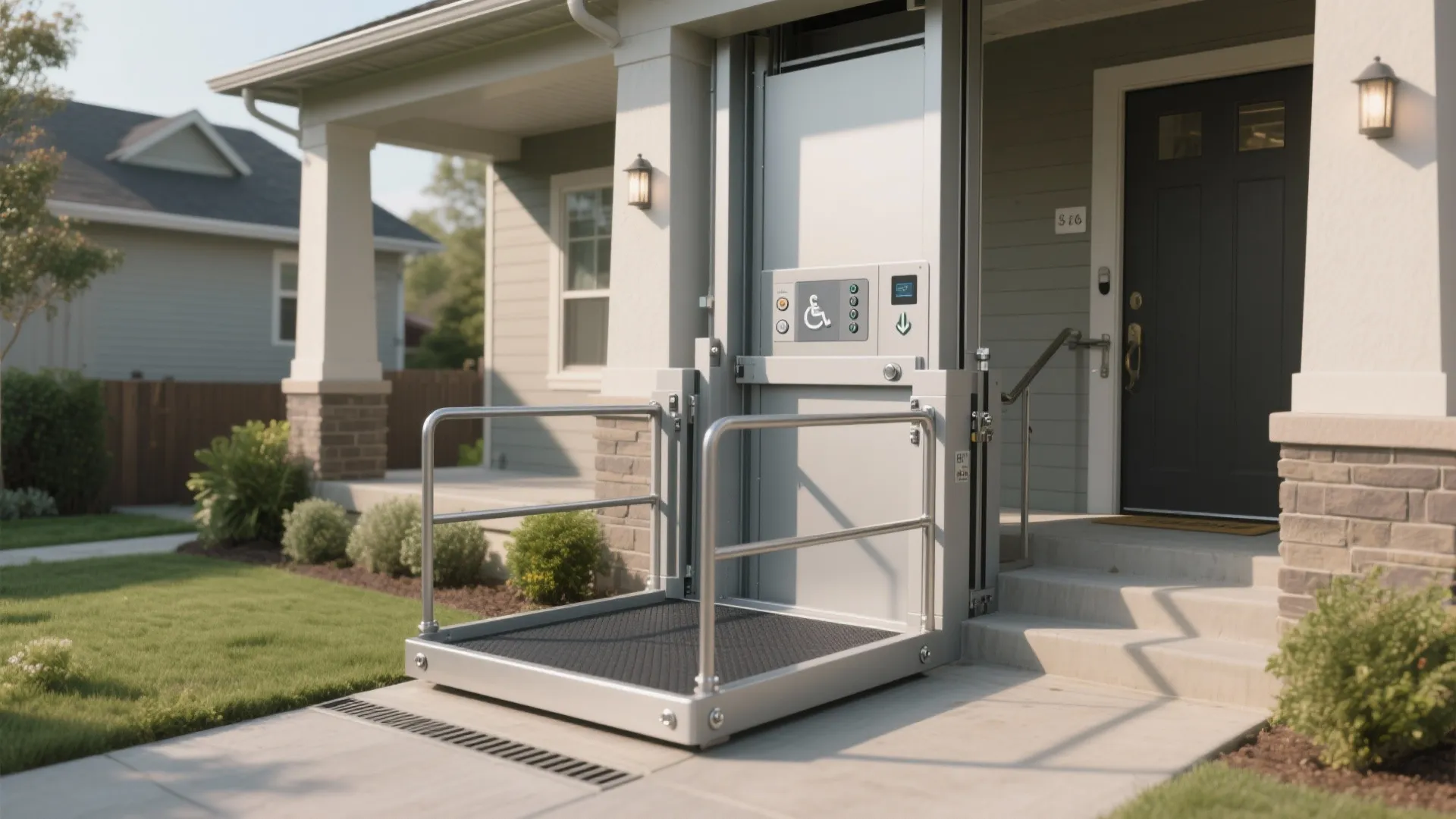

DIY Wheelchair Lift for Home: Step-by-Step Guide: Fast-Track Guide to Building a Safe Home Lift Solution

I’ve designed accessibility solutions for homeowners for over a decade, and a residential wheelchair lift can radically improve daily independence when stairs or split-levels stand in the way. While some components can be tackled by a skilled DIYer, a home lift demands precise planning, adherence to code, and professional oversight on structural, electrical, and life-safety elements. The goal here is to help you plan a safe, serviceable, and comfortable lift project that respects human factors, acoustics, lighting, and materials—without compromising on reliability.

Safety and usability must drive every decision. WELL v2 guidance stresses accessible circulation and lighting quality—targeting glare control and appropriate illuminance in task areas—while IES recommendations often place general ambient lighting in the 150–300 lux range for residential circulation and higher levels for task orientation. Steelcase research has repeatedly linked clear sightlines and ergonomic clarity with reduced stress and better wayfinding; those principles apply to lift users who need intuitive controls and predictable movement. For broader workplace accessibility context and planning insights, I often reference Steelcase Research and WELL v2 as baseline orientation resources.

Assess Needs and Site Conditions

Start with the user’s mobility profile, chair dimensions, and turning radius. Standard power wheelchairs often require a platform clear area around 36–40 inches wide and 48–60 inches long, plus the door clearance (ADA platforms are commonly around 36" x 54" or more). Evaluate level changes (rise), approach routes, weather exposure, and interior-invasive work. Measure structural capacity near the lift: a residential platform lift typically weighs several hundred pounds plus dynamic loads; anchoring must be into sound framing or reinforced slab.

Consider environmental factors: avoid wind-driven rain at outdoor installations; plan drainage away from the base. From an ergonomics standpoint, controls should be reachable from a seated position (typically 36–48 inches AFF) with tactile differentiation and simple logic: up, down, emergency stop. Lighting should minimize glare on glossy controls and offer uniform illumination around the platform and landings—generally aiming for ~200–300 lux, aligned with IES circulation guidance.

Choose Lift Type and Drive System

Residential options include vertical platform lifts (VPL), inclined platform lifts for stairs, and short-rise porch lifts. Drive systems vary: screw-drive (worm gear), hydraulic, and belt/chain-drive. Screw-drive systems are compact, relatively low-maintenance, and commonly used in VPLs; hydraulic lifts offer smooth travel and strong torque but introduce fluid handling and potential leak concerns. Prioritize systems with rated safety features: overspeed governor, emergency stop, platform gate interlocks, and battery-backed lowering.

Travel speed for residential VPLs often sits around 8–12 feet per minute—slow enough for safety, fast enough to be practical. Noise matters indoors; belt or screw systems typically produce moderate mechanical noise and vibration. Mitigate with isolation mounts, rubber pads under the machinery base, and a rigid platform frame to reduce resonance.

Plan Clearances, Structure, and Layout

Establish platform size, landing space, door swing, and turning zones. For exterior lifts, a covered landing reduces slip risk and weather exposure. Interior lifts need headroom (often 80 inches minimum at landings) and guardrails where edges occur. If you’re testing alternative positions in tight rooms, a layout simulation tool like a room layout tool can help visualize turning paths, door arcs, and landing safety margins before you commit to framing.

Structural anchoring must be engineered. Base plates and rail columns require bolting to concrete or to reinforced framing. For slab installations, expansion anchors or epoxy anchors must be sized for pull-out and shear; wood framing requires through-bolts into blocking or LVL beams. Vibrational loads accumulate over time—overbuild the support rather than chase flex later.

Power, Controls, and Safety Integration

Most residential lifts require a dedicated circuit, often 120V or 240V depending on the motor and control package—always verify manufacturer specs. Include a lockable disconnect within sight of the lift. Emergency stop, keyed control, and platform gate interlocks are non-negotiable. A hold-to-run control keeps the user in the loop: the lift moves only while the button is pressed. Add fail-safe brakes and overspeed protection per manufacturer and code guidance.

Battery-backed lowering ensures the platform can return to a landing during power loss. Consider low-voltage call stations at each landing with illuminated buttons; lighting should avoid harsh contrast, with ~200–300 lux at controls and landings. Tactile feedback and high-contrast labeling support users with low vision.

Weatherproofing and Materials

For exterior lifts, select corrosion-resistant finishes: hot-dip galvanized steel, powder-coated aluminum, and stainless fasteners. Non-slip flooring matters; rubber or textured composite panels provide traction and drainage. Avoid overly soft materials that deform under wheel load and long-term compression. Acoustic comfort improves with damped panels and rubber gaskets around access doors.

Inside the home, match finishes to interior design but prioritize durability. Edge guards protect walls near approaches. Consider sustainable materials with long service life and recyclability. Keep glazing minimal on platform gates to reduce glare and fingerprints; if you include windows, use matte or low-reflectance finishes around them.

Step-by-Step Build Framework

1) Verification and Permits

Confirm local building code requirements and permitting. Many jurisdictions treat platform lifts under residential elevator/hoist rules; inspections typically cover electrical, structural anchoring, and life safety.

2) Site Prep and Foundation

Lay out the footprint, clearances, and landings. For slab installs, cut and pour a thickened pad with reinforcing rebar if required by the lift manufacturer’s base loading specs. Integrate drainage away from the base; slope 1–2% away to prevent ponding.

3) Structural Frame and Rail Installation

Assemble the mast or rails per manufacturer sequence. Square and plumb everything—tolerance usually within 1/16–1/8 inch over full height prevents binding. Torque anchors to spec and re-check plumb after first test runs.

4) Platform Assembly

Build the platform with rigid framing, non-slip floor, kick plates, and toe clearance. Install gates with interlocks; verify that the lift will not move unless gates are closed and locked.

5) Drive System and Controls

Mount motor/drive, chain/belt or screw assemblies, and limit switches. Wire hold-to-run controls and emergency stop. Add call stations at landings; label functions in high contrast.

6) Electrical Hookup

Run the dedicated circuit, install the disconnect, bond all metal parts, and test ground fault protection where applicable. Commission battery backup and test power-loss lowering.

7) Lighting, Signage, and Ergonomics

Provide uniform, low-glare lighting—target ~200–300 lux at landings and controls. Mount controls 36–48 inches above the floor, reachable from a seated position, and allow side approach clearance. Add clear, tactile signage and an audible arrival cue for low-vision users.

8) Weatherproofing and Finish

Seal penetrations, add drip edges, and use closed-cell gaskets around doors. Confirm all exterior fasteners are stainless or galvanized. Apply anti-corrosion coatings as needed.

9) Commissioning and Testing

Load-test with the user’s chair weight plus 25–50% buffer to simulate dynamic loads. Check stops, braking, interlocks, battery lowering, and emergency procedures. Run at least 20–30 cycles to identify binding or vibration.

Human Factors: Comfort, Lighting, and Acoustics

A calm lift experience starts with predictable controls, gentle acceleration, and clear sightlines. Avoid shiny control panels that reflect light into the user’s eyes; matte finishes and rounded edges reduce visual noise and accidental bumps. Provide arrival cues—soft chimes instead of harsh beeps—and avoid reverberant enclosures. For indoor lifts, add wall panels or acoustic backing to contain mechanical sound.

Maintenance and Reliability

Schedule quarterly visual checks and annual service on drive components, interlocks, and electrical connections. Lubricate screw drives or chains per manufacturer guidance; clean drainage channels and non-slip flooring. Replace worn rubber isolation mounts to keep vibration in check. Keep a written log of cycles, services, and any anomalies to anticipate parts replacement before failure.

Common Pitfalls to Avoid

- Undersized platform or tight turn-in space that forces unsafe maneuvers.

- Inadequate anchoring into weak framing or thin slab.

- Harsh glare at landings or glossy controls that impair visibility.

- Skipping battery-backed lowering or keyed controls in shared residences.

- Ignoring water management in exterior installations.

Cost and Timeline

Expect several weekends for a skilled DIYer plus professional inspections. Material costs vary widely by drive type, platform size, and finishes. Budget additional funds for electrical work and any slab reinforcement. Factor in annual maintenance and occasional part replacement.

FAQ

Q1: How big should the platform be?

A: For most power wheelchairs, aim for at least 36 inches wide by 54 inches long, with additional clearance for doors and turning. Confirm with the actual chair dimensions and add margin for safe approach and exit.

Q2: What lighting levels work best around the lift?

A: For residential circulation and controls, plan roughly 200–300 lux with uniform distribution, consistent with IES recommendations. Avoid glare; pick matte finishes and diffused fixtures.

Q3: Can I run the lift on a standard household circuit?

A: Many residential lifts require a dedicated 120V or 240V circuit, depending on the motor. Always verify manufacturer specs and install a lockable disconnect within sight.

Q4: Which drive system is easiest to maintain?

A: Screw-drive systems are common in residential VPLs and typically offer straightforward maintenance. Hydraulic systems provide smooth operation but require attention to seals and fluids.

Q5: How do I reduce noise and vibration?

A: Use rubber isolation mounts under the motor and base, ensure rigid platform framing, and add acoustic panels in enclosed areas. Verify rails are plumb to prevent binding noise.

Q6: Do I need permits or inspections?

A: In most jurisdictions, yes—platform lifts often trigger electrical and structural inspections. Check local building codes before purchasing components.

Q7: What happens during a power outage?

A: Specify battery-backed lowering so the platform can reach a landing safely. Test this function during commissioning and at annual service intervals.

Q8: How do weather conditions affect outdoor lifts?

A: Plan roof or canopy coverage, slip-resistant flooring, stainless or galvanized fasteners, drainage slope, and sealed penetrations to prevent corrosion and water damage.

Q9: Are there ergonomic guidelines for control placement?

A: Mount controls 36–48 inches above floor level, reachable from a seated position. Use high-contrast labels, tactile buttons, and a hold-to-run function for safety.

Q10: Can I integrate smart features?

A: Yes, with caution. Remote call buttons and status monitoring are feasible, but prioritize fail-safe mechanical interlocks and manual overrides over networked features.

Q11: How often should the lift be serviced?

A: Perform quarterly checks and annual professional service to inspect interlocks, drive components, and electrical connections. Maintain a service log and replace worn parts proactively.

Q12: What’s the typical travel speed?

A: Many residential platform lifts travel around 8–12 feet per minute—slow enough for safety while remaining practical for daily use.
