Elevator Machine Room Plan Guide: Key Elements for Smart Design: Fast-Track Guide to Crafting an Elevator Machine Room Plan

I plan elevator machine rooms the same way I plan critical control spaces: compact, logical, and maintenance-friendly. A well-designed machine room safeguards uptime, minimizes noise and vibration, and streamlines inspections. Done right, it improves both building performance and operator safety without inflating footprint.

Elevator environments interact with broader building criteria. WELL v2 highlights acoustic and safety considerations across building systems, while IES standards provide guidance on light levels and glare control in technical rooms; maintenance spaces typically benefit from 300–500 lux task lighting with low-glare luminaires for accurate reading of instrumentation (IES recommendations for commercial task areas). From workplace studies, Steelcase reports that controllable noise and lighting conditions contribute measurably to staff performance and wellbeing, relevant when technicians perform precise diagnostics. These data points anchor the case for specifying targeted lighting, acoustic control, and ergonomic access in machine rooms. For deeper reference, WELL v2 (wellcertified.com) and IES standards (ies.org/standards) offer comprehensive guidance on health, safety, and lighting.

Core Functional Zoning

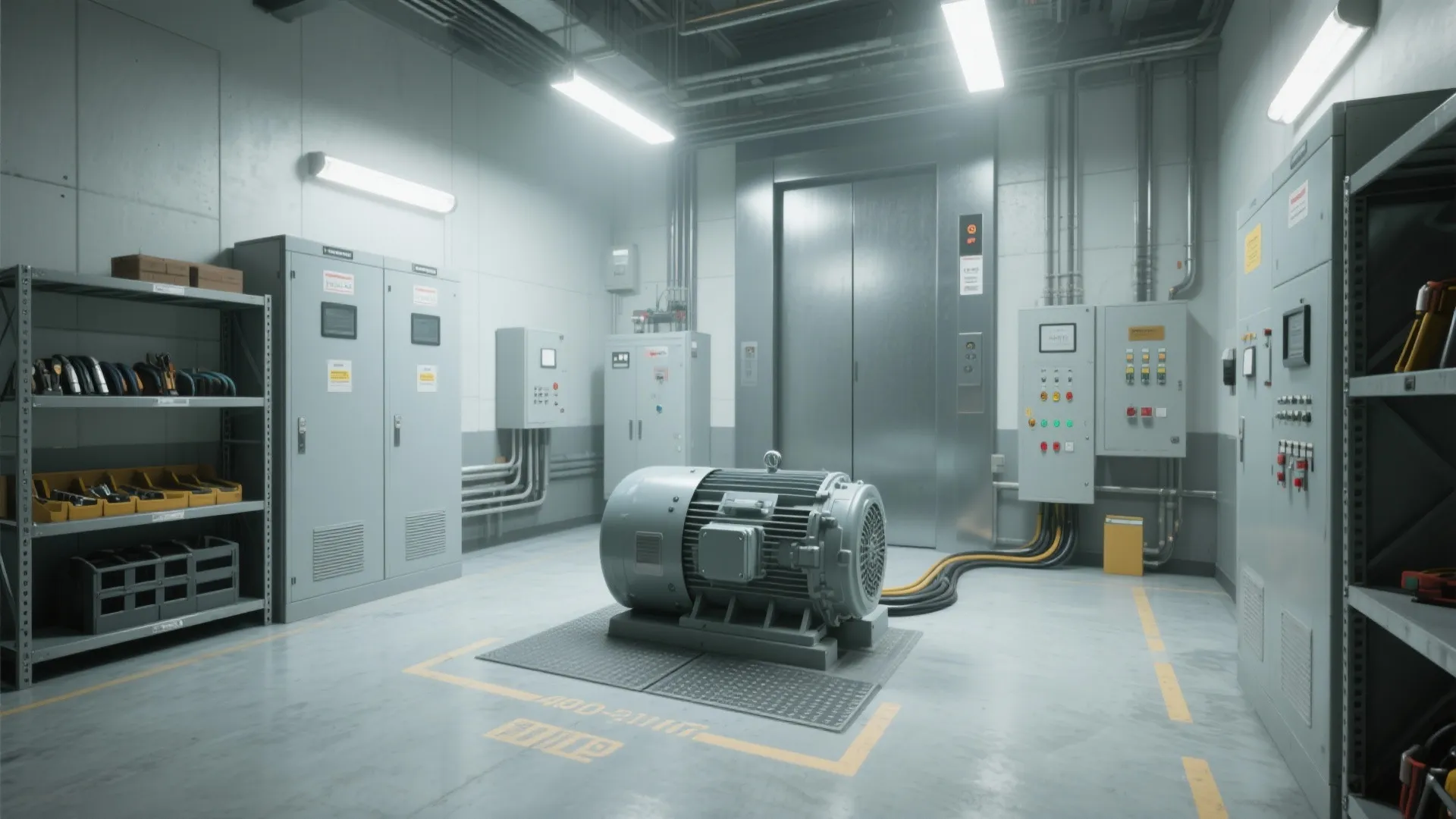

I separate the machine room into three operational zones: drive & control, power & safety, and service & circulation. Drive & control houses the traction machine (or hydraulic power unit), controller cabinets, encoders, and communication interfaces. Power & safety consolidates main disconnects, line reactors, emergency power transfer, fire alarm integration points, and grounding bars. Service & circulation includes tool storage, spare parts shelving, document station, and clear pathways for equipment removal. When I’m coordinating early layouts, a room layout tool helps simulate equipment footprints, clearances, and technician reach ranges to avoid conflicts at cable runs and door swings: room layout tool.

Spatial Ratios and Clearances

Clearances are the backbone of maintainability. Provide unobstructed working space in front of controller cabinets (often 1,000–1,200 mm is practical), and maintain full swing for access doors. Reserve a removal path from the machine to the corridor or roof hatch in case of major overhauls. Keep minimum 600–900 mm around major equipment for routine service. Structural bays should accommodate equipment loads with vibration isolation pads or inertia slabs. I plan cable entry points to reduce bends and avoid pinch hazards, and I position the controller at comfortable reach height (roughly 900–1,200 mm to control interfaces) to align with basic ergonomics.

Lighting and Visibility

Precise lighting supports safe diagnostics. I specify 400–500 lux general illumination with auxiliary task lighting near control panels and test points. Correlated color temperature around 4000–5000K balances visibility and visual comfort. Glare control via diffusers or prismatic lenses prevents specular reflection off metal housings. Emergency egress lighting must stay independent of machine circuits. I label luminaires to circuits giving technicians predictable control during tests. Following IES guidance helps achieve consistent contrast and legibility for wiring diagrams and digital displays.

Acoustic Comfort and Vibration Control

Traction machines and hydraulic power units generate tonal and broadband noise. I decouple equipment from structure using spring or neoprene isolators, specify resilient mounts for control cabinets, and avoid rigidly connecting conduit runs across isolation joints. Acoustic panels with NRC 0.70+ help absorb mid-frequency noise in smaller rooms. Seal penetrations and use solid-core doors with gaskets to limit transmission into adjacent habitable areas. Where shafts adjoin residences or offices, I add double-stud partitions or mass-loaded vinyl layers to improve STC performance without sacrificing maintainability.

Thermal Management and Ventilation

Controllers, drives, and motors need stable temperatures for reliability. I size ventilation or HVAC to maintain approximately 10–32°C operating range depending on manufacturer specs, with spot cooling for VFDs. Cross ventilation reduces heat pockets; avoid blowing directly onto sensors. Leave return air paths clear behind cabinets. Filtration limits dust ingress, protecting relay contacts and fans. I prefer dedicated HVAC controls to avoid shutdown when the building BMS schedules setbacks, aligning with WELL principles on thermal comfort control.

Power, Safety, and Redundancy

Electrical distribution should be readable, segregated, and safe. Provide lockable main disconnects with clear labeling, accessible grounding points, and robust cable management using trays or ladder racks. Emergency power transfer (where applicable) needs testable bypass procedures and visible schematics. Fire alarm interfaces, heat detectors, and smoke control strategies must be coordinated with the building life safety plan. I keep a printed and digital O&M binder on site, including one-line diagrams, controller firmware versions, service logs, and contact sheets.

Ergonomics and Human Factors

Technicians work in tight spaces under time pressure. I position interfaces at standing reach, use uniform labeling (sans-serif, high contrast), and mount task lights with flexible arms near test points. Shelving heights follow comfortable reach envelopes—heavy spares at waist height, infrequent items higher. Provide an anti-fatigue mat near primary service areas. A small bench with ESD-safe surface supports board-level work without risking component damage.

Access, Egress, and Code Coordination

Doors should open outwards with adequate width for equipment removal; I coordinate with structural and fire teams to meet rated enclosure requirements. Keep pathways free of obstructions, with non-slip flooring and tactile cues for step changes. Signage includes equipment ID, voltage warnings, PPE requirements, and emergency procedures. Where roof access is required for hoisting, I plan anchor points and safe routes early with the contractor. Maintain clear separation from other building services to prevent cross-interference.

Cable Management and Documentation

Neat cable routing simplifies troubleshooting. I use color-coded ferrules or sleeves, labeled trays, and segregated runs for power, control, and communication. Bundles should avoid tight bends and high-heat areas. Every enclosure gets a wiring diagram pocket; I add QR codes linking to digital manuals and maintenance history. A whiteboard or digital display helps track service routines and open issues, reducing handover friction between teams.

Material Selection and Durability

Finishes must tolerate oil, dust, and vibration. I specify sealed concrete floors with light reflectance to boost visibility, semi-gloss washable wall coatings, and corrosion-resistant hardware. Shelving and benches use powder-coated steel; fasteners are organized in bins with clear labels. Sustainability matters even in utility spaces—choose low-VOC coatings and durable materials that reduce lifecycle replacements.

Risk Management and Maintenance Strategy

Preventive maintenance starts with design. Provide inspection windows where feasible, install condition monitoring (temperature, vibration) on key equipment, and ensure software backups for controllers. I schedule service zones so two technicians can work without conflict, and I include a clear staging area for parts. Red-tag and lockout stations are visible and standardized to reduce errors during live testing.

Workflow and Layout Simulation

Before finalizing, I simulate technician workflows: entering the room, switching power, accessing the controller, performing diagnostics, and replacing parts. The sequence exposes pinch points near door swings, lighting shadows on panels, and storage congestion. Iterating layout with an interior layout planner gives a low-cost way to visualize clearances and circulation prior to construction: interior layout planner.

Practical Checklist

- Zoned plan: drive/control, power/safety, service/circulation

- Clearances around cabinets and removal path for major equipment

- 400–500 lux lighting, 4000–5000K, glare control at panels

- Acoustic isolation and sealed penetrations

- Stable HVAC with spot cooling for drives

- Lockable disconnects, labeled grounding, organized trays

- Ergonomic access heights and task lighting

- Rated enclosure, outward-opening door, non-slip flooring

- Document station and QR-linked manuals

- Durable, low-VOC materials and washable finishes

- Condition monitoring and lockout/tagout stations

- Workflow simulation before construction

FAQ

Q1: What illumination level is appropriate for an elevator machine room?

A1: Aim for 400–500 lux general lighting with task lights near panels. This supports accurate reading of diagrams and displays, aligning with IES guidance for technical task areas.

Q2: How do I control noise from traction machines?

A2: Use spring/neoprene isolators, resilient cabinet mounts, seal penetrations, and consider acoustic panels with NRC 0.70+. If rooms adjoin occupied spaces, add mass and decoupling (e.g., double-stud walls).

Q3: What temperature range should I maintain?

A3: Keep equipment within manufacturer specs; a practical range for controls and drives is about 10–32°C with spot cooling for VFDs. Provide dedicated HVAC control to avoid BMS setbacks affecting reliability.

Q4: Which clearances matter most for maintainability?

A4: Maintain 600–900 mm around major equipment, 1,000–1,200 mm in front of controllers, full door swings, and an unobstructed removal path for heavy components.

Q5: How should power and safety systems be organized?

A5: Install lockable main disconnects, clearly labeled grounding bars, segregated cable trays for power/control/comms, and accessible emergency power transfer points with readable one-line diagrams.

Q6: What ergonomic considerations improve technician safety?

A6: Mount interfaces within comfortable reach (roughly 900–1,200 mm), provide anti-fatigue mats, use high-contrast labeling, and position heavy spares at waist height to reduce strain.

Q7: Do color temperatures affect visibility during diagnostics?

A7: Yes. Neutral-cool 4000–5000K lighting enhances contrast for text and indicator LEDs without the harshness of very cool light, improving accuracy and comfort.

Q8: How can layout simulation help before construction?

A8: Simulation exposes conflicts in clearances, door swings, lighting shadows, and cable routes, allowing quick iterations to optimize workflow and safety with a room design visualization tool.

Q9: What documentation should be kept on site?

A9: Keep O&M manuals, wiring diagrams, controller firmware versions, one-line electrical drawings, service logs, and emergency procedures—both printed and accessible digitally.

Q10: How do I manage cables to simplify troubleshooting?

A10: Use segregated trays, labeled conduits, color-coded sleeves, gentle bend radii, and keep power separated from low-voltage control and communication lines.
