Elevator Without Machine Room: Space-Saving Solutions for Modern Homes: Fast-Track Guide to Efficient Elevator Designs Without Machine Rooms

Compact living is redefining vertical circulation at home, and machine-room-less (MRL) elevators are increasingly the go-to option for tight footprints. I choose MRL systems in townhouses, penthouses, and mid-rise residences where every square foot matters and roof access is limited. The appeal is clear: the drive and control equipment integrate into the hoistway, eliminating the bulky rooftop or adjacent machine room. That efficiency, however, demands careful coordination of structure, vibration control, power, ventilation, and code compliance to deliver a quiet, safe ride that feels intentional within the architecture.

Space savings alone aren’t enough—I design for measurable performance. WELL v2 suggests background noise levels in residences should be controlled to support occupant comfort; in practice, I target ambient noise in circulation cores below NC-30 and keep elevator pass-by sound in adjacent rooms under 35 dBA. For lighting inside the cab, I follow IES recommendations on illuminance for residential circulation (around 100–150 lux) while minimizing glare with diffused lenses and low UGR fixtures. To balance wellbeing and practicality, the elevator lobby receives 200–300 lux and warm-neutral color temperatures around 3000–3500K. For broader workplace and human factors research that often translates well to homes—especially for home offices integrated near elevator cores—I keep an eye on Steelcase insights into cognitive load and acoustics, which reinforce the need to isolate mechanical noise from living areas. See more at steelcase.com/research.

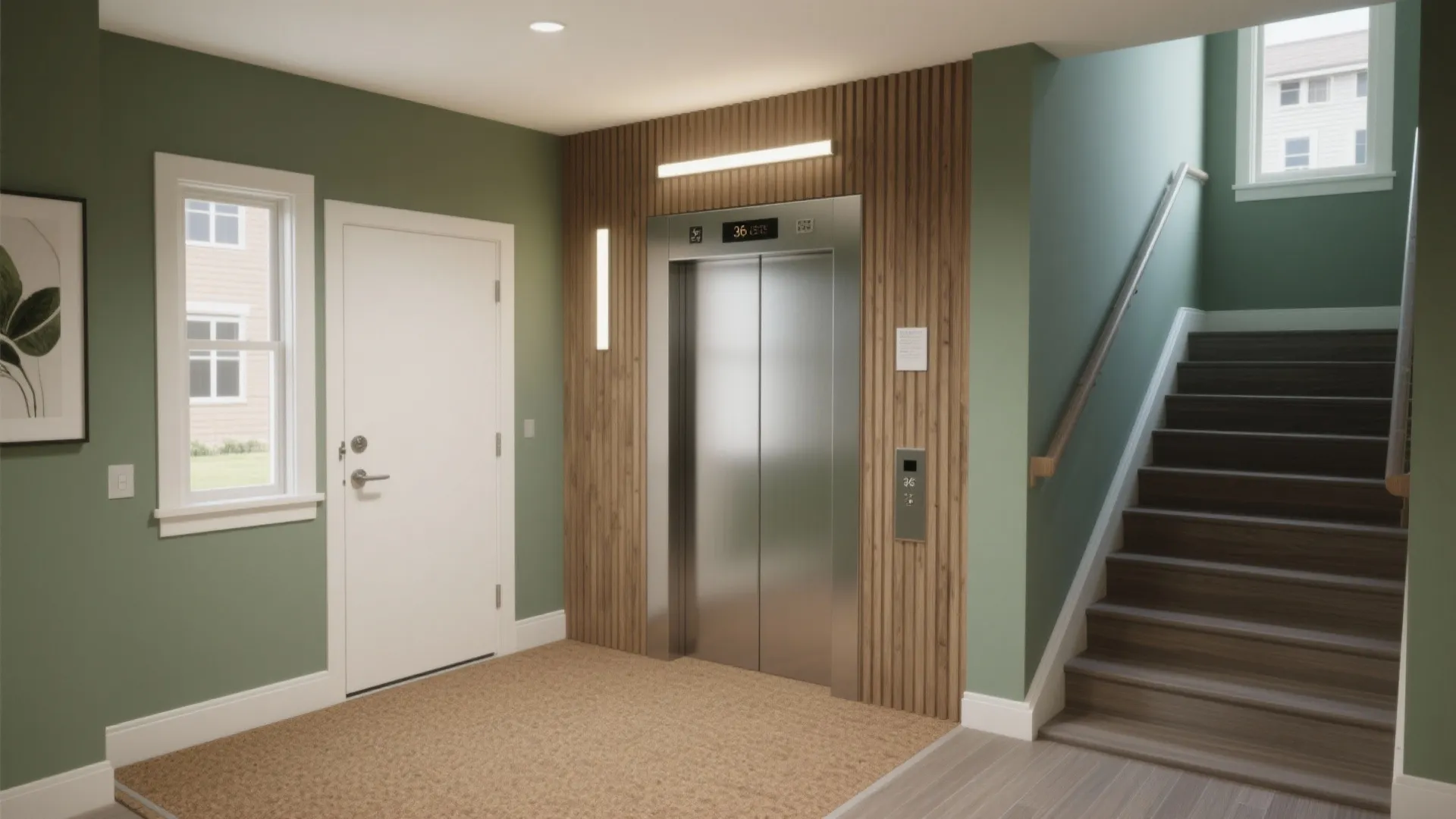

Color psychology plays a subtle role. Verywell Mind’s synthesis indicates blues and greens can promote calm and reduce stress, while warmer hues add a sense of welcome. In small elevator lobbies, I’ve had success pairing desaturated greens with warm timber for grounded comfort—especially effective near bedrooms where transitions should feel soothing. The key is controlling reflectance so the cab doesn’t feel claustrophobic: walls at 50–70% LRV, floor at 20–30% LRV for footing clarity, and ceiling around 80% LRV to lift perceived height without glare. When layouts are tight, a room layout tool can help simulate clearances between the elevator, stairs, and doors before construction: room layout tool.

What Makes MRL Elevators Different

MRL elevators integrate traction or hydraulic drive components within the hoistway, usually above the cab for traction systems or within a compact pit for hydraulic variants. No separate machine room means less envelope complexity, fewer penetrations, and simpler waterproofing at the roof. The trade-off is precision: structural tolerances for rail alignment, vibration isolation pads at load points, and access panels for maintenance must be baked into the architectural set early. I coordinate concealed ventilation paths to keep equipment temperatures stable (often through louvered doors or sidewall ducts) and specify service lighting in the head and pit areas to meet maintenance requirements.

Footprint, Clearances, and Structural Coordination

Most residential MRL cabs range from 36–48 inches wide by 48–60 inches deep, with doors typically 36 inches clear to align with common accessibility targets. The hoistway thickness and pit/headroom vary by manufacturer, but I plan for roughly 8–12 inches of pit depth and 9–11 feet total headroom for low-rise residential traction models; hydraulic options may adjust those numbers. The biggest coordination point is the beam or slab at rail fixings—ensure adequate embed plates and vibration control to prevent low-frequency hum traveling through the structure. If the elevator shares a wall with bedrooms or a home office, add a resilient channel and mineral wool in the partition to keep noise below the WELL v2 comfort thresholds.

Ride Quality and Acoustic Comfort

MRL systems have improved dramatically in ride smoothness and dBA performance. I specify gearless traction with variable frequency drives where possible, because acceleration curves can be tuned to feel effortless and avoid jolt at start/stop. Acoustic comfort hinges on three details: isolators at machine and rail anchor points, balanced cab weight with counterweights to minimize motor strain, and a sealed, gasketed door frame that prevents air whistling. For homes with open atriums, consider an acoustically absorptive ceiling or wall paneling near the elevator lobby—wood slats with acoustic backing or micro-perforated gypsum can reduce reflected noise without a commercial look.

Lighting, Controls, and Human Factors

The most elegant cab lighting uses edge-lit panels or compact linear LEDs with high CRI (90+) to avoid a sterile feel. Glare control matters: diffuse lenses, vertical illuminance to aid facial recognition, and a small downlight over the control panel for legibility. For ergonomics, center the main control at 36–48 inches above finished floor, with tactile feedback on call buttons and clear type contrast (dark text on light background or vice versa). Maintain door dwell times that allow safe entry for older adults and kids, typically in the 3–7 second range, and include a visible countdown or soft chime. If your entry corridor faces natural light, consider 3000K in the cab to avoid color temperature shock.

Materials, Durability, and Sustainability

Residential cabs invite a warmer palette than commercial installations: matte wood veneers, low-VOC laminates, and brushed stainless or powder-coated metal for edges. Floors should be resilient and quiet—cork-backed LVT or rubber tiles both absorb sound and resist scuffing. Prioritize low-emitting materials to protect indoor air quality; select adhesives and finishes that meet common residential green standards. For sustainability, traction MRL systems consume less energy over time than classic hydraulic units, and LED lighting cuts load further. If a hydraulic MRL is required for site constraints, specify biodegradable hydraulic fluid and a robust containment strategy.

Safety, Access, and Code Coordination

Residential elevators must meet local codes and manufacturer standards, including door safety sensors, emergency lowering, two-way communication, and accessible car controls. Tolerances on sill gaps and door clearances are critical to child safety—pair mechanical edges with light curtains in family homes. Provide a dedicated circuit with surge protection, battery backup for lighting, and a small UPS for the controller if permitted. Ensure the hoistway has smoke-tight construction per local requirements, and design the lobby with a clear turning radius for mobility devices.

Layout Strategies for Small Homes

Fitting an elevator into a compact plan is most successful when paired with circulation upgrades. I often stack the shaft against the stair to consolidate vertical cores, or place it on an exterior wall for simpler structural loads. Aligning the cab doors with primary pathways reduces door conflicts and furniture pinch points. Before committing, simulate swing clearances, waiting areas, and furniture pathing with an interior layout planner to visualize the living impact: interior layout planner.

Maintenance Access Without a Machine Room

Without a separate room, service access becomes a design element. Provide lockable panels at the top landing for controller access, full-height clearance around the machine area, and safe ladder points in the pit. Integrate LED work lights in the head with an independent switch, and keep HVAC ventilation routes clean to avoid dust buildup that can shorten drive life. Good planning prevents service calls from intruding on daily life.

Budget and Value

MRL elevators carry a premium over conventional hydraulic units, but the cost of building a separate machine room often narrows the gap. Value comes from reclaimed floor area, simpler roof detailing, and better aesthetics within compact footprints. Consider lifecycle costs—gearless traction reduces energy consumption and maintenance frequency, and LED lighting plus smart standby modes cut utility bills.

When an MRL May Not Fit

Very low headroom or tricky structural spans can favor alternate solutions like short-rise platforms or compact hydraulic units. In heritage buildings with rigid constraints, a remote machine cabinet may deliver better maintenance access. I assess site limits first, then match technology to the constraints rather than forcing a fit.

FAQ

1) Are MRL elevators safe for homes with children?

Yes, when specified and installed with modern door sensors, light curtains, compliant sill gaps, and emergency communication. Add clear signage and maintain regular inspections.

2) How much space do I need for an MRL elevator?

Typical residential cabs are 36–48 inches wide and 48–60 inches deep, with pits around 8–12 inches and headroom near 9–11 feet for low-rise traction. Confirm exact dimensions with the manufacturer.

3) Will an MRL elevator be noisy?

Properly installed gearless traction MRLs are quiet. Aim for ambient levels under NC-30 in adjacent rooms and seal doors to prevent air noise. Place resilient channels and mineral wool in shared walls.

4) What lighting should I use inside the cab?

Provide 100–150 lux with high CRI LEDs, diffuse lenses, and a small task downlight over the panel. Match 3000–3500K color temperature to residential warmth and reduce glare.

5) Do I still need a machine room for maintenance?

No, but you must provide access panels, service lighting, and adequate ventilation within the hoistway and head area to meet maintenance needs.

6) How does color affect the elevator experience?

Use calming hues like desaturated blues or greens and control reflectance: walls at 50–70% LRV, ceiling around 80% to enhance perceived height without glare. This aligns with widely referenced color psychology findings.

7) Is traction better than hydraulic for homes?

Gearless traction generally offers smoother rides and lower energy use. Hydraulic may suit sites with limited overhead but consider biodegradable fluid and containment strategies for sustainability.

8) Can I integrate the elevator near a home office without distraction?

Yes. Isolate structure-borne noise with vibration pads and resilient partitions, keep pass-by sound under ~35 dBA, and place acoustic finishes in the adjacent lobby.

9) What about power and backup?

Provide a dedicated circuit, surge protection, and battery backup for cab lighting. A small UPS for the controller can support basic functions if allowed by local code.

10) How do I plan the elevator layout in a tight floor plan?

Stack it near the stair or an exterior wall, align doors with primary pathways, and simulate clearances using a layout simulation tool to avoid conflicts.

11) Are there health or wellbeing standards relevant to home elevators?

WELL v2 highlights acoustic and light comfort. Target soft sound levels and balanced lighting in lobbies to support comfort, using IES guidance for illuminance.

12) What ongoing maintenance should I expect?

Routine inspections, lubrication, controller updates, and cleaning of ventilation paths. Keep service documentation accessible in the top landing cabinet.
