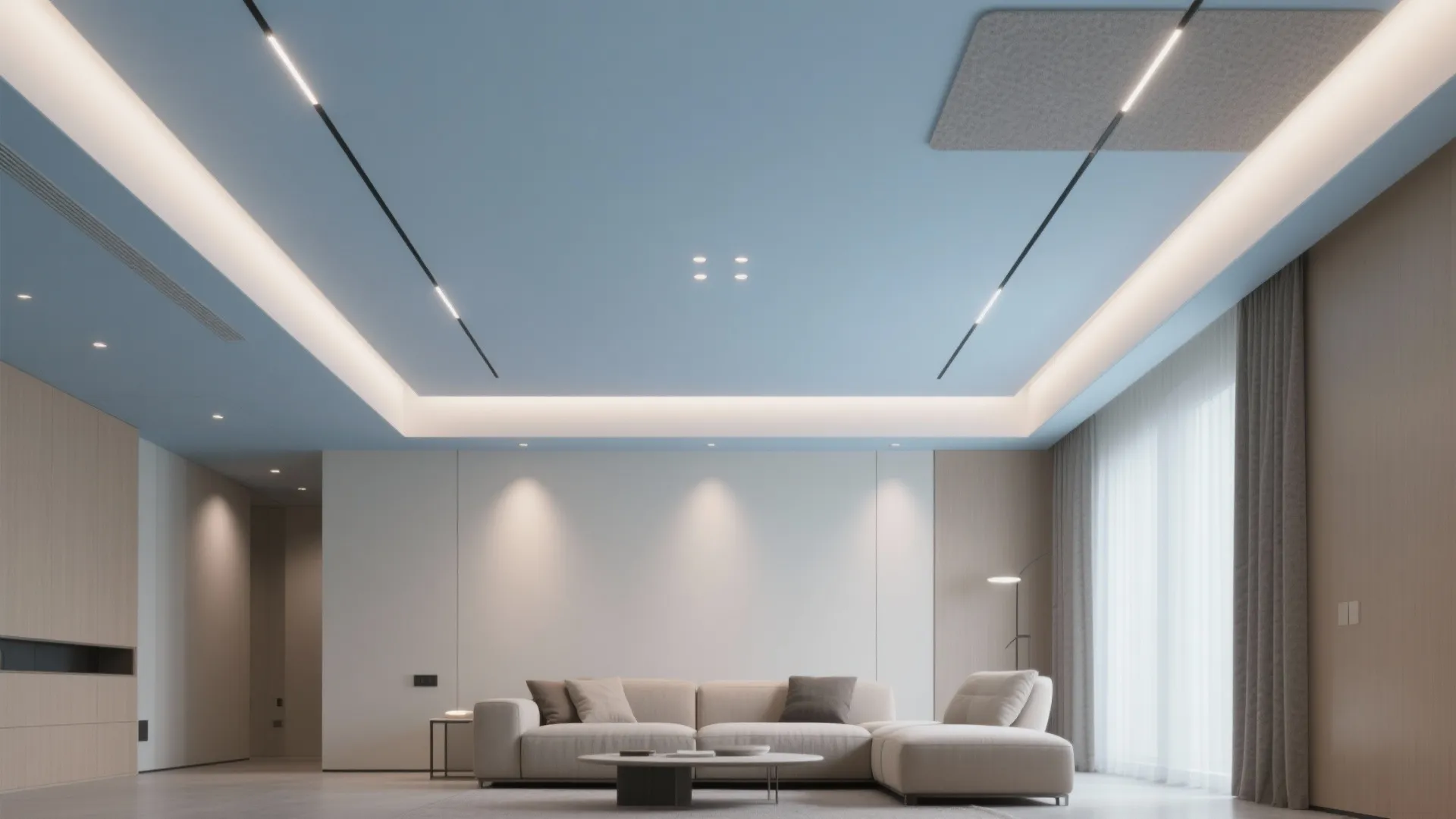

False Ceiling Design for Low Height Room: Space-Saving Solutions: Fast-Track Guide to Stylish and Smart Ceilings for Low Spaces

Low-height rooms can feel instantly taller with the right false ceiling strategy. I focus on optical height, light balance, and technical integration to make compact spaces breathe. Ceiling depths under 3 inches can still hide wiring, control glare, and guide acoustics—without making the room feel compressed.

Lighting and health standards back this up. WELL v2 highlights the role of balanced illumination and glare control in perceived comfort, recommending thoughtful layers and circadian-supportive options for occupant well-being (see WELL Building Standard). Steelcase research also shows that visual comfort reduces cognitive load, improving satisfaction and perceived spaciousness in compact work and living settings. I translate these principles into thin, precise ceilings that feel taller while performing better.

Color psychology adds another lever: lighter, cooler tints on ceilings recede visually, while higher reflectance finishes push light deeper. Verywell Mind notes that cool hues tend to feel more expansive and calm—an edge in low-height rooms where visual compression is the main challenge. Combined with tight-beam task lighting and soft ambient fill, the ceiling becomes a tool to stretch proportions, not steal height.

Principles That Make Low Ceilings Feel Higher

- Keep the drop minimal: 1–3 inches for cable runs, drivers, and slim fixtures.

- Prioritize vertical rhythm: perimeter reveals, shadow gaps, or crown light bands that pull the eye upward.

- Control glare and brightness ratios: layer diffused ambient with targeted task beams to avoid hot spots under a low lid.

- Use high-reflectance finishes: eggshell to satin ceiling paints (LRV 75–90) bounce light and visually lift.

- Segment thoughtfully: break up large planes with sleek channels or beams to introduce scale—never bulky boxes.

- Leverage color psychology: cooler ceiling tones (soft gray-blue, misty sage) visually recede more than warm creams.

Ultra-Slim False Ceilings: Depth-Saving Tactics

- 1–1.5 inch service plenum: enough for low-profile LED channels, micro-downlights, and cable management.

- Magnetic linear systems: surface or semi-recessed rails support modular heads with minimal cutouts.

- Perimeter trough lighting: a 2-inch cove can wash walls and lift the ceiling plane through indirect bounce.

- Shadow gap detail: 8–12 mm negative reveal at wall-ceiling junction adds a floating effect without extra depth.

- Select slim drivers and remote gear: mount drivers in accessible side panels or closets to keep ceiling thin.

Perimeter Lighting That Lifts the Room

A shallow perimeter slot with a 2700–3000K indirect LED can wash walls evenly, raising perceived height. I aim for 200–300 lux ambient on the vertical surface for living rooms, stepping to 300–500 lux for task zones per IES task recommendations. Indirect light softens ceiling presence and visually stretches corners—especially powerful in rooms under 8 feet.

Micro-Downlights and Tight Beam Control

Use 1–2 inch micro-downlights with 15–30° beams to create focused task pools while keeping the ceiling visually quiet. Anti-glare baffles and UGR-conscious trims help reduce glare. Space fixtures wider apart and avoid grid monotony; asymmetrical, intentional placement feels lighter and more architectural.

Color, Finish, and Sheen Strategy

- Ceiling: cool, desaturated lights (LRV 80–90) in eggshell or matte-plus to reduce glare but maintain bounce.

- Walls: one step warmer than the ceiling to amplify ceiling lift; use 60–70 LRV on primary walls.

- Accents: keep darker hues low (baseboards, low storage) to anchor the room and emphasize verticality.

Acoustic Comfort Without Bulk

Low heights magnify echoes because reflective surfaces sit closer to ear level. Instead of heavy acoustic clouds, introduce narrow PET felt baffles or micro-perforated gypsum panels in thin arrays. Staggered, shallow baffles break flutter echo while keeping sightlines clean. Prioritize perimeter and first-reflection points, not blanket coverage.

Smart Integration: HVAC, Sprinklers, and Sensors

- Align diffusers with linear lighting to consolidate cuts in the ceiling plane.

- Use sidewall registers where possible to reduce plenum depth.

- Cluster sprinklers with downlight lines to maintain order.

- Choose low-profile presence and temperature sensors that sit flush or ride within linear channels.

Layout-Led Decisions

Ceilings should echo furniture and circulation. I run linear light and reveals along dominant sightlines, not randomly across the room. If you’re testing furniture positions or circulation shifts in a compact home, a room layout tool helps pre-visualize how ceiling bands and coves align to zones. Try a layout simulation tool like this interior layout planner to map light to use patterns: room layout tool.

Ceiling Patterns That Add Height

- Perimeter float: a continuous shadow gap and soft uplight; the center remains flush, bright, and clean.

- Central spine: a narrow linear channel runs the long dimension to extend perspective.

- Interrupted ribs: two or three thin, evenly spaced beams to add rhythm without weight.

- Diagonal wash: indirect light on a feature wall at 30–45° to elongate the room’s perceived axis.

Human Factors: Visual Comfort and Behavior

Low ceilings compress the vertical field of view. Reducing contrast above eye level stabilizes the experience—no glittering trims or overly bright points. Warm dim (3000K to 2200K) supports evening relaxation; cooler ambient (3500–4000K) can aid morning activation. Match color temperature to behavior, not just aesthetics.

Materials and Sustainability

- Gypsum with high recycled content and low-VOC finish.

- PET felt baffles (recycled polyester) for thin acoustic gains.

- FSC-certified wood veneers in narrow slats for warmth without mass.

- LED with high efficacy (100+ lm/W), CRI 90+ for color quality, and serviceable components for longevity.

Small Room Types and Tailored Ceilings

- Bedrooms: perimeter cove with indirect warm dim, micro-reading spots over the headboard, minimal center fixtures.

- Living rooms: wall-washers to lift art or shelving; ceiling remains quiet with a slim central spine.

- Kitchens: combine slim linear task lights under cabinets with a shallow central panel for ambient fill.

- Entryways: a single linear run aligned to the door sightline draws the eye forward, reducing perceived ceiling weight.

Common Mistakes to Avoid

- Dropping the entire ceiling uniformly when only edges need depth.

- Over-gridding with too many downlights.

- Mixing color temperatures, causing visual clutter.

- Using glossy ceiling finishes that amplify glare in low spaces.

- Ignoring acoustic buildup from hard surfaces.

How I Prototype in Tight Rooms

I mock up beam angles with portable LED strips and painter’s tape before finalizing channels. I also test paint samples on the actual ceiling plane and observe at night and day; identical swatches read differently overhead. A single evening of prototypes can save an inch of unnecessary drop—and that inch matters.

References and Further Reading

- WELL v2 guidance on Light and glare control: wellcertified.com

- Steelcase research on visual comfort and satisfaction in compact environments: steelcase.com/research

FAQ

What is the minimum drop for a false ceiling in a low-height room?

In many residential cases, 1–1.5 inches can house micro-LED channels and cable runs. If you need to hide larger drivers, aim for 2–3 inches and relocate power gear to side panels where possible.

How much ambient light should I target?

For living spaces, 200–300 lux ambient with supplementary task lighting works well. Kitchens and work zones benefit from 300–500 lux. Use dimming to fine-tune, and avoid glare under a low lid.

Which color temperature makes a low ceiling feel taller?

Neutral-warm (3000–3500K) paired with high reflectance paints lifts the plane without harshness. Cooler ambient (3500–4000K) can feel more spacious in the morning but balance it with warm dim for evenings.

Are cove lights better than downlights in low rooms?

Often yes. Indirect perimeter coves wash walls and reduce ceiling presence, increasing perceived height. Downlights are best used sparingly as focused task beams with anti-glare trims.

How do I control echo without bulky acoustic panels?

Use narrow PET felt baffles, micro-perforated gypsum, or fabric-wrapped strips at first-reflection points. A thin, discontinuous array usually breaks flutter echo without lowering the ceiling significantly.

Can I align HVAC and lighting to save height?

Yes. Consolidate linear diffusers with lighting channels, shift some air distribution to sidewalls, and use low-profile sensors. Fewer penetrations keep the ceiling visually calm and reduce depth requirements.

What ceiling paint finish works best?

Eggshell or a low-sheen matte that provides high reflectance without sparkly glare. Aim for LRV 80–90 on the ceiling in compact rooms to maximize bounce.

How do I plan ceiling patterns with my furniture layout?

Map sightlines from doors and main seating, then run linear elements along those axes. Prototype in a digital interior layout planner to test how lighting bands reinforce zones: room layout tool.

Do false ceilings reduce resale appeal in low-height homes?

Not if they’re thin, serviceable, and improve comfort. Buyers value integrated lighting, better acoustics, and tidy cabling—provided the perceived height is preserved with indirect light and light finishes.

What beam angles should I choose for micro-downlights?

Use 15–30° for task or accent, 40° for broader pools. Keep peak candela out of typical sightlines to minimize glare in low rooms.
