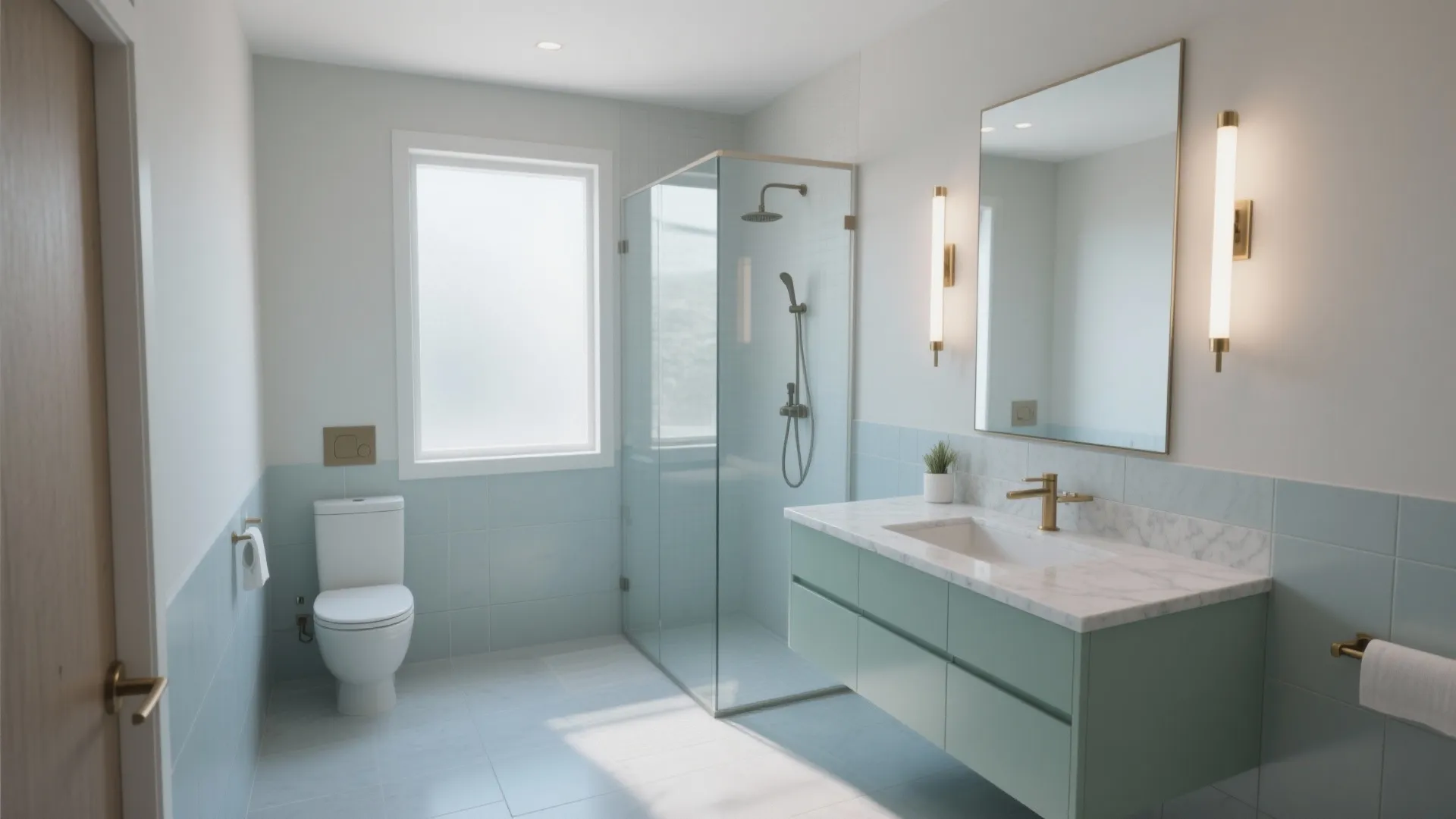

Floor plan 8x9 bathroom layout: Creating the Perfect 8x9 Bathroom Layout for Functionality and Style

An 8x9 bathroom offers enough footprint to accommodate a comfortable primary bath or a smartly organized family bathroom without feeling cramped. With 72 square feet, I typically aim for clear circulation, code-compliant fixtures, and a balance of storage with visual calm. Space planning must start with verified clearances: the International Residential Code commonly guides minimum fixture spacing, while ergonomic research supports user comfort ranges. Steelcase reports that well-organized environments reduce cognitive load and decision time, which is directly relevant when you’re navigating morning routines in tight quarters. From a wellness perspective, WELL v2 recommends glare control and adequate illuminance—bath tasks generally benefit from 300–500 lux at the vanity and 200–300 lux ambient levels.

For layout logic, I prioritize placing the toilet away from the immediate sight line when the door opens and ensuring 21 inches minimum clear front space at the lavatory and 24–30 inches if possible for comfortable movement. NKBA planning guidelines note 30 inches minimum clear floor space at a shower entry and prefer 36 inches for barrier-free comfort. Color plays a role in perceived spaciousness: research summarized by Verywell Mind suggests cooler hues can feel more expansive, while warm accents provide comfort—ideal for balancing a compact plan.

Core 8x9 Configurations

Across my projects, four reliable configurations suit 8x9 bathrooms:

1. Single Vanity + Alcove Tub/Shower + Private WC Zone: Door opens to a lateral vanity, tub/shower on the far wall, toilet tucked behind a half-height partition for visual privacy.
2. Double Vanity + Walk-In Shower + Toilet: Works when you stack sinks on the 9-foot wall and run a 36–42 inch shower opposite. This needs meticulous plumbing and a minimum 36 inch clear aisle.
3. Wet Room Concept: Shower area and floor share continuous waterproofing; vanity and toilet remain outside the splash zone with a linear drain. This maximizes visual continuity.
4. Accessible-Friendly Layout: A 60 inch turning circle, curbless shower, and lever hardware. Keep the sink at 34 inches max height with knee clearance where needed.

Door, Circulation, and Sight Lines

I prefer pocket or outswing doors to free up wall area for towel bars and storage. A 32–36 inch clear opening supports ease of entry. Place mirrors and windows to bounce natural light without creating direct glare onto glossy tiles. If your plan involves shifting major fixtures, a room layout tool can quickly test clearance and flow while visualizing door swings and shower glass positions:

room layout tool

Lighting and Glare Control

Task lighting at the vanity should be vertical, flanking the mirror at eye level to reduce shadows. Aim for 300–500 lux at the face with 2700–3000K color temperature for warmth, paired with a 3500–4000K ambient layer if you want a crisper morning feel. The Illuminating Engineering Society’s standards emphasize uniformity and glare control; diffuse ceiling lighting plus a dimmable shower downlight creates flexibility for evening routines. If the bathroom lacks windows, integrate a high-CRI LED scheme to keep skin tones accurate.

Fixtures and Clearances

For an 8x9, a 60 inch tub fits comfortably on the 8-foot wall with a standard 30–32 inch depth. Showers should target 36x60 inches for everyday comfort; 42x60 inches if you want a bench. Maintain at least 15 inches from centerline of toilet to side wall (18 inches preferred) and 24 inches clear in front, with 30 inches delivering noticeably better usability. A 24–30 inch deep vanity balances storage and knee space; if opting for double sinks, keep 36 inches minimum between them or adopt a single sink with generous counter space.

Storage Strategy

Recessed niches in showers, a shallow 6–8 inch medicine cabinet, and a full-height linen tower near the door keep daily items accessible but off the counter. Use drawer organizers for cosmetics and electric tools; concealed charging in the vanity reduces visual clutter. Finish hardware in the same metal family to create coherence.

Materials and Maintenance

In a 72 sq ft bath, material rhythm affects perceived size. Large-format porcelain tile with minimal grout lines expands visual width. Choose slip-resistant flooring in wet zones (look for >= 0.42 DCOF). Solid-surface or quartz counters resist staining; use moisture-tolerant paints (often labeled for bath use). Warm wood tones on a floating vanity can soften the envelope while exposing more floor, increasing airiness.

Acoustics and Ventilation

A quiet exhaust fan (rated around 0.3–0.7 sones) with appropriate CFM based on room size keeps humidity in check—run it for 20 minutes post-shower. Sound-softening elements like towels, shower curtains, and matte finishes help reduce harsh reflections. Seal gaps and ensure the fan exhausts to the exterior.

Color Psychology and Mood

For morning energy, I lean toward soft neutrals with cool undertones—light gray, mist blue, or pale sage—paired with warm metal accents. Verywell Mind’s color psychology overview notes blues promote calm; in compact baths, they also reinforce freshness. Reserve richer colors for accessories or a single feature wall to limit visual fragmentation.

Three Sample 8x9 Layouts

Plan A: Balanced Family Bath

Door on the 8-foot wall. Left: 60 inch vanity with centered sink and 24 inches of landing on each side. Opposite: 60 inch alcove tub/shower with sliding glass. Toilet near the far corner, screened by a 42 inch half wall. Keep 36 inches clear aisle in the center.

Plan B: Shower + Double Vanity

Door on the 9-foot wall, opening toward a 72 inch double vanity. Right: 42x60 inch shower with a corner bench. Toilet on the short wall opposite the vanity; ensure 30 inches clear front space. This plan prioritizes two users with good storage.

Plan C: Wet Room Serenity

Continuous floor tile with a linear drain across the 8-foot wall. Curbless 42x60 inch shower shares space with a freestanding vanity opposite. Toilet tucked beside a storage tower. Use frameless glass to maintain sight lines, and slope the floor 1/4 inch per foot toward the drain.

Ergonomics and Human Factors

Mount mirrors so the center is at roughly 60–64 inches above finished floor, adjust for household height. Place towel bars 48 inches high, robes at 66 inches. Keep frequently used items between 30–48 inches for easy reach. Rounded counter edges and soft-close hardware reduce accidental bumps in tighter circulation paths.

Budget and Phasing

Prioritize plumbing locations early; relocating the toilet is often the most expensive move. Spend on waterproofing, ventilation, and lighting layers before decorative upgrades. If phasing, complete wet area and ventilation upgrades first, then vanity and storage, finishing with accessories and mirrors.

Authority References

To deepen the planning rigor, review WELL v2’s perspective on lighting and comfort and Steelcase research on human-centered environments:

1. WELL v2
2. Steelcase Research

FAQ

How wide should the main circulation be in an 8x9 bathroom?

I aim for a 36 inch clear path where possible; 32 inches minimum can work, but 36 inches improves comfort with two users.

Can I fit a double vanity in 8x9?

Yes, if you dedicate the 9-foot wall and keep the vanity depth to 21–24 inches, leaving at least 30–36 inches of clear aisle.

What’s the ideal shower size?

36x60 inches is a sweet spot for everyday comfort; 42x60 inches allows a bench and more elbow room.

Should I choose a tub or shower?

If bathing small children or resale in a family market, a tub is valuable. Otherwise, a walk-in shower with good storage often suits adult households better.

How do I reduce glare at the vanity?

Use vertical sconces at eye level on both sides of the mirror, diffused lenses, and 2700–3000K LEDs.

What color palette makes the space feel larger?

Light neutrals and cooler undertones expand perceived size; reserve darker hues for accents to avoid visual segmentation.

Is a pocket door worth it?

In tight rooms, a pocket or outswing door frees wall space for storage and avoids door-swing conflicts with fixtures.

How can I add storage without clutter?

Use recessed niches, a shallow medicine cabinet, and a tall linen tower; integrate concealed power for grooming tools.

What ventilation rating should I target?

Select a quiet fan around 0.3–0.7 sones with proper CFM for room size; run it 20 minutes after showers.

Do I need a curbless shower?

Not required, but curbless improves accessibility and visual continuity. Ensure proper slope and waterproofing to prevent leaks.
