Floor Plan Fuel Station Design Layout: Creating an Efficient and Functional Fuel Station Layout

Direct Answer

A well planned fuel station floor plan design layout organizes vehicle circulation pump placement and retail space to reduce congestion and increase safety. The most effective layouts separate entry and exit routes keep fueling lanes wide and position the convenience store where customers naturally pass after fueling.

Good design is not just about fitting pumps on a site. It is about controlling traffic flow visibility and customer movement so the station operates smoothly even during peak hours.

Quick Takeaways

1. Separate entry and exit lanes reduce vehicle conflicts and improve fueling speed.
2. Pumps should align with traffic flow not against it.
3. Convenience stores perform better when placed along the natural walking path from pumps.
4. Oversized forecourts often reduce efficiency rather than improve it.
5. Clear truck zones prevent congestion with passenger vehicles.

Introduction

After working on multiple commercial forecourt projects over the last decade I can say this clearly a smart fuel station floor plan design layout matters more than most owners expect. Many stations struggle not because of location but because the site was laid out poorly from day one.

I have seen brand new stations where vehicles constantly block each other trucks mix with passenger cars and customers avoid the convenience store simply because the walking route feels awkward. The surprising part is that most of these problems start at the planning stage.

In this guide I will walk through the layout decisions that actually make a fuel station efficient profitable and safe based on real projects and common design mistakes I have seen repeatedly.

save pin

Why Fuel Station Layout Planning Matters More Than Pump Count

Key Insight A station with fewer pumps but better traffic design often serves more vehicles per hour.

Many developers focus on maximizing the number of pumps. In practice traffic flow determines how many vehicles a station can serve. If cars cannot easily enter maneuver and exit the site the pumps stay idle even during busy periods.

In several redesign projects I worked on we removed one pump island but widened the maneuvering area. The result was shorter queues and faster turnover.

1. Vehicles need clear turning radius around pump islands
2. Drivers prefer visible open lanes before entering
3. Exit routes must be immediately understandable

According to guidelines used by major fuel brands like Shell and BP forecourt circulation typically works best when vehicles follow a simple forward motion path rather than complex turning loops.

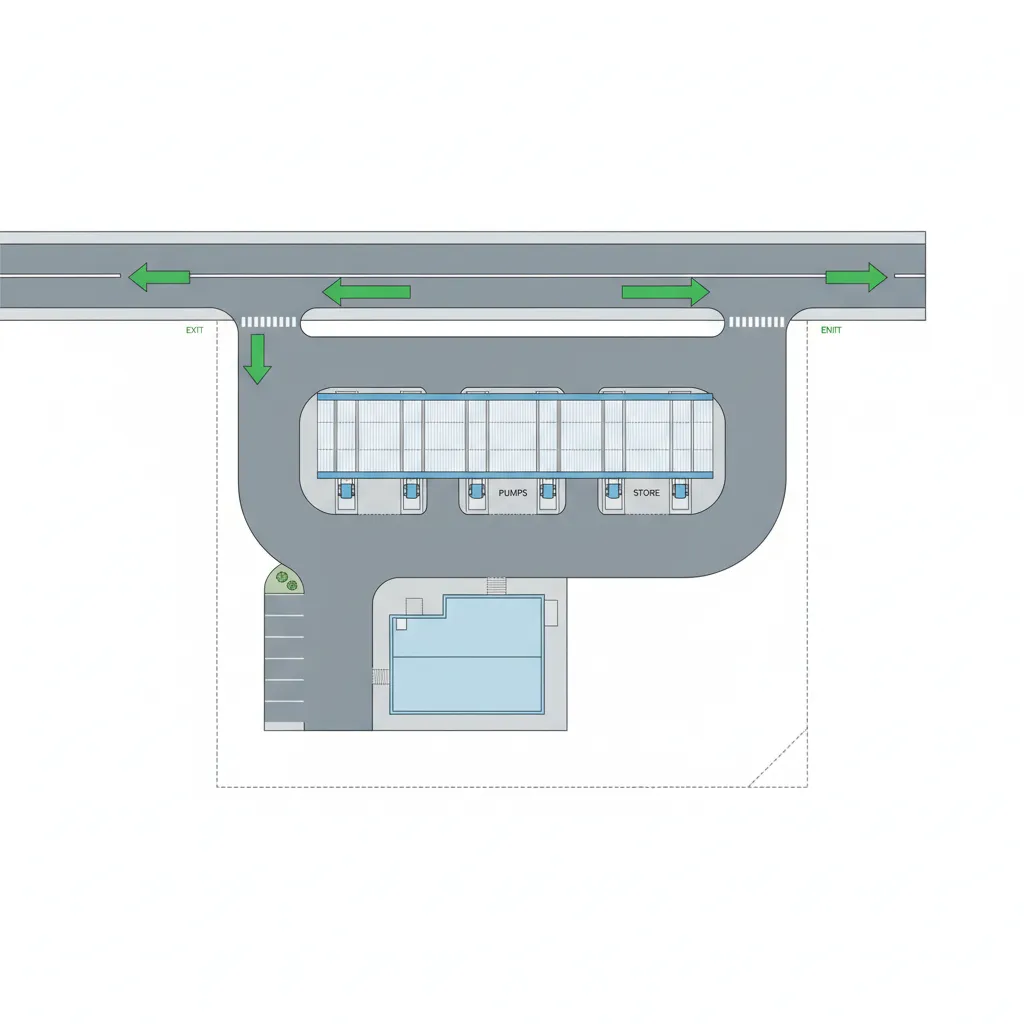

What Is the Ideal Fuel Station Floor Plan Layout

Key Insight The most reliable layout uses parallel pump islands aligned with traffic flow and a clear entrance to exit movement.

Across most successful stations the layout follows a simple logic drivers enter fuel move forward and exit without reversing or crossing traffic.

Typical layout structure:

1. Entry driveway aligned with street traffic direction
2. Two or three pump islands positioned parallel to circulation lanes
3. Convenience store visible from entrance
4. Exit driveway placed after the last fueling row

This layout minimizes confusion and reduces internal congestion which is especially important during peak commuting hours.

save pin

How Wide Should Fueling Lanes and Circulation Areas Be

Key Insight Underestimating lane width is one of the most expensive mistakes in fuel station design.

Designing tight forecourts may allow more pumps on paper but creates operational headaches later. Vehicles need enough room to maneuver around parked cars especially when SUVs pickup trucks or vans are involved.

Common practical dimensions used in modern stations:

1. Fueling lane width 6 to 7 meters
2. Drive aisles 7 to 9 meters
3. Truck circulation lanes 12 meters or more
4. Pump island width about 1.2 to 1.5 meters

These ranges appear in many planning guidelines used across North America and Europe and they match what I have seen perform well in real sites.

Where Should the Convenience Store Be Located

Key Insight The store should sit directly in the natural pedestrian path from pump islands to the exit.

Many owners assume the store simply needs to face the street. In practice its relationship with the pumps matters more.

Effective store positioning strategy:

1. Front entrance visible from fueling area
2. Clear walking path from pump islands
3. Parking spots near the store but not blocking fuel circulation
4. Windows facing the forecourt for safety visibility

In several projects we slightly rotated the store entrance toward the pumps rather than toward the road. That small adjustment increased store visits noticeably.

save pin

Common Hidden Design Mistakes in Fuel Station Layouts

Key Insight Most layout problems come from mixing different vehicle types in the same circulation space.

One issue I frequently encounter is designers planning the forecourt assuming only passenger vehicles. In reality delivery trucks fuel tankers and service vehicles all use the site.

Common mistakes:

1. Truck routes crossing customer fueling lanes
2. Tankers blocking circulation during refueling
3. Driveways placed too close to intersections
4. Poor canopy column placement reducing turning space

These issues rarely appear on simple 2D diagrams but become obvious once the station starts operating.

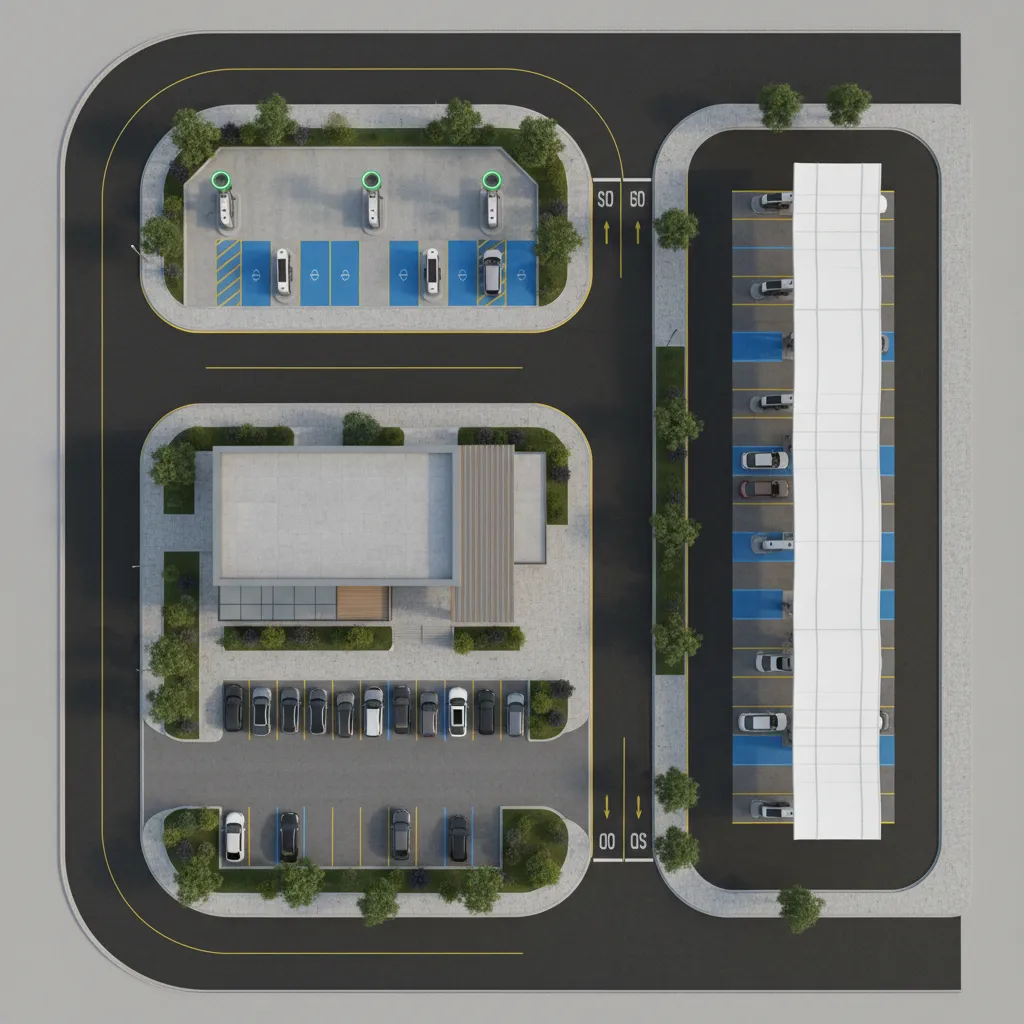

How Modern Fuel Stations Are Adapting Their Floor Plans

Key Insight Modern stations increasingly prioritize retail access and EV charging integration.

Fuel stations today are evolving into small roadside retail hubs. That shift changes how layouts are planned.

Emerging layout trends:

1. Separate EV charging parking zones
2. Larger convenience store footprints
3. Dedicated food pickup parking
4. Clear pedestrian routes between store and pumps

In recent projects I have worked on the store sometimes generates more profit than fuel sales. That means the forecourt must guide customers naturally toward the building.

save pin

Answer Box

The best fuel station floor plan design layout prioritizes traffic flow visibility and safety rather than maximizing pump count. Clear entry and exit routes wide fueling lanes and strategic convenience store placement create a station that operates efficiently and attracts more retail customers.

Final Summary

1. Traffic flow design determines station efficiency more than pump quantity.
2. Parallel pump islands aligned with circulation work best.
3. Fueling lanes must be wide enough for modern vehicles.
4. Convenience stores should sit on natural customer walking paths.
5. Separate zones for trucks and EV charging improve long term operations.

FAQ

What is the best fuel station floor plan design layout?

The most effective layout aligns pump islands parallel to vehicle circulation with separate entry and exit points. This reduces congestion and allows vehicles to move through the forecourt smoothly.

How many pumps should a typical fuel station have?

Most urban stations operate efficiently with 4 to 8 pump islands depending on site size traffic volume and lane width.

What is the minimum size for a fuel station forecourt?

Many planners recommend at least 30 to 35 meters of forecourt depth to allow safe circulation and maneuvering around pump islands.

Why do some fuel stations feel congested?

Congestion usually comes from poor circulation design narrow lanes or pump islands positioned against the main traffic direction.

Should EV chargers be included in fuel station layouts?

Yes. Many modern fuel station floor plan design layouts now include EV charging zones positioned away from traditional fueling lanes.

Where should fuel tanker trucks access the site?

Ideally through a separate service entrance or a circulation route that avoids crossing customer fueling areas.

How wide should pump lanes be?

Most stations operate best with fueling lanes between 6 and 7 meters wide depending on vehicle mix.

Does store placement affect fuel station sales?

Yes. A convenience store positioned along the natural customer walking route from pumps significantly increases in store purchases.
