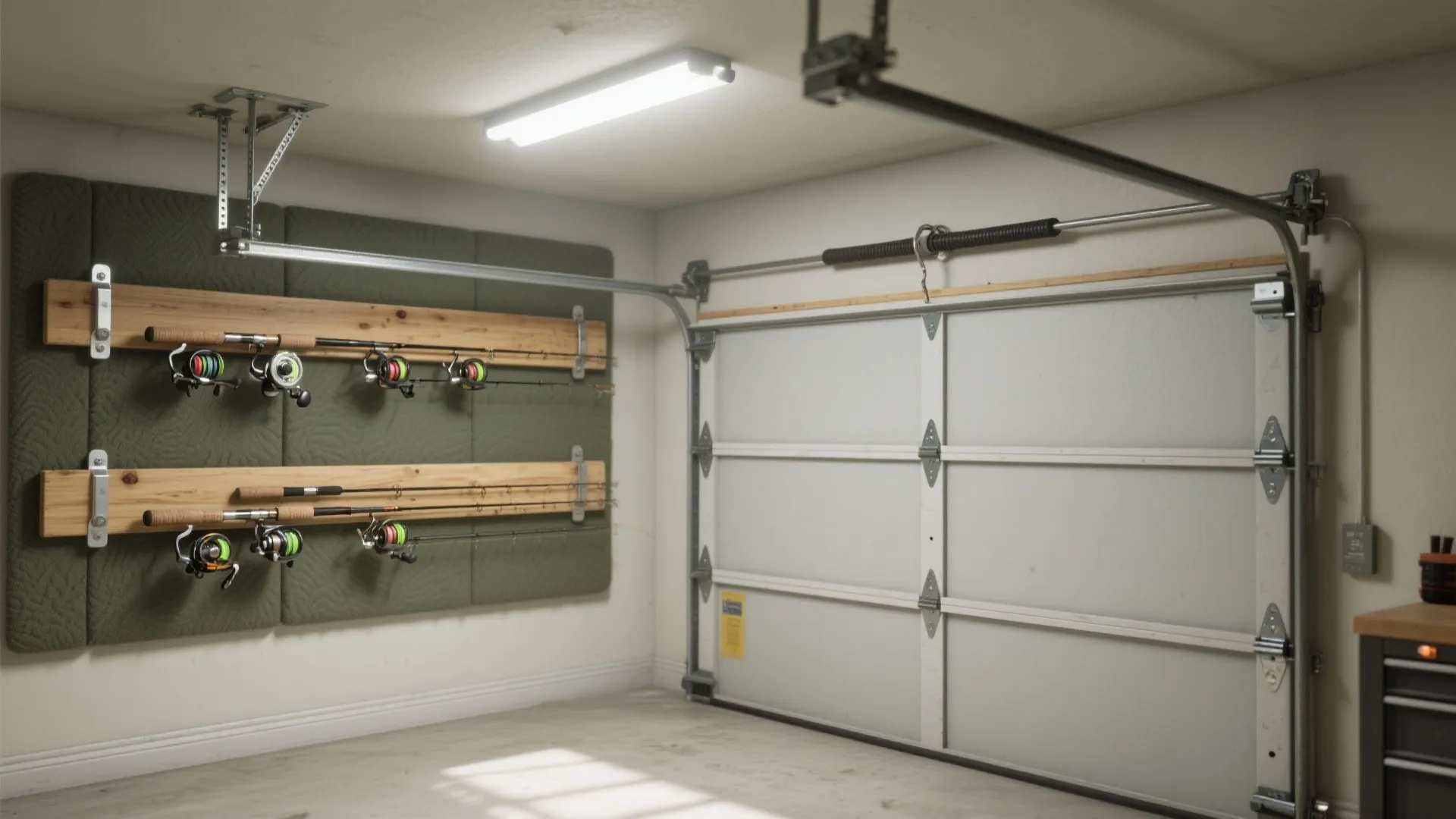

Garage Door Fishing Rod Holder DIY: Easy Space-Saving Solution: 1 Minute to a Clutter-Free Garage with This Simple Fishing Rod Storage Hack

Floor space in a small garage disappears fast—lawn tools, bins, and seasonal gear compete for every inch. I’ve found the overhead plane above the garage door to be an overlooked storage zone that neatly fits long, lightweight items like fishing rods. By mounting a rod holder to the ceiling or the track support area, rods stay straight, off the ground, and protected from accidental dings.

Before building, consider the environmental conditions around a garage door. According to the Illuminating Engineering Society (IES), recommended illuminance for task areas typically ranges around 300–500 lux, which is helpful when measuring, drilling, and inspecting rod guides and reel seats. I keep a 4000K LED shop light aimed at the door track zone for clean color rendering during the build. On the ergonomics side, Herman Miller’s research highlights how reducing awkward reaches and minimizing strain can help avoid repetitive stress—so I design the holder to load rods at shoulder height, avoiding overhead strain and ladder use.

Fishing rods are light but sensitive; fiberglass and graphite blanks can warp if stored under constant side pressure, and reel gears don’t love grit. A ceiling-mounted holder needs three basics: gentle support points, even spacing that matches guide positions, and a clean path to insert and remove rods without scraping. I use two parallel rails—one slotted “butt rail” and one “tip rail”—so rods rest on soft contact, distribute their weight, and never pinch line guides.

Design Goals and Necessary Clearances

Garage doors roll or tilt, and that movement dictates safe zones. I aim for a holder that sits 1–1.5 inches above the highest arc of the door hardware and springs, with at least 2 inches of lateral clearance from moving parts. Most standard single doors are 7–8 feet high; if your opener track sits at 6.5–7.5 feet, confirm that your rod’s longest length can slide in without contacting the opener trolley. For workflow ergonomics, a reach envelope of 18–24 inches from the body keeps loading comfortable and reduces wrist extension.

Materials and Sustainability Choices

I favor a simple, durable bill of materials: two 1x4 pine boards for rails, closed-cell foam pipe insulation for padding, heavy-duty rubber-lined stainless clips or nylon rod hooks, and #10 pan-head screws with fender washers. Pine is easy to drill and lightweight; if humidity worries you, use exterior-grade finish or consider bamboo plywood for a stronger, more sustainable option. Avoid bare metal on rod blanks; foam or cork pads prevent micro-abrasions. If you fish saltwater, consider stainless fasteners to resist corrosion.

Layout Planning and Spacing

Plan for rods between 6 and 8 feet. I set the butt rail and tip rail 10–12 inches apart, with hook spacing at 6–8 inches. This keeps guides floating clear and spreads contact points so no single guide carries load. Map where reels land; spinning reels usually sit lower and require slightly more vertical clearance than baitcasters. If your garage layout is tight, simulate positions digitally with a room layout tool to confirm you won’t conflict with door hardware or lights.

room layout tool

Step-by-Step Build

1) Measure and mark: With the door fully open, trace the highest moving part and mark a rail line 1–1.5 inches above it. Confirm studs or use heavy-duty anchors if attaching to ceiling drywall. 2) Prep rails: Cut two 1x4s to the width of your door bay. Wrap closed-cell foam along the top edges and secure with contact adhesive or double-sided tape. 3) Install hooks: On the butt rail, add larger rubber-lined clips to hold rod handles and reel seats. On the tip rail, use smaller hooks or soft cable loops. Keep pairs aligned. 4) Mount rails: Fasten rails to joists with two screws per joist; pre-drill to avoid splitting. 5) Test with the longest rod: Slide in and out while cycling the door to confirm zero interference. 6) Label lanes: If you fish multiple setups, subtle labels keep rods organized by technique—topwater, finesse, trolling—so you grab and go.

Light, Color, and Visual Comfort

Good light matters when threading guides and checking line. I target roughly 300–500 lux using diffuse LED strips above the holder to avoid harsh glare on glossy blanks. For comfort, neutral-white light at 4000K balances visibility without washing out color-coded lure bands. Color psychology suggests that cooler hues can make spaces feel cleaner and more task-focused; I use a gray-green accent panel behind the rails to create visual contrast so rod tips are easy to spot.

Acoustic and Vibration Considerations

Garage doors vibrate, and resonance can rattle rod guides. Foam padding and rubber-lined hooks damp micro-vibrations. If your opener is loud, a soft gasket under the rail helps decouple it from joists. Keep reels secured; dangling handles can knock against boards. A simple Velcro strap around each reel seat silences movement.

Human Factors and Daily Use

I set the lowest rod lane between 58 and 64 inches above the floor, close to shoulder height for most adults, minimizing overhead reach. For kids, add a lower lane or a removable step platform. Place rods so heavier setups are closest to the main approach path; you’ll naturally grab those first without reaching over lighter rods. The clean workflow—enter, select rod, exit—keeps fishing trips quick and reduces handling time.

Maintenance and Long-Term Care

Wipe rails quarterly, and check screws annually. If you store wet rods, add a breathable mat or perforated foam to prevent trapped moisture. Keep desiccant packs in a nearby bin for reels. Inspect line guides for burrs; damage often comes from accidental knocks. If you see scuffs on foam, rotate or replace the padding to keep surfaces gentle.

Safety Notes

Never mount where the door’s torsion springs or cables could snag line. Cycle the door several times post-install to confirm full clearance. Avoid storing rods with treble hooks exposed; use hook keepers or lure wraps. If your garage gets extreme heat, protect line and lubricants by storing reels in a shaded bin after mounting rods.

Data-Backed Design Touchpoints

Two practical references anchor this build: IES task lighting guidelines help keep sightlines clear for safe drilling and inspection; meanwhile, ergonomic principles from Herman Miller’s research promote neutral reaches and reduced strain when loading rods. I’ve also tested rod spacing over years of project garages—8 rods across a single-bay door area is realistic without crowding, assuming 6–8 inch spacing.

Quick Variations

- Magnetic tip stops: Use low-strength magnets under foam to gently index tips without pinching. - Sliding lanes: Mount rails to aluminum strut to fine-tune spacing for fly rods versus trolling rods. - Removable rack: Build rails on a lightweight frame and hang it from two ceiling hooks when needed, freeing space in off-season.

FAQ

Q1: Will a ceiling-mounted holder interfere with the garage door opener?

A1: Not if you keep the rails 1–1.5 inches above the highest moving hardware and maintain a 2-inch lateral buffer. Test with the door cycling after installation.

Q2: What lighting helps when loading rods?

A2: Aim for task illuminance around 300–500 lux with diffuse LEDs near 4000K to reduce glare and preserve color contrast, consistent with IES lighting guidance.

Q3: How do I prevent rod guide damage?

A3: Use foam padding and rubber-lined hooks, space supports 6–8 inches apart, and avoid bare metal contact. Keep tips floating without side pressure on guides.

Q4: Is it safe to store reels on the rods?

A4: Yes, if reels are secured with Velcro straps to prevent rattling. In very hot garages, consider removing reels to a shaded bin to protect lubricants.

Q5: What fasteners work best?

A5: Stainless screws with fender washers into ceiling joists provide strong, corrosion-resistant connections. Use heavy-duty anchors only if joists aren’t accessible.

Q6: Can I fit fly rods and trolling setups on the same rack?

A6: You can by mixing hook sizes and leaving adjustable lanes. Wider spacing near bulky reels and narrower spacing for slim fly rod handles works well.

Q7: How high should the lowest rod lane be?

A7: Around 58–64 inches keeps loading near shoulder height, aligning with ergonomic principles that minimize overhead reaches and wrist extension.

Q8: What about vibration from the door?

A8: Foam pads, rubber-lined hooks, and a thin gasket under the rails damp vibrations. Secure reel handles to avoid knocking noises.

Q9: Will humidity affect the rack?

A9: Use sealed or exterior-grade finishes on pine, or switch to bamboo plywood. Keep desiccant packs nearby and ensure airflow to avoid trapped moisture.

Q10: How many rods can I store over a single-bay door?

A10: Typically 6–8 rods fit comfortably with 6–8 inch spacing, depending on reel size and garage width.
