Garage Plans with 2-Bedroom Apartment — 5 Smart Ideas: Small footprint, big function: practical design inspirations for garage-plus-2-bedroom apartment layouts

I once tried to squeeze a full laundry, bike storage and a tiny gym into a garage apartment and ended up with a client jokingly asking if they had just purchased a mobile home — lesson learned: small spaces demand ruthless priorities and playful solutions. That little fiasco taught me that a garage with a 2-bedroom apartment above or attached can be a goldmine of creativity if you focus on flow, daylight and smart storage. In this piece I share 5 practical design inspirations I’ve used in real projects to turn tight garage plans with a 2-bedroom apartment into comfortable, efficient homes.

1. Stack vertically: garage below, living above

This is my go-to when site slope or zoning allows — put the parking and utilities on the ground level and place the living, kitchen and two bedrooms on the upper floor. Advantages: privacy for residents, better natural light up top, and easier separation of mechanical systems. Challenges: you’ll need a compact stair design and good soundproofing between levels. For budget savings, consider modular pre-fab stair kits and insulated floor assemblies; on one project I reduced noise transmission by layering resilient channels and a dense underlayment, which worked wonders.

save pin

2. Side-by-side: garage and apartment on one plane

An accessible plan for single-story sites — the garage sits beside the 2-bedroom unit with a shared mudroom or hallway. It keeps everything on one level for universal design, and offers easy direct access for groceries or moving furniture. The downside: you may lose some private outdoor space unless you tuck a patio behind the apartment. Pro tip: use a sliding barn door between the garage entry and living zone to save swing space and provide a buffer for smells or fumes.

save pin

3. Convertible garage: flexible footprint for evolving needs

If your clients want options (workshop now, extra bedroom later), design the garage with future conversion in mind. Use a floor slab sized and leveled for living use, pre-run plumbing/electrical access points, and pick a garage door that can be swapped for an insulated wall. The reward is long-term adaptability; the trade-off is slightly higher up-front cost for future-proofing. I once planned conduit runs and stubbed-in drains during construction that saved the owner thousands when they converted to a rental unit two years later.

save pin

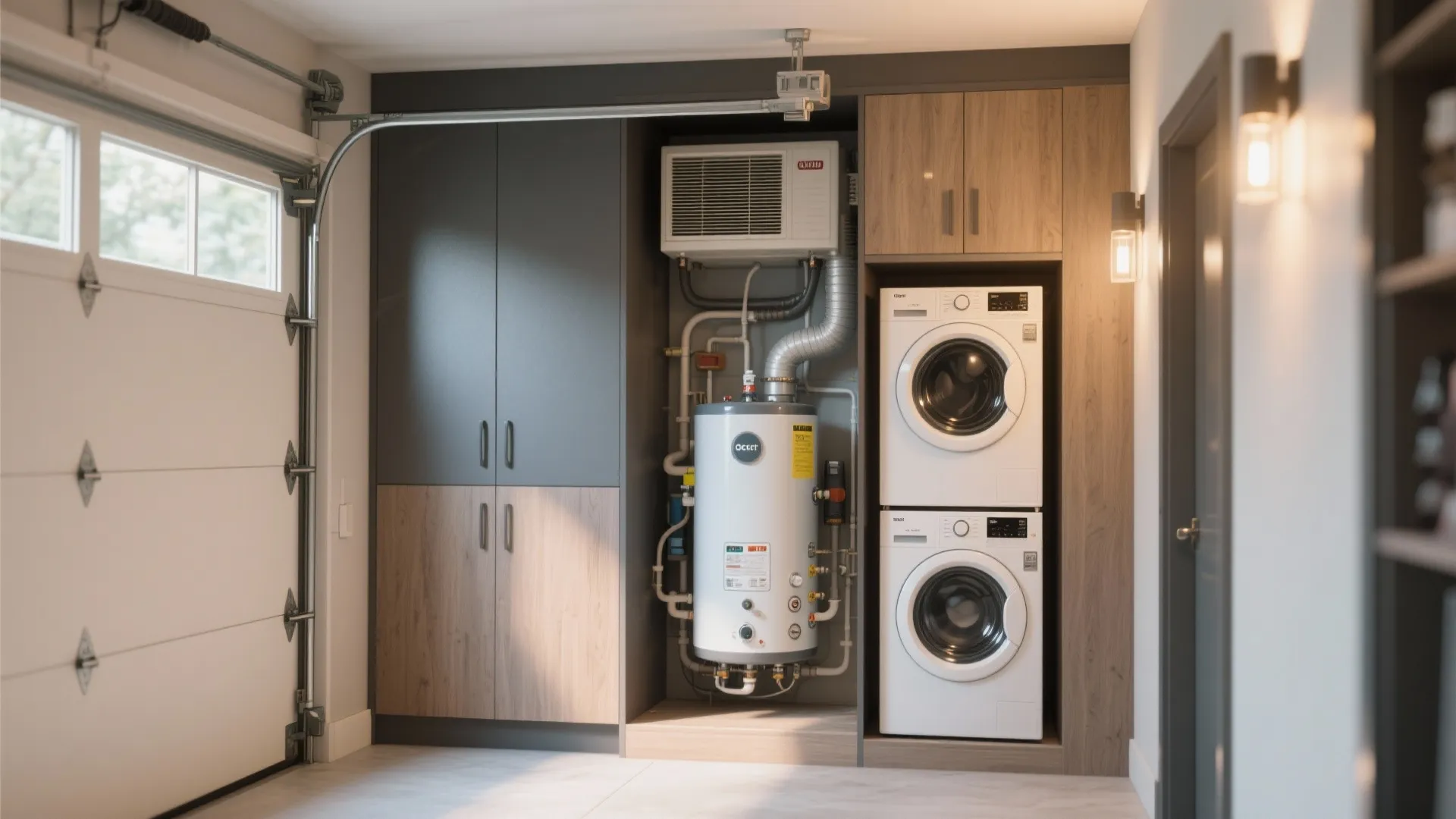

4. Shared systems: efficient MEP routing

Combining HVAC, water heater and laundry locations in a central utility closet that serves both garage and the 2-bedroom apartment reduces material costs and simplifies maintenance. This clustering means shorter duct runs and fewer penetrations through fire separations, but you must carefully design for fire safety and ventilation. On a tight project I routed a compact ductless heat pump and concealed the indoor unit behind a custom cabinet — efficient and tidy, though it required precise coordination with the contractor.

save pin

5. Light wells & courtyards: daylight tricks for lower-level apartments

When part of the apartment is set lower than grade or adjacent to the garage, bring in light with a small courtyard or light well. It improves perceived space, allows for operable windows, and creates a private outdoor nook. The drawback is a little more excavation and waterproofing detail work, but the payoff in livability is huge. I designed a 6-foot-wide light well with planting and a bench for a client; the bedroom felt twice as large afterward.

save pin

Tips 1:

Thinking about layouts? Try drawing three quick bubble diagrams: one for circulation, one for utilities, one for daylight. If you want digital help visualizing stacking and circulation, I sometimes use a 3D floor planner to quickly test massing and fenestration options. Also keep zoning setbacks and parking minimums in mind early — they often dictate where the garage must sit and how big the upstairs apartment can be.

save pin

FAQ

Q: What are the common zoning issues for garage with 2-bedroom apartments? A: Rules vary by municipality but common issues include accessory dwelling unit regulations, lot coverage, setbacks, and minimum parking. Always check local ADU and accessory building rules first.

Q: How do I ensure fire safety between garage and living spaces? A: Typically you need a fire-rated separation, self-closing doors, and sealed penetrations; consult local building code and your contractor for required fire-resistance ratings.

Q: Can a garage apartment be rented separately? A: Often yes, but you must comply with local rental, ADU, and occupancy rules; permits and separate egress may be required.

Q: What is the best way to minimize sound transmission? A: Staggered studs, resilient channels, dense insulation, and double-layered drywall help a lot. Decoupling the floor/ceiling assembly is especially effective.

Q: How much does conversion from garage to apartment typically cost? A: Conversion costs widely vary, but budgeting conservatively for insulation, HVAC, plumbing, and windows is prudent — many conversions fall in the mid-five-figure range depending on finishes and scope.

Q: Are rainwater and drainage concerns for light wells significant? A: Yes — they require proper sloping, drains, and waterproofing to avoid leakage. Follow manufacturer and local code guidance for below-grade details. For technical standards consult the International Residential Code (IRC) where applicable (see IRC chapters on foundations and waterproofing).

Q: What utilities are easiest to share between garage and apartment? A: Hot water and sometimes HVAC if sized correctly; electrical distribution can be shared but should have dedicated circuits for living spaces. Plan a central utility hub for efficiency.

Q: How do I test a layout before building? A: Sketch bubble diagrams, draw a simple floor plan, and if you want a quick 3D mock-up use a free floor plan creator to confirm circulation and daylight before committing to construction.
